APC Easy UPS 700va 230v Avr Iec Sockets

£79.34 (incl. VAT)

Qty:

Add to basket

Part Number:	BVX700LI
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

Access monitoring
Detect access by unauthorized personnel via door switch.

Transformer-block spaced outlets
Protect equipment with input transformer blocks without blocking access to other receptacles.

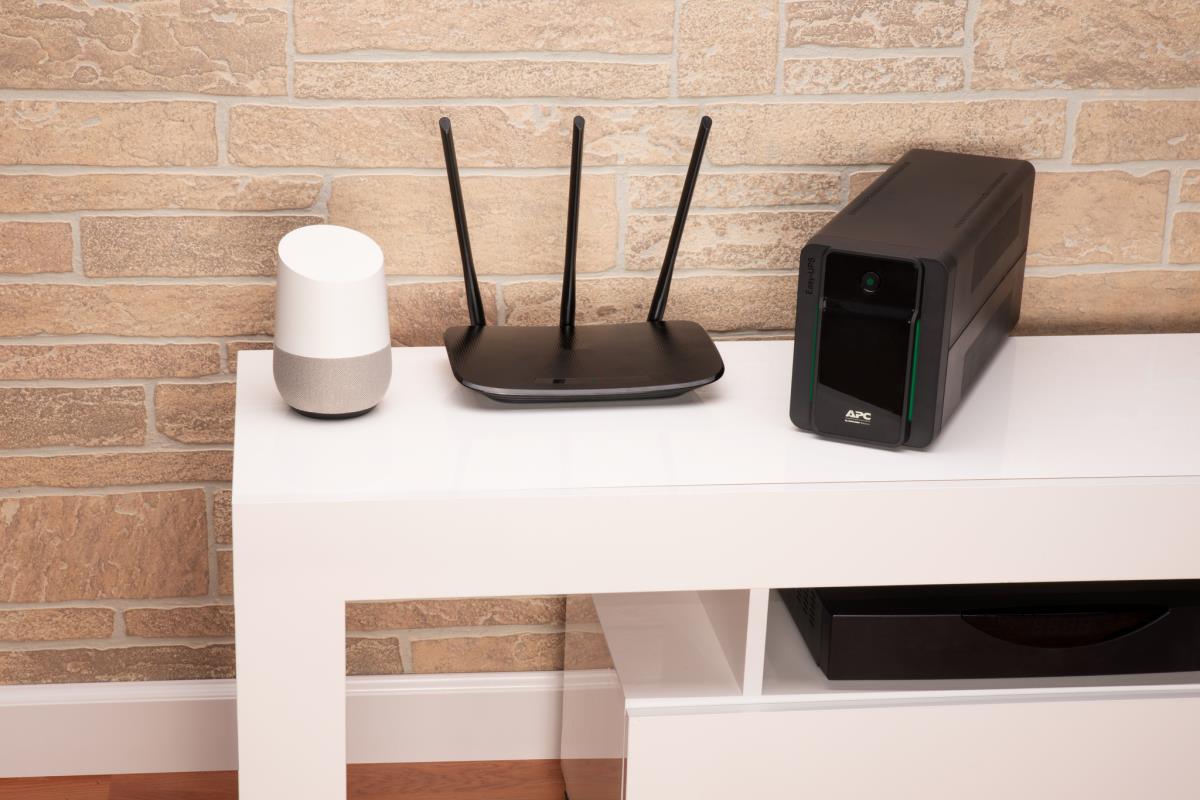

Sleek design
Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.

Cold-start capable
Provides temporary battery power when the utility power is out.

Boost Automatic Voltage Regulation (AVR)
Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Advanced Safety Features
Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Battery backup and surge protection
Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.

Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes.

LED Indicators
Provide easy-to-read status of the unit and utility power conditions.

Audible alarms
Provides notification of changing utility power and UPS power conditions

Ports & interfaces

SmartSlot No

SmartConnect port No

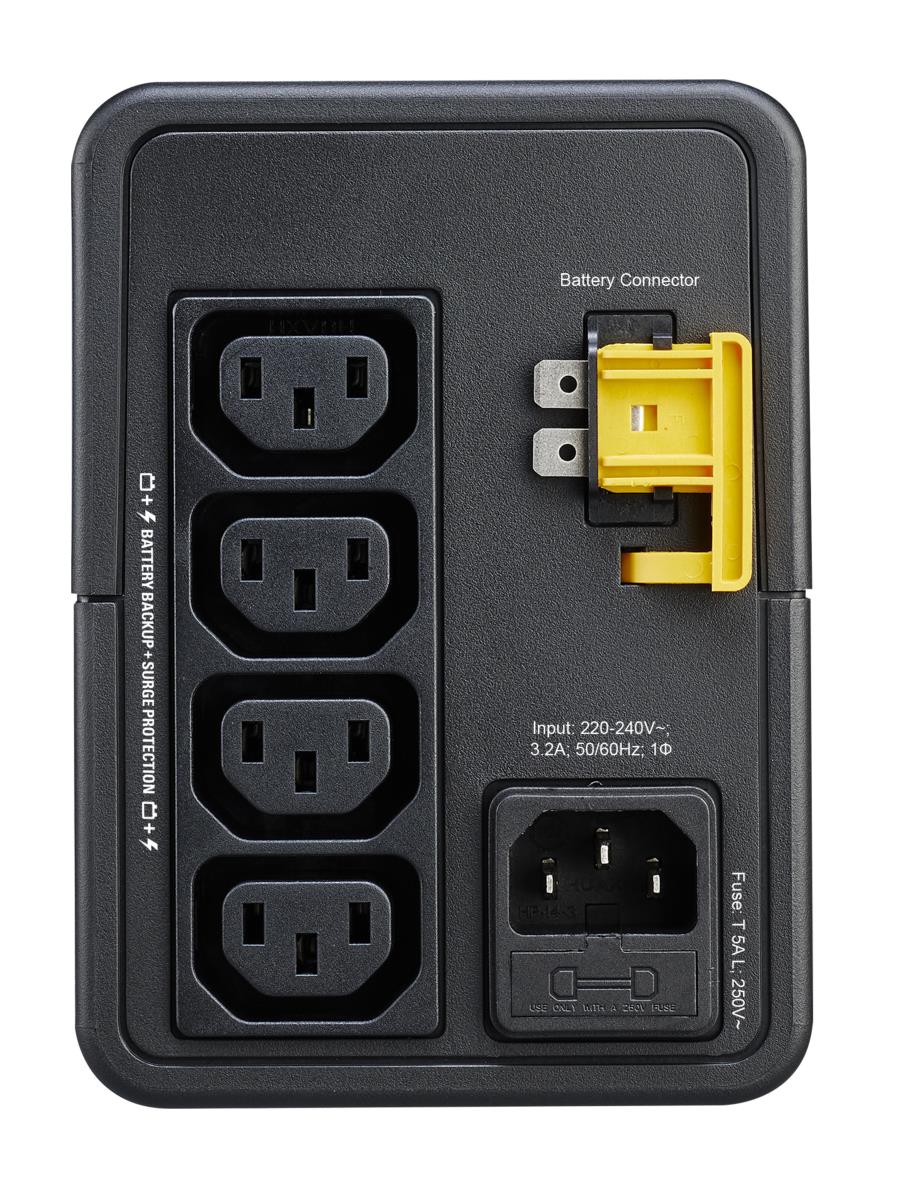

AC outlet types C13 coupler

Power plug C14 coupler

AC outlets quantity 4 AC outlet(s)

Packaging content

Management card included No

Technical details

Harmonized System (HS) code 85078000

Features

UPS topology Line-Interactive

Output power capacity 0.7 kVA

Output power 360 W

Waveform Sine

Input operation voltage (min) 170 V

Input operation voltage (max) 280 V

Input frequency 50/60 Hz

Output operation voltage (min) 230 V

Output operation voltage (max) 230 V

Output frequency 50/60 Hz

Output frequency regulation 0.5 Hz

Output voltage regulation 10%

Automatic Voltage Regulation (AVR) Y

Surge energy rating 273 J

Response time 6 ms

Input power factor 0.51

Noise level 40 dB

Surge protection Y

Audible alarm(s) Y

Audible alarm modes Alarm when on battery, Battery replacement, Low battery alarm, Overload alarm

Battery

Battery technology Sealed Lead Acid (VRLA)

Battery capacity 7 Ah

Battery voltage 12 V

Battery life (max) 2 year(s)

Battery recharge time 8 h

Cold start Y

Design

Form factor Compact

Product colour Black

LED indicators Y

International Protection (IP) code IP20

Certification CB, CE, EN/IEC 62040-1, EN/IEC 62040-2

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -15 - 40 °C

Operating relative humidity (H-H) 0 - 95%

Operating altitude 0 - 3000 m

Non-operating altitude 0 - 3000 m

Weight & dimensions

Width 31 mm

Depth 138 mm

Height 98 mm

Weight 4.5 kg

Package width 222 mm

Package depth 346 mm

Package height 142 mm

Package weight 4.5 kg

Packaging data

Cables included Input power cable

Manual Y

Information

Part Number:

BVX700LI
