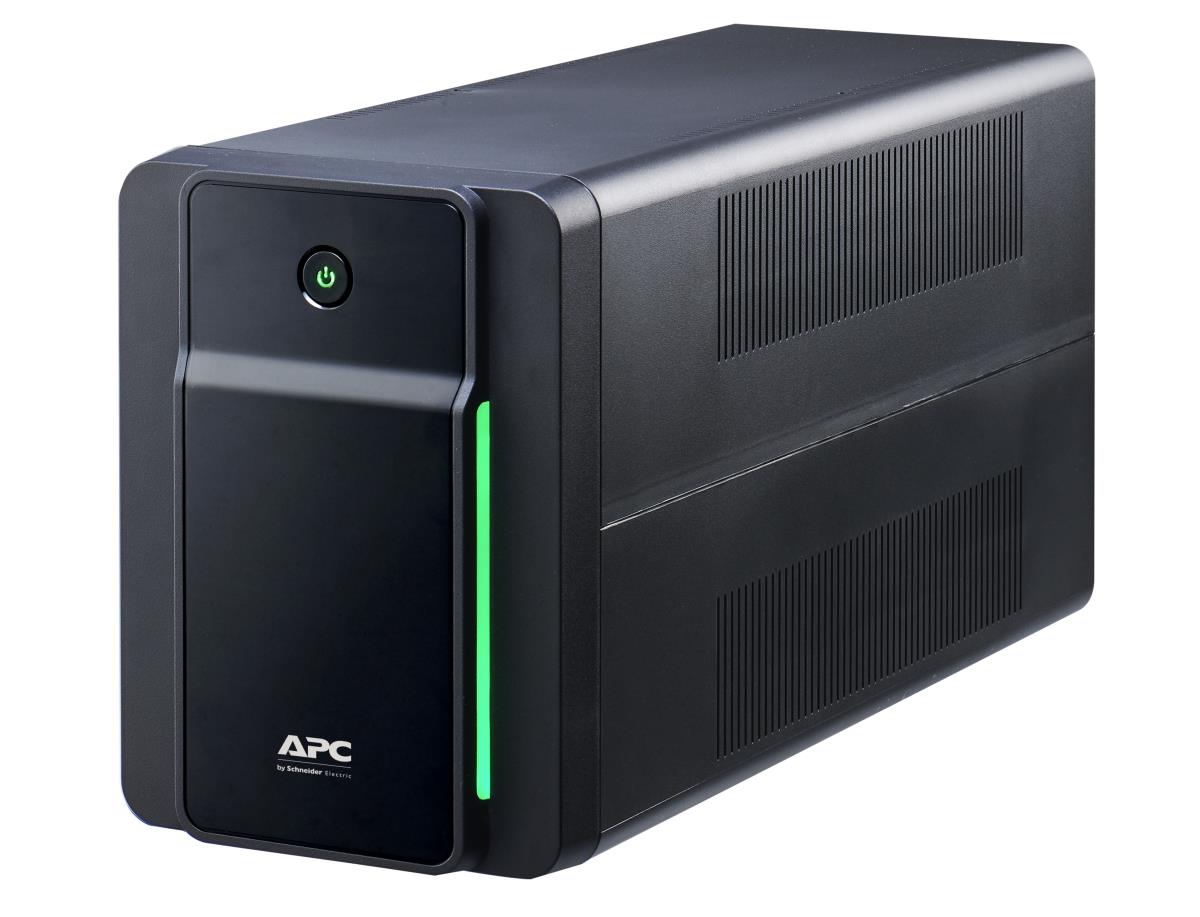

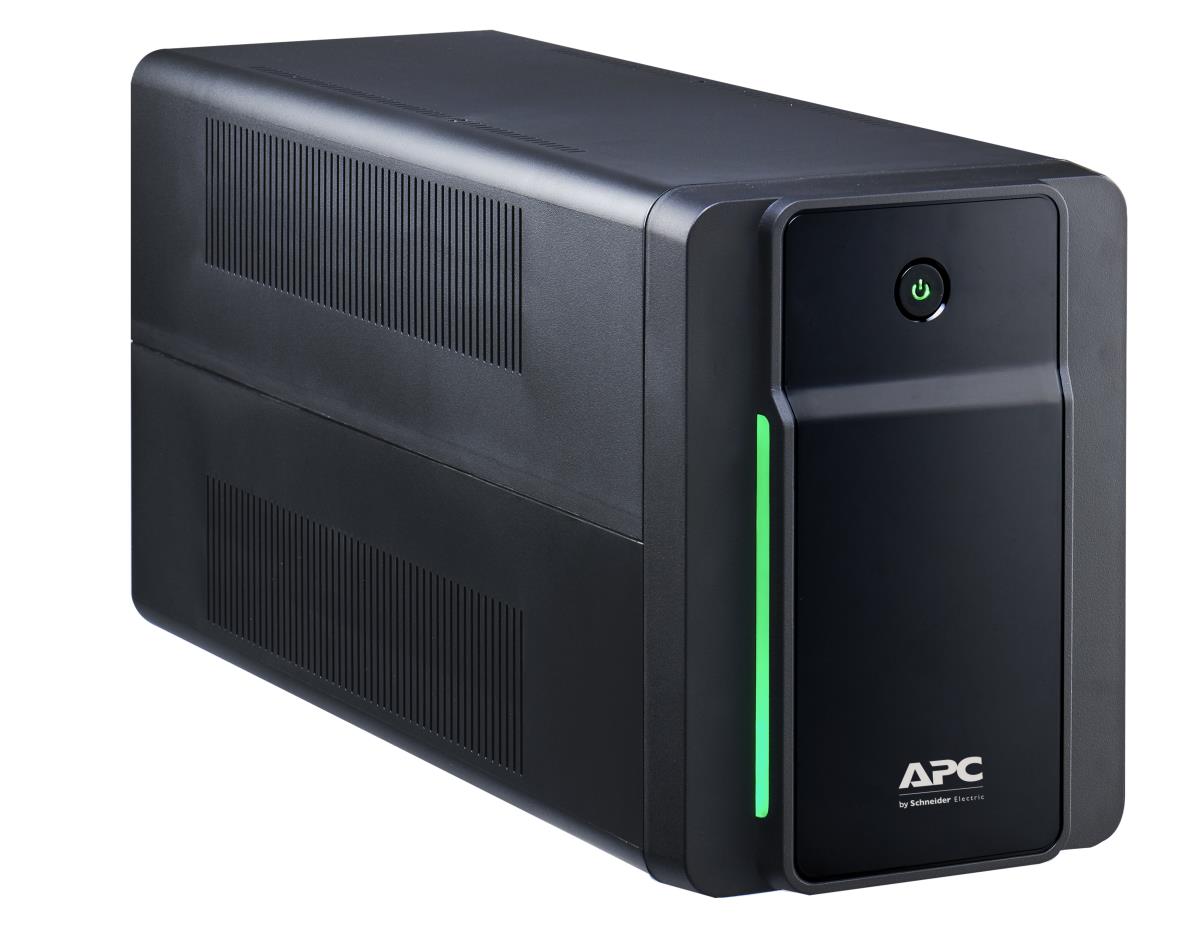

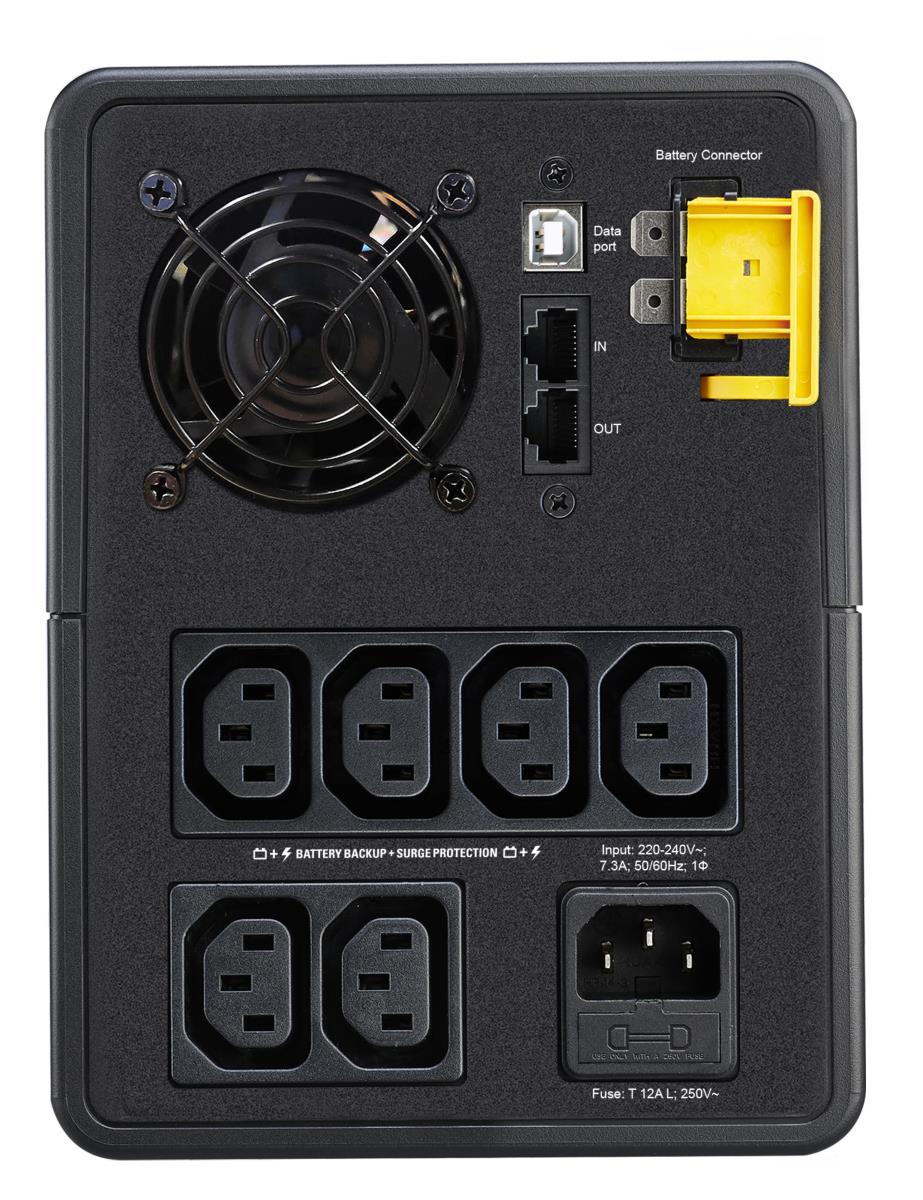

APC Back-UPS 1600VA 230V AVR IEC Sockets

APC Back-UPS 1600VA 230V AVR IEC Sockets

£178.29 (incl. VAT)

Qty:

Add to basket

Part Number:	BX1600MI
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

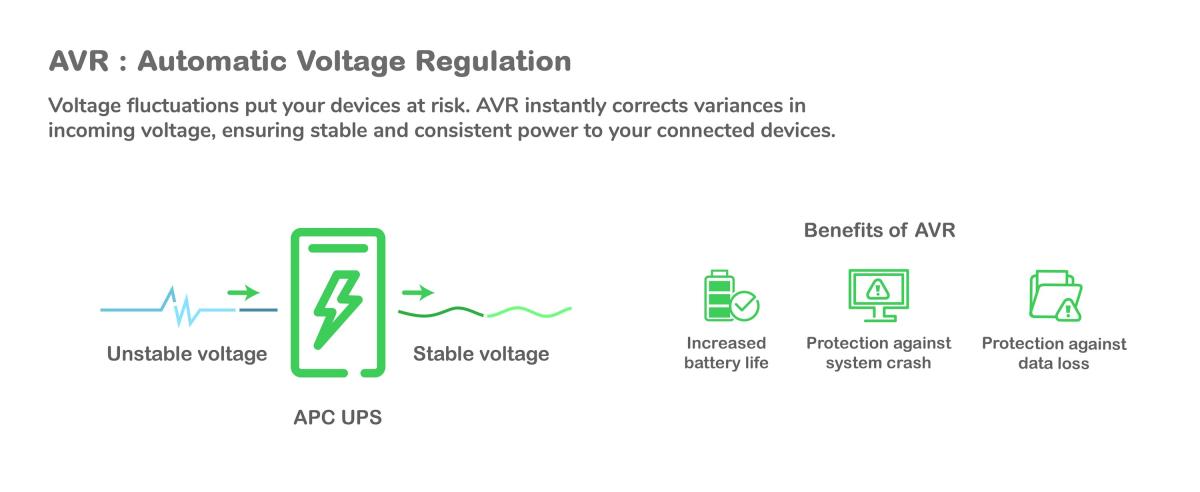

Automatic Voltage Regulation (AVR)
Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.

Dataline surge protection
Provides protection of connected equipment from power surges on the data lines.

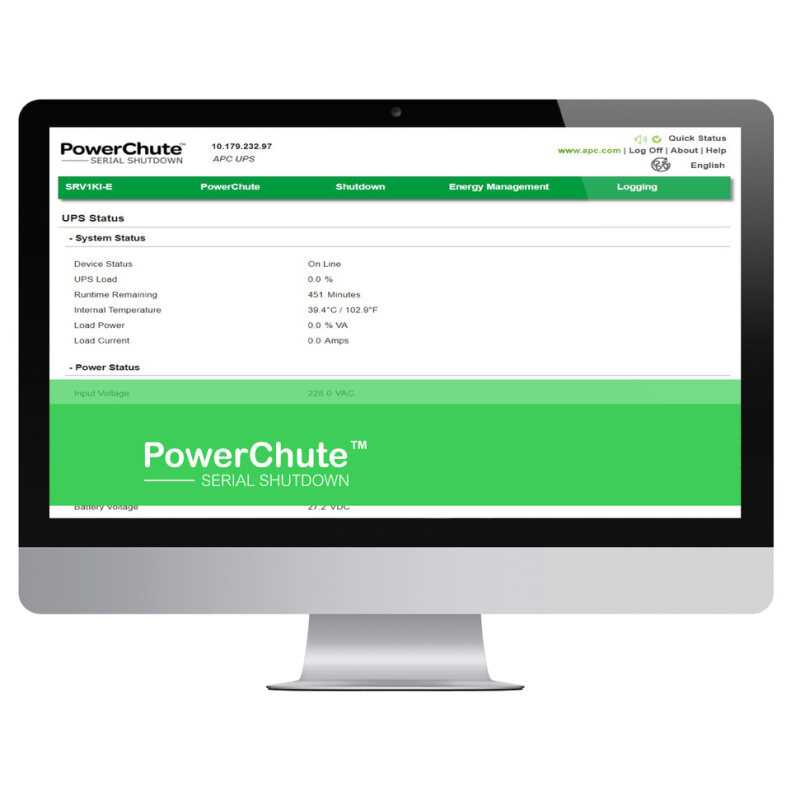

PowerChute Personal Edition OS Compatibility
This software supports numerous operating systems and processors.

USB connection
Use your PC to access additional power protection and management features for your UPS via a USB Port.

Audible alarms
Provides notification of changing utility power and UPS power conditions

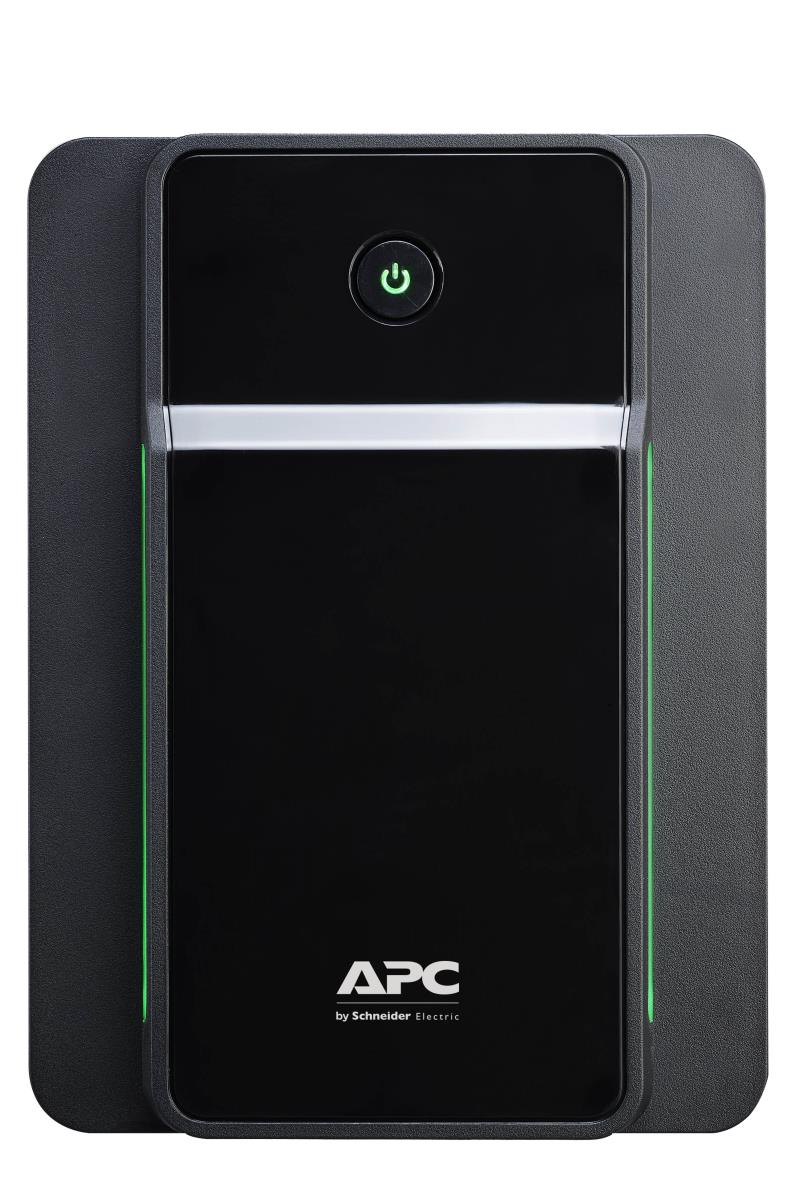

LED status display
Quickly understand unit and power status with visual indicators.

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Surge only outlets
Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.

Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes.

Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment

Ports & interfaces

SmartSlot No

SmartConnect port No

AC outlet types C13 coupler

Power plug C13 coupler

AC outlets quantity 6 AC outlet(s)

USB port Y

USB 2.0 ports quantity 1

USB port type USB Type-B

Ethernet LAN (RJ-45) ports 2

Packaging content

Management card included No

Battery

Battery capacity 7 Ah

Battery voltage 24 V

Battery technology Sealed Lead Acid (VRLA)

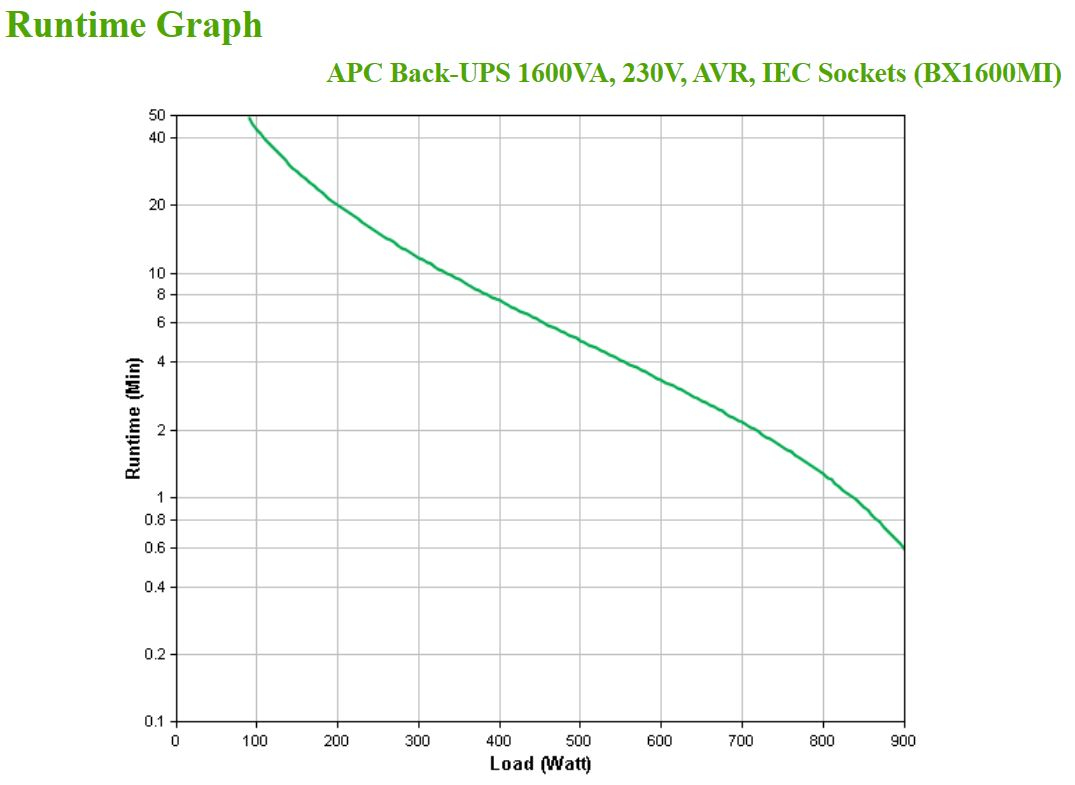

Typical backup time at full load 1 min

Typical backup time at half load 6.5 min

Battery life (max) 2 year(s)

Battery recharge time 8 h

Technical details

Compliance certificates RoHS

Harmonized System (HS) code 85078000

Sustainability certificates RoHS

Features

UPS topology Line-Interactive

Output power capacity 1.6 kVA

Output power 900 W

Waveform Sine

Input operation voltage (min) 140 V

Input operation voltage (max) 300 V

Input frequency 50/60 Hz

Output operation voltage (min) 230 V

Output operation voltage (max) 230 V

Output frequency 50/60 Hz

Output frequency regulation 0.5 Hz

Output voltage regulation 10%

Automatic Voltage Regulation (AVR) Y

Surge energy rating 273 J

Response time 6 ms

Input power factor 0.56

Noise level 40 dB

Audible alarm(s) Y

Audible alarm modes Low battery alarm

Design

Form factor Compact

Cable length 1.2 m

Built-in fan Y

Product colour Black

LED indicators Y

International Protection (IP) code IP20

Certification CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -15 - 40 °C

Operating relative humidity (H-H) 0 - 95%

Operating altitude 0 - 3000 m

Weight & dimensions

Width 140 mm

Depth 390 mm

Height 190 mm

Weight 10.3 kg

Package width 140 mm

Package depth 390 mm

Package height 190 mm

Package weight 11.3 kg

Packaging data

Cables included Input power cable

Manual Y
