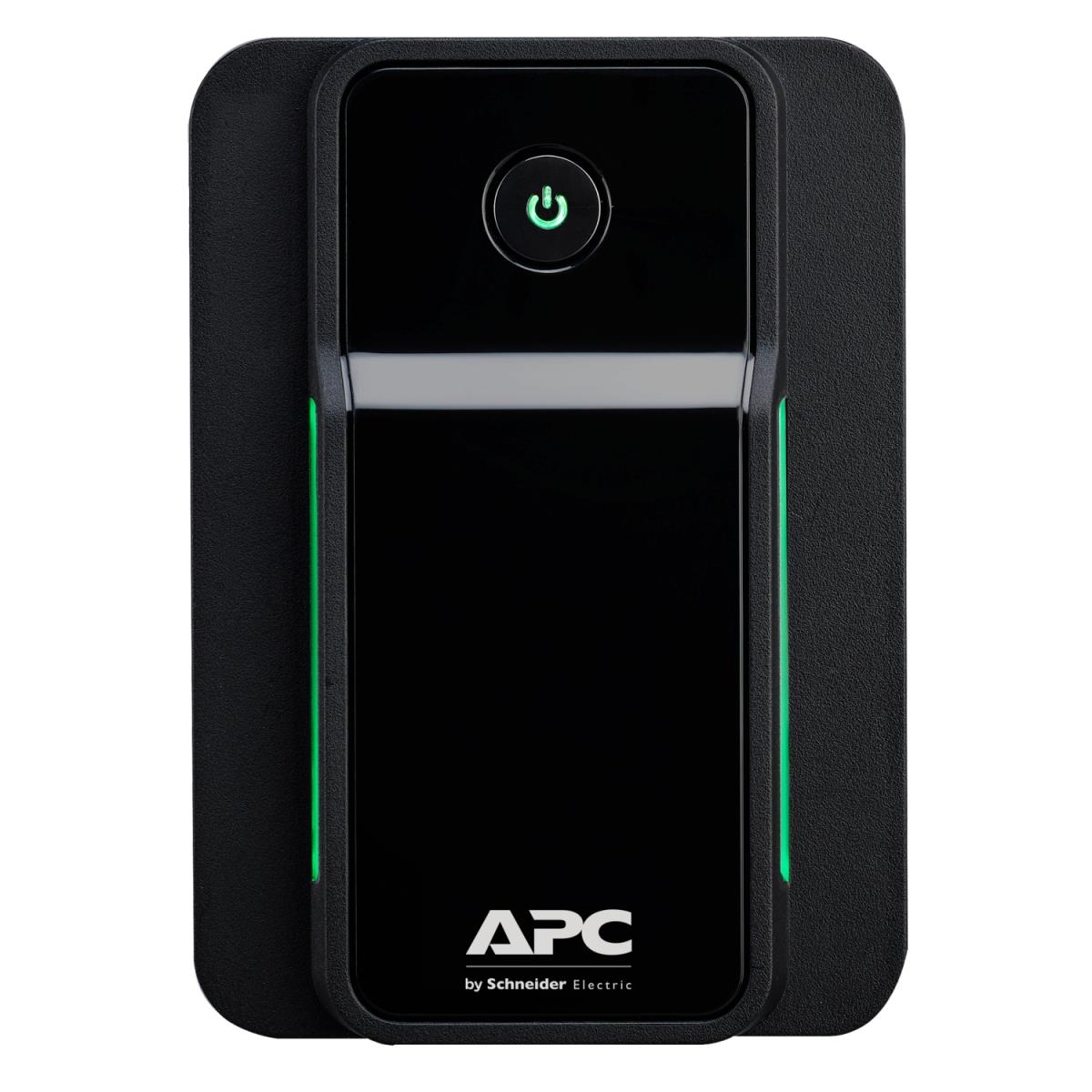

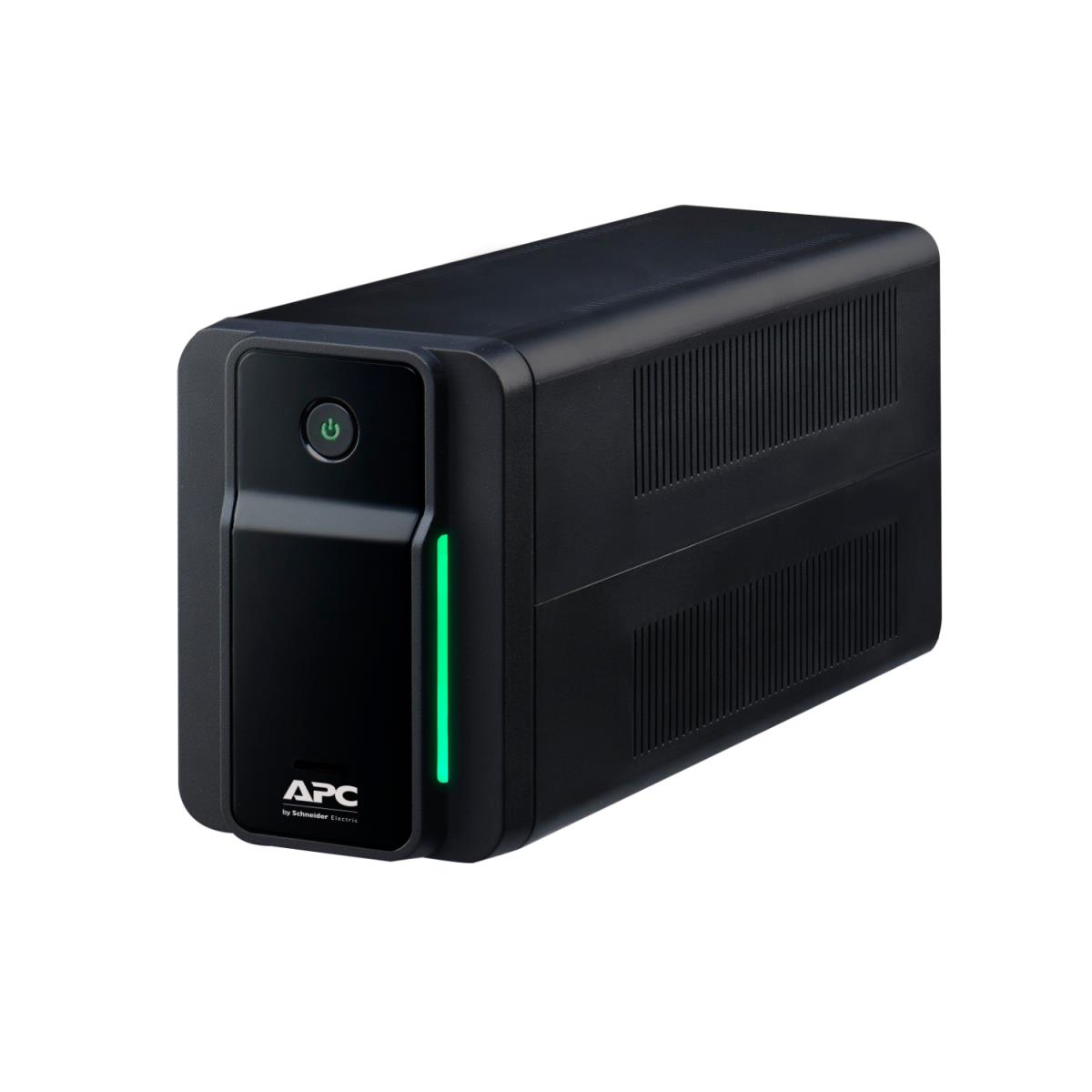

APC Back-UPS 500VA, 230V, AVR, IEC Sockets

APC Back-UPS 500VA, 230V, AVR, IEC Sockets

£67.98 (incl. VAT)

Qty:

Add to basket

Part Number:	BX500MI
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Surge only outlets
Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.

Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes .

Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment

Audible alarms
Provides notification of changing utility power and UPS power conditions

LED status display
Quickly understand unit and power status with visual indicators.

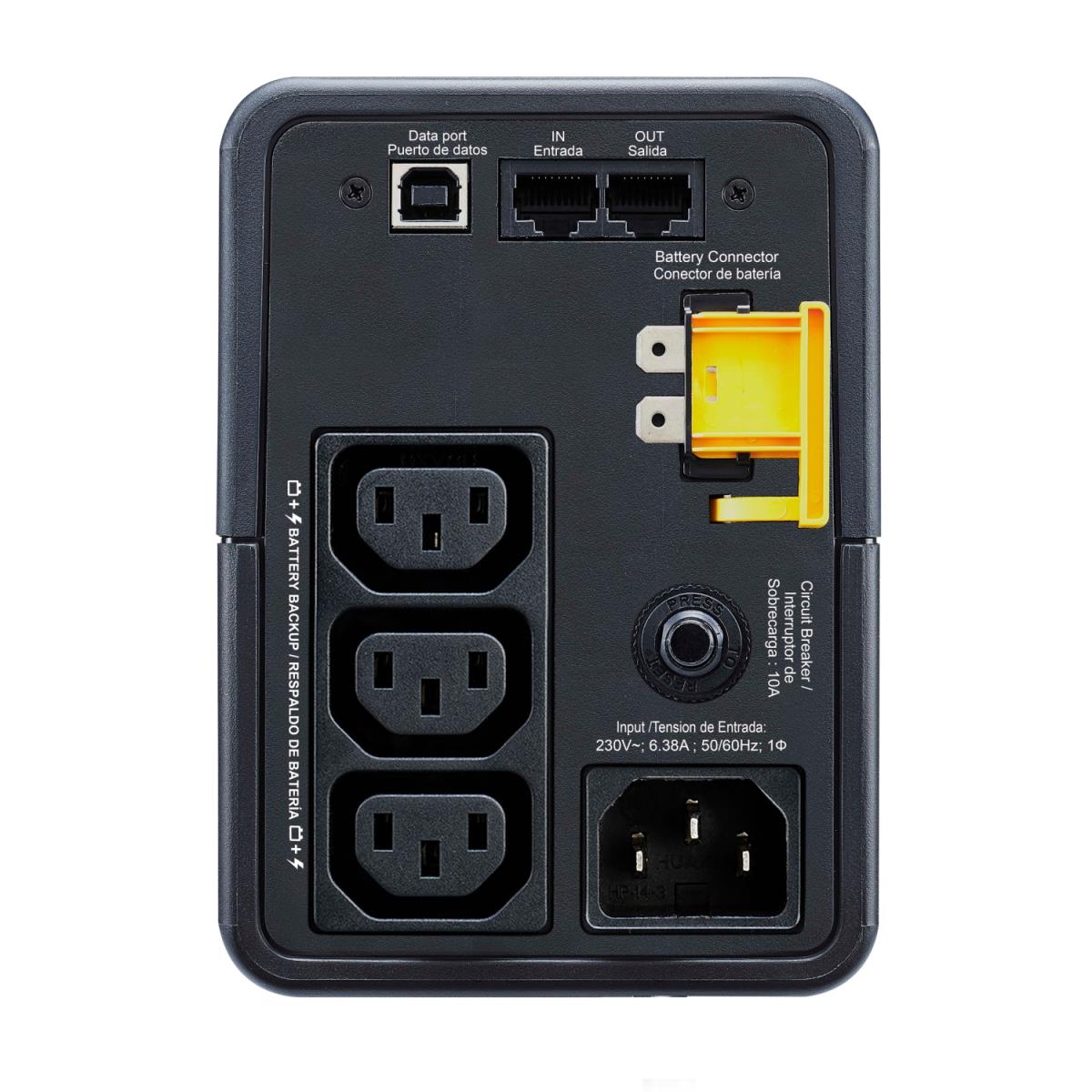

Ports & interfaces

SmartSlot No

SmartConnect port No

AC outlet types C13 coupler

Power plug C14 coupler

AC outlets quantity 3 AC outlet(s)

Number of output IEC jumpers 1

Ethernet LAN (RJ-45) ports 2

Cabling technology 10/100/1000Base-T(X)

Packaging content

Management card included No

Technical details

Compliance certificates RoHS

Harmonized System (HS) code 85078000

Sustainability certificates RoHS

Features

UPS topology Line-Interactive

Output power capacity 0.5 kVA

Output power 300 W

Waveform Sine

Input operation voltage (min) 140 V

Input operation voltage (max) 300 V

Input frequency 50/60 Hz

Output frequency 50/60 Hz

Automatic Voltage Regulation (AVR) Y

Surge energy rating 273 J

Efficiency 96.1%

Input power factor 0.63

Noise level 40 dB

Surge protection Y

Audible alarm(s) Y

Audible alarm modes Alarm when on battery, Low battery alarm

Battery

Battery technology Sealed Lead Acid (VRLA)

Battery voltage 12 V

Battery life (max) 5 year(s)

Battery recharge time 8 h

Automatic battery test Y

Design

Form factor Tower

Cable length 1.5 m

Product colour Black

LED indicators Battery replacement

International Protection (IP) code IP20

Certification CE, EAC, EN/IEC 62040-1

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -15 - 40 °C

Operating relative humidity (H-H) 0 - 95%

Storage relative humidity (H-H) 0 - 95%

Operating altitude 0 - 3000 m

Non-operating altitude 0 - 3000 m

Weight & dimensions

Width 98 mm

Depth 310 mm

Height 138 mm

Weight 4.2 kg

Package width 142 mm

Package depth 346 mm

Package height 222 mm

Package weight 4.5 kg

Information

Part Number:

BX500MI
