Product Details
Ports & interfaces
SmartSlot
Yes
SmartConnect port
No
AC outlet types
Hardwire
Packaging content
Management card included
No
Technical details
Compliance certificates
RoHS
Harmonized System (HS) code
85078000
Sustainability certificates
RoHS
Features
UPS topology
Double-conversion (Online)
Output power capacity
20 kVA
Output power
20000 W
Waveform
Pure sine
Input operation voltage (min)
304 V
Input operation voltage (max)
477 V
Input frequency
45/65 Hz
Output operation voltage (min)
380 V
Output operation voltage (max)
415 V
Output frequency
50/60 Hz
Maximum current
37 A
Number of input phases
3
Number of output phases
3
Input power factor
0.99
Output voltage Total Harmonic Distortion (THD)
3%
Input current Total Harmonic Distortion (THD)
3%

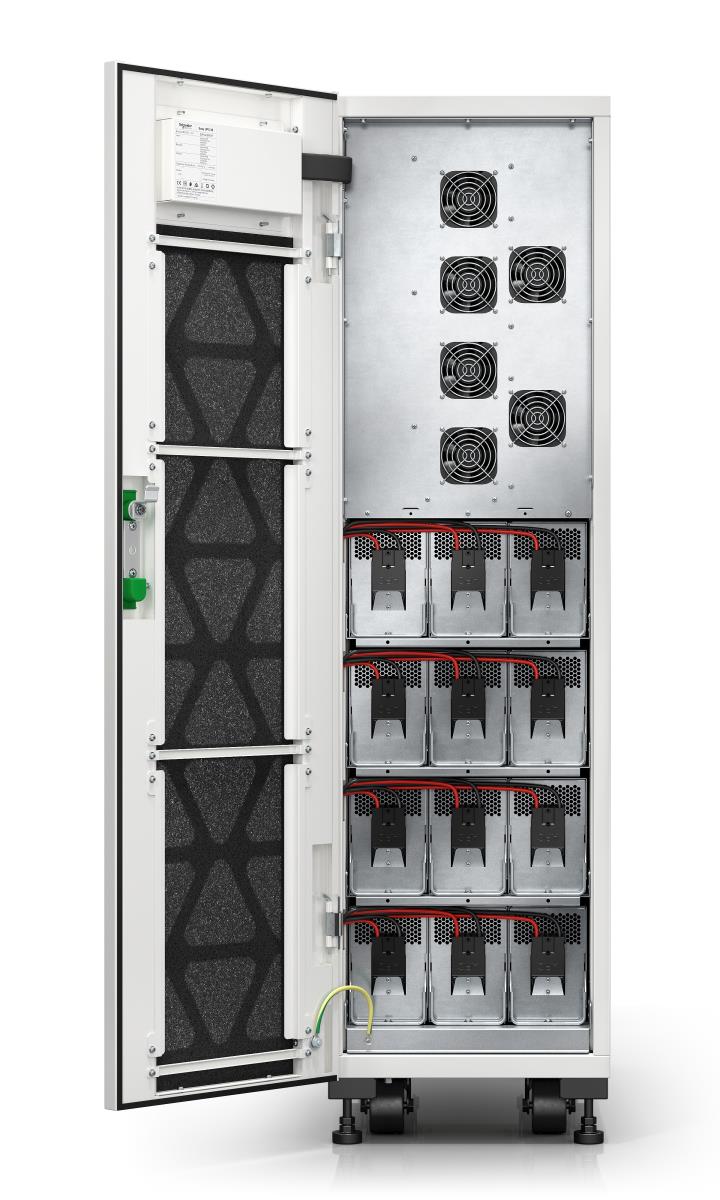

Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery voltage
220 V
Number of batteries supported
3
Design
Form factor
Tower
Product colour
White
Display type
LED
International Protection (IP) code
IP20
Certification
CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 40 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 999.9 m
Non-operating altitude
0 - 15000 m
Weight & dimensions
Width
380 mm
Depth
928 mm
Height
1400 mm
Weight
122 kg
Package width
563 mm
Package depth
1014 mm
Package height
1640 mm
Package weight
158 kg
Packaging data
Quick installation guide
Y
Other features
Output voltage
400 V
Information
| Part Number: | E3SUPS20KHB |
