Product Details
Introduction

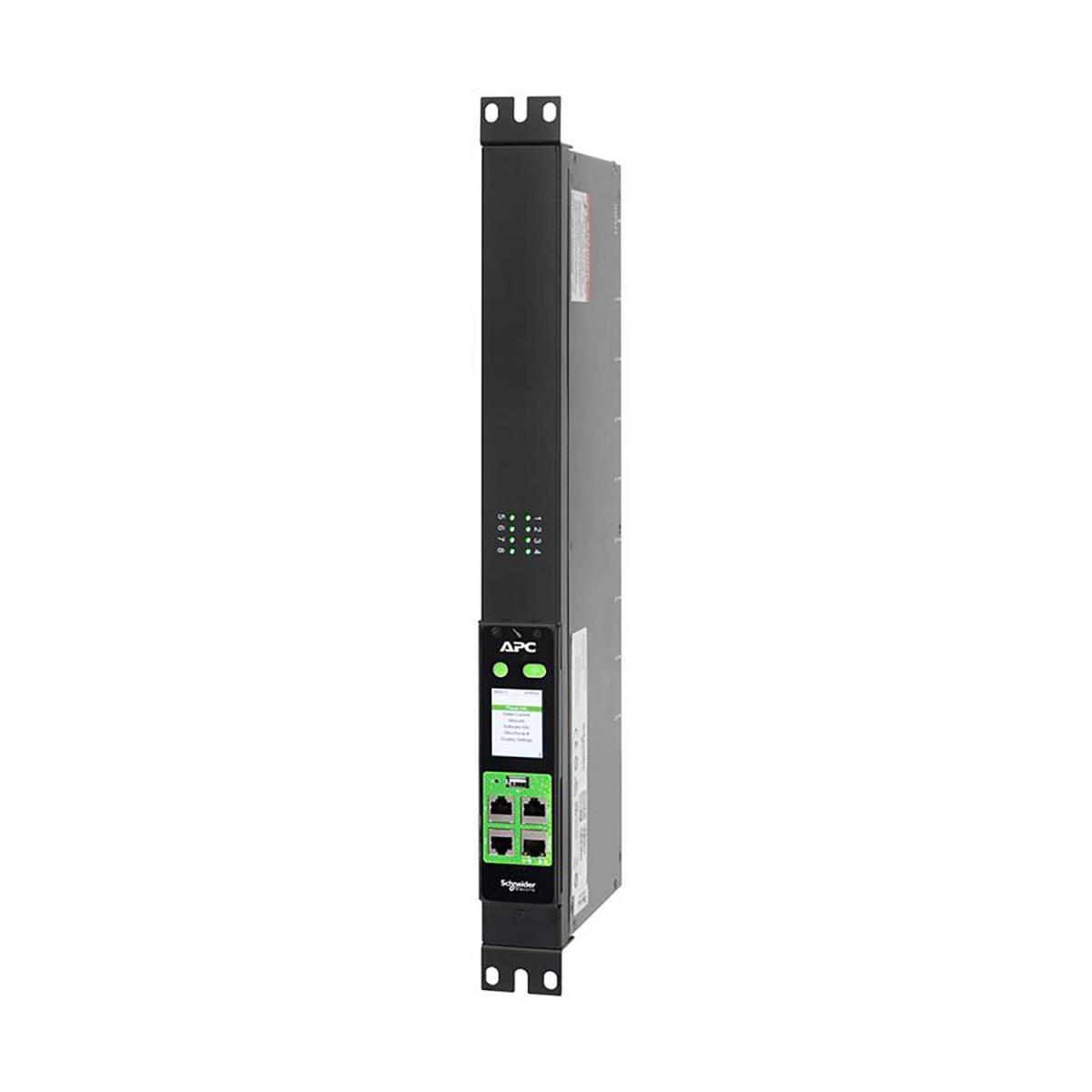

APC Easy Switched Rack PDU provides advanced load monitoring combined with remote on/off
switching control of individual outlets for power cycling.
Design
PDU types
Switched
Type
Single-phase
Rack capacity
1U
Mounting
Vertical
Product colour
Black
Ports & interfaces
AC outlets quantity
8 AC outlet(s)
Power plug
C20 coupler
AC outlet types
C13 coupler
Power
Nominal input voltage
230 V
AC input frequency
50/60 Hz
Maximum current
16 A
Output voltage
208 V
Load capacity
3680 VA
Number of phases
1
Certificates
Compliance certificates
CE, UKCA
Operational conditions
Operating temperature (T-T)
-5 - 50 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3000 m
Weight & dimensions
Width
482 mm
Depth
150 mm
Height
44 mm
Weight
2.45 kg
Packaging data
Package weight
3.8 kg
Package width
260 mm
Package depth
570 mm
Package height
680 mm
Logistics data
Total carbon footprint (kg of CO2e)
814
Information
| Part Number: | EPDU2016S |
