Product Details
Introduction

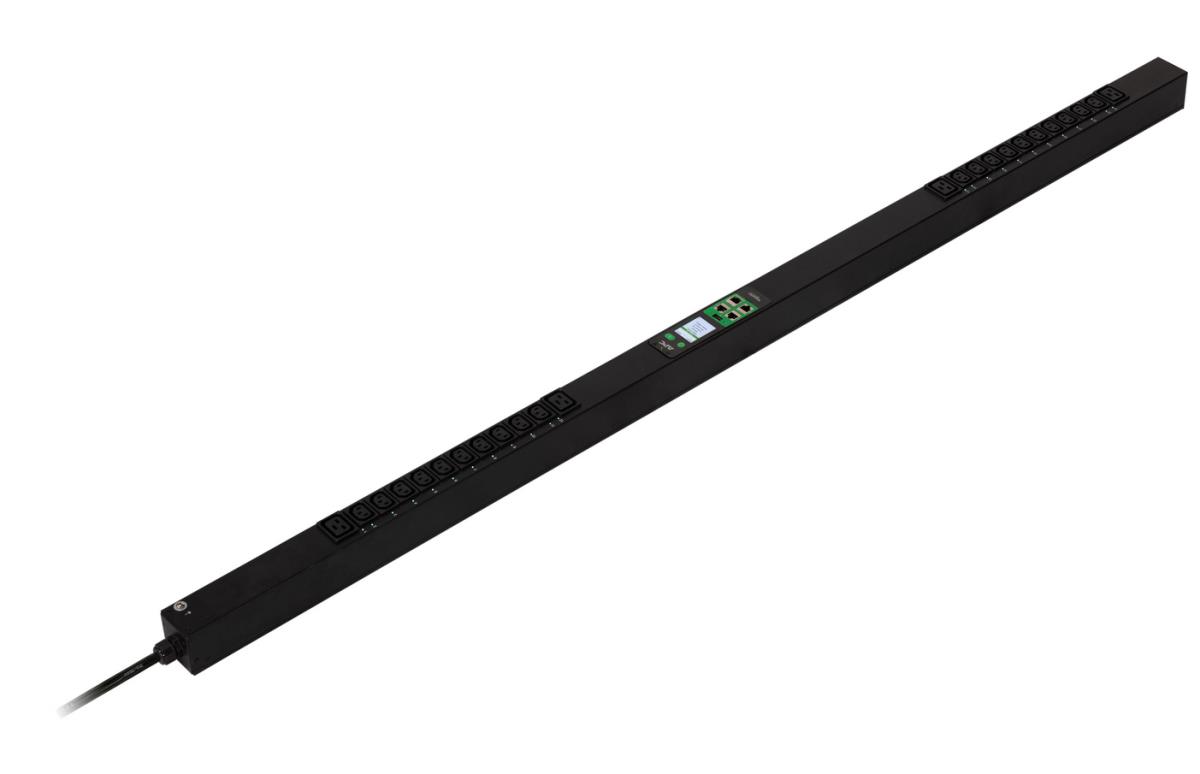

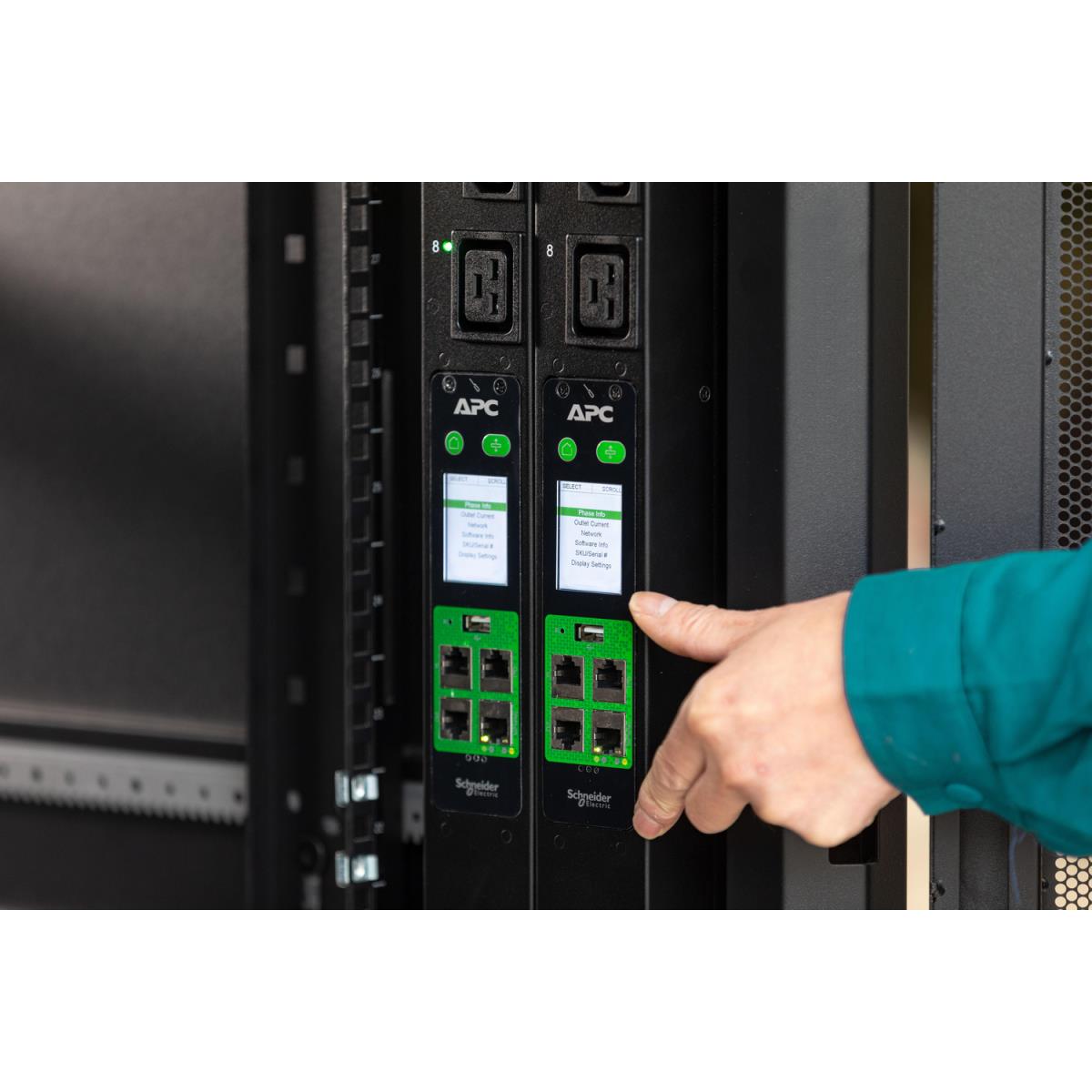

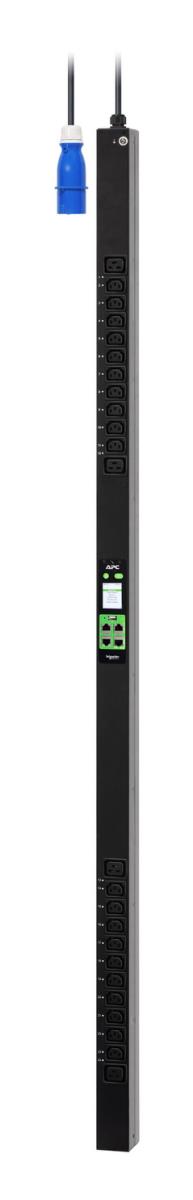

APC Easy Switched Rack PDU provides advanced load monitoring combined with remote on/off
switching control of individual outlets for power cycling.
Design
PDU types
Switched
Type
Single-phase
Rack capacity
0U
Mounting
Vertical
Product colour
Black
Ports & interfaces
AC outlets quantity
24 AC outlet(s)
Power plug
IEC 60309
AC outlet types
C13 coupler
Power
Nominal input voltage
230 V
AC input frequency
50/60 Hz
Maximum current
16 A
Nominal output voltage
230 V
Output voltage
230 V
Load capacity
3680 VA
Number of phases
1
Certificates
Compliance certificates
CE, UKCA
Operational conditions
Operating temperature (T-T)
-5 - 50 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3000 m
Weight & dimensions
Width
56 mm
Depth
62 mm
Height
1650 mm
Weight
6.1 kg
Packaging data
Package weight
7.6 kg
Package width
170 mm
Package depth
1810 mm
Package height
1260 mm
Logistics data
Total carbon footprint (kg of CO2e)
1088
Information
| Part Number: | EPDU2116S |
