Product Details
Introduction

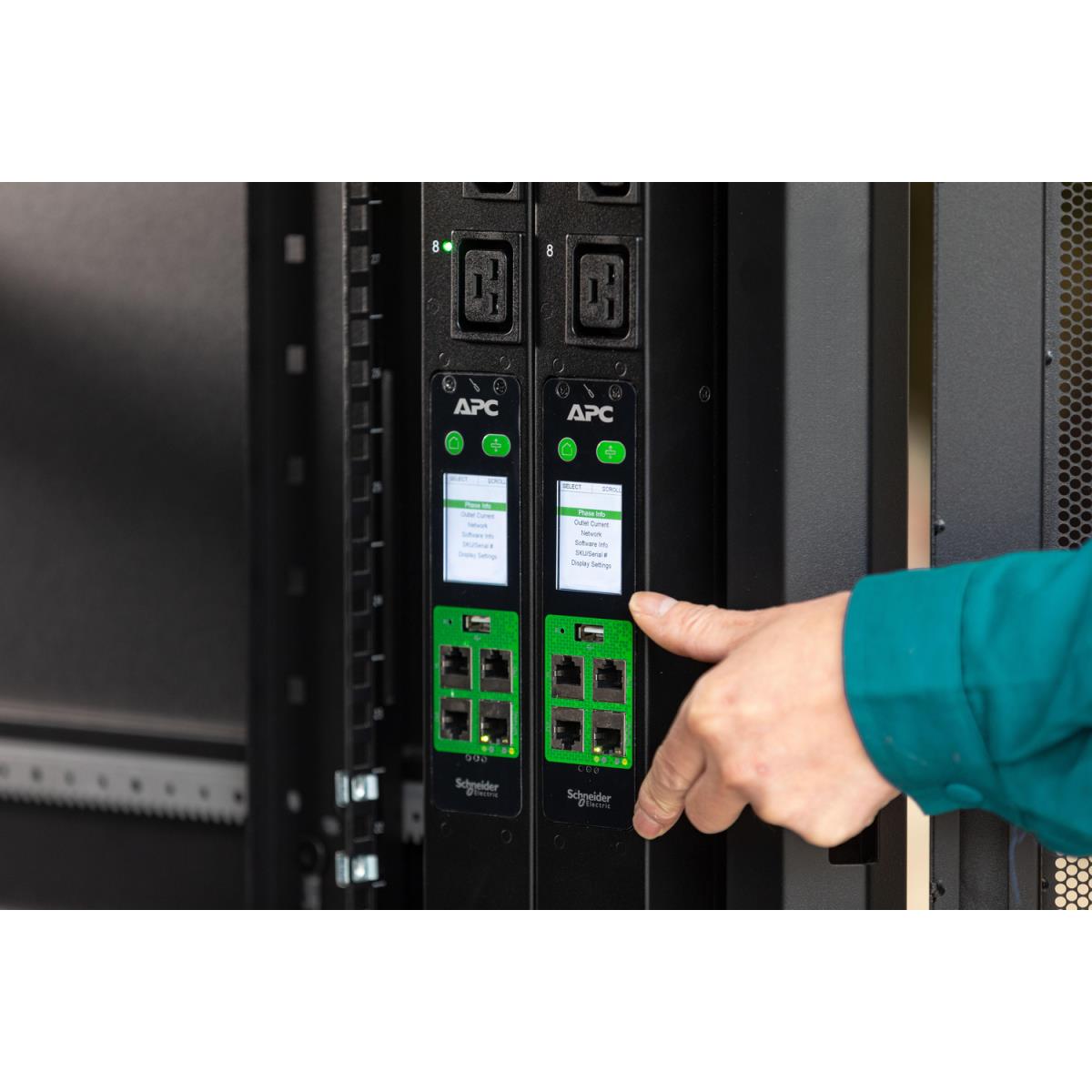

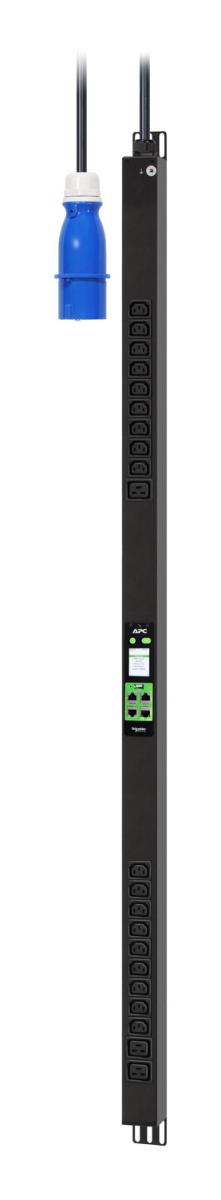

APC Easy Metered Rack PDU provides real-time remote monitoring of connected loads. Userdefined alarms warn of potential circuit overloads before critical IT failures occur.
Design
PDU types
Metered
Type
Single-phase
Rack capacity
0U
Mounting
Vertical
Product colour
Black
Ports & interfaces
AC outlets quantity
24 AC outlet(s)
Power plug
IEC309
AC outlet types
C13 coupler
Power
Nominal input voltage
230 V
AC input frequency
50/60 Hz
Maximum current
32 A
Nominal output voltage
230 V
Output voltage
230 V
Load capacity
7360 VA
Number of phases
1
Certificates
Compliance certificates
CE, UKCA
Operational conditions
Operating temperature (T-T)
-5 - 50 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3000 m
Weight & dimensions
Width
56 mm
Depth
56 mm
Height
1400 mm
Weight
3.35 kg
Packaging data
Package weight
4.35 kg
Package width
260 mm
Package depth
1560 mm
Package height
680 mm
Logistics data
Total carbon footprint (kg of CO2e)
806
Information
| Part Number: | EPDU2132M |
