Product Details
Technical details
Total carbon footprint (kg of CO2e)
1165.17
Compliance certificates
RoHS
Harmonized System (HS) code
85078000
Sustainability certificates
RoHS

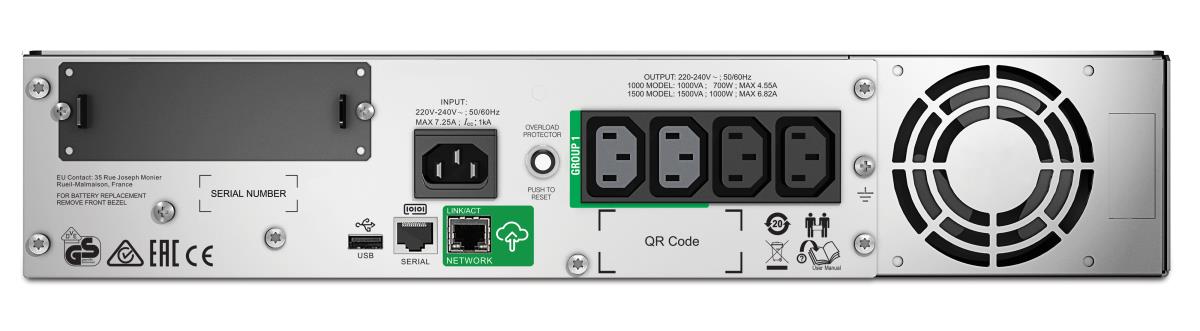

Ports & interfaces
SmartConnect port
Yes
AC outlet types
C13 coupler
AC outlets quantity
4 AC outlet(s)

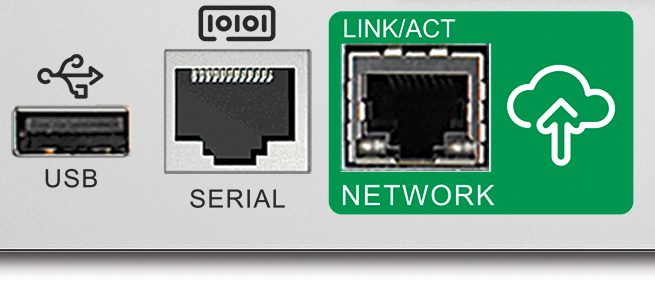

USB port
Y
USB port type
USB Type-A
Serial interface
Y
Serial interface type
RJ-45
Ethernet LAN (RJ-45) ports
1
SmartSlot
Y
Packaging content
Management card included
No
Features
UPS topology
Line-Interactive
Output power capacity
1 kVA
Output power
700 W
Waveform
Sine
Input operation voltage (min)
151 V
Input operation voltage (max)
302 V
Input frequency
50/60 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Output frequency
50/60 Hz

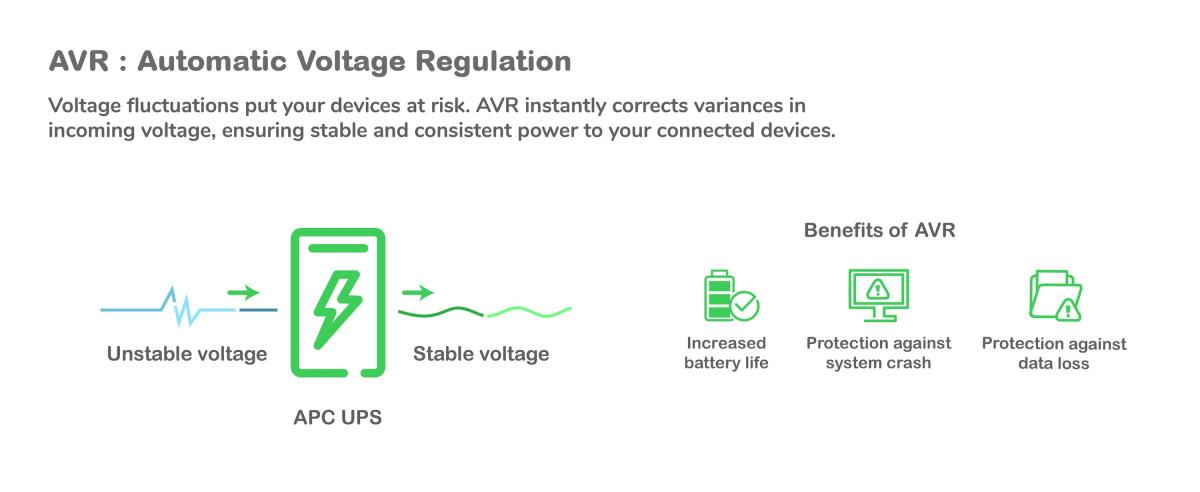

Automatic Voltage Regulation (AVR)
Y
Surge energy rating
459 J
Response time
10 ms
Output voltage Total Harmonic Distortion (THD)
5%
Noise level
45 dB
Surge protection
Y

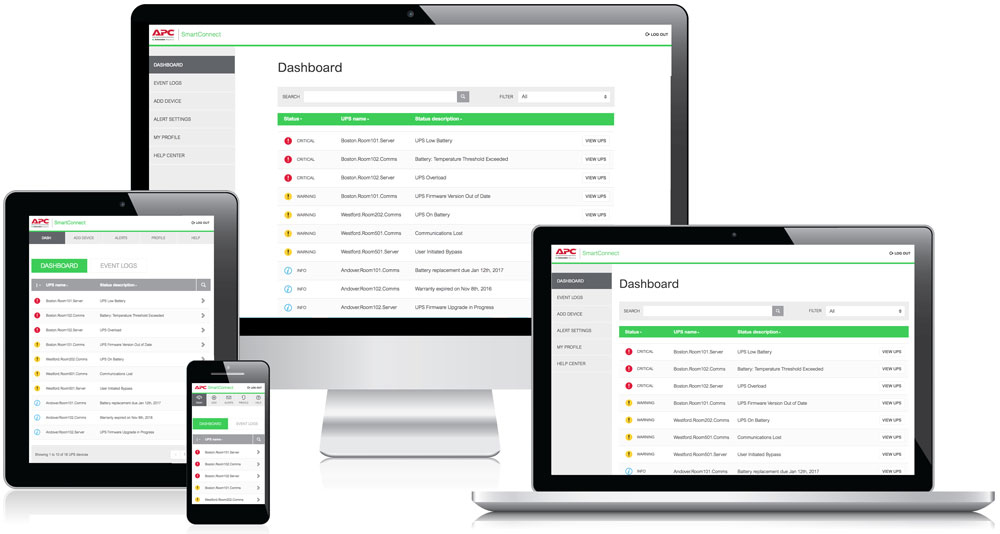

Web-based management
Y
Auto-restart
Y
Temperature voltage compensation
Y
Battery
Battery technology
Sealed Lead Acid (VRLA)
Number of batteries supported
1
Battery life (max)
6 year(s)
Battery recharge time
3 h
Hot-swap battery
Y
Automatic battery test
Y
Cold start
Y
Replacement battery cartridge
APCRBC132
Design
Form factor
Rackmount
Rack capacity
2U
Product colour
Black

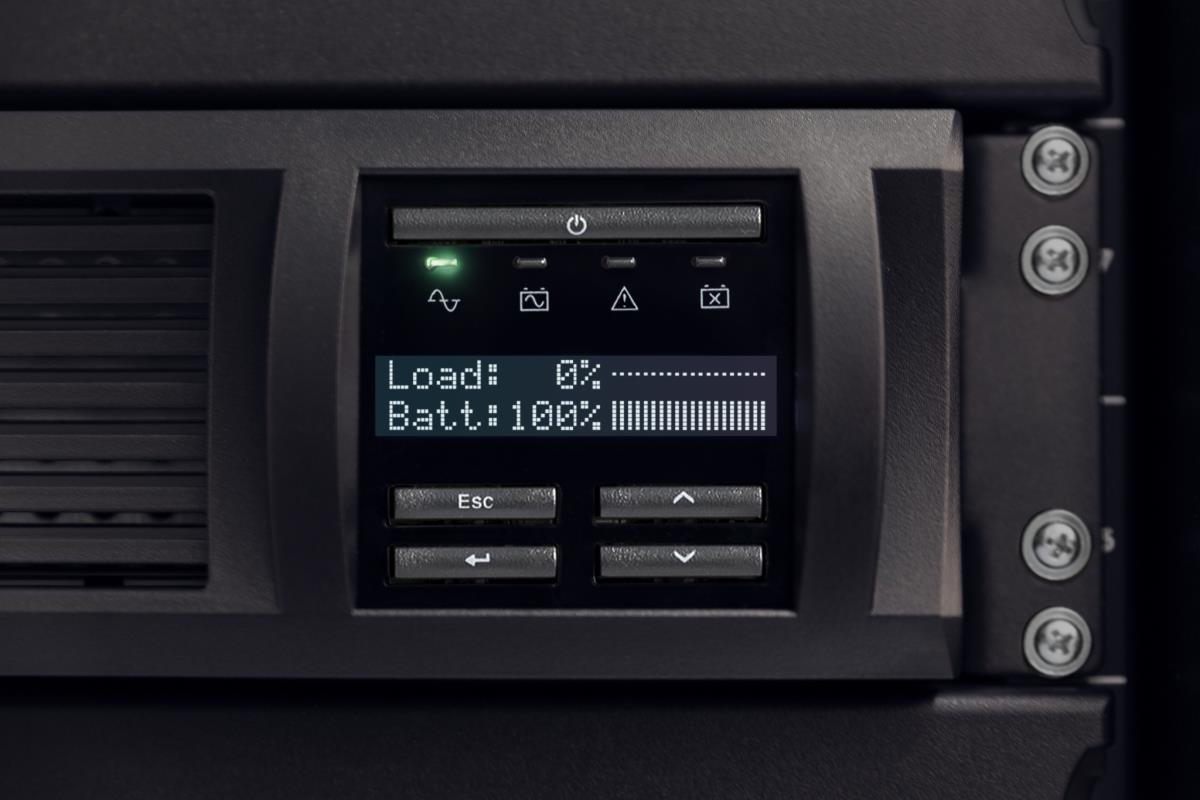

Display type
LCD
LED indicators
Y
Certification
EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Weight & dimensions
Width
432 mm
Depth
477 mm
Height
86 mm
Weight
28.2 kg
Package width
594 mm
Package depth
603 mm
Package height
251 mm
Package weight
31.4 kg
Packaging data
Rack mount kit
Y
Cables included
RS-232, USB cable
Quick installation guide
Y
Resource CD
Y
Software CD
Y
Logistics data
Products per pallet
8 pc(s)
Information
| Part Number: | SMT1000RMI2UC |
