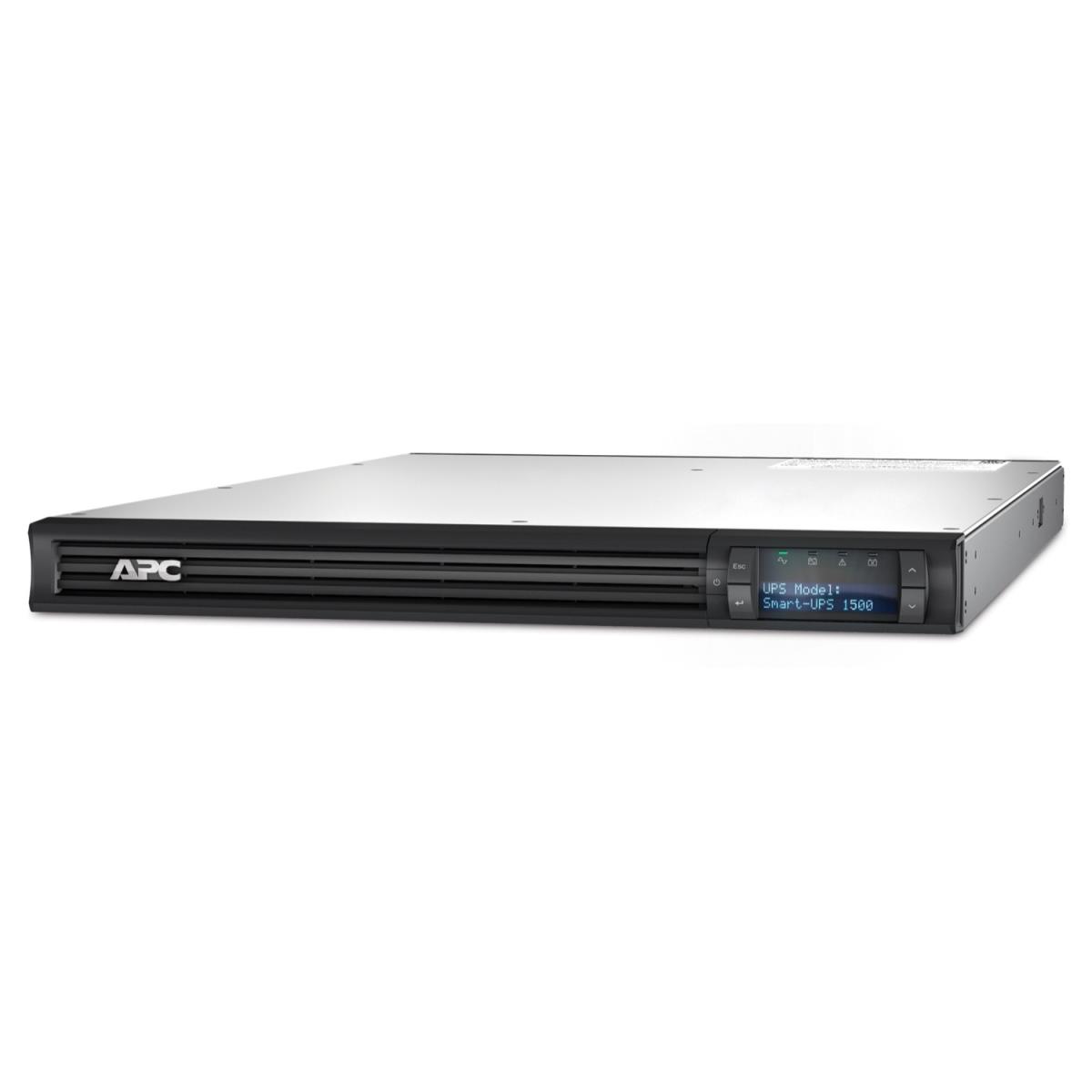

APC Smart UPS 1500va LCD Rm 1u 230v

£1,110.82 (incl. VAT)

Qty:

Add to basket

Part Number:	SMT1500RMI1U
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

High frequency design

Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.

Predictive replace battery date

Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

Energy meter

Provides actual kilowatt hours of usage for energy conscious users.

Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Multiple switched outlet groups

Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

High online efficiency

Reduces utlility costs, generates less heat.

SmartSlot

Customize UPS capabilities with management cards.

Cold-start capable

Provides temporary battery power when the utility power is out.

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Technical details

Total carbon footprint (kg of CO2e) 1298.03

Compliance certificates RoHS

Harmonized System (HS) code 85078000

Sustainability certificates RoHS

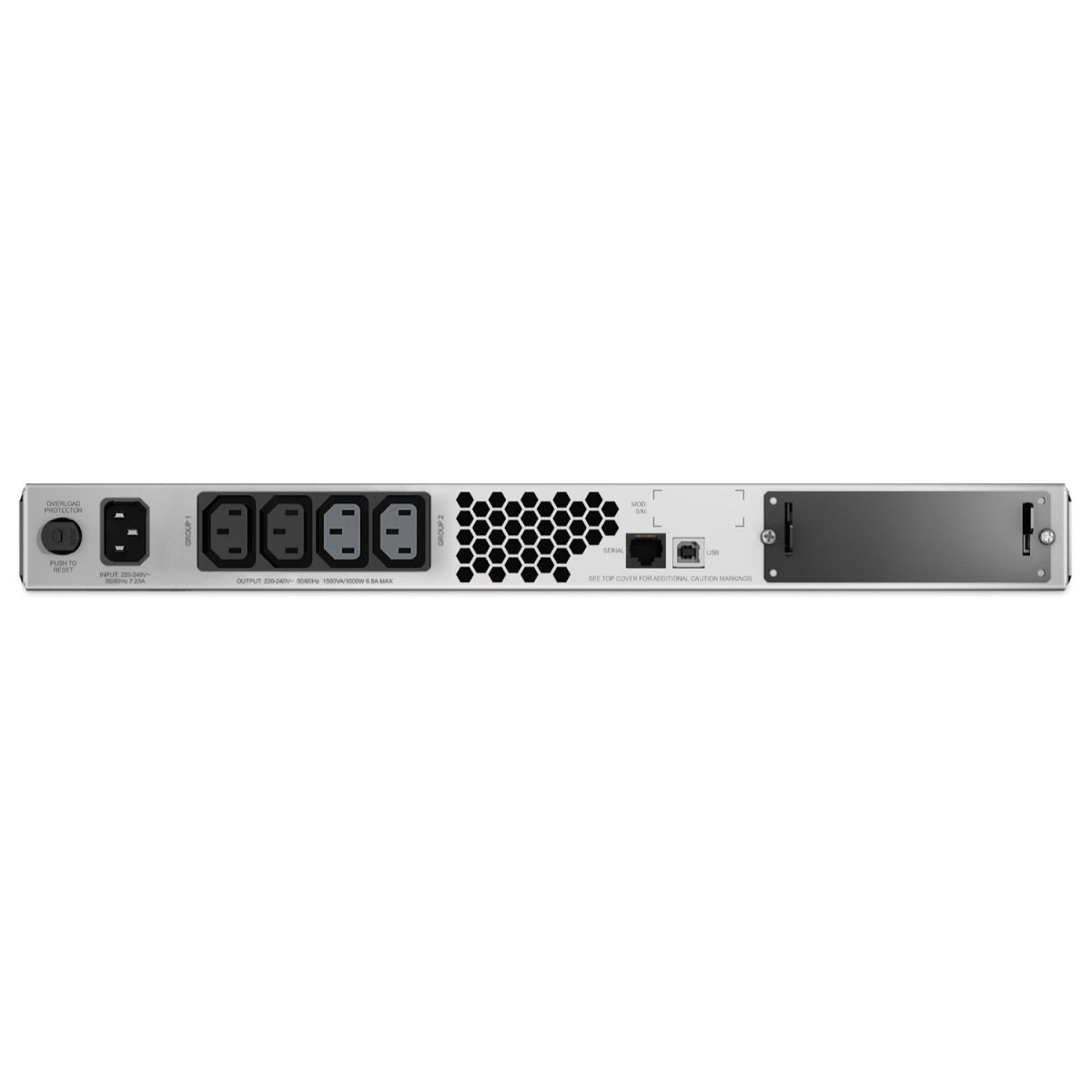

Ports & interfaces

SmartConnect port No

AC outlet types C13 coupler

Power plug C14 coupler

AC outlets quantity 4 AC outlet(s)

Number of output IEC jumpers 2

USB port Y

Serial interface Y

Serial interface type RJ-45

SmartSlot Y

Packaging content

Management card included No

Features

UPS topology Line-Interactive

Output power capacity 1.5 kVA

Output power 1000 W

Waveform Sine

Input frequency 50/60 Hz

Output operation voltage (min) 220 V

Output operation voltage (max) 240 V

Automatic Voltage Regulation (AVR) Y

Surge energy rating 540 J

Efficiency 98.7%

Noise level 46 dB

Audible alarm(s) Y

Auto-restart Y

Battery

Battery technology Sealed Lead Acid (VRLA)

Battery capacity 293 VAh

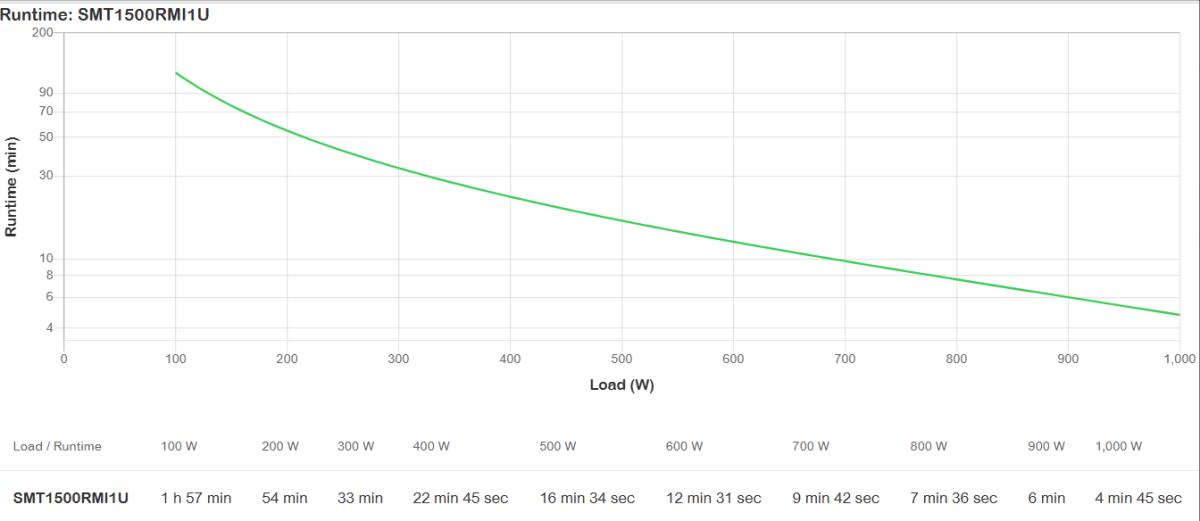

Typical backup time at full load 4.8 min

Typical backup time at half load 16.6 min

Battery life (max) 5 year(s)

Battery recharge time 4 h

Hot-swap battery Y

Automatic battery test Y

Cold start Y

Design

Form factor Rackmount

Rack capacity 1U

Cable length 2.44 m

Product colour Black

LED indicators Status

Certification CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -15 - 45 °C

Operating relative humidity (H-H) 0 - 95%

Storage relative humidity (H-H) 0 - 95%

Operating altitude 0 - 3000 m

Non-operating altitude 0 - 15000 m

Weight & dimensions

Width 432 mm

Depth 665 mm

Height 44 mm

Weight 24.1 kg

Package width 575 mm

Package depth 794 mm

Package height 200 mm

Package weight 29.1 kg

Packaging data

Rack mount kit Y

Cables included RS-232, USB cable

Quick installation guide Y

Warranty card Y

Software CD Y

Logistics data

Products per pallet 10 pc(s)

Other features

Nominal output voltage 230 V

Nominal input voltage 230 V
