Product Details
Technical details
Total carbon footprint (kg of CO2e)
1416.6
Harmonized System (HS) code
85078000
Sustainability certificates
ENERGY STAR

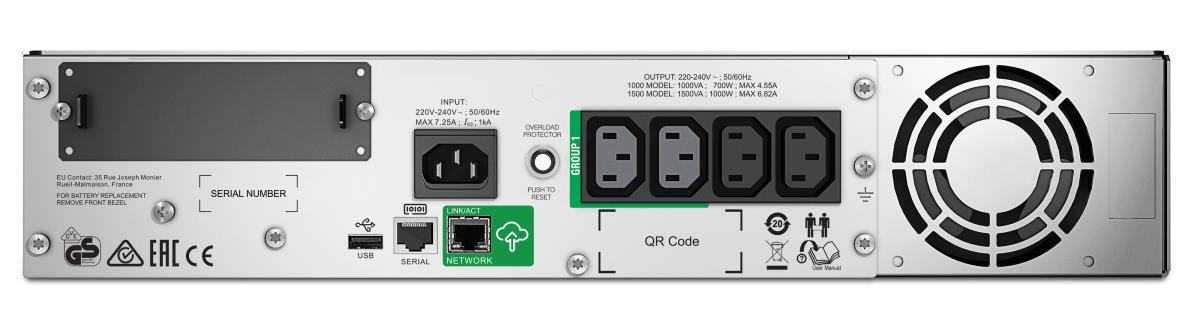

Ports & interfaces

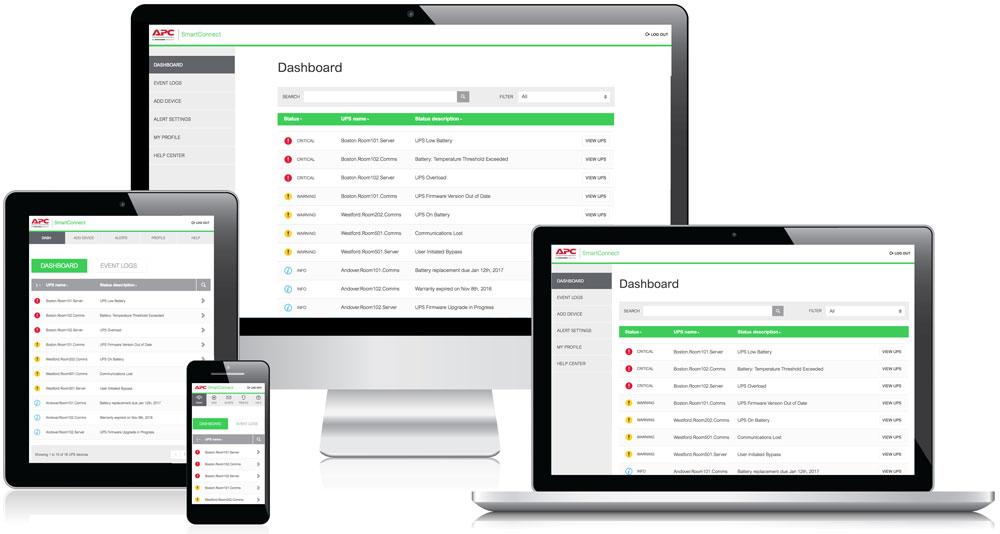

SmartConnect port
Yes
AC outlet types
C13 coupler, IEC Jumpers
Power plug
C14 coupler
AC outlets quantity
4 AC outlet(s)

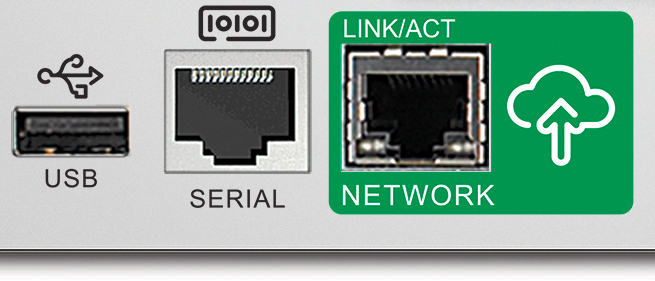

USB port
Y
Serial interface
Y
Serial interface type
RJ-45
SmartSlot
Y
Packaging content
Management card included
No
Features
UPS topology
Line-Interactive
Output power capacity
1.5 kVA
Output power
1000 W
Waveform
Sine
Input operation voltage (min)
151 V
Input operation voltage (max)
302 V
Input frequency
50/60 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Output frequency
50/60 Hz
Surge energy rating
459 J
Response time
10 ms
Noise level
46 dB
Audible alarm(s)
Y
Audible alarm modes
Alarm when on battery, Low battery alarm
Auto-restart
Y
Battery
Battery technology
Sealed Lead Acid (VRLA)
Number of batteries supported
1
Battery life (max)
6 year(s)
Battery recharge time
3 h
Hot-swap battery
Y
Automatic battery test
Y
Cold start
Y
Design
Form factor

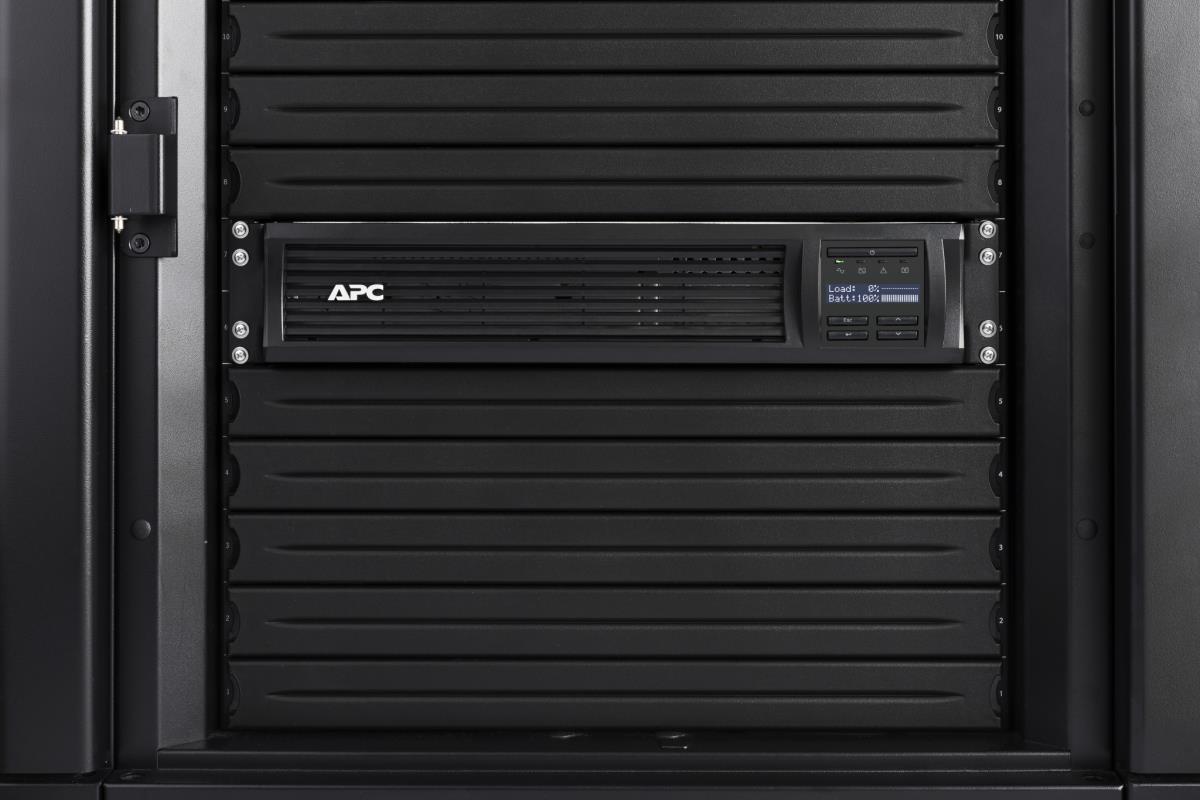

Rackmount
Rack capacity
2U
Product colour
Black

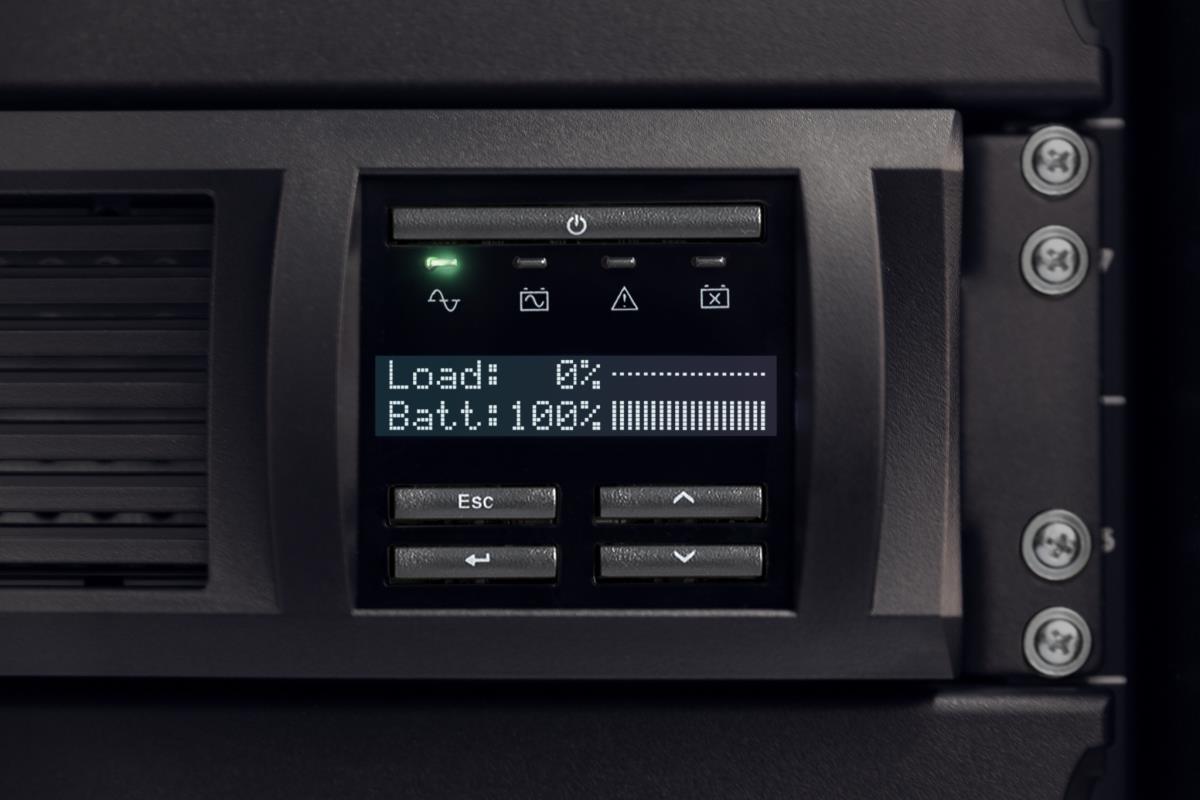

Display type
LCD
LED indicators
Y
Certification
CE, EAC, EN / IEC 62040-1, EN / IEC 62040-2, Energy Star 1.0 (EU), RCM, TÜV, VDE
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Weight & dimensions
Width
432 mm
Depth
477 mm
Height
86 mm
Weight
28.6 kg
Package width
594 mm
Package depth
603 mm
Package height
251 mm
Package weight
31.9 kg
Packaging data
Rack mount kit
Y
Cables included
RS-232, USB cable
Manual
Y
Resource CD
Y
Logistics data
Products per pallet
8 pc(s)
Other features
Output voltage
230 V
Information
| Part Number: | SMT1500RMI2UC |
