Product Details
Technical details
Sustainability certificates
Green Premium
Total carbon footprint (kg of CO2e)
3416.11
Compliance certificates
RoHS
Harmonized System (HS) code
85078000

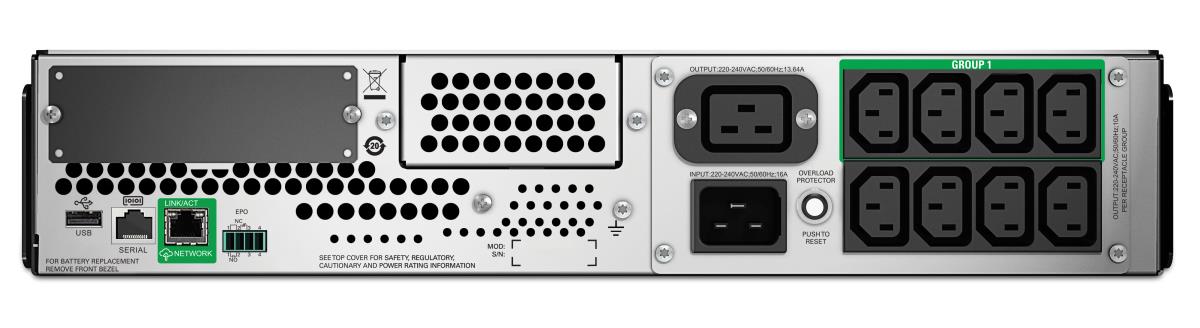

Ports & interfaces
AC outlet types
IEC 60320
Number of output IEC jumpers
3
SmartConnect port
Yes
AC outlets quantity
9 AC outlet(s)

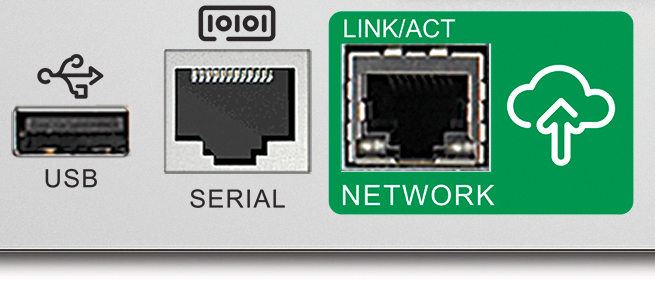

USB port
Y
USB 2.0 ports quantity
1
USB port type
USB Type-A
Serial interface
Y
Serial interface type
RJ-45
Ethernet LAN (RJ-45) ports
1
SmartSlot
Y
Packaging content
Management card included
No
Features
UPS topology
Line-Interactive
Output power capacity
2.2 kVA
Output power
1980 W
Waveform
Sine
Input operation voltage (min)
151 V
Input operation voltage (max)
302 V
Input frequency
50/60 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
375 J
Response time
6 ms
Output voltage Total Harmonic Distortion (THD)
5%
Noise level
55 dB
Power protection features
Over voltage
Audible alarm(s)
Y
Audible alarm modes
Alarm when on battery, Low battery alarm
Battery
Battery technology
Sealed Lead Acid (VRLA)
Number of batteries supported
1
Battery life (max)
5 year(s)
Battery recharge time
3 h
Replacement battery cartridge
RBC43
Design
Form factor
Rackmount
Rack capacity
2U
Cable length
2 m
Product colour
Black, Metallic

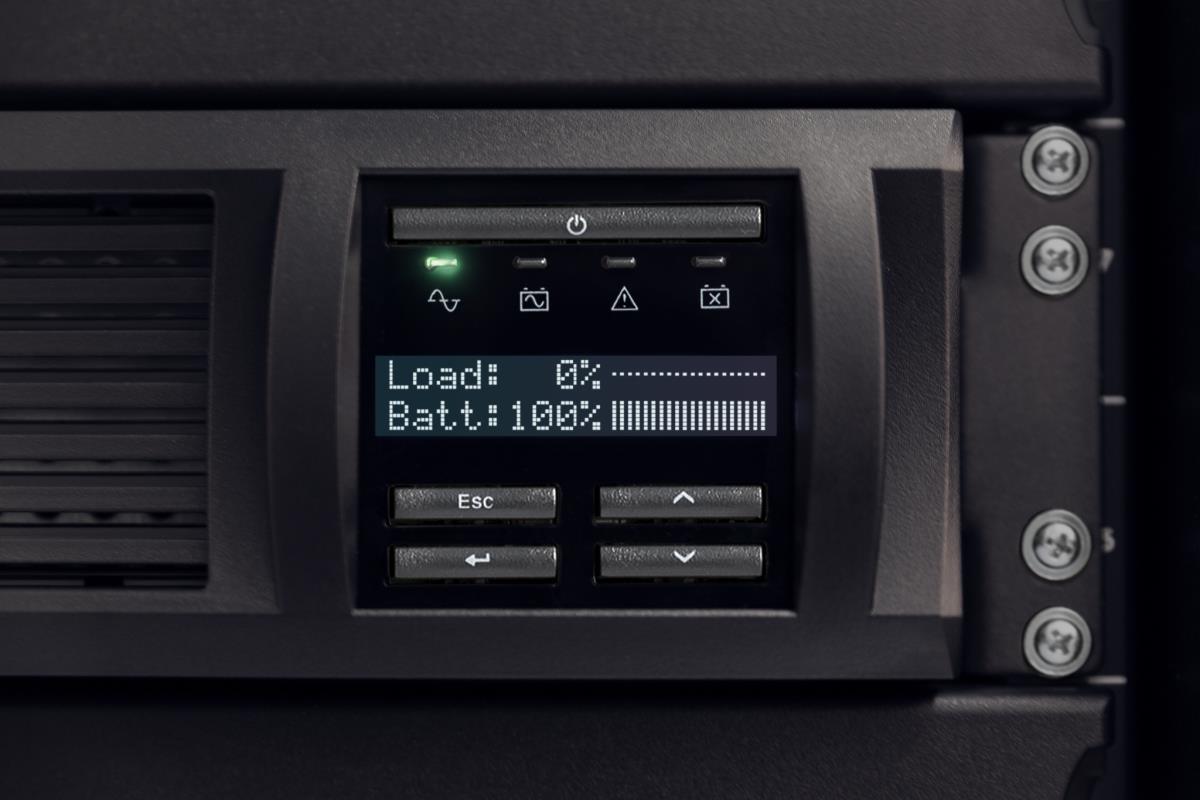

Display type
LCD
Certification
CE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Weight & dimensions
Width
480 mm
Depth
683 mm
Height
86 mm
Weight
42.3 kg
Package width
600 mm
Package depth
980 mm
Package height
254 mm
Package weight
49.7 kg
Packaging data
Rack mount kit
Y
Cables included
RS-232, USB cable
Software CD
Y
Logistics data
Products per pallet
8 pc(s)
Information
| Part Number: | SMT2200RMI2UC |
