Introduction
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
High frequency design
Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
Auto recognition of external batteries
UPS recognizes when external battery packs are attached and automatically adjusts runtime.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

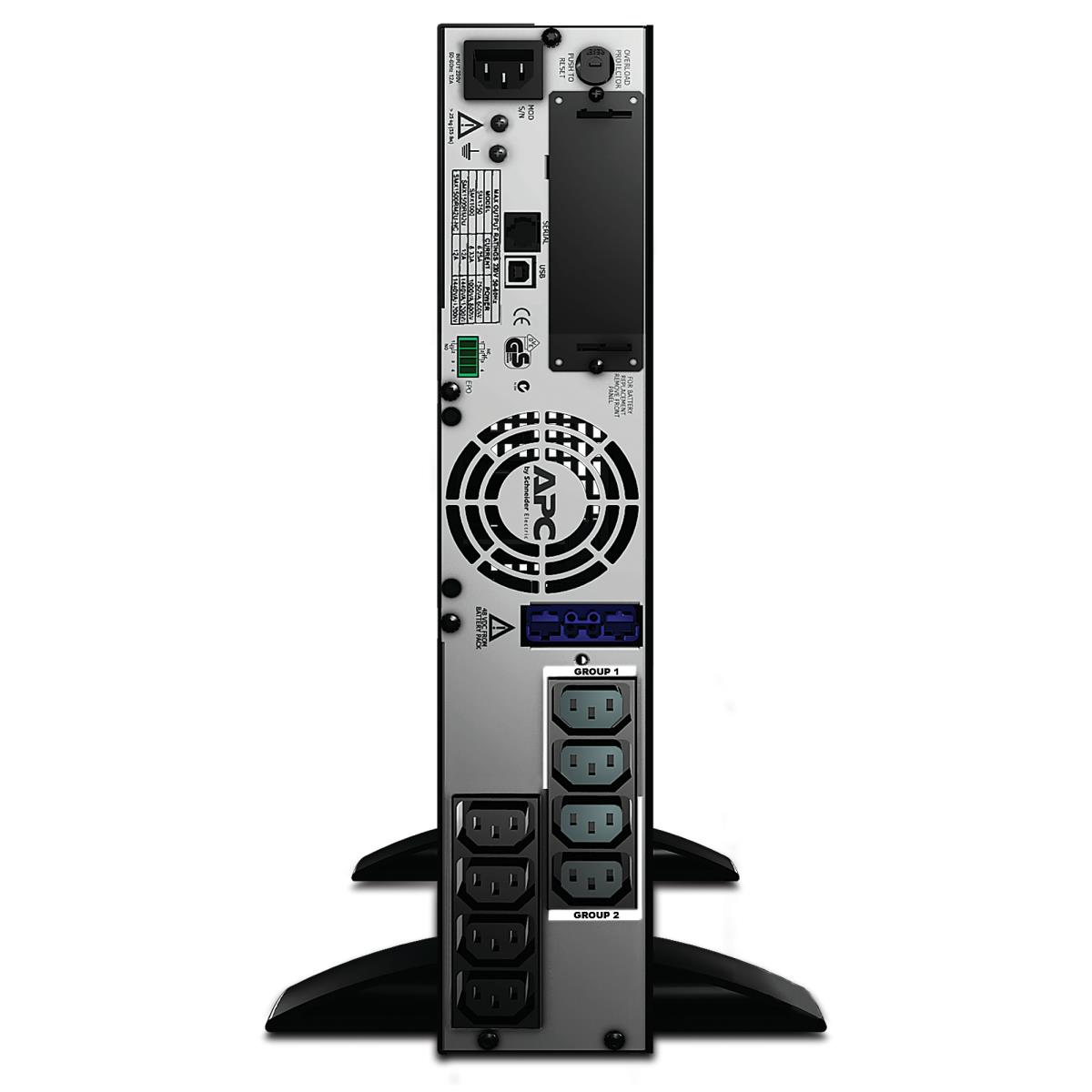

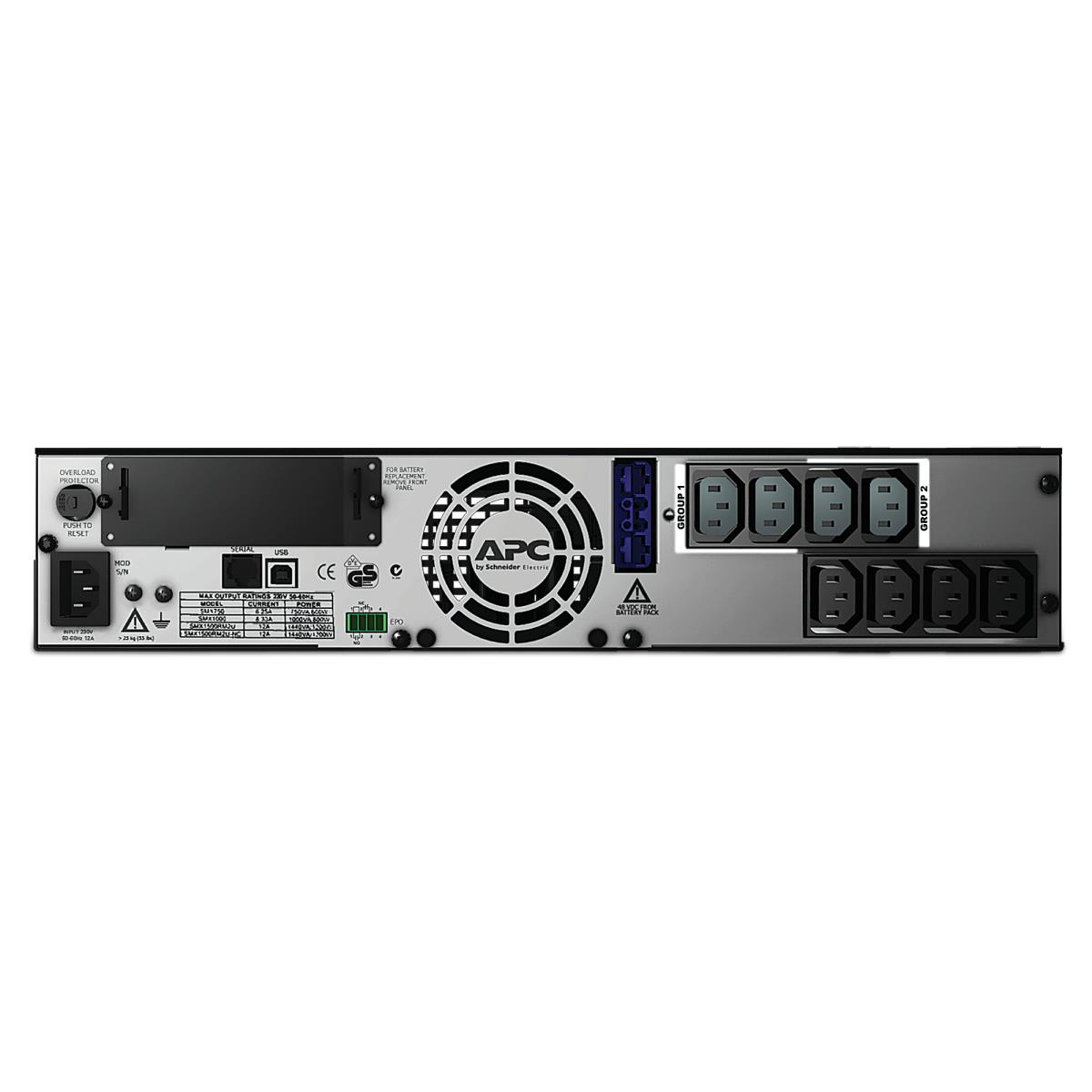

Multiple switched outlet groups
Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
Technical details
Total carbon footprint (kg of CO2e)
1153.31
Compliance certificates
RoHS
Harmonized System (HS) code
85078000
Sustainability certificates
RoHS
Ports & interfaces
SmartConnect port
No
AC outlet types
C13 coupler
Power plug
C14 coupler
AC outlets quantity
8 AC outlet(s)
Number of output IEC jumpers
2
USB port
Y
SmartSlot
Y
Packaging content
Management card included
No
Features
UPS topology
Line-Interactive
Output power capacity
1 kVA
Output power
800 W
Waveform
Sine
Input operation voltage (min)
151 V
Input operation voltage (max)
302 V
Input frequency
50/60 Hz
Output frequency regulation
50/60 Hz
Automatic Voltage Regulation (AVR)
Y
Surge energy rating
600 J
Efficiency
98.2%
Emergency Power Off (EPO)
Y
Noise level
40 dB
Surge protection
Y
Audible alarm(s)
Y
Audible alarm modes
Low battery alarm, Overload alarm
Auto-restart
Y
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
299 VAh

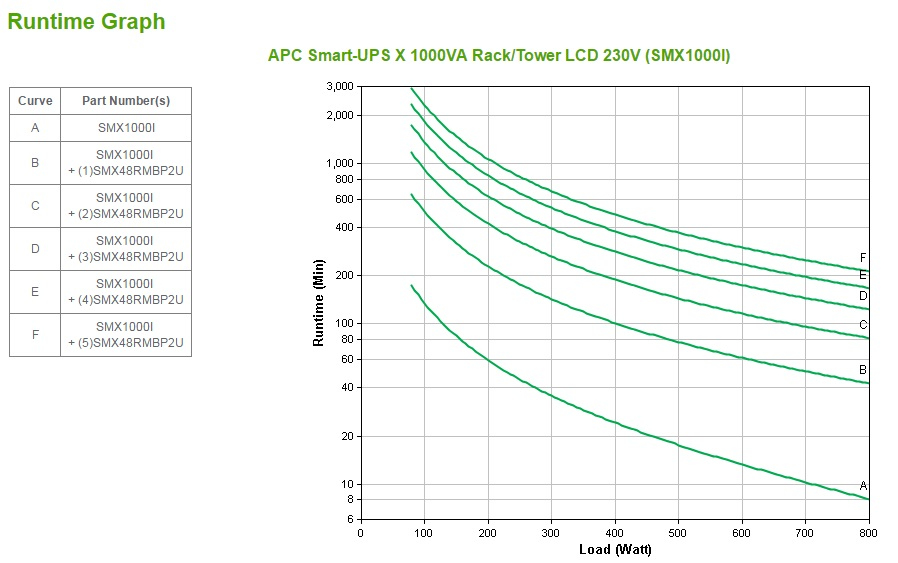

Typical backup time at full load
8.1 min
Typical backup time at half load
24.2 min
Battery life (max)
5 year(s)
Battery recharge time
3 h
Hot-swap battery
N
Automatic battery test
Y
Cold start
Y
Design
Form factor

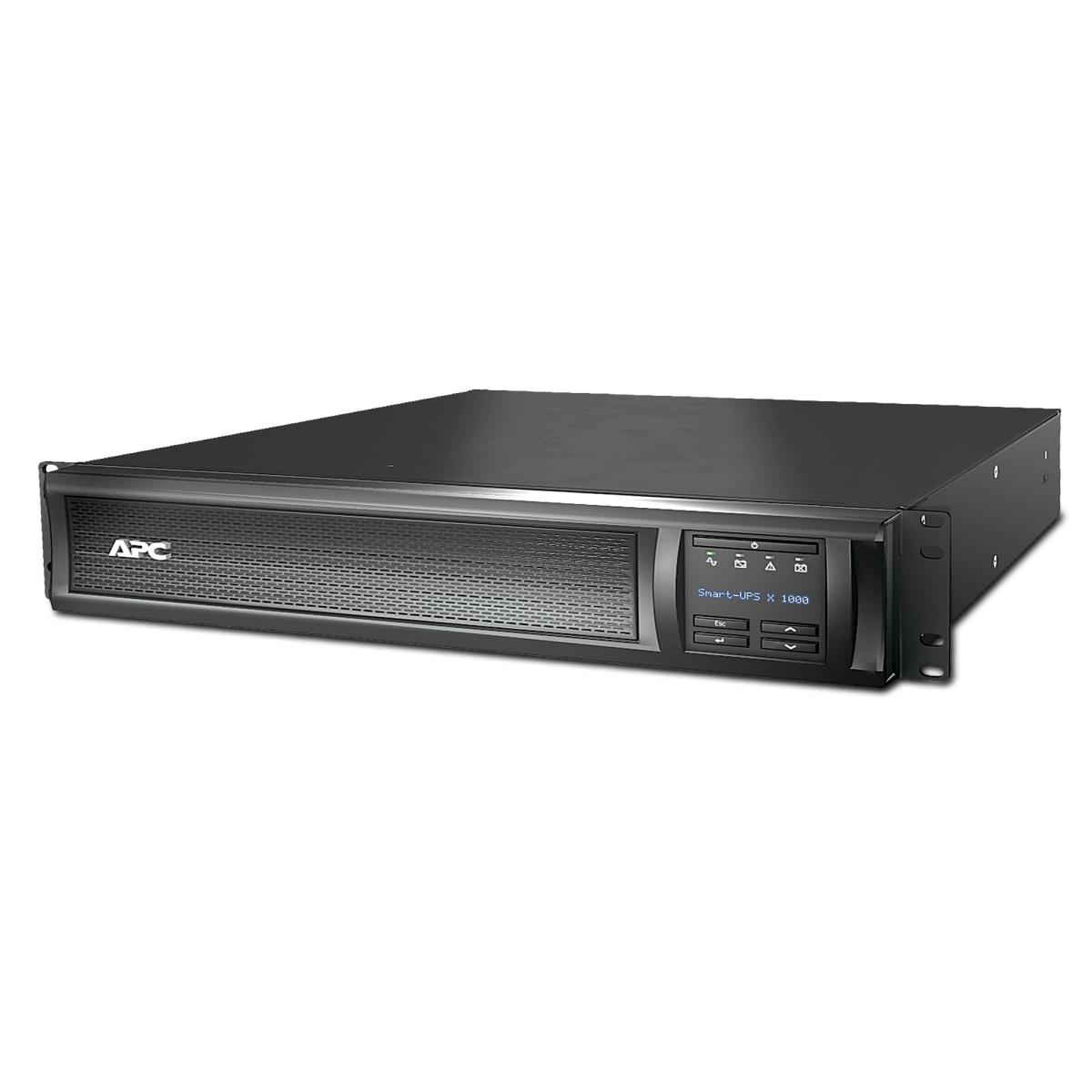

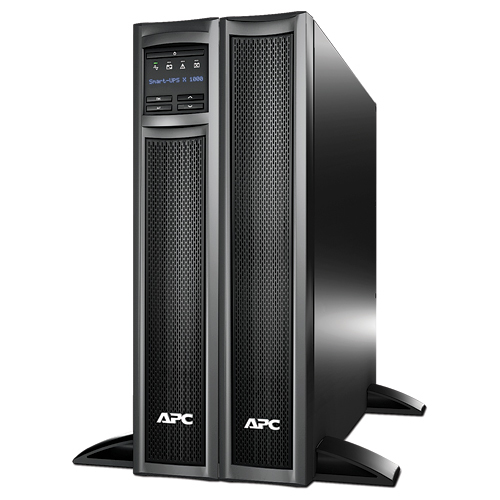

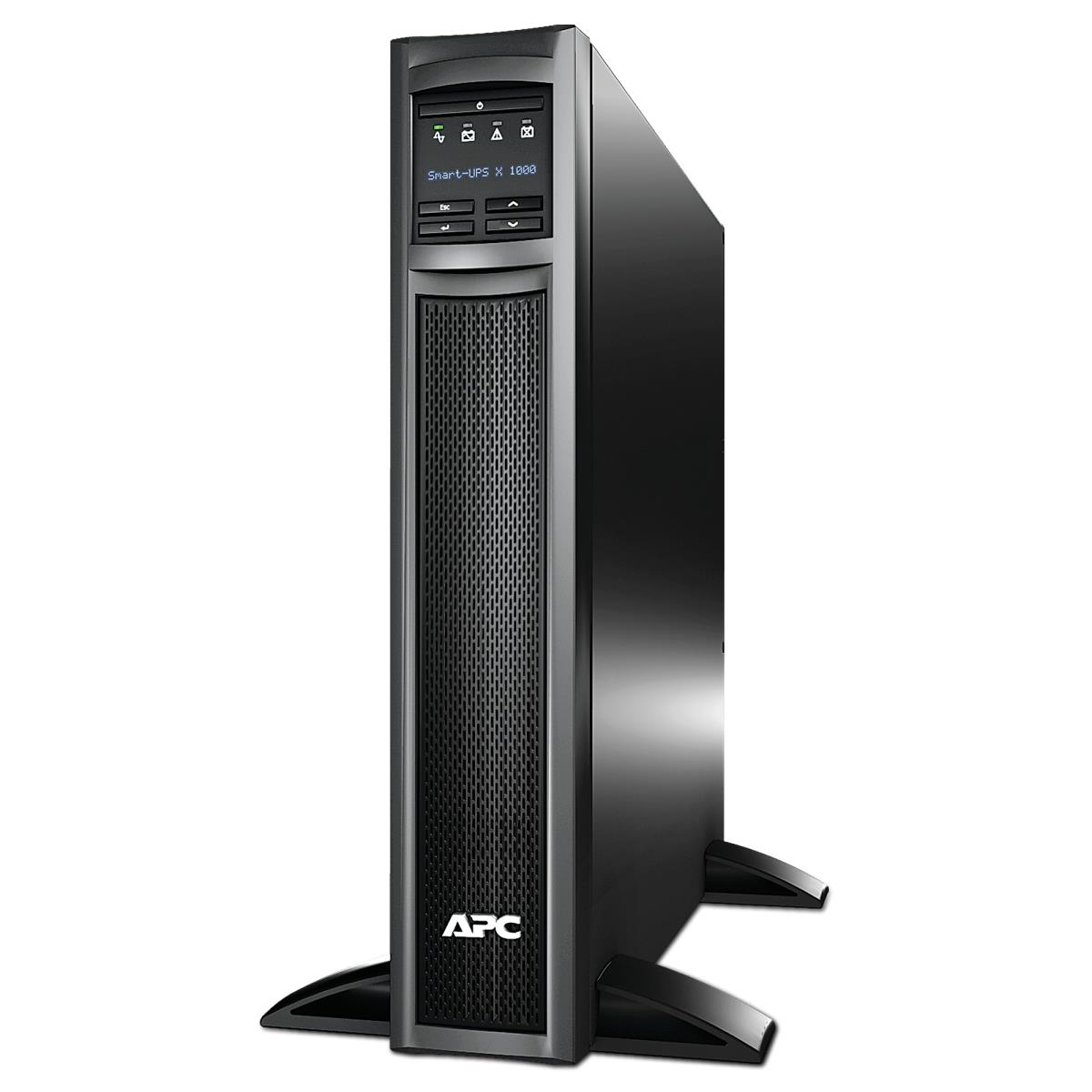

Rackmount/Tower
Rack capacity
2U
Cable length
1.83 m
Product colour
Black
LED indicators
Y
Certification
CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH, PEP, EOLI
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Weight & dimensions
Width
432 mm
Depth
490 mm
Height
89 mm
Weight
22.9 kg
Package width
589 mm
Package depth
620 mm
Package height
246 mm
Package weight
27.3 kg
Packaging data
Rack mount kit
Y
Cables included
RS-232, USB cable
Quick installation guide
Y

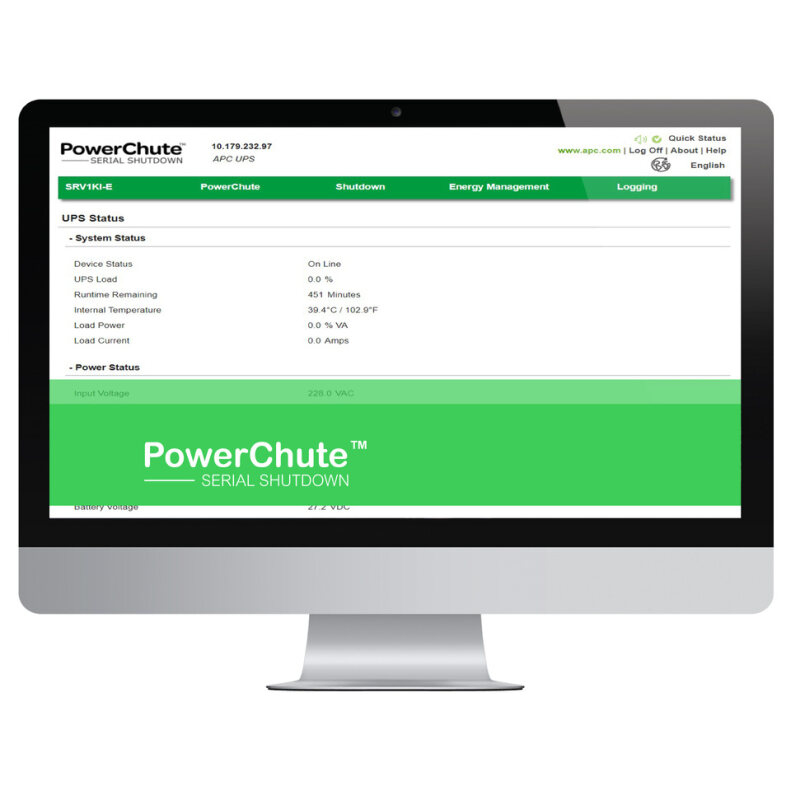

Software CD
Y
Logistics data
Products per pallet
8 pc(s)
Other features
Nominal output voltage
230 V
Nominal input voltage
230 V
Packaging content
Removable support feet
