Product Details
Introduction
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Scalable runtime
Allows additional run time to be quickly added as needed.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

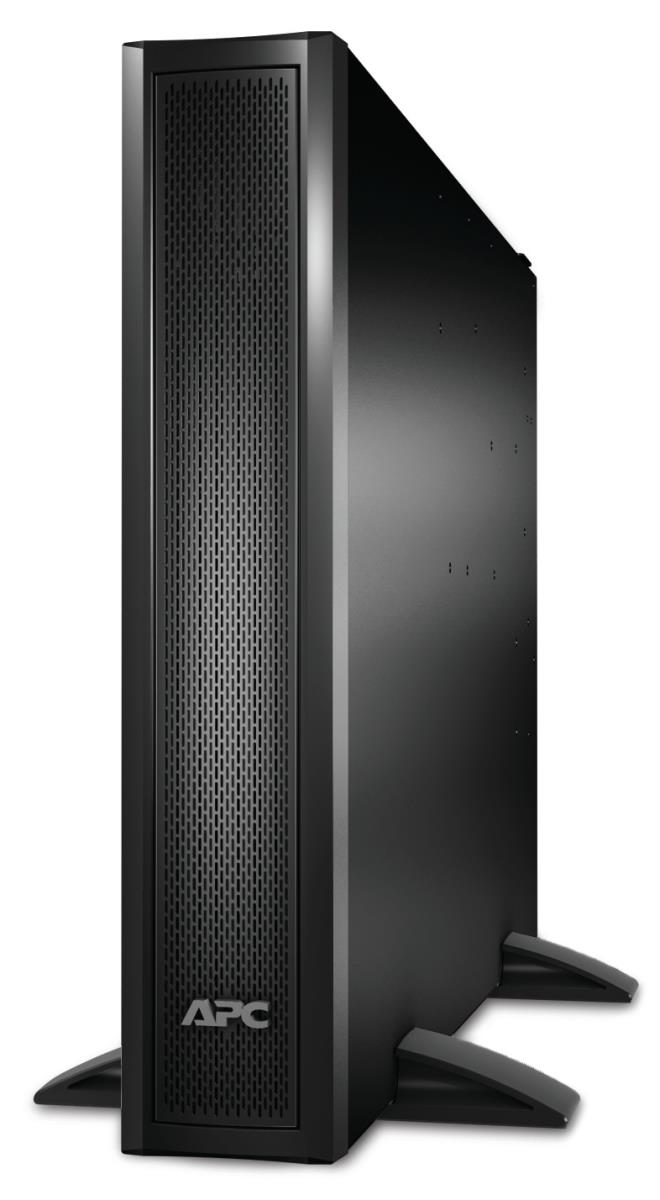

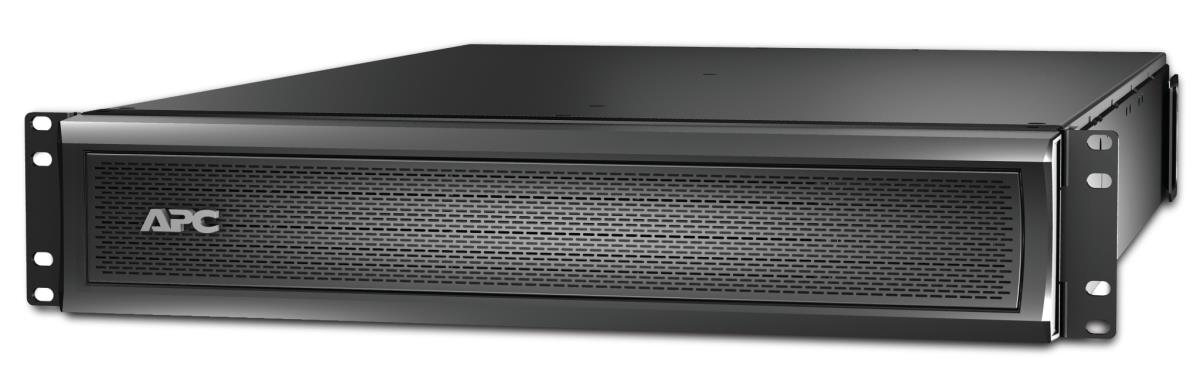

Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Technical details
Total carbon footprint (kg of CO2e)
291.4
Compliance certificates
RoHS
Harmonized System (HS) code
85044095
Sustainability certificates
RoHS
Features
Product colour
Black
Battery technology
Sealed Lead Acid (VRLA)
Battery voltage
120 V
Battery life
5 year(s)
Hot-swap battery
Y
Certification
REACH, PEP, EOLI
Weight & dimensions
Weight
56.4 kg
Width
432 mm
Height
85 mm
Depth
667 mm
Packaging data
Package width
596 mm
Package height
243 mm
Package depth
869 mm
Package weight
63.6 kg
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Information
| Part Number: | SMX120RMBP2U |
