Product Details
Introduction

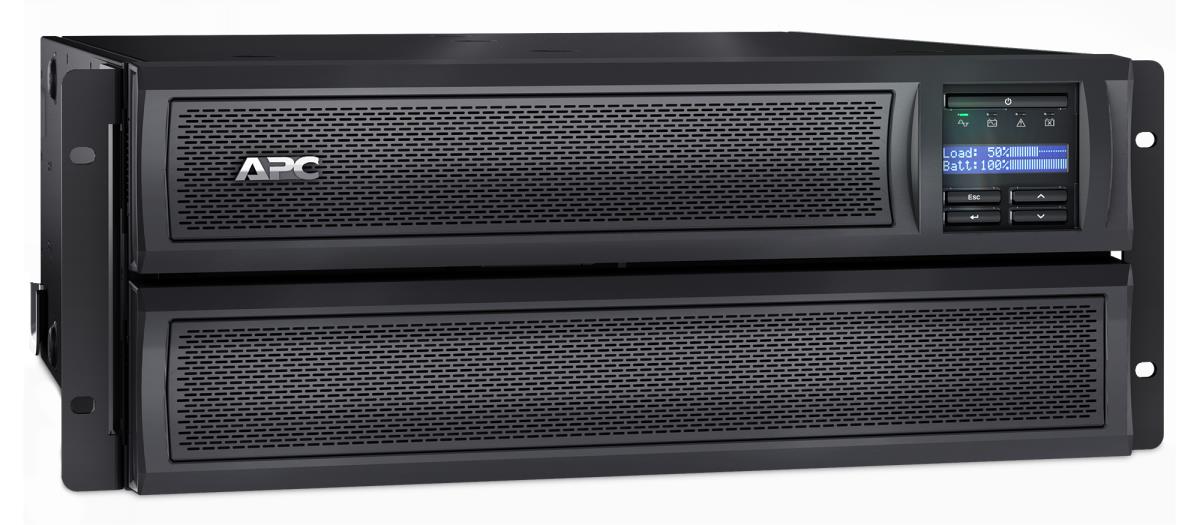

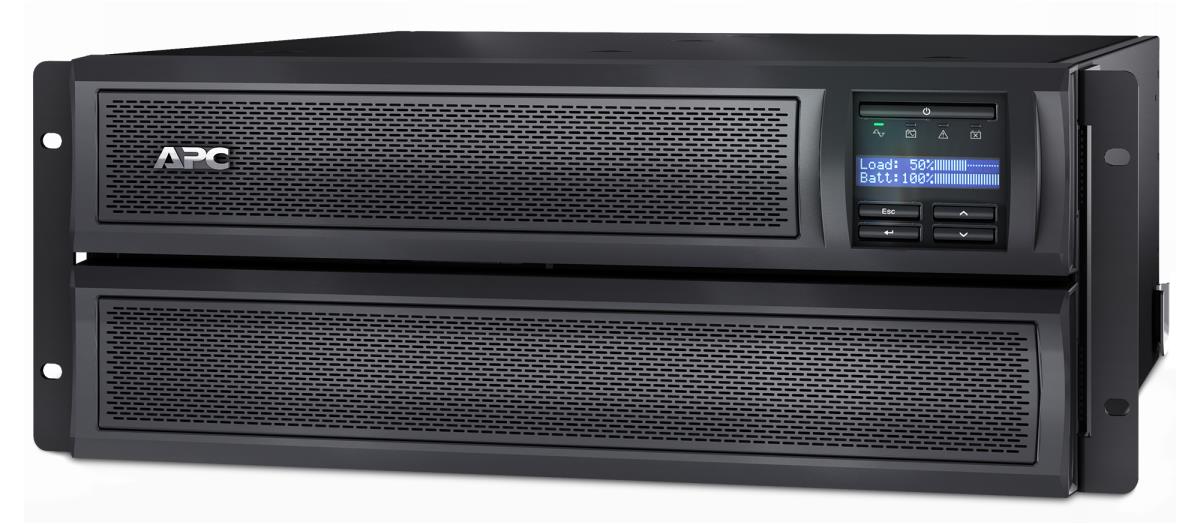

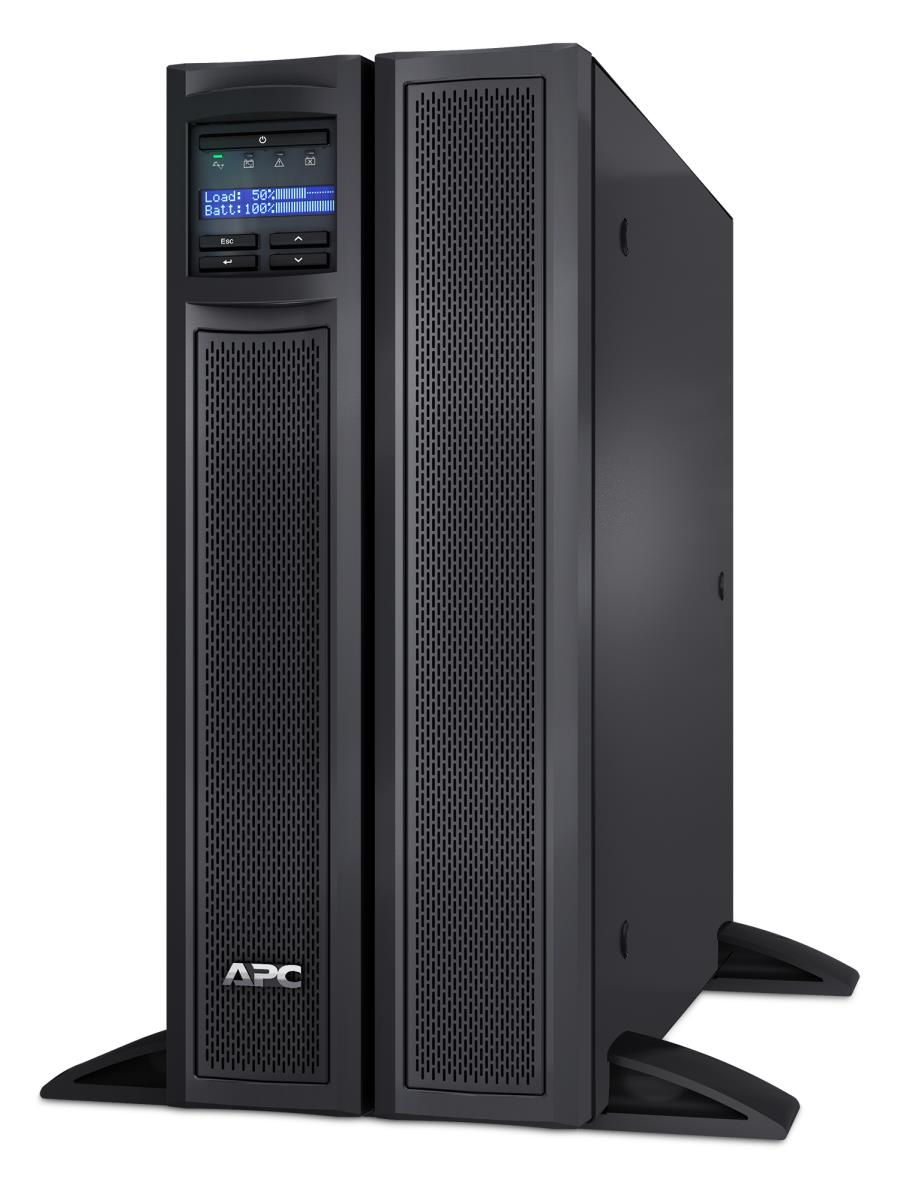

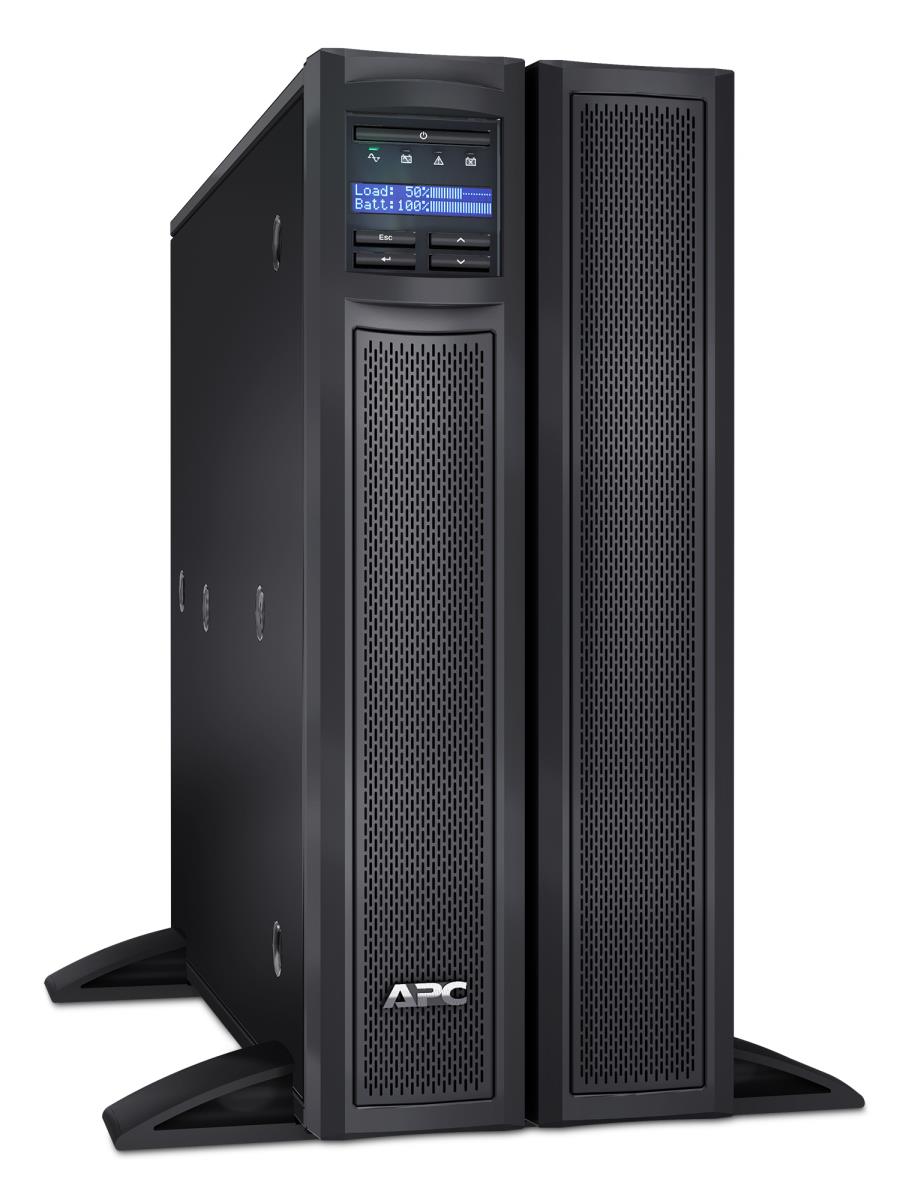

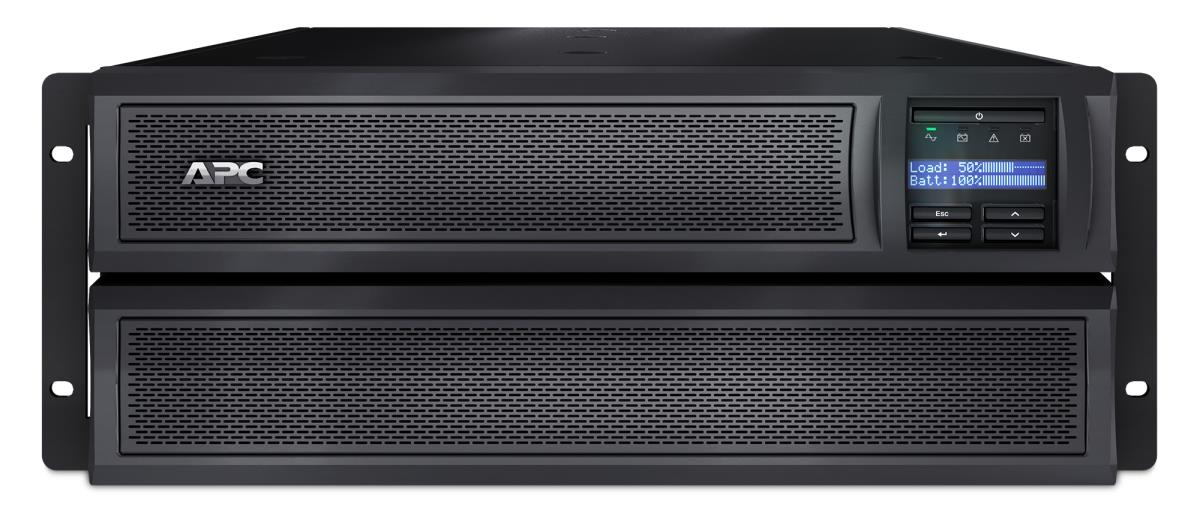

APC Smart-UPS,2700 Watts /3000 VA,Input 208V, 230V /Output 230V, Interface Port SmartSlot, Extended runtime model, Rack Height 4 U
Includes: CD with software, Documentation CD, Rack Mounting brackets, Smart UPS signalling RS-232 cable, USB cable, User Manual
Technical details
Total carbon footprint (kg of CO2e)
2447.6
Compliance certificates
RoHS
Harmonized System (HS) code
85078000
Sustainability certificates
RoHS
Ports & interfaces
SmartConnect port
No

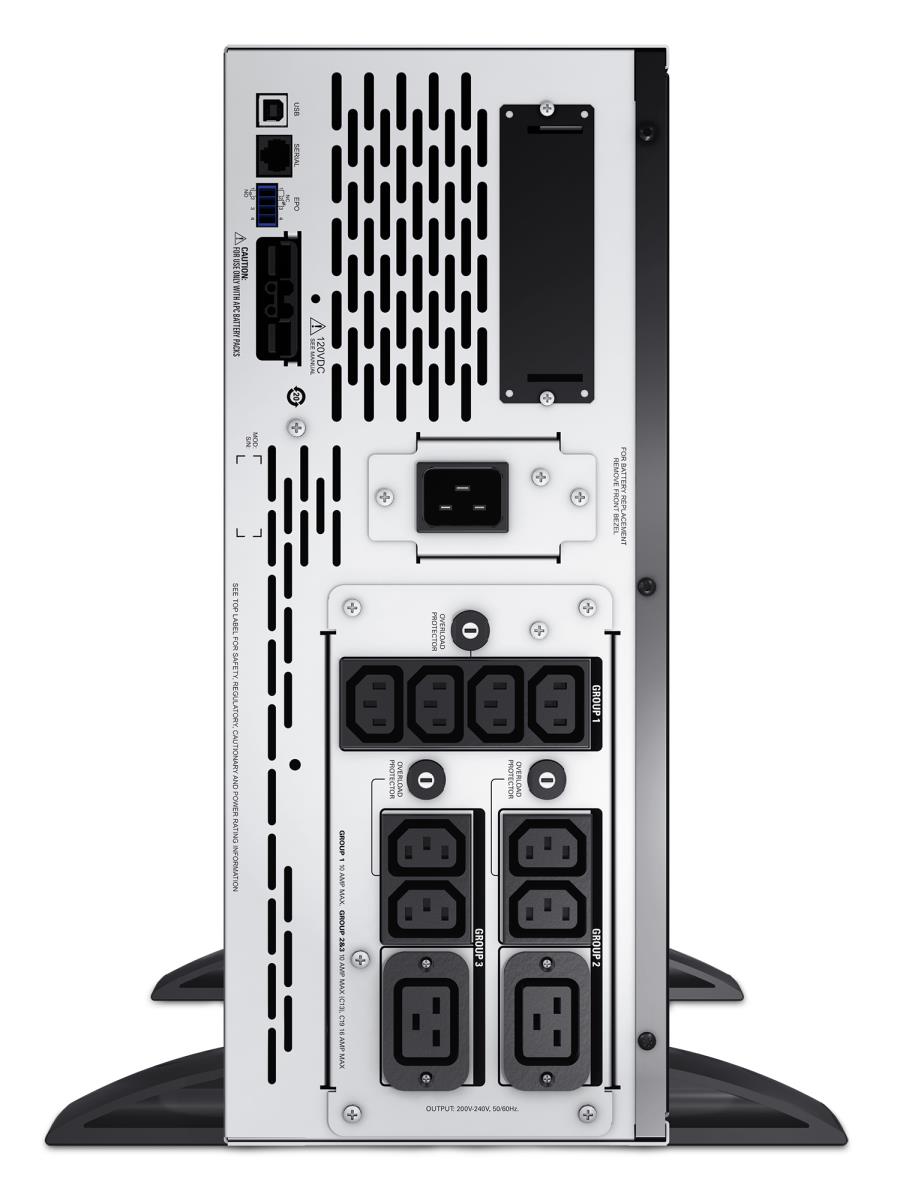

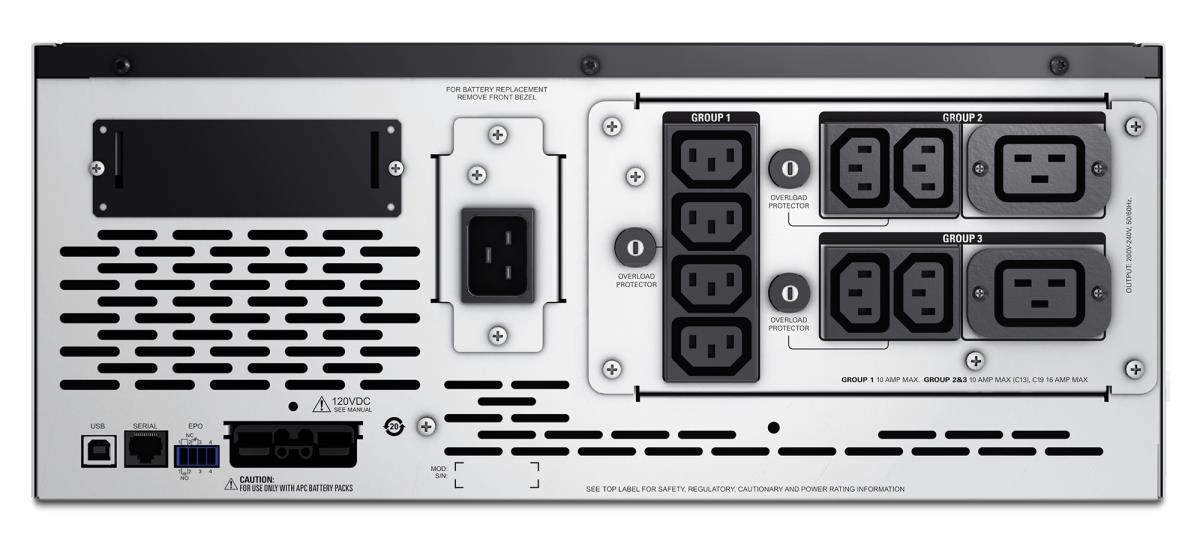

AC outlet types
C13 coupler, C19 coupler
Power plug
C20 coupler
AC outlets quantity
10 AC outlet(s)
Number of output IEC jumpers
2
SmartSlot
Y
Packaging content
Management card included
No
Features
UPS topology
Line-Interactive
Output power capacity
3 kVA
Output power
2700 W
Waveform
Sine
Input operation voltage (min)
140 V
Input operation voltage (max)
280 V
Input frequency
50/60 Hz
Output operation voltage (min)
208 V
Output operation voltage (max)
240 V
Output frequency regulation
50/60 Hz
Automatic Voltage Regulation (AVR)
Y
Surge energy rating
645 J
Hold time (min)
2 ms
Hold time (max)
10 ms
Efficiency
98.5%
Crest factor
3:1
Emergency Power Off (EPO)
Y
Noise level
55 dB
Surge protection
Y
Audible alarm(s)
Y
Auto-restart
Y
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
738 VAh

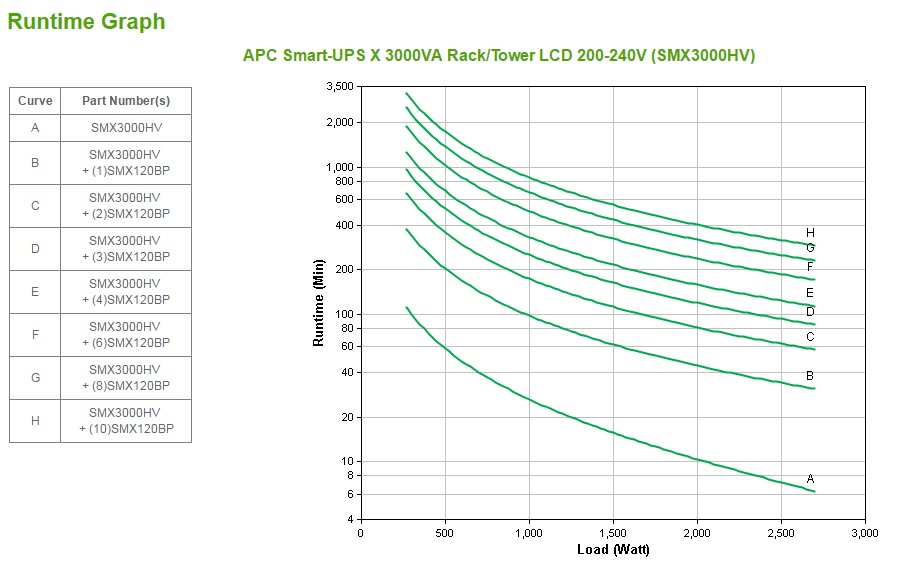

Typical backup time at full load
6.3 min
Typical backup time at half load
18 min
Battery life (max)
5 year(s)
Battery recharge time
3 h
Hot-swap battery
Y
Automatic battery test
Y
Design
Form factor

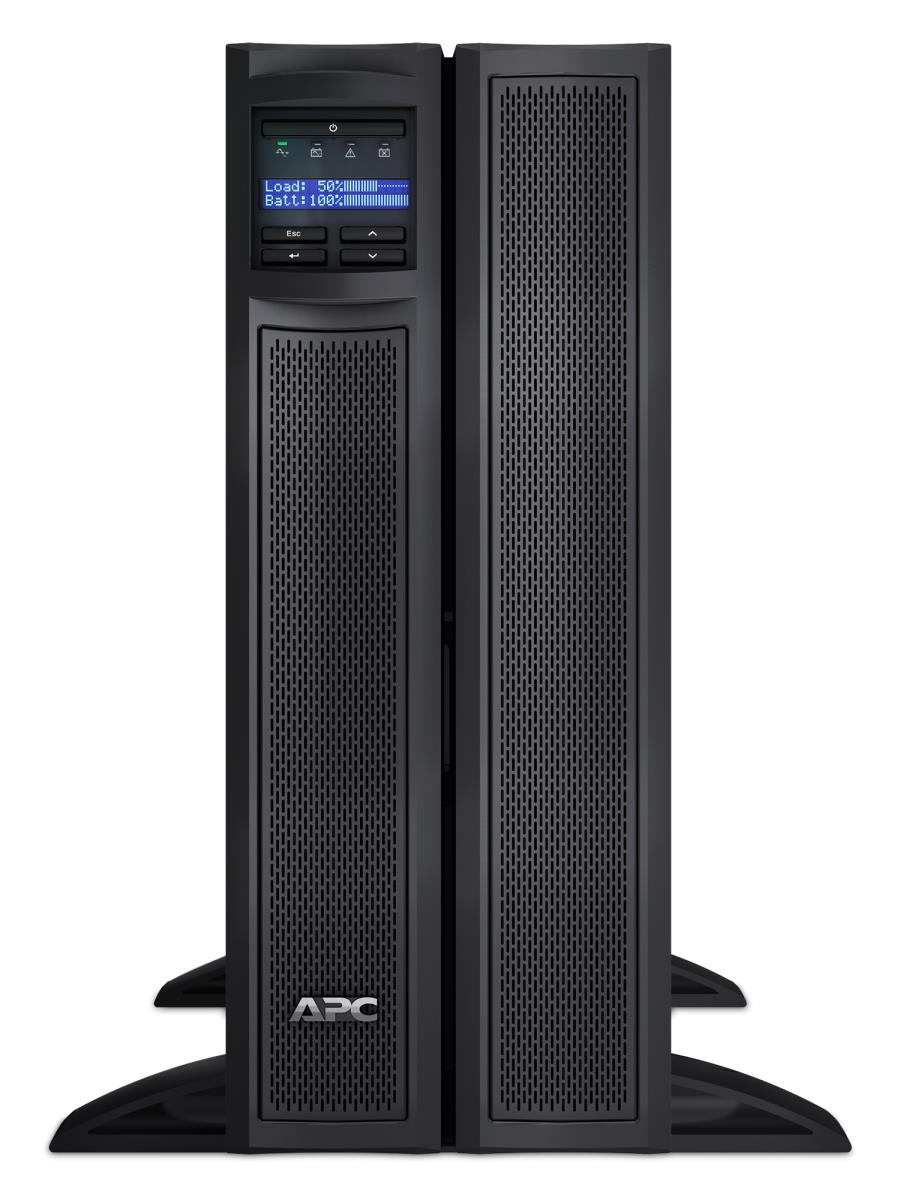

Rackmount/Tower
Rack capacity
4U
Cable length
1.83 m
Product colour
Black, Stainless steel
Display type
LCD
LED indicators
Status
Certification
C-tick, CE, CSA, EN 50091-1, EN 50091-2, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE,
REACH
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Weight & dimensions
Width
178 mm
Depth
483 mm
Height
432 mm
Weight
38.6 kg
Package width
586 mm
Package depth
633 mm
Package height
330 mm
Package weight
47.7 kg
Packaging data
Rack mount kit
Y
Cables included
RS-232, USB cable
Manual
Y
Quick installation guide
Y
Software CD
Y
Logistics data
Products per pallet
6 pc(s)
Other features
Nominal output voltage
230 V
Information
| Part Number: | SMX3000HV |
