APC Smart UPS X 3000va Rack/ Tower LCD 200-240v

APC Smart UPS X 3000va Rack/ Tower LCD 200-240v

£2,668.24 (incl. VAT)

Qty:

Add to basket

Part Number:	SMX3000RMHV2U
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery.

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Disconnected battery notification
Warns when a battery is not available to provide backup power.

Network manageable
Provides remote management of the UPS over the network.

Audible alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.

LED status indicators
Quickly understand unit and power status with visual indicators.

Serial Connectivity
Provides management of the UPS via a serial port.

USB connectivity
Provides management of the UPS via a USB port (not available on all models).

Disconnected battery notification
Warns when a battery is not available to provide backup power.

Technical details

Total carbon footprint (kg of CO2e) 2723.78

Compliance certificates RoHS

Harmonized System (HS) code 85078000

Sustainability certificates RoHS

Ports & interfaces

SmartConnect port No

AC outlet types C13 coupler, C19 coupler

Power plug C20 coupler

AC outlets quantity 9 AC outlet(s)

Number of output IEC jumpers 2

SmartSlot Y

Packaging content

Management card included No

Features

UPS topology Line-Interactive

Output power capacity 3 kVA

Output power 2700 W

Waveform Sine

Input frequency 50/60 Hz

Output operation voltage (min) 208 V

Output operation voltage (max) 240 V

Output frequency regulation 50/60 Hz

Automatic Voltage Regulation (AVR) Y

Surge energy rating 645 J

Hold time (min) 2 ms

Hold time (max) 10 ms

Efficiency 98.5%

Crest factor 3:1

Emergency Power Off (EPO) Y

Noise level 55 dB

Surge protection Y

Audible alarm(s) Y

Auto-restart Y

Battery

Battery technology Sealed Lead Acid (VRLA)

Battery capacity 738 VAh

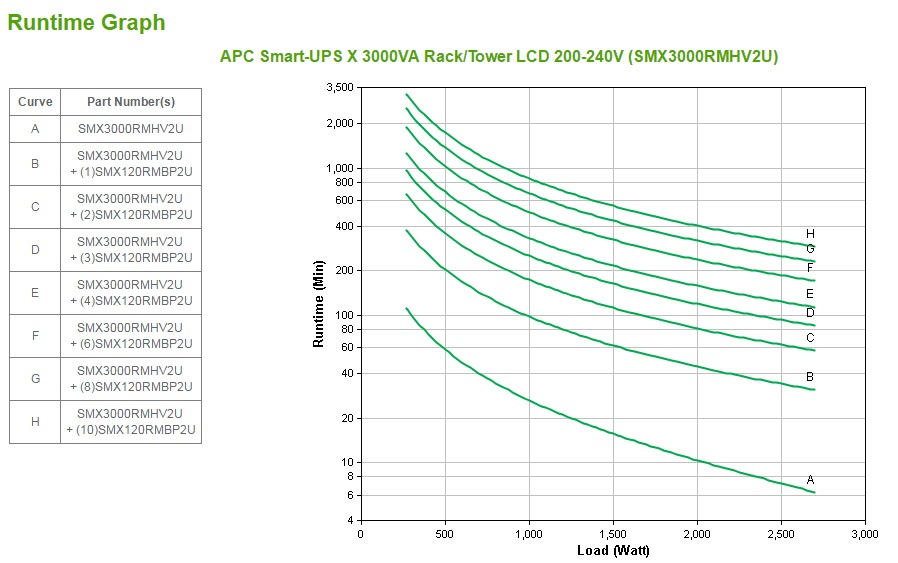

Typical backup time at full load 6.3 min

Typical backup time at half load 18 min

Battery life (max) 5 year(s)

Battery recharge time 3 h

Hot-swap battery Y

Automatic battery test Y

Design

Form factor Rackmount/Tower

Rack capacity 2U

Cable length 1.83 m

Product colour Black

LED indicators Battery replacement

Certification CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, UL 1778, VDE, REACH, PEP, EOLI

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -15 - 45 °C

Operating relative humidity (H-H) 0 - 95%

Storage relative humidity (H-H) 0 - 95%

Operating altitude 0 - 3000 m

Non-operating altitude 0 - 15000 m

Weight & dimensions

Width 432 mm

Depth 667 mm

Height 85 mm

Weight 37.3 kg

Package width 596 mm

Package depth 869 mm

Package height 243 mm

Package weight 45.4 kg

Packaging data

Rack mount kit Y

Cables included RS-232, USB cable

Manual Y

Quick installation guide Y

Software CD Y

Logistics data

Products per pallet 8 pc(s)

Other features

Nominal output voltage 230 V

Nominal input voltage 230 V

Information

Part Number:

SMX3000RMHV2U
