Introduction
High density, double-conversion on-line power protection with scalable runtime
A versatile UPS developed for the harshest power conditions in the world.
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Logistics data
Total carbon footprint (kg of CO2e)
1839.69

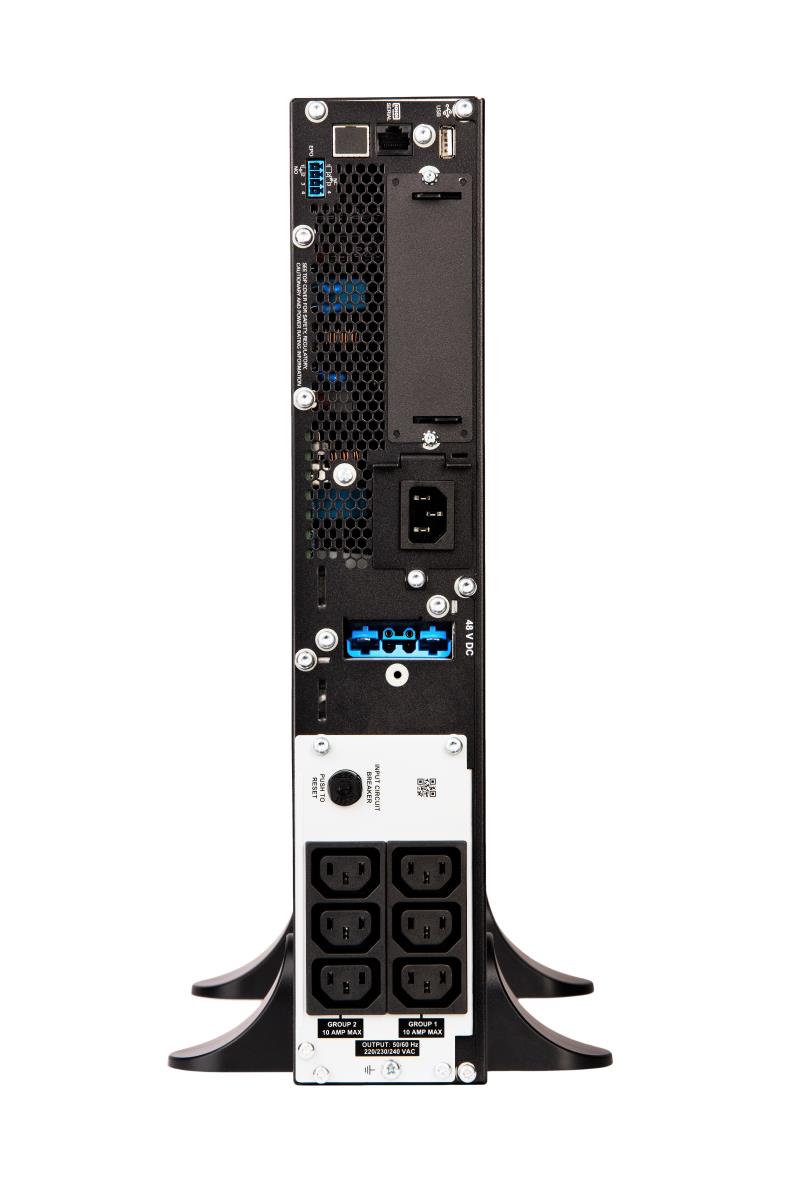

Ports & interfaces
SmartConnect port
No
AC outlet types
C13 coupler
Power plug
C14 coupler
AC outlets quantity
12 AC outlet(s)
USB port
Y
Serial interface
Y
Serial interface type
RJ-45
Serial ports quantity
1
SmartSlot
Y
Packaging content
Management card included
No
Technical details
Compliance certificates
CE
Harmonized System (HS) code
85078000
Sustainability compliance
Y
Sustainability certificates
CE
Features
UPS topology
Double-conversion (Online)
Output power capacity
1 kVA
Output power
1000 W
Waveform
Sine
Input operation voltage (min)
220 V
Input operation voltage (max)
240 V
Input frequency
40/70 Hz
Output operation voltage (min)
50 V
Output operation voltage (max)
240 V
Output frequency
50/60 Hz
Surge energy rating
432 J
Crest factor
3:1
ECO mode
Y
Emergency Power Off (EPO)
Y
Output voltage Total Harmonic Distortion (THD)
2%
Noise level
50 dB
Audible alarm(s)
Y
Audible alarm modes
Alarm when on battery, Battery replacement
Auto-restart
Y
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery voltage
48 V

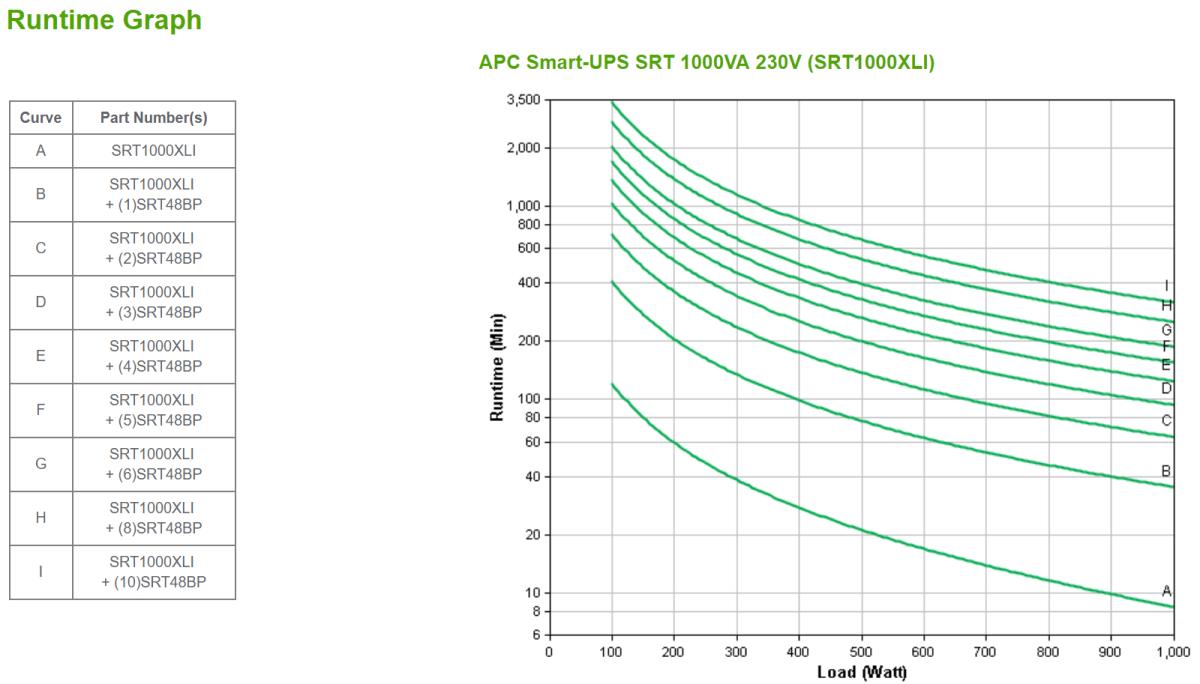

Typical backup time at full load
8 min
Typical backup time at half load
21 min
Battery life (max)
5 year(s)
Battery recharge time
3 h
Hot-swap battery
Y
Automatic battery test
Y
Cold start
Y
Design
Form factor
Rackmount/Tower
Rack capacity
2U
Cable length
1.8 m
Cooling type
Active
Built-in fan
Y
Product colour
Black
Display type
LCD
LED indicators
Y
International Protection (IP) code
IP20
Certification
CE, EAC
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3048 m
Non-operating altitude
0 - 15240 m
Weight & dimensions
Width
432 mm
Depth
505 mm
Height
85 mm
Weight
20.5 kg
Battery width
59.4 cm
Battery depth
74.9 cm
Battery height
24.6 cm
Battery weight
29.6 kg
Packaging data
Cables included
USB cable
Quick installation guide
Y
Other features
Nominal output voltage
230 V
Nominal input voltage
230 V
