Introduction
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
High density, double-conversion on-line power protection with scalable runtime.
Includes : CD with software , Country-specific detachable power cord , Documentation CD , Installation guide , Rack Mounting brackets , Rack mounting hardware , Rack Mounting support rails , USB cable , Warranty card
Technical details
Total carbon footprint (kg of CO2e)
3656.4
Compliance certificates
RoHS
Harmonized System (HS) code
85078000
Sustainability certificates
RoHS, ENERGY STAR
Ports & interfaces
SmartConnect port
No

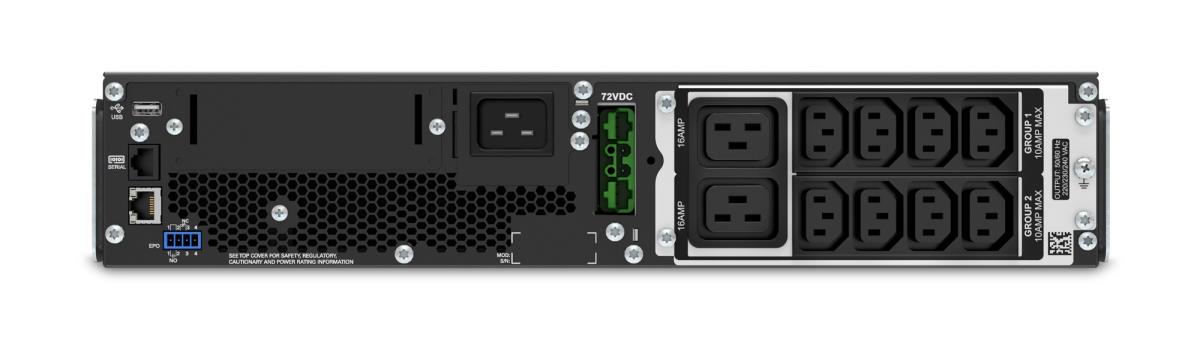

AC outlet types
C13 coupler, C19 coupler
Power plug
C20 coupler
AC outlets quantity
10 AC outlet(s)
Number of output IEC jumpers
2
USB port
Y
Serial interface
Y
Serial interface type
RJ-45
SmartSlot
Y
Packaging content
Management card included
No
Features
UPS topology
Double-conversion (Online)
Output power capacity
2.2 kVA
Output power
1980 W
Waveform
Sine
Input operation voltage (min)
100 V
Input operation voltage (max)
275 V
Input frequency
40/70 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Output frequency regulation
50/60 Hz
Surge energy rating
340 J
Efficiency
92.2%
Crest factor
3:1
Emergency Power Off (EPO)
Y
Noise level
55 dB
Surge protection
Y
Audible alarm(s)
Y
Web-based management
Y
Auto-restart
Y
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
367 VAh
Number of batteries supported
1

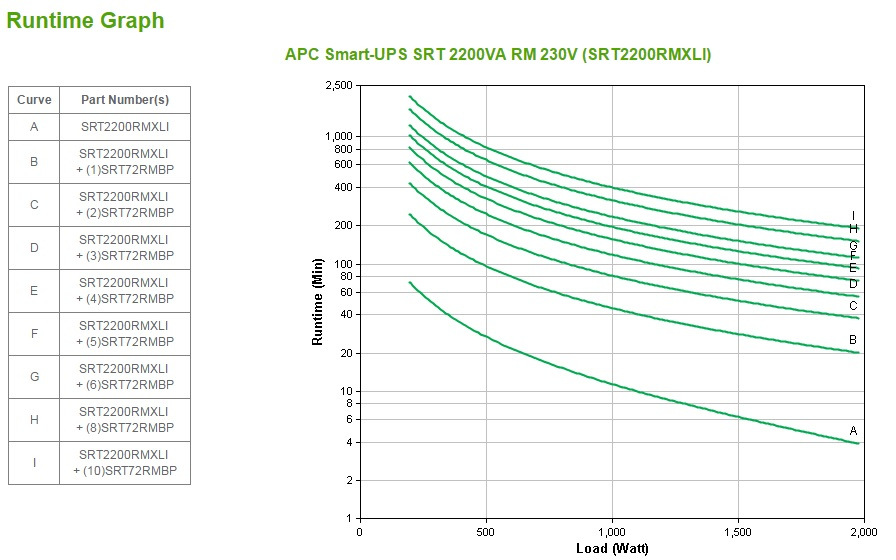

Typical backup time at full load
3.9 min
Typical backup time at half load
11.6 min
Battery life (max)
5 year(s)
Battery recharge time
3 h
Hot-swap battery
Y
Automatic battery test
Y
Cold start
Y
Design
Form factor
Rackmount/Tower
Rack capacity
2U
Cable length
2.44 m
Product colour
Black

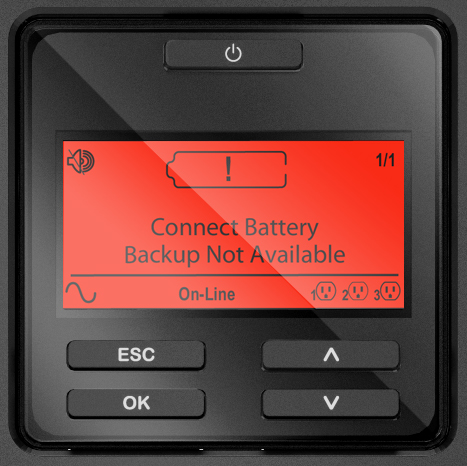

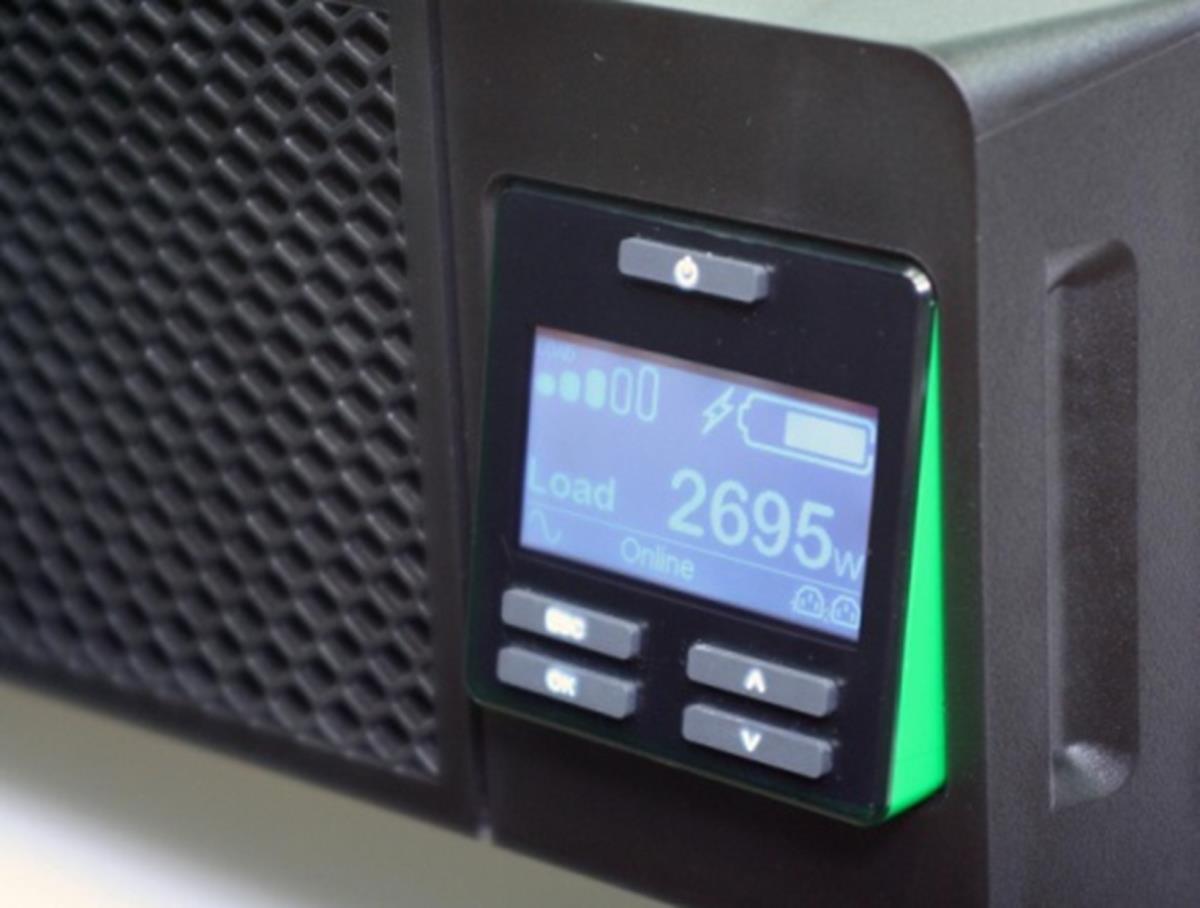

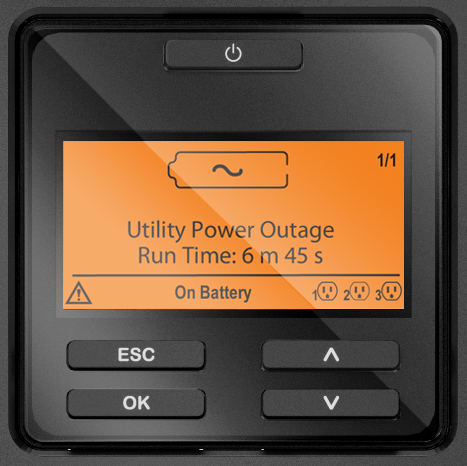

Display type
LCD
LED indicators
Y
International Protection (IP) code
IP20
Certification
CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Weight & dimensions
Width
432 mm
Depth
584 mm
Height
85 mm
Weight
25 kg
Package width
599 mm
Package depth
810 mm
Package height
246 mm
Package weight
34 kg
Packaging data
Rack mount kit
Y
Bracket
Y
Cables included
USB cable
Quick installation guide
Y
Software CD
Y
Logistics data
Products per pallet
12 pc(s)
Other features
Nominal output voltage
230 V
Nominal input voltage
230 V
