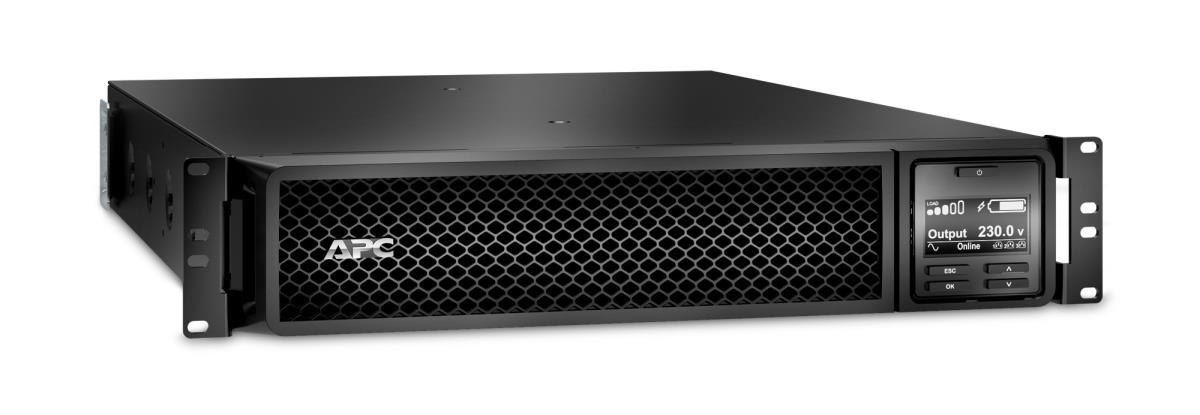

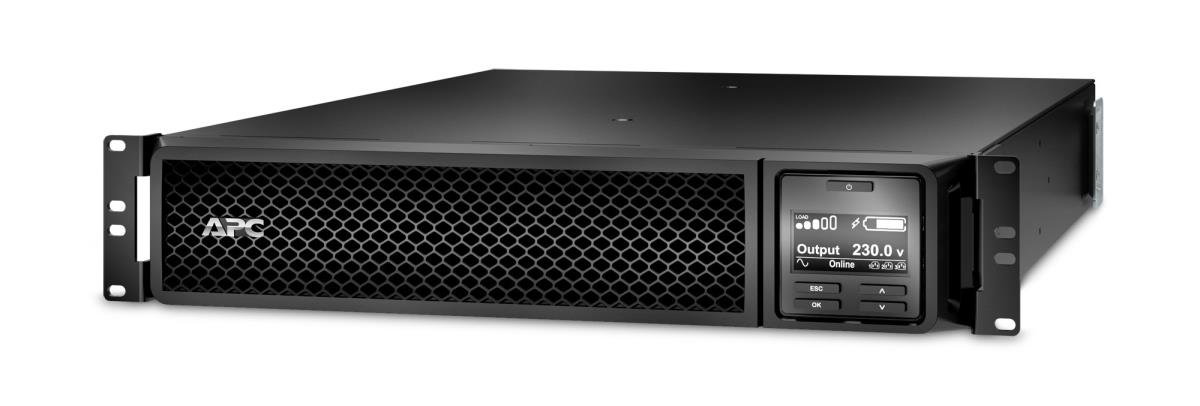

APC Smart-UPS SRT 2200VA RM 230V Network Card

APC Smart-UPS SRT 2200VA RM 230V Network Card

£2,565.29 (incl. VAT)

Qty:

Add to basket

Part Number:	SRT2200RMXLI-NC
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

Save time with easy and convenient remote accessibility.
Network manageable via serial, USB or optional Ethernet. Includes Powerchute Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.

Low operating and maintenance costs with proven reliability and intelligent battery management.
Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.

Avoids costly power problems by keeping your IT equipment and data protected and available.
Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.

Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

Technical details

Total carbon footprint (kg of CO2e) 3656.79

Compliance certificates RoHS

Harmonized System (HS) code 85078000

Sustainability certificates RoHS, ENERGY STAR

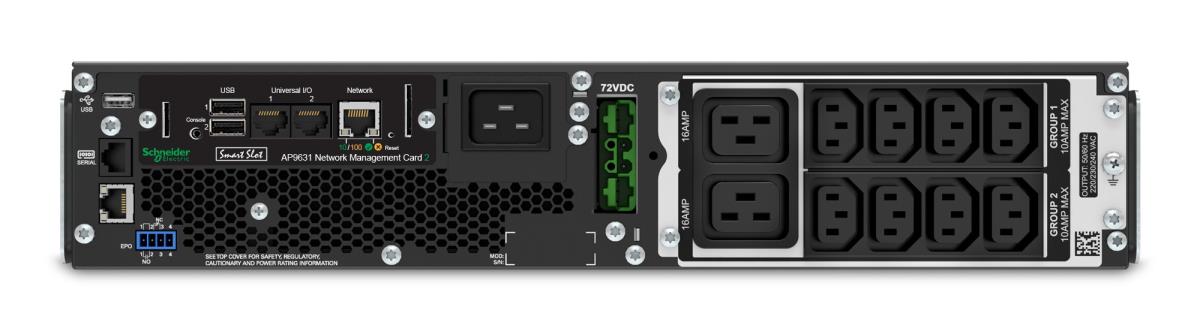

Ports & interfaces

SmartConnect port No

AC outlet types C13 coupler, C19 coupler

AC outlets quantity 12 AC outlet(s)

Number of output IEC jumpers 2

USB port Y

Serial interface Y

Serial interface type RJ-45

Ethernet LAN (RJ-45) ports 1

SmartSlot Y

Packaging content

Management card included Yes

Features

UPS topology Double-conversion (Online)

Output power capacity 2.2 kVA

Output power 1980 W

Waveform Sine

Input operation voltage (min) 160 V

Input operation voltage (max) 275 V

Input frequency 40 - 70 Hz

Output operation voltage (min) 220 V

Output operation voltage (max) 240 V

Surge energy rating 340 J

Crest factor 3:1

Emergency Power Off (EPO) Y

Output voltage Total Harmonic Distortion (THD) 2%

Noise level 55 dB

Audible alarm(s) Y

Battery

Battery technology Sealed Lead Acid (VRLA)

Battery capacity 367 VAh

Number of batteries supported 1

Battery life (max) 5 year(s)

Battery recharge time 3 h

Design

Form factor Rackmount

Rack capacity 2U

Cable length 2.44 m

Product colour Black

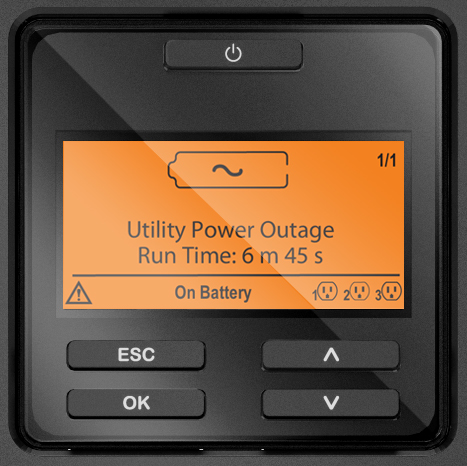

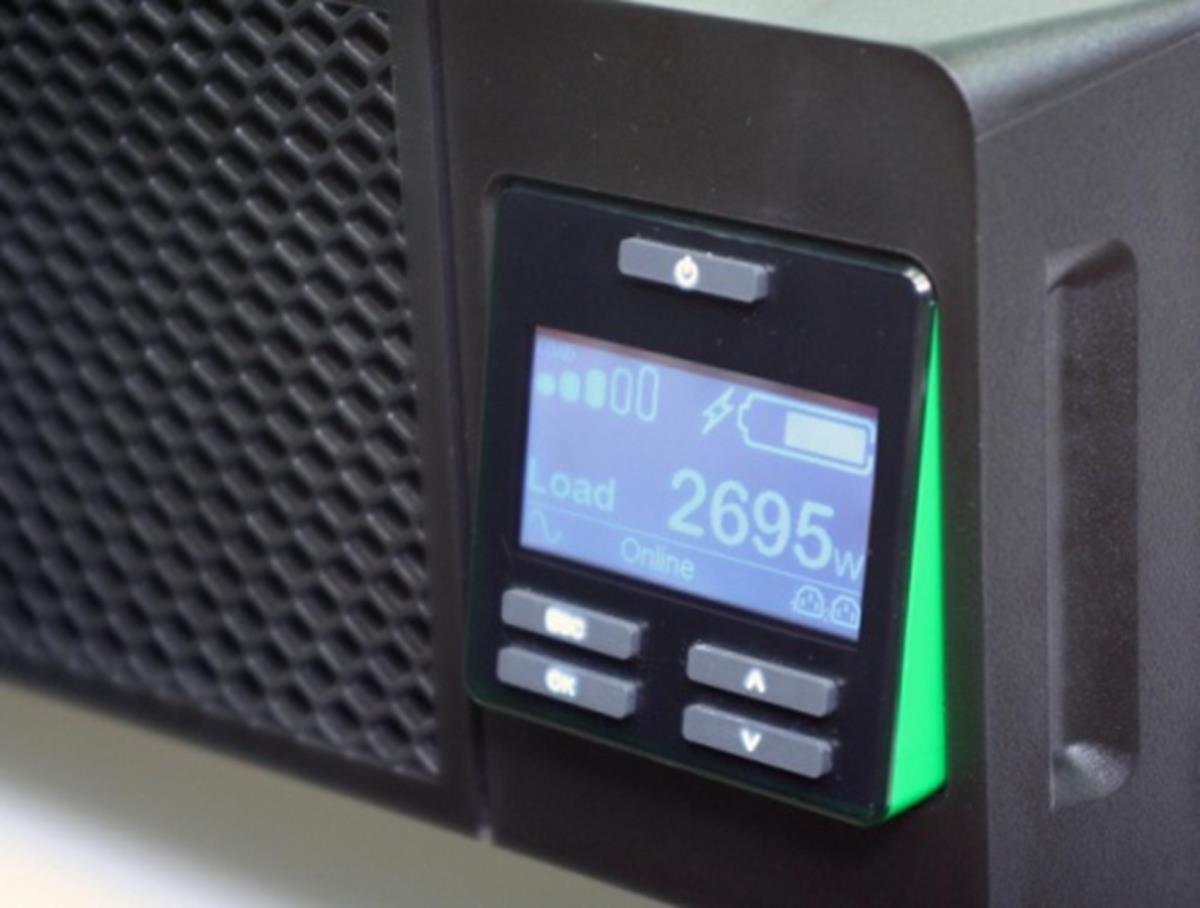

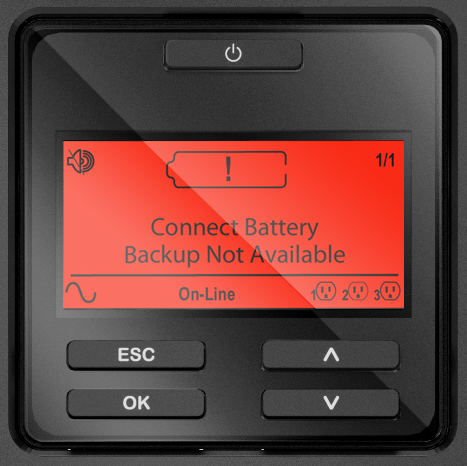

Display type LCD

LED indicators Y

International Protection (IP) code IP20

Certification CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -20 - 50 °C

Operating relative humidity (H-H) 0 - 95%

Storage relative humidity (H-H) 0 - 95%

Operating altitude 0 - 3000 m

Non-operating altitude 0 - 15000 m

Weight & dimensions

Width 432 mm

Depth 584 mm

Height 85 mm

Weight 25 kg

Package width 599 mm

Package depth 810 mm

Package height 246 mm

Package weight 34 kg

Other features

Output voltage 230 V
