Introduction
A versatile UPS developed for unstable power conditions worldwide
Smart-UPS On-Line provides high-density, double-conversion, online power protection for servers, voice/data networks, medical labs, and light industrial applications. The Smart-UPS On-Line is capable of supporting loads from 2.2 kVA – 10 kVA in a rack/tower convertible chassis. The 6 kVA, 8 kVA, and 10 kVA models feature unity output power factor enabling them to support power-hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands.

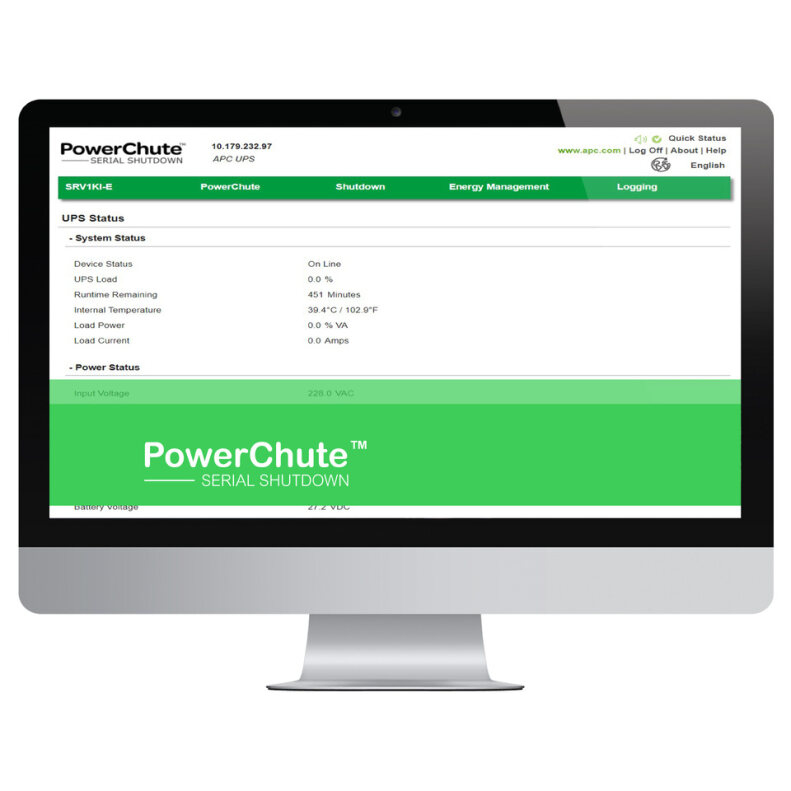

The included PowerChute Network Shutdown management software provides unattended graceful shutdown of network operating systems. Models 5 kVA to 10 kVA include an integrated network management card for remote management. The entire Smart-UPS On-Line family provides value to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Technical details
Total carbon footprint (kg of CO2e)
4993.35
Compliance certificates
RoHS
Harmonized System (HS) code
85078000
Sustainability certificates
RoHS

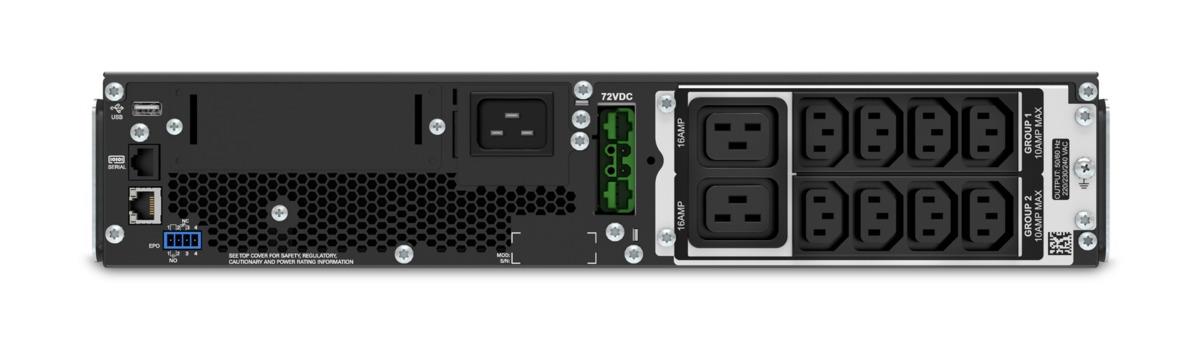

Ports & interfaces
SmartConnect port
No
AC outlet types
C13 coupler, C19 coupler
Power plug
C20 coupler
USB port
Y
Serial interface
Y
Serial interface type
RJ-45
SmartSlot
Y
Packaging content
Management card included
No
Features
UPS topology
Double-conversion (Online)
Output power capacity
3 kVA
Output power
2700 W
Waveform
Sine
Input operation voltage (min)
100 V
Input operation voltage (max)
275 V
Input frequency
40 - 70 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Output frequency
50/60 Hz
Automatic Voltage Regulation (AVR)
Y
Surge energy rating
340 J
Efficiency
92%
Crest factor
3:1
Emergency Power Off (EPO)
Y
Output voltage Total Harmonic Distortion (THD)
2%
Noise level
55 dB
Surge protection
Y
Power protection features
Overload
Audible alarm(s)
Y
Audible alarm modes
Battery replacement
Auto-restart
Y
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
505 VAh

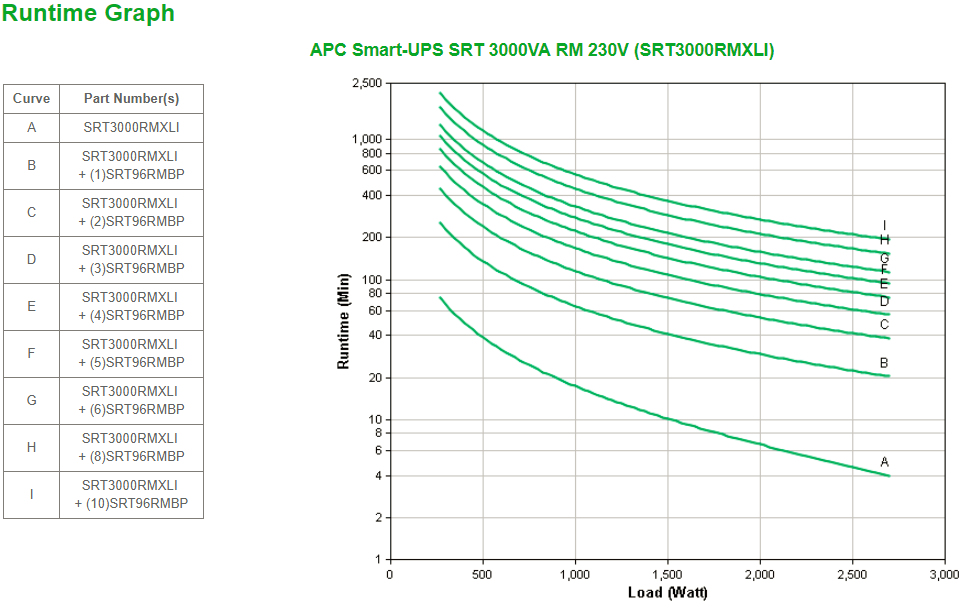

Typical backup time at full load
4 min
Typical backup time at half load
11.8 min
Battery life (max)
5 year(s)
Battery recharge time
3 h
Hot-swap battery
Y
Automatic battery test
Y
Cold start
Y
Design

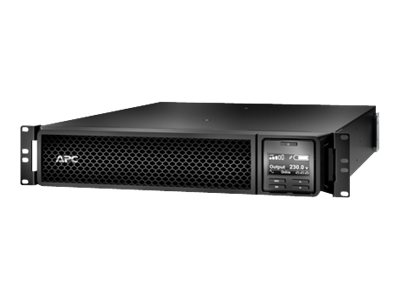

Form factor
Rackmount
Rack capacity
2U
Cable length
2.44 m
Product colour
Black

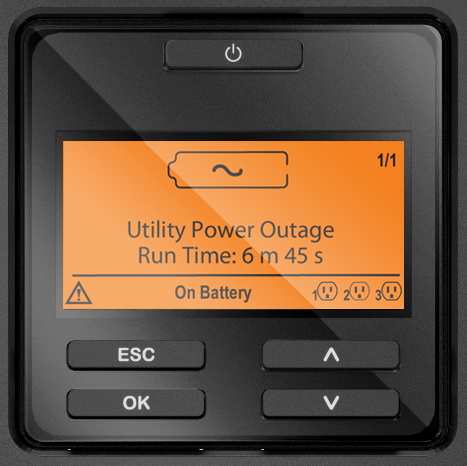

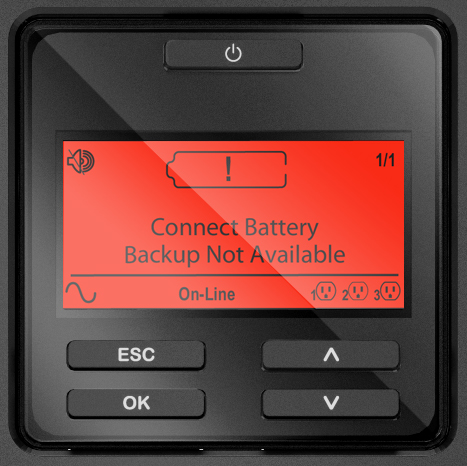

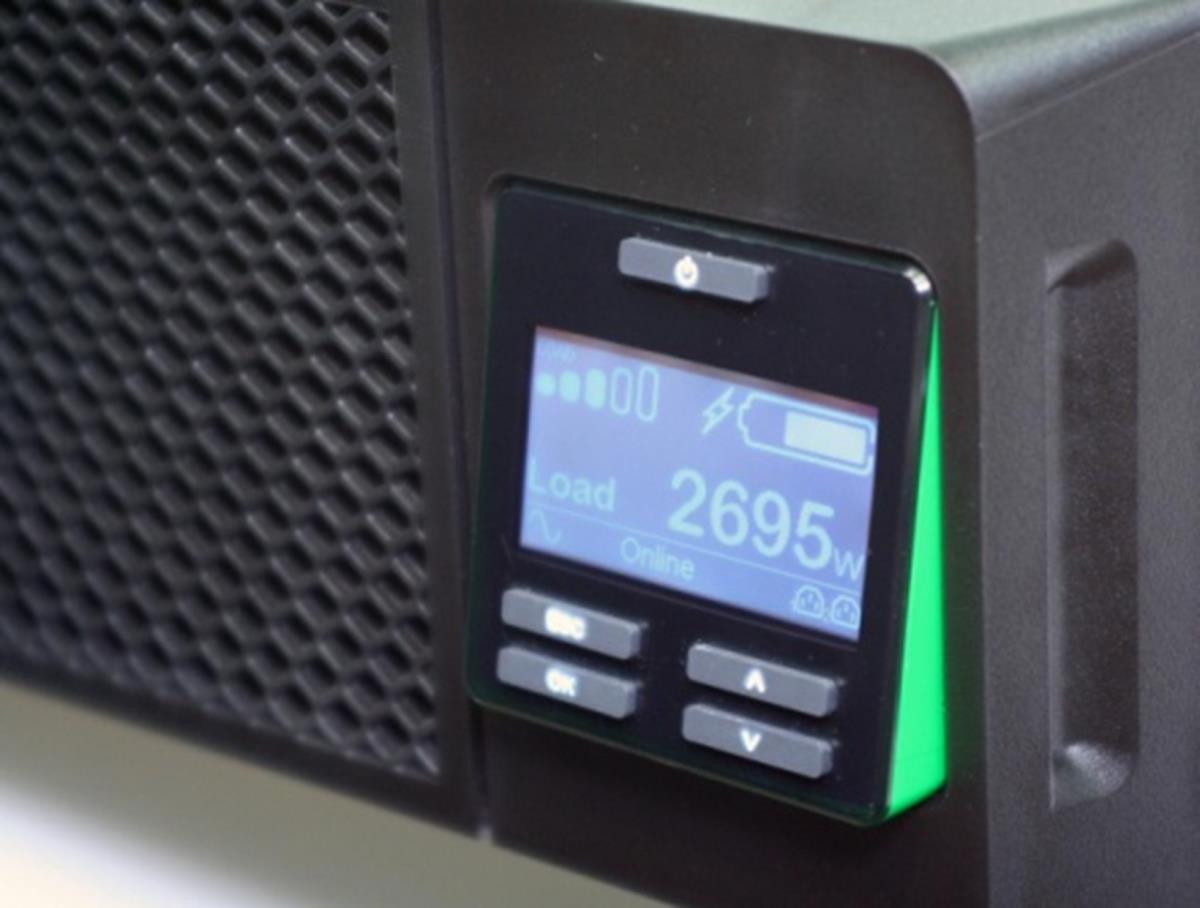

Display type
LCD
LED indicators
Battery replacement
International Protection (IP) code
IP20
Certification
CE, VDE, RCM, EAC, IEC/EN 62040-1, IEC/EN 62040-2, UL-1778, FCC 15 A, CSA
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Weight & dimensions
Width
432 mm
Depth
635 mm
Height
85 mm
Weight
31.3 kg
Package width
599 mm
Package depth
871 mm
Package height
246 mm
Package weight
39.3 kg
Packaging data
Quick installation guide
Y
Logistics data
Products per pallet
6 pc(s)
