Product Details
Introduction

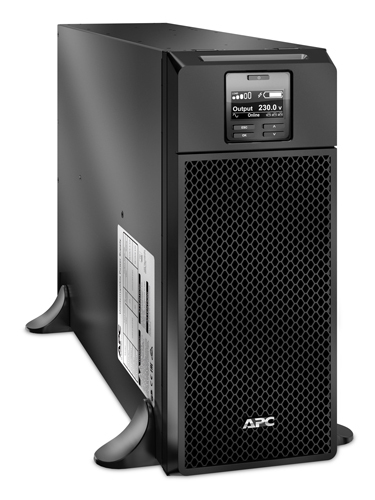

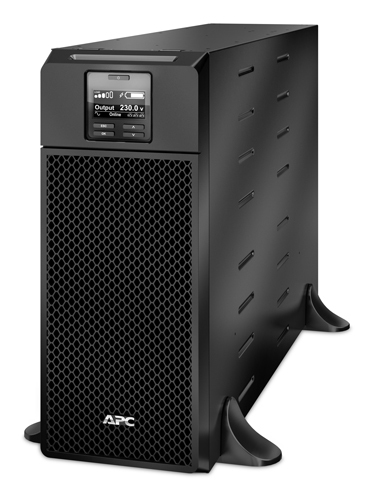

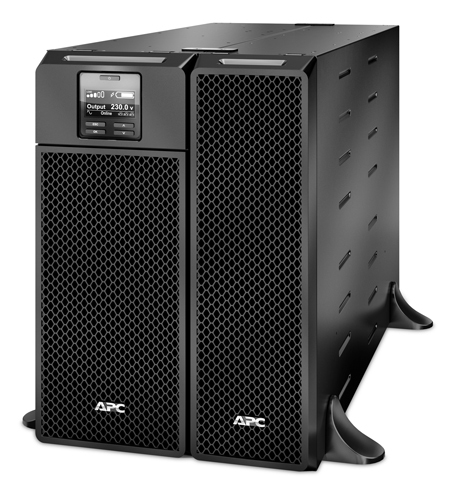

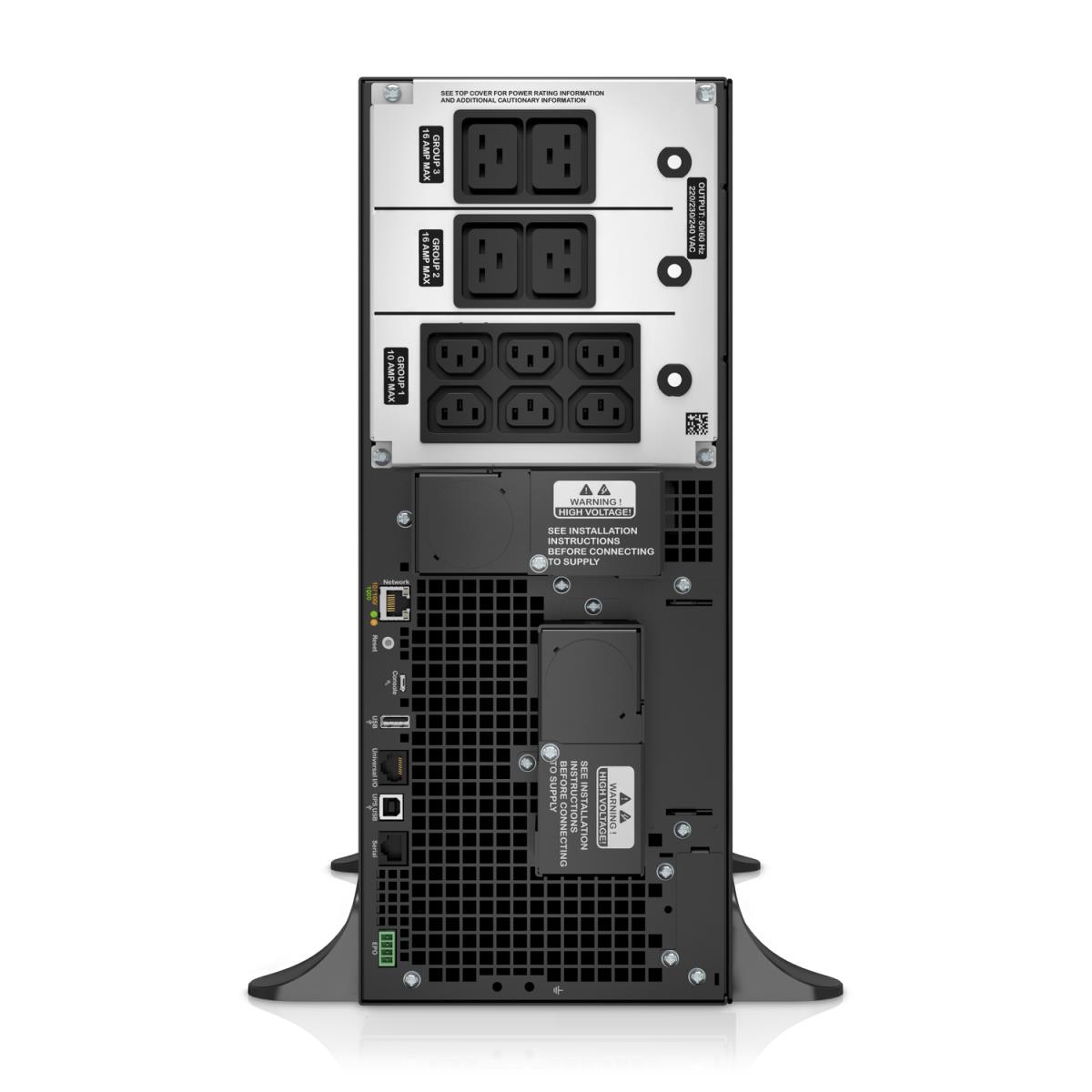

APC Smart-UPS On-Line,6000 Watts /6000 VA,Input 230V /Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model

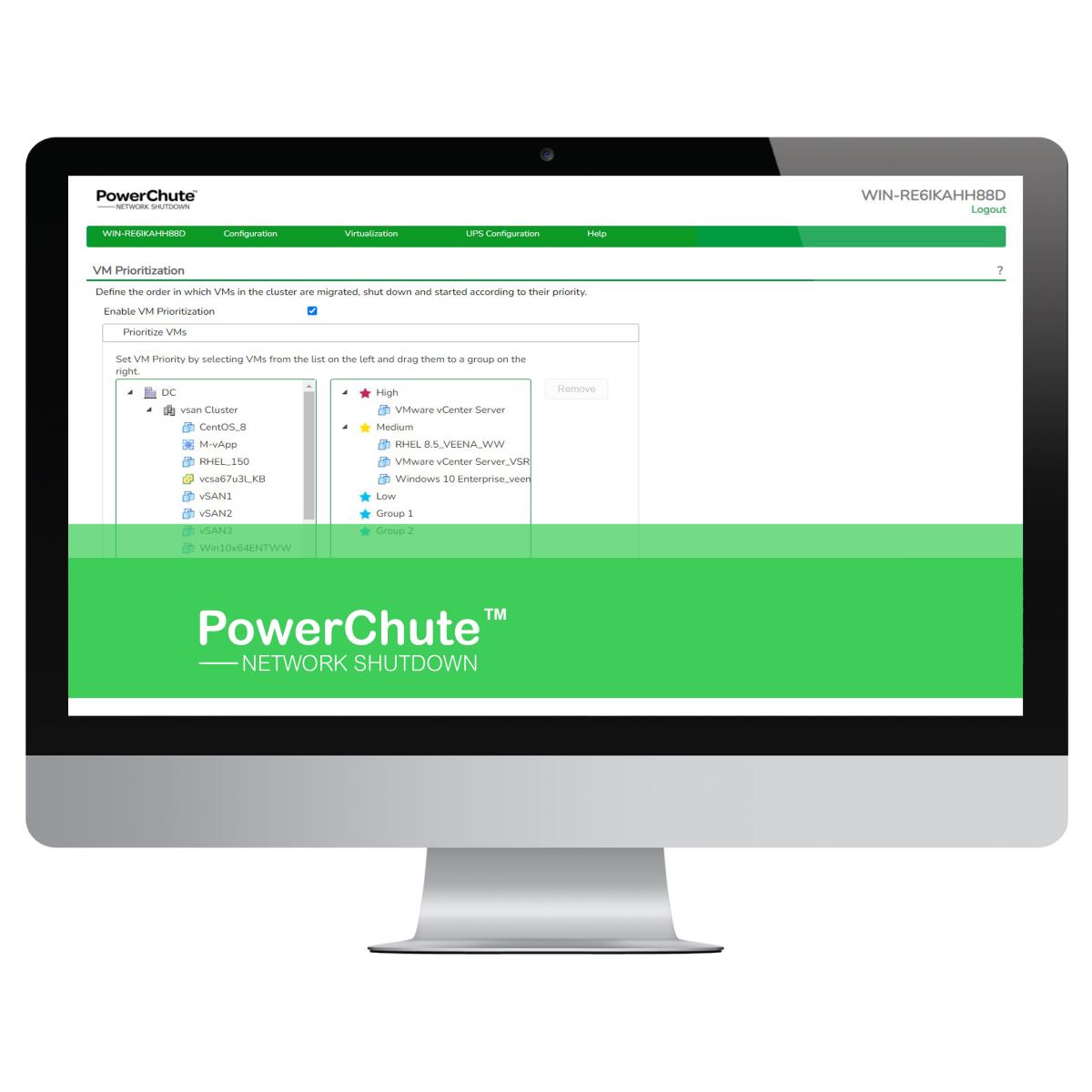

Includes: CD with software, Documentation CD, Installation guide, Removable support feet, Temperature Probe, USB cable, Warranty card
Technical details
Total carbon footprint (kg of CO2e)
13539.46
Compliance certificates
RoHS
Harmonized System (HS) code
85078000
Sustainability certificates
RoHS, ENERGY STAR
Ports & interfaces
SmartConnect port
No

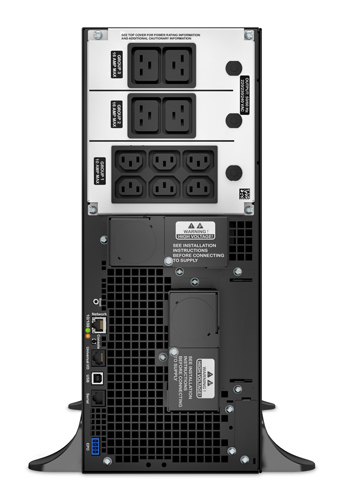

AC outlet types
C13 coupler, C19 coupler
Power plug
Terminal
AC outlets quantity
10 AC outlet(s)
Number of output IEC jumpers
2
USB port
Y
Serial interface
Y
Serial interface type
RJ-45
SmartSlot
Y
Packaging content
Management card included
Yes
Features
UPS topology
Double-conversion (Online)
Output power capacity
6 kVA
Output power
6000 W
Waveform
Sine
Input operation voltage (min)
100 V
Input operation voltage (max)
275 V
Input frequency
40 - 70 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Output frequency regulation
50/60 Hz
Surge energy rating
480 J
Number of output phases
1
Efficiency
94.4%
Crest factor
3:1
Emergency Power Off (EPO)
Y
Output voltage Total Harmonic Distortion (THD)
3%
Noise level
55 dB
Surge protection
Y
Audible alarm(s)
Y
Auto-restart
Y
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
902 VAh

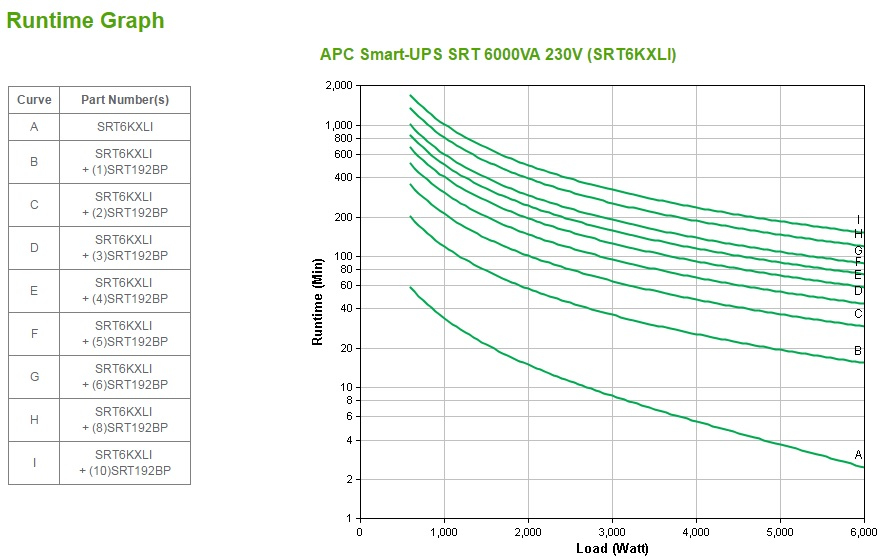

Typical backup time at full load
2.5 min
Typical backup time at half load
8.7 min
Battery life (max)
5 year(s)
Battery recharge time
1.5 h
Hot-swap battery
Y
Automatic battery test
Y
Cold start
Y
Design
Form factor
Rackmount/Tower
Product colour
Black

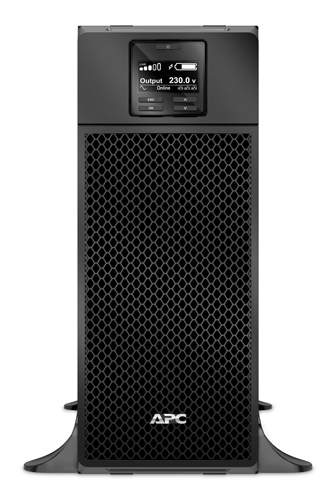

Display type
LCD
LED indicators
Status
International Protection (IP) code
IP20
Certification
REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Weight & dimensions
Width
719 mm
Depth
174 mm
Height
432 mm
Weight
60 kg
Package width
610 mm
Package depth
960 mm
Package height
370 mm
Package weight
67 kg
Packaging data
Cables included
USB cable
Temperature sensor
Y
Quick installation guide
Y
Warranty card
Y
Software CD
Y
Logistics data
Products per pallet
6 pc(s)
Other features
Packaging content
Removable support feet
Web/SNMP Management Card
Information
| Part Number: | SRT6KXLI |
