Product Details
Introduction

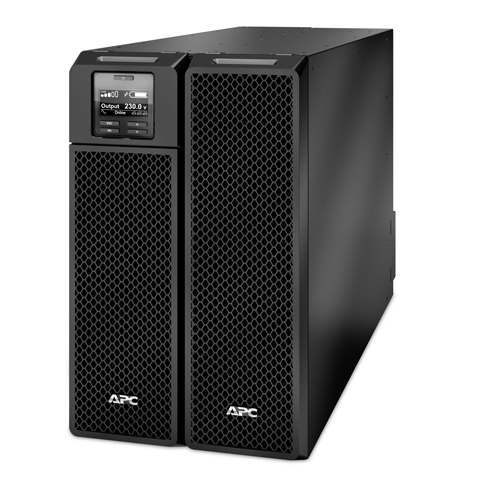

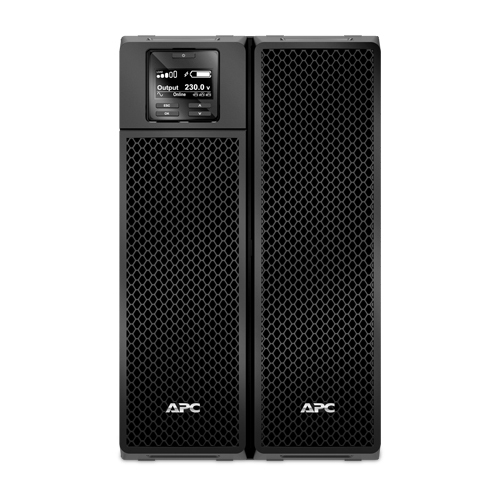

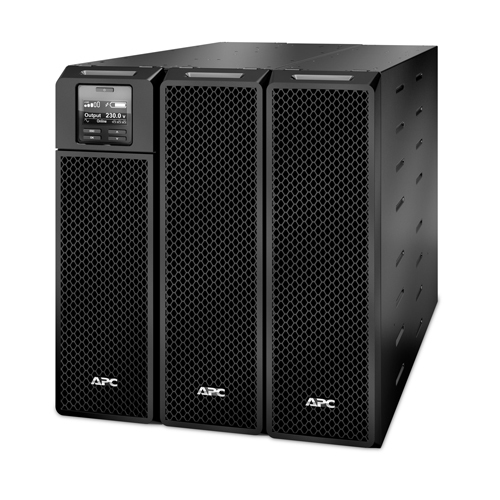

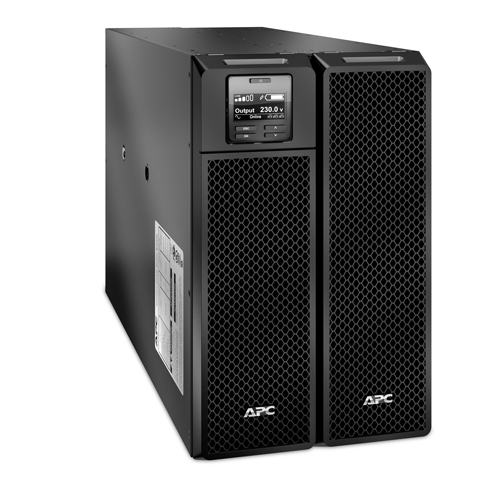

APC Smart-UPS On-Line,8000 Watts /8000 VA,Input 230V /Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model
Includes: CD with software, Documentation CD, Installation guide, Temperature Probe, USB cable, Warranty card
Technical details
Total carbon footprint (kg of CO2e)
18610.79
Compliance certificates
RoHS
Harmonized System (HS) code
85078000
Sustainability certificates
RoHS, ENERGY STAR
Ports & interfaces
SmartConnect port
No

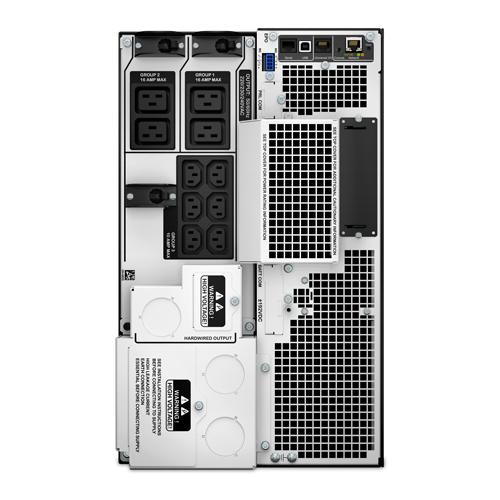

AC outlet types
C13 coupler, C19 coupler
Power plug
Terminal
AC outlets quantity
10 AC outlet(s)
Number of output IEC jumpers
3
USB port
Y
Serial interface
Y
Serial interface type
RJ-45
SmartSlot
Y
Packaging content
Management card included
Yes
Features
UPS topology
Double-conversion (Online)
Output power capacity
8 kVA
Output power
8000 W
Waveform
Sine
Input operation voltage (min)
100 V
Input operation voltage (max)
476 V
Input frequency
40 - 70 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Output frequency regulation
50/60 Hz
Surge energy rating
480 J
Number of output phases
1
Crest factor
3:1
Emergency Power Off (EPO)
Y
Output voltage Total Harmonic Distortion (THD)
3%
Noise level
55 dB
Surge protection
Y
Audible alarm(s)
Y
Auto-restart
Y
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
1728 VAh
Battery life (max)
5 year(s)
Battery recharge time
1.5 h
Hot-swap battery
Y
Automatic battery test
Y
Cold start
Y
Design
Form factor
Rackmount/Tower
Product colour
Black
Display type
LCD
LED indicators
Status
International Protection (IP) code
IP20
Certification
REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Weight & dimensions
Width
263 mm
Depth
715 mm
Height
432 mm
Weight
111.8 kg
Package width
600 mm
Package depth
1000 mm
Package height
461 mm
Package weight
126.8 kg
Packaging data
Cables included
USB cable
Temperature sensor
Y
Quick installation guide
Y
Warranty card
Y
Software CD
Y
Logistics data
Products per pallet
1 pc(s)
Other features
Packaging content
Web/SNMP Management Card
Information
| Part Number: | SRT8KXLI |
