Product Details
Features
UPS topology
Double-conversion (Online)
Output power capacity
3 kVA
Output power
1980 W
Waveform
Sine
Input operation voltage (max)
230 V
Input frequency
40 - 70 Hz
Output frequency
50/60 Hz
Surge energy rating
432 J
Crest factor
3:1
Output voltage Total Harmonic Distortion (THD)
2%
Audible alarm(s)
Y
Ports & interfaces

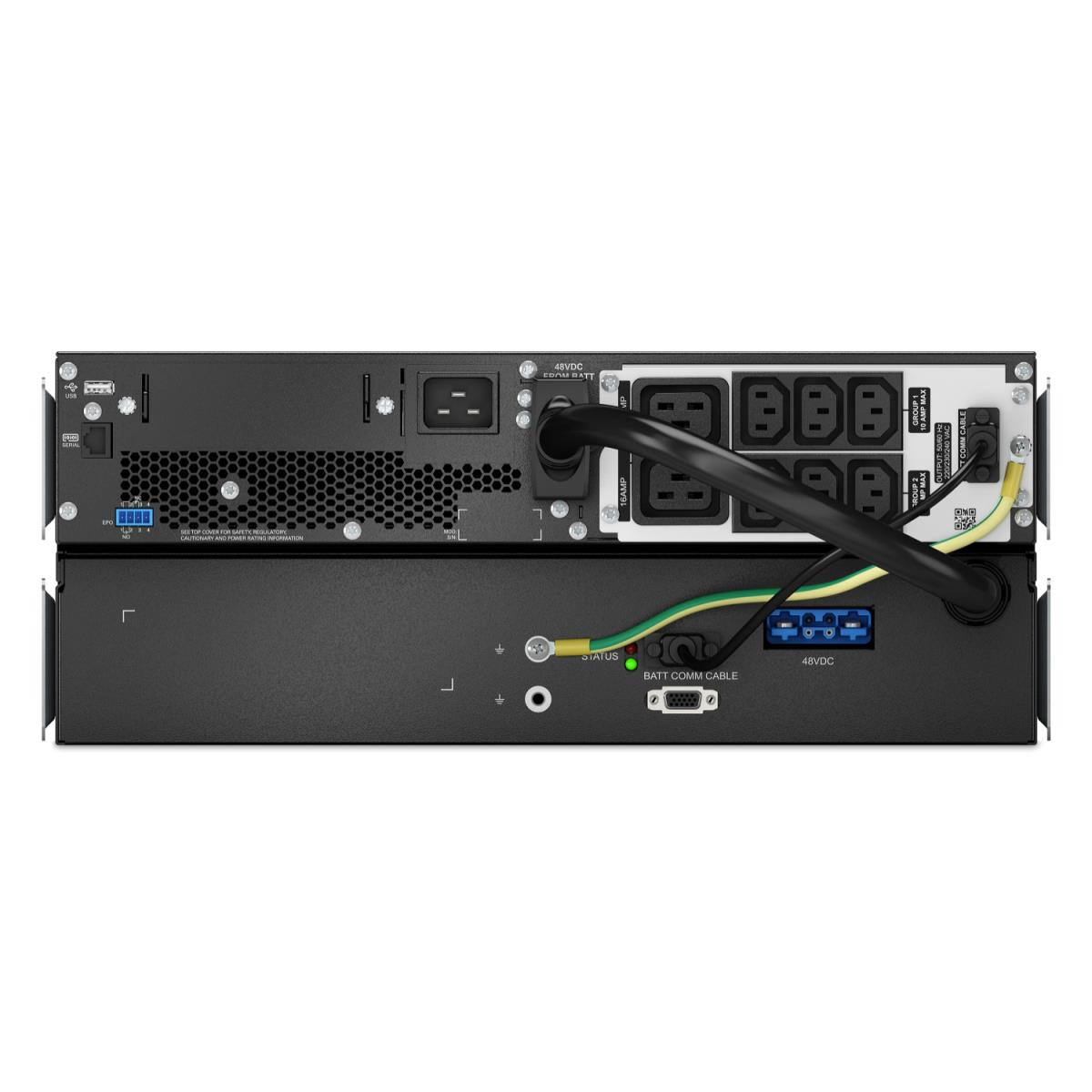

AC outlet types
C13 coupler, C19 coupler
AC outlets quantity
8 AC outlet(s)
SmartSlot
Yes
SmartConnect port
No
Battery
Battery technology
Lithium-Ion (Li-Ion)
Battery voltage
48 V
Battery life (max)
10 year(s)
Design
Form factor
Rackmount/Tower
Rack capacity
4U
Cable length
1.83 m
Product colour
Black, Silver
International Protection (IP) code
IP20
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3048 m
Technical details
Sustainability certificates
Green Premium
Weight & dimensions
Width
432 mm
Depth
639 mm
Height
171 mm
Weight
44.5 kg
Packaging data
Rack mount kit
Y
Packaging content
Management card included
No
Information

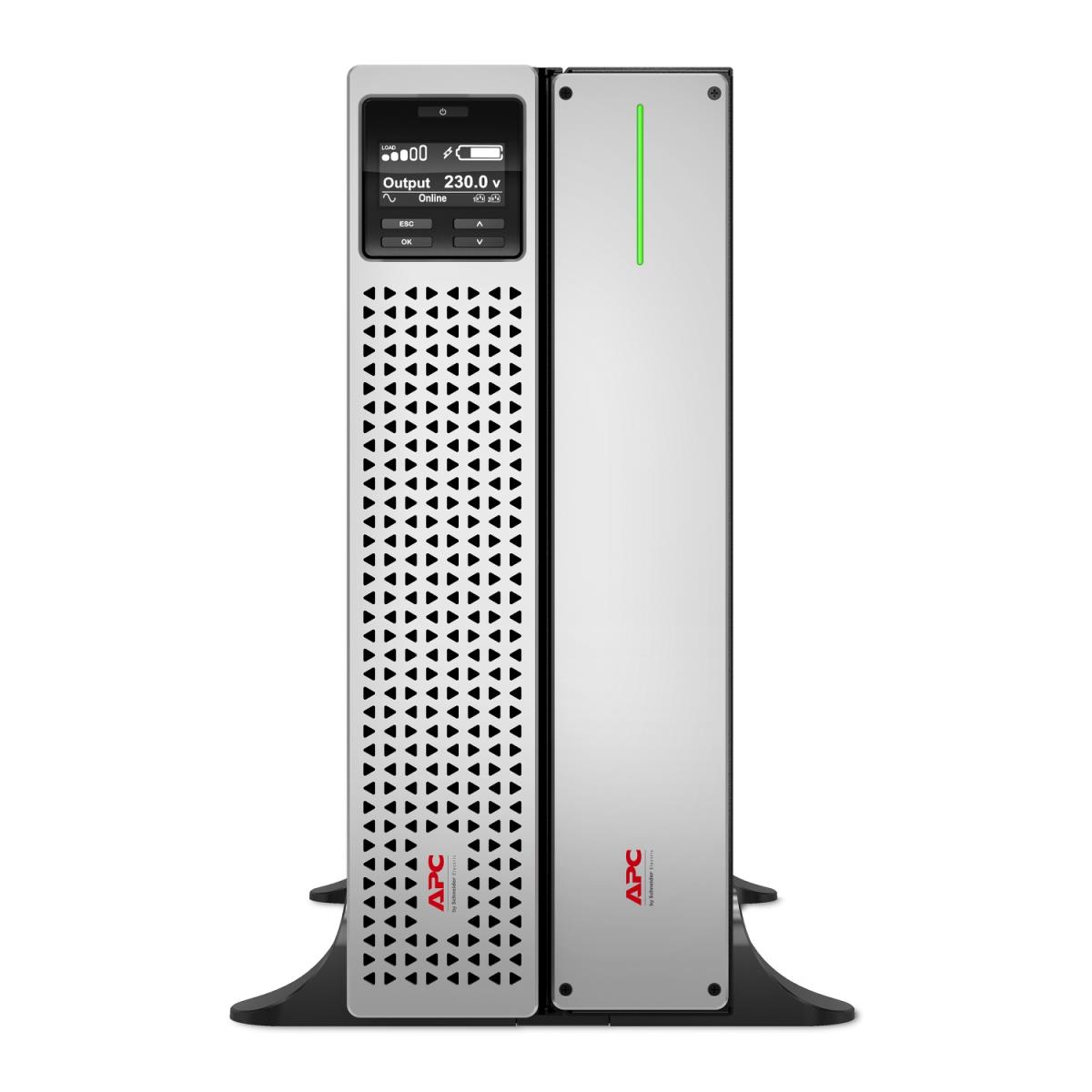

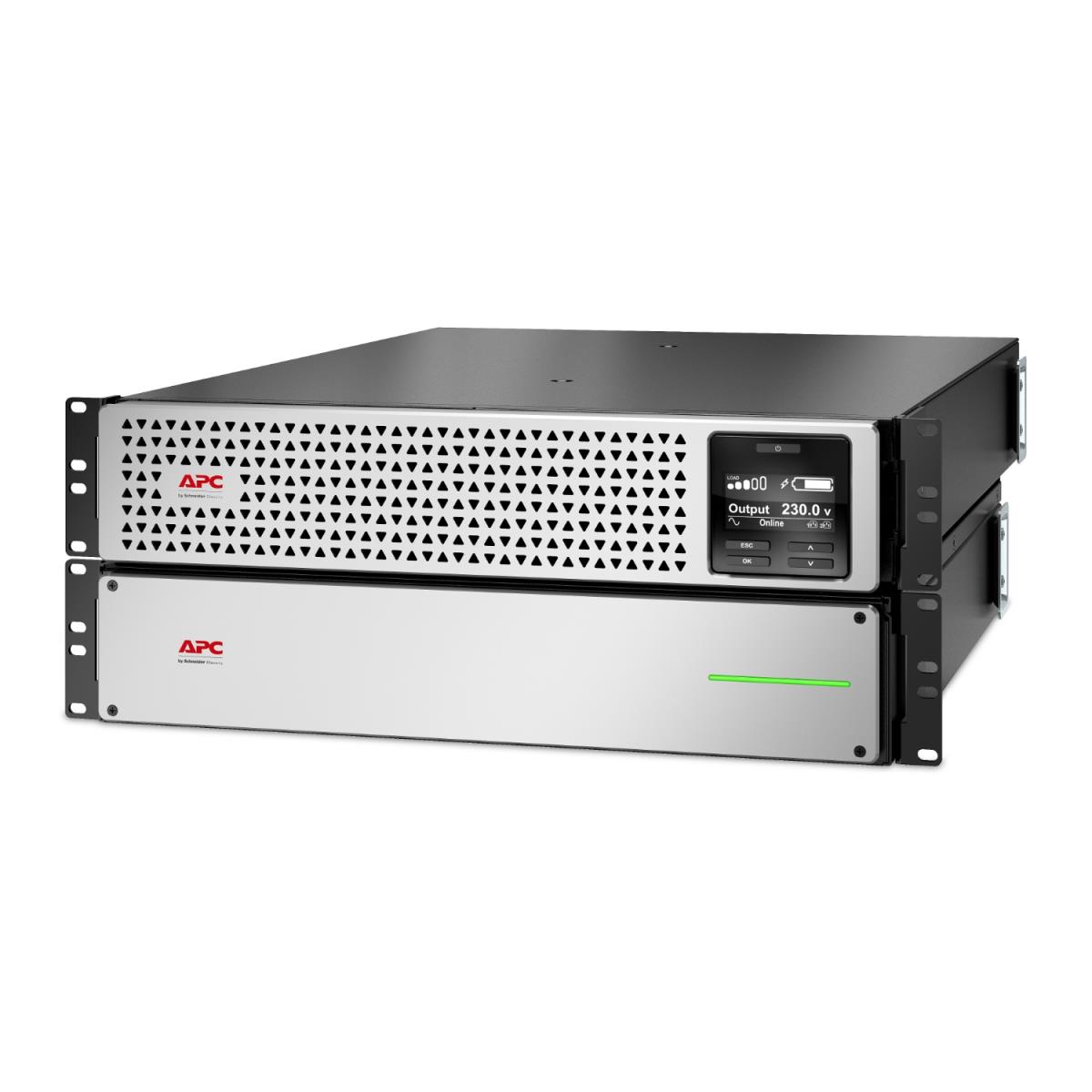

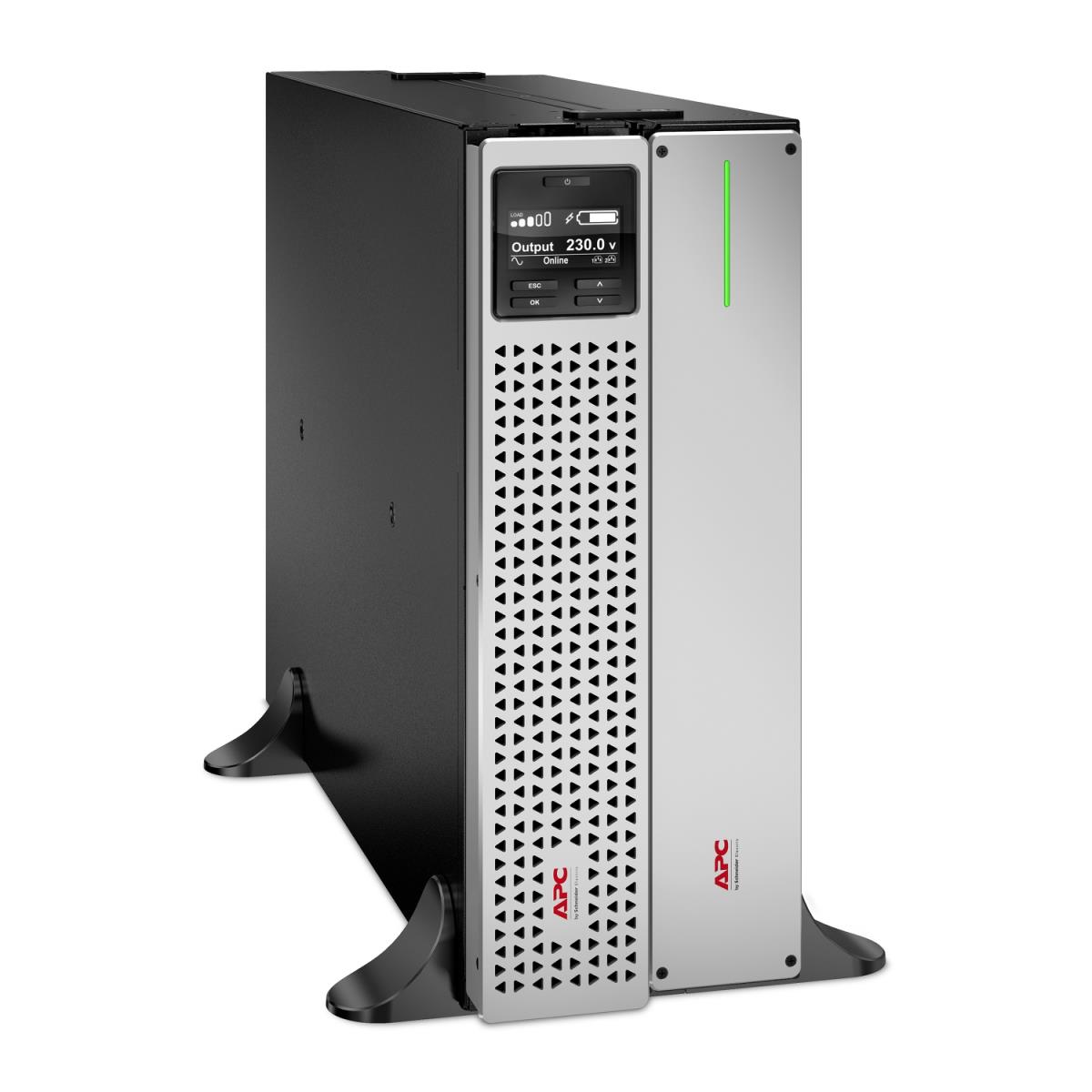

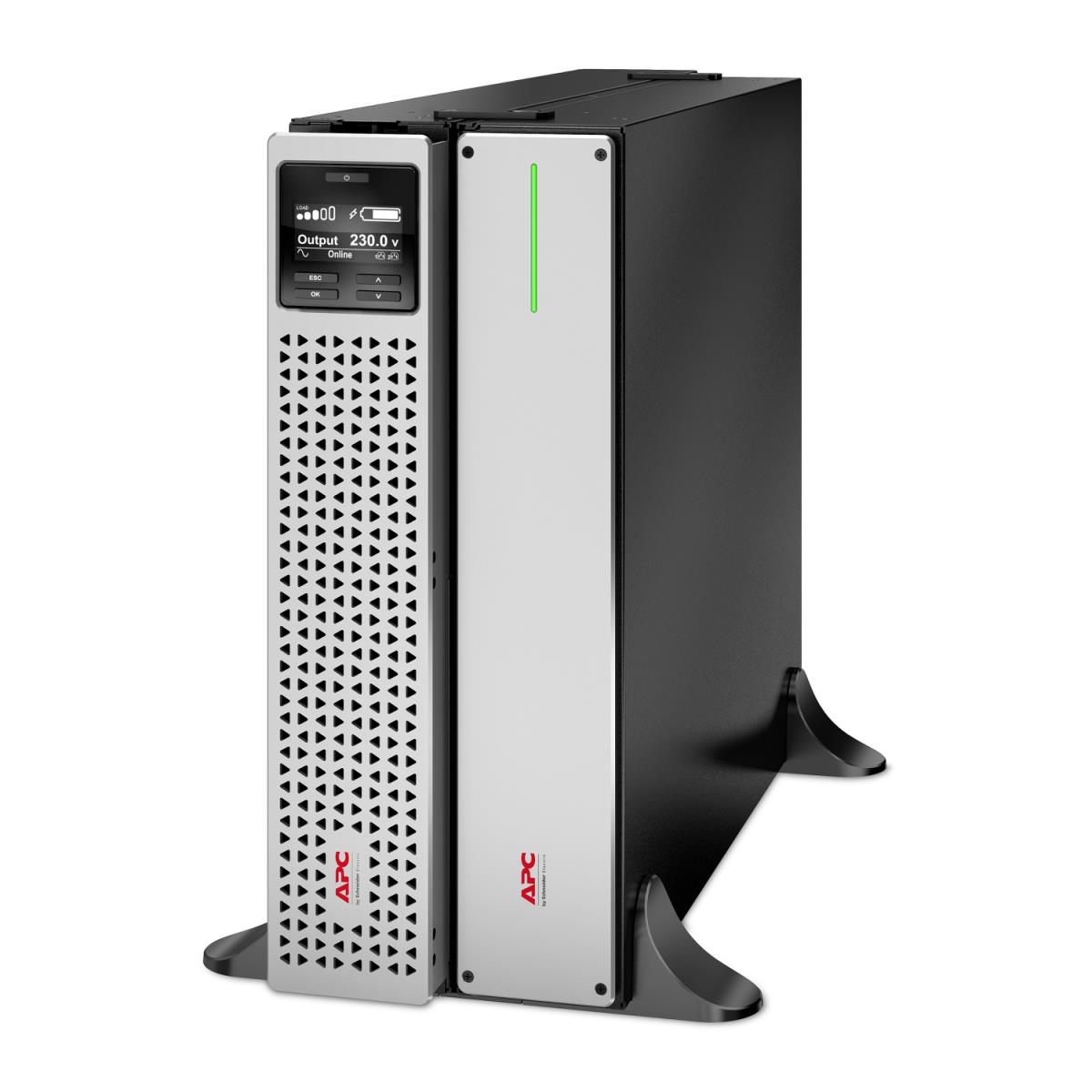

| Part Number: | SRTL2200RM4UXLI |
