Product Details
Introduction

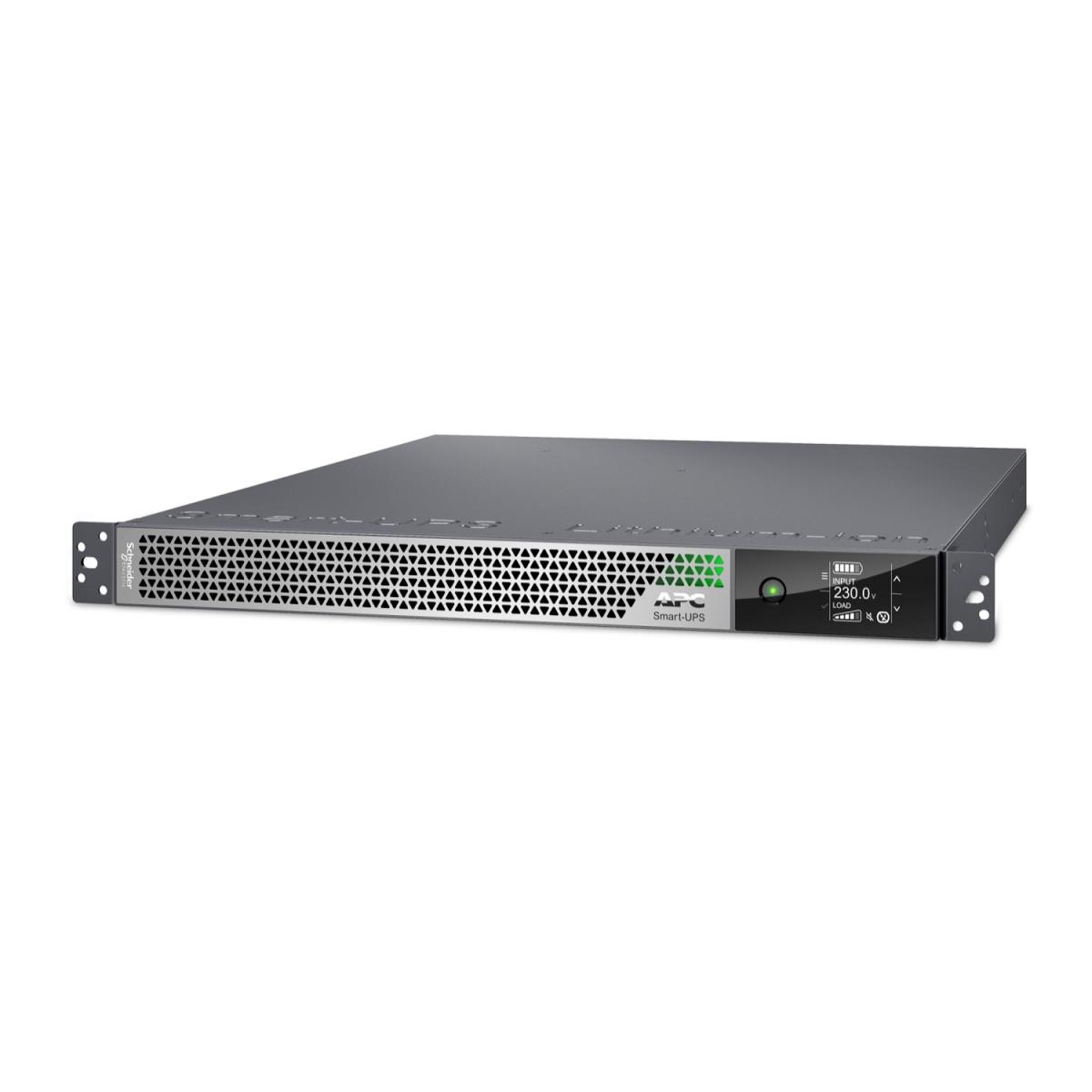

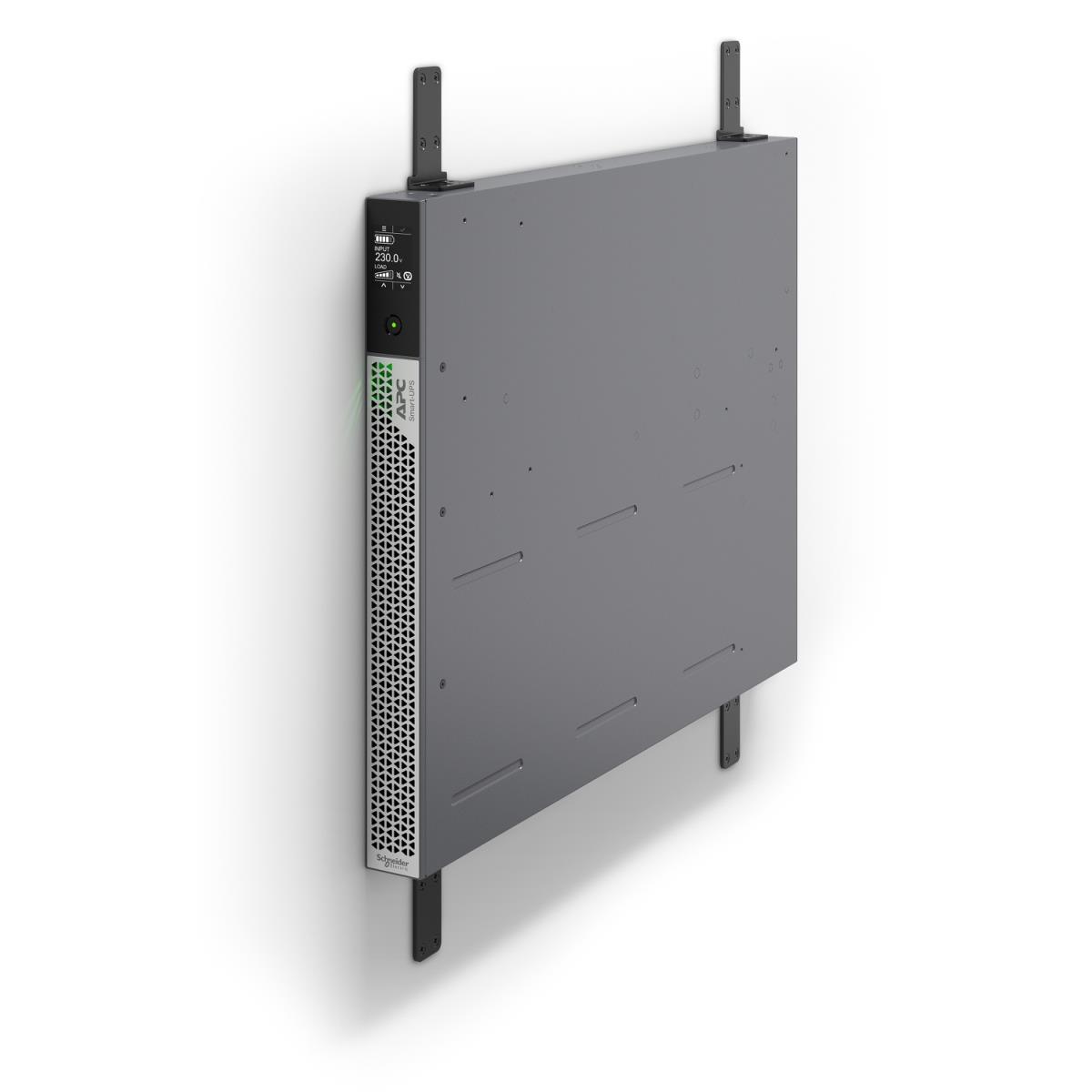

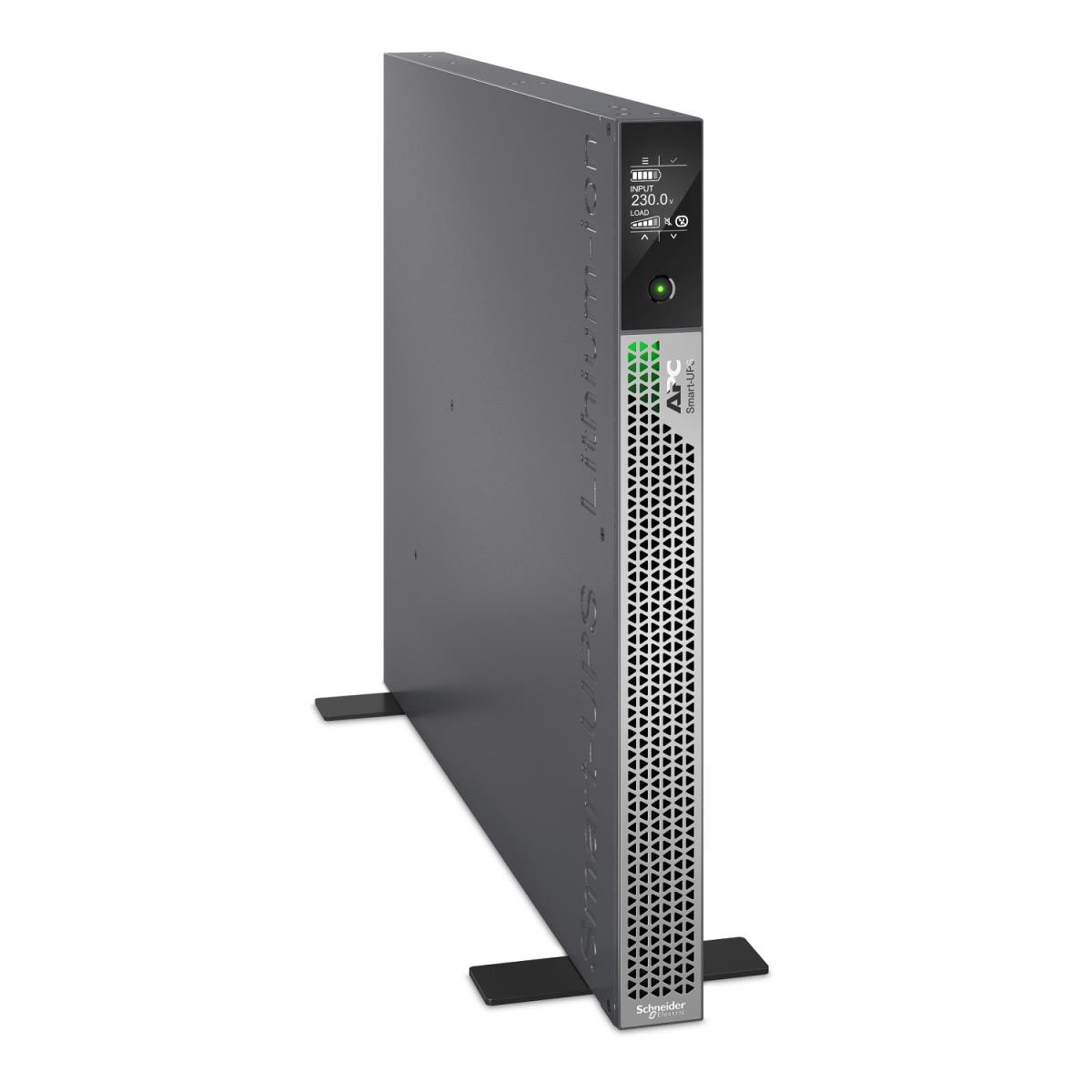

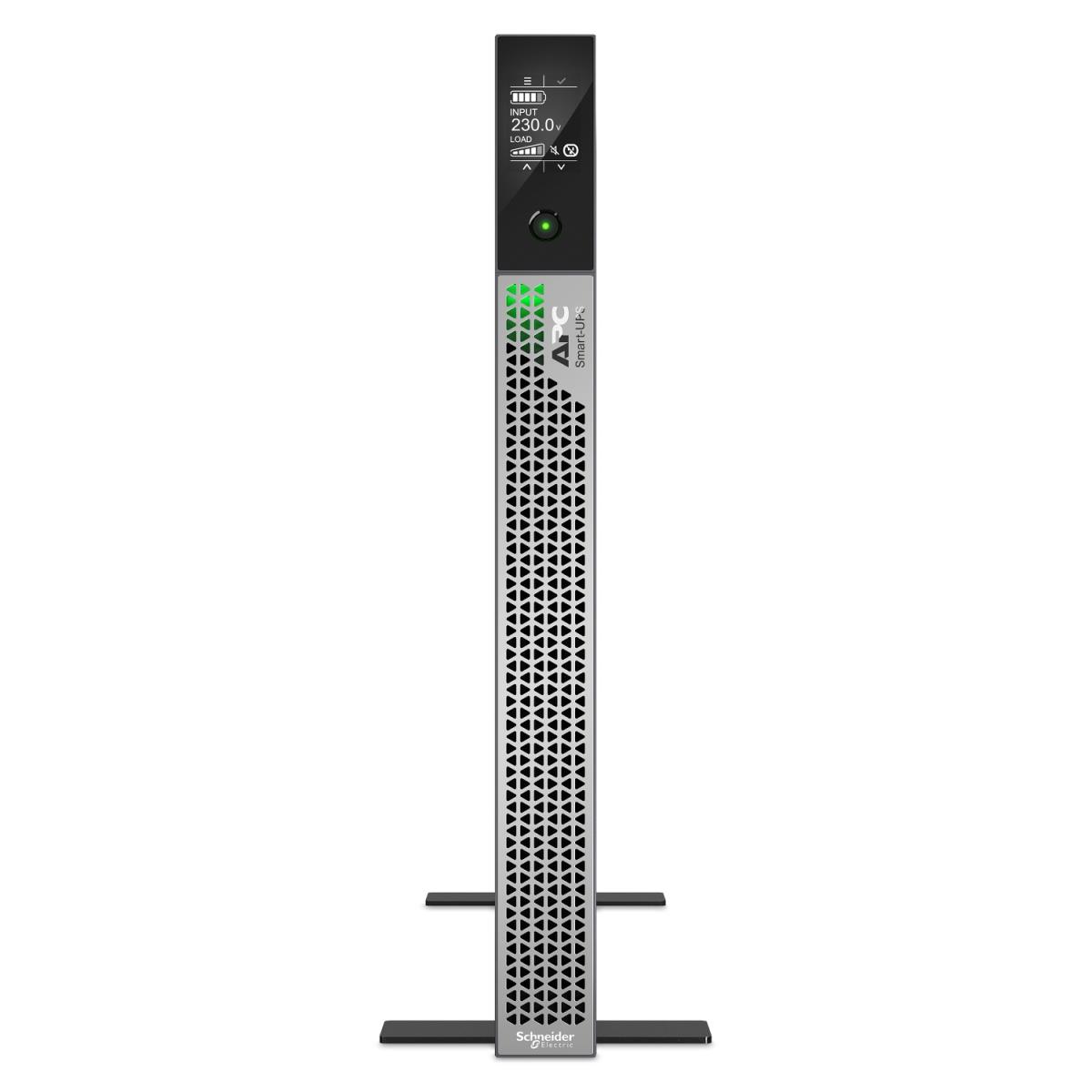

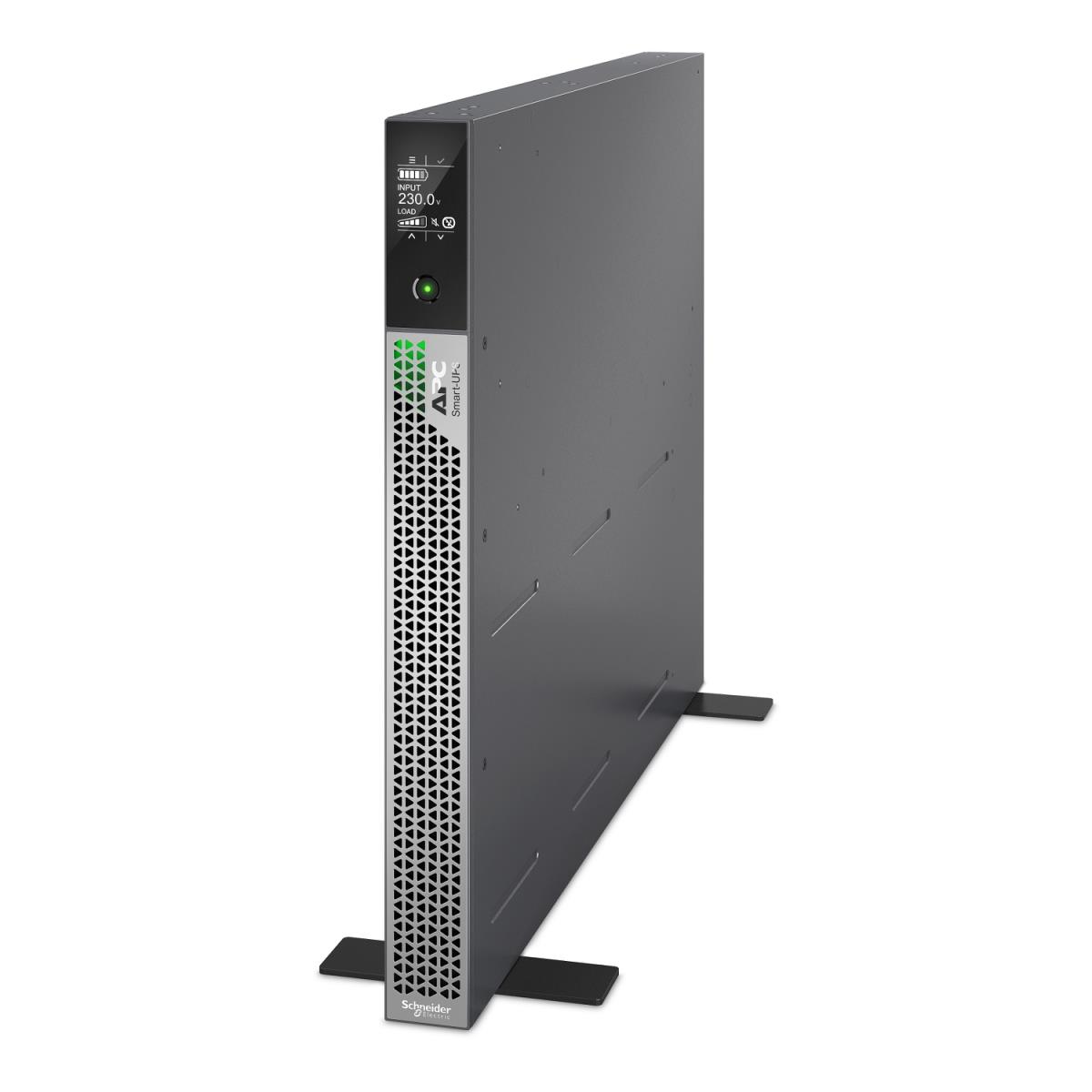

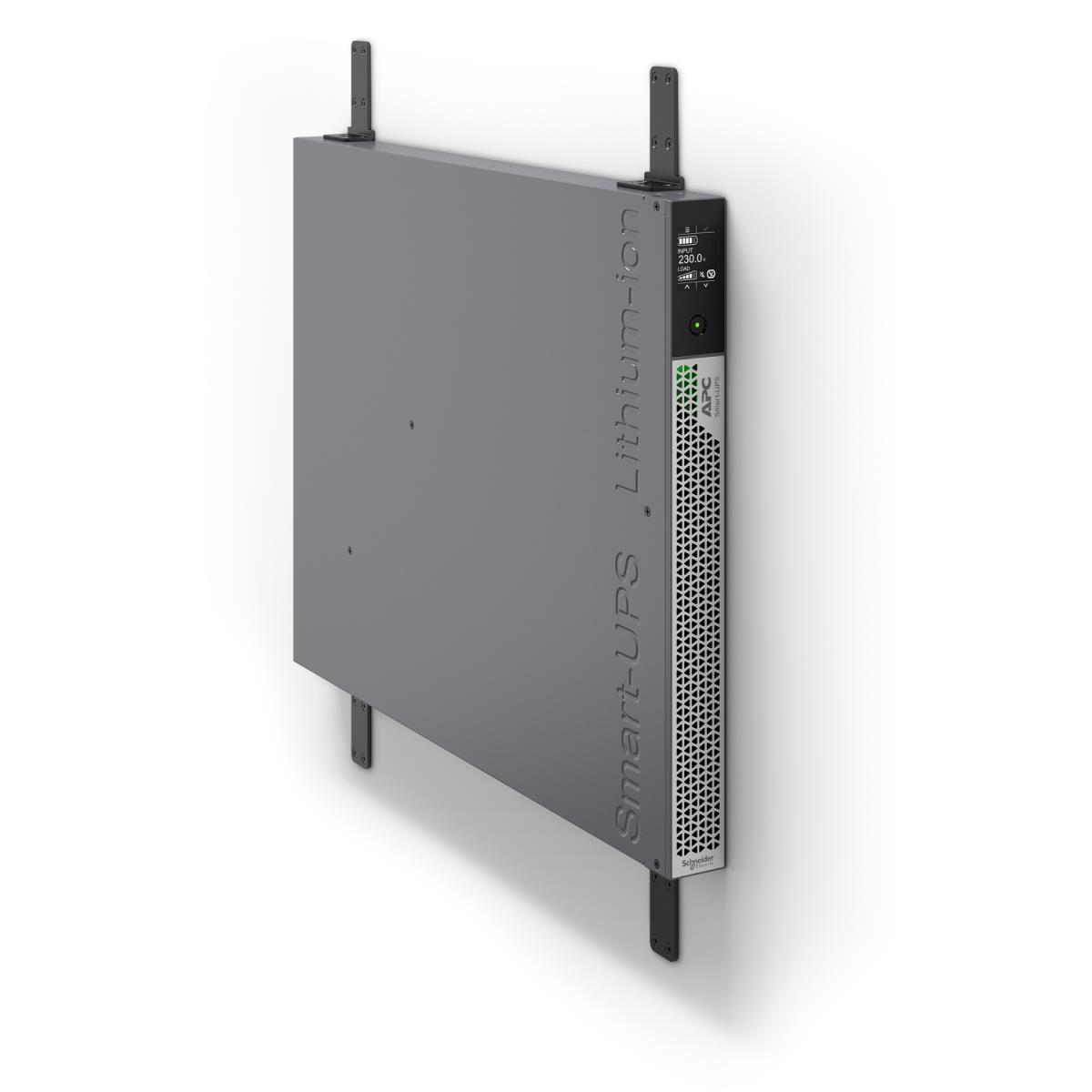

With Smart-UPS™ Ultra you can put up to 2200W of power protection in places never before possible. At half the size and weight of comparable UPS the mounting brackets can be used in any of the 5 mounting styles: rack (2 and 4 post), tower, wall, ceiling and desk under mount. The auto-rotating touch screen display makes switching between horizontal and vertical mounting options instantaneous. Lithium-ion batteries provide reduced maintenance cost with 3x the battery life. EcoStruxure Ready Smart-UPS provide visibility anywhere, anytime.
Features
UPS topology
Double-conversion (Online)
Output power capacity
2.2 kVA
Output power
2200 W
Waveform
Sine
Input operation voltage (min)
160 V
Input operation voltage (max)
275 V
Input frequency
50/60 Hz
Output operation voltage (max)
230 V
Output frequency
50/60 Hz
Crest factor
3:1
Emergency Power Off (EPO)
Yes
Noise level
55 dB
Audible alarm(s)
Yes

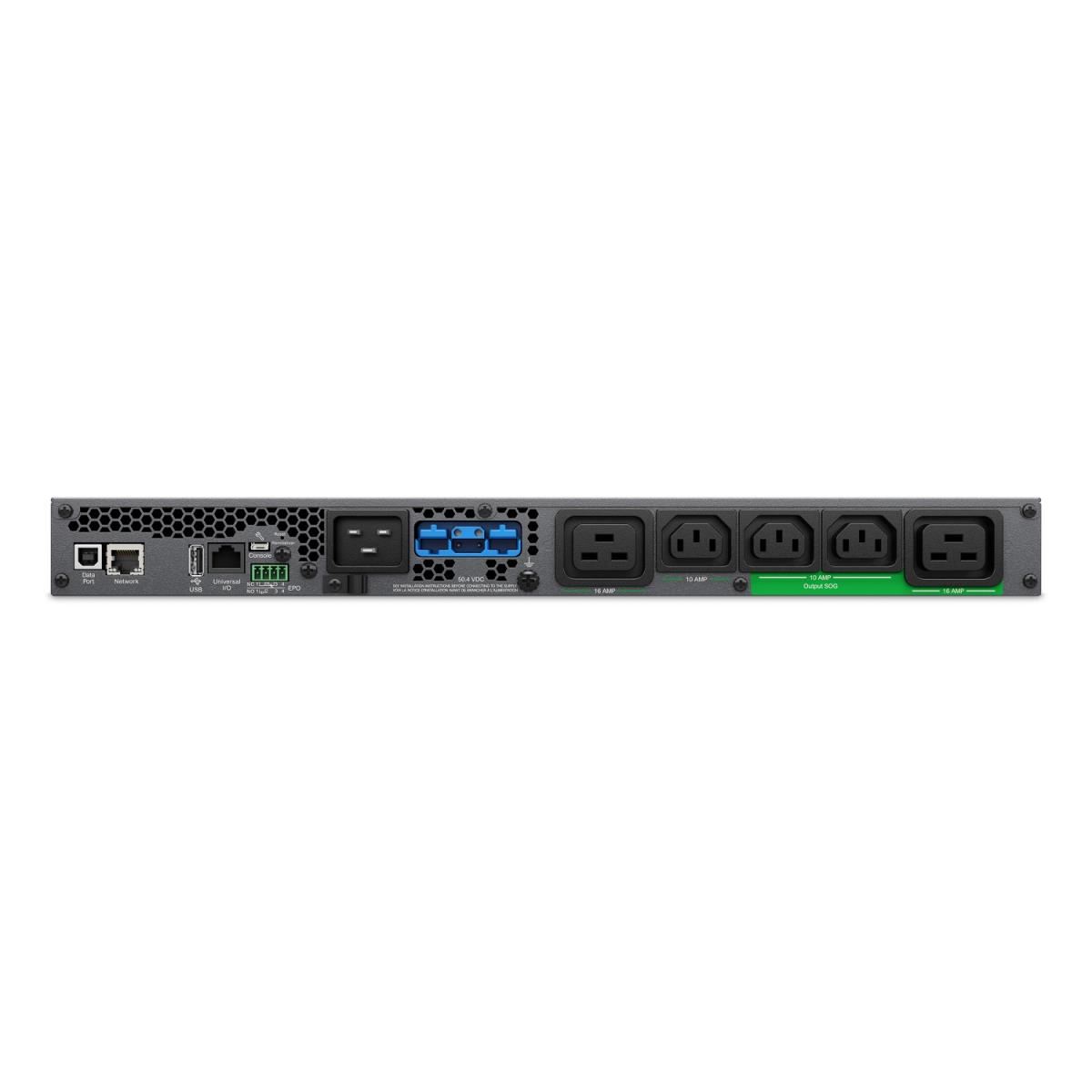

Ports & interfaces
AC outlet types
C13 coupler, C19 coupler
Power plug
Type F
AC outlets quantity
5 AC outlet(s)
USB port
Yes
USB 2.0 ports quantity
2
USB port type
USB Type-A/USB Type-B
Ethernet LAN (RJ-45) ports
1
Emergency Power Off (EPO) connector
Yes
SmartSlot
No
SmartConnect port
No
Battery
Battery technology
Lithium-Ion (Li-Ion)
Battery capacity
336 VAh
Battery voltage
50 V
Number of batteries supported
5

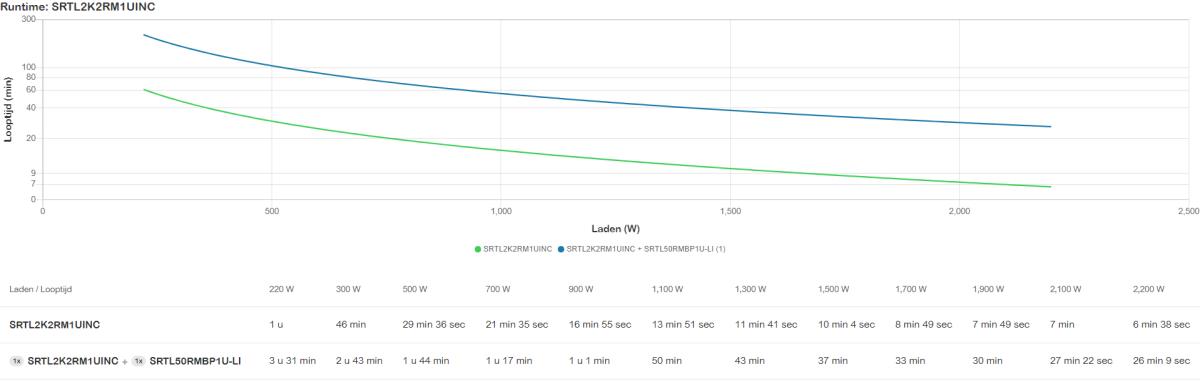

Typical backup time at full load
6 min
Typical backup time at half load
14 min
Battery life (max)
10 year(s)
Battery recharge time
1.5 h
Design
Form factor
Rackmount
Rack capacity
1U
Product colour
Grey
Control type
Touch
Display type
LCD
LED indicators
Yes
International Protection (IP) code
IP20
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15240 m
Technical details
Sustainability compliance
Yes
Sustainability certificates
CE, REACH, RoHS
Doesn't contain
Mercury
Compliance certificates
CE, REACH, RoHS
Weight & dimensions
Width
432 mm
Depth
560 mm
Height
43 mm
Weight
15.9 kg
Package width
564 mm
Package depth
764 mm
Package height
27820 mm
Package weight
24.2 kg
Packaging data
Cables included
RJ-45
Management card included
Yes
Information
| Part Number: | SRTL2K2RM1UINC |
