Product Details
Introduction

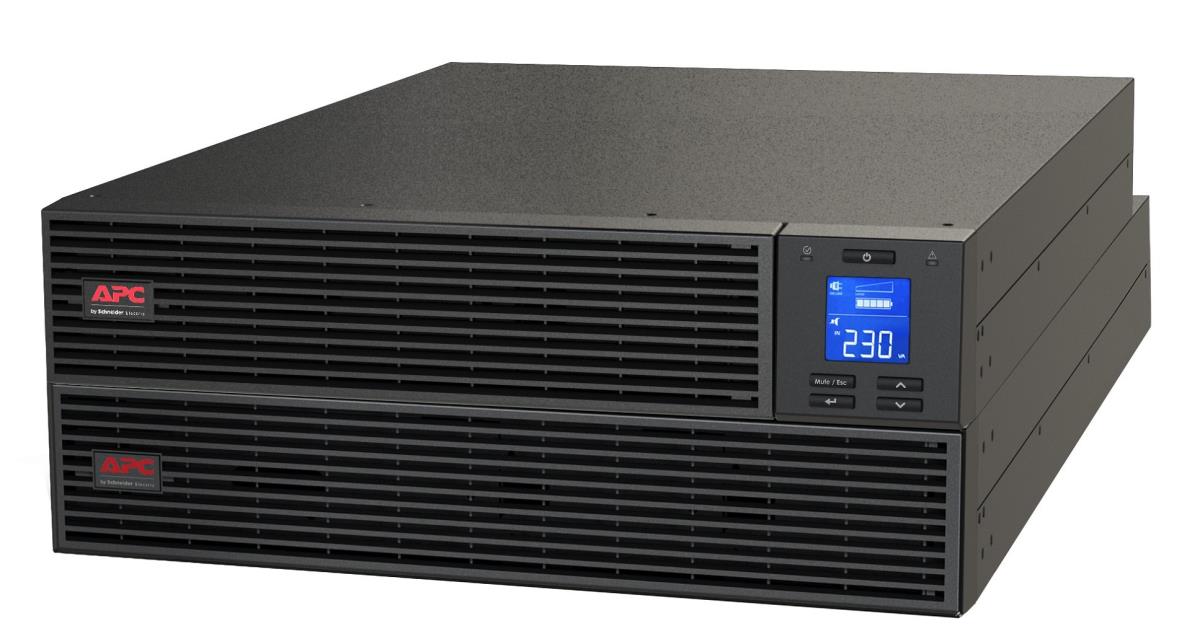

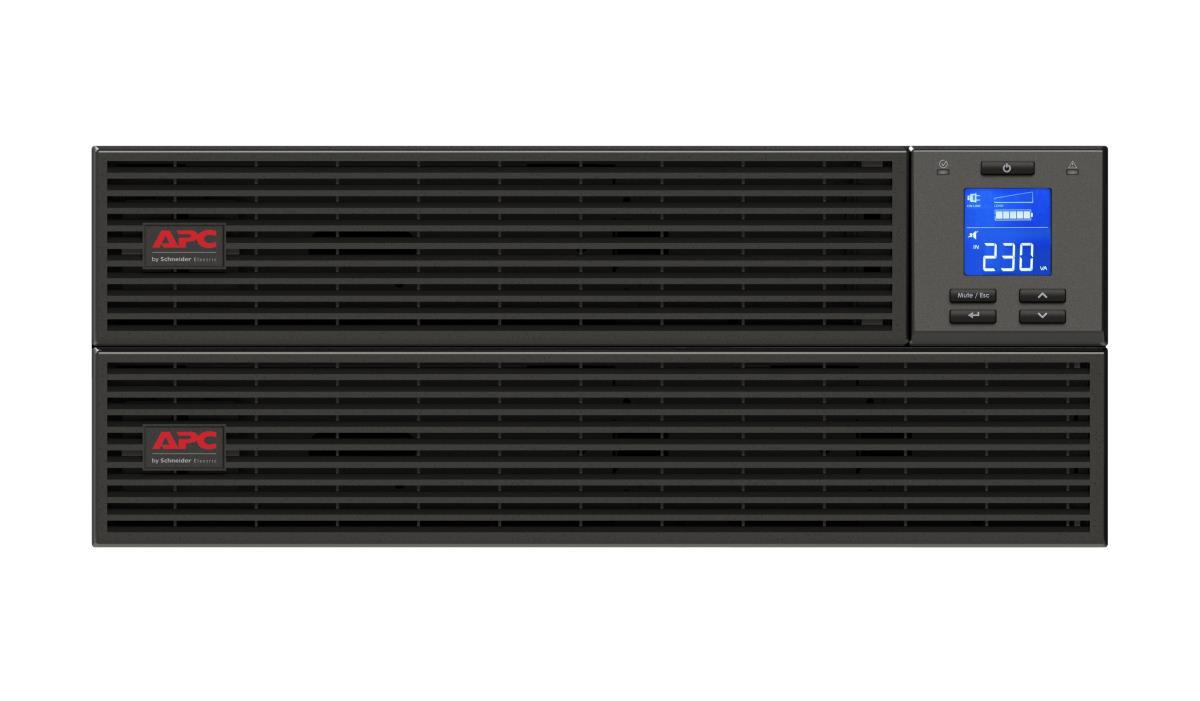

APC Easy UPS SRV RM 10000VA 230V ,with RailKit, External Battery Pack.
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Includes: CD with software, Rack Mounting support rails, User Manual.
Ports & interfaces
AC outlet types
Hard Wire 3-wire (1P + N + E)
SmartConnect port
No
USB port
Y
Serial interface
Y
Serial interface type
RS-232
Serial ports quantity
1
Emergency Power Off (EPO) connector
Y
SmartSlot
Y
Packaging content
Management card included
No
Technical details
Compliance certificates
RoHS
Harmonized System (HS) code
85078000
Sustainability certificates
RoHS
Features
UPS topology
Double-conversion (Online)
Output power capacity
10 kVA
Output power
10000 W
Input operation voltage (min)
220 V
Input operation voltage (max)
240 V
Input frequency
40/70 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
600 J
Crest factor
3:1
ECO mode
Y
Emergency Power Off (EPO)
Y
Audible alarm(s)
Y
Audible alarm modes
Alarm when on battery, Low battery alarm, Overload alarm
Auto-restart
Y
Battery
Automatic battery test
Y
Design
Form factor
Rackmount
Display type
LCD
LED indicators
Y
Certification
REACH
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 14763.6 m
Weight & dimensions
Width
438 mm
Depth
710 mm
Height
173 mm
Weight
69 kg
Packaging data

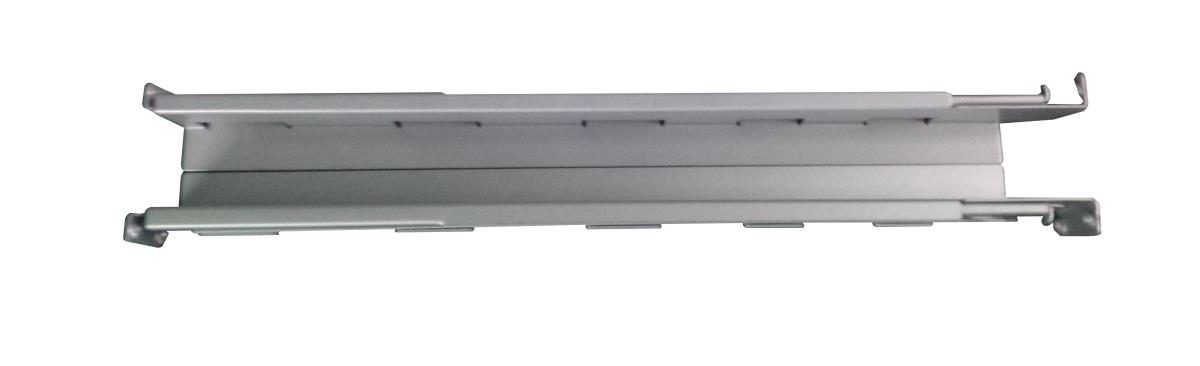

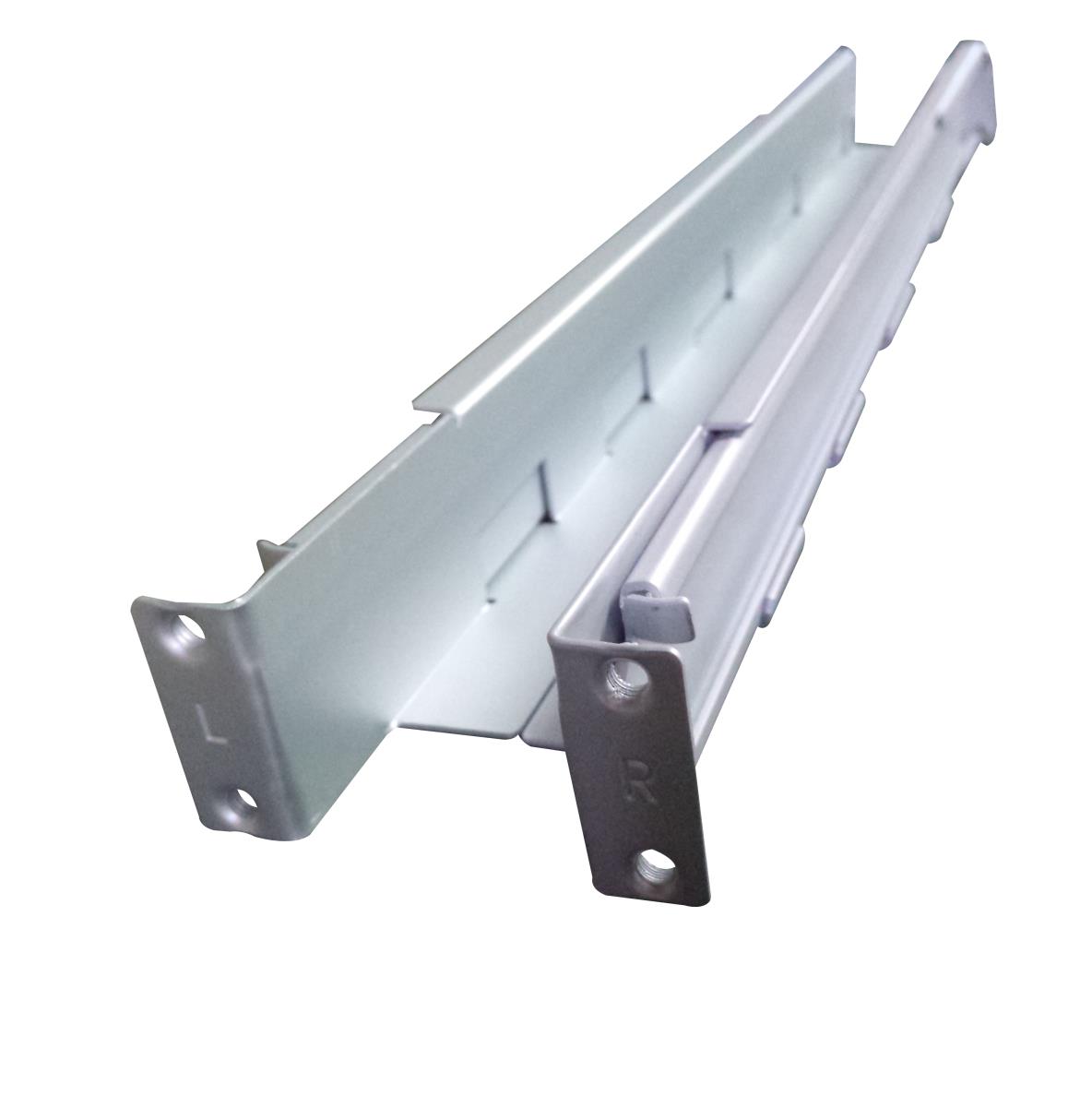

Rack mount kit
Y
Manual
Y
Other features
Input connection type
HardWire 3-wire
Nominal output voltage
230 V
Nominal input voltage
230 V
Information
| Part Number: | SRV10KRIRK |
