Introduction

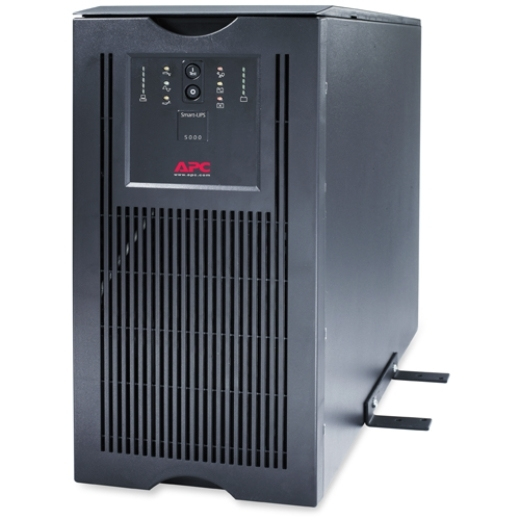

APC Smart-UPS, 4000 Watts / 5000 VA,Input 230V / Output 230V, Rack Height 5 U
Includes: CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack Mounting support rails, Smart UPS signalling RS-232 cable, User Manual, Web/SNMP Management Card
Standard Lead Time: Usually Ships within 4 Weeks
-Adjustable voltage-transfer points.
-Audible alarms.
-Automatic self-test.
-Boost and Trim Automatic Voltage Regulation (AVR).
-Cold-start capable.
-Disconnected battery notification.
-Hot-swappable batteries.
-LED status indicators.
-Network manageable.
-Plug-and-Play installation.
-Rack/Tower convertible.
-Resettable circuit breakers.
-Safety-agency approved
-Serial Connectivity.
-SmartSlot.
-Temperature-compensated battery charging.
Technical details
Total carbon footprint (kg of CO2e)
4487.43
Compliance certificates
RoHS
Harmonized System (HS) code
85078000
Sustainability certificates
RoHS
Ports & interfaces
SmartSlot
Yes
SmartConnect port
No

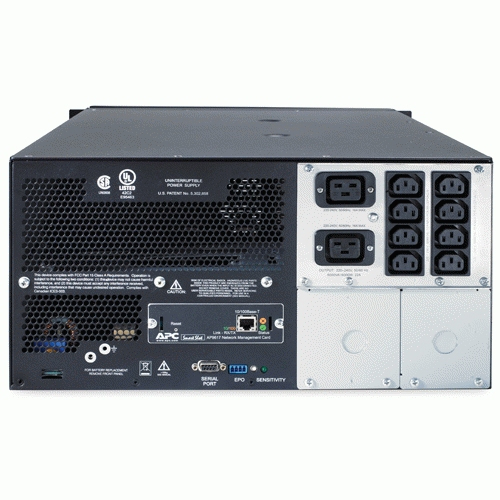

AC outlet types
C13 coupler, C19 coupler
Power plug
Hard Wire 3-wire
AC outlets quantity
10 AC outlet(s)
Number of output IEC jumpers
4
Packaging content
Management card included
Yes
Features
UPS topology
Line-Interactive
Output power capacity
5 kVA
Output power
4000 W
Waveform
Sine
Input operation voltage (min)
151 V
Input operation voltage (max)
302 V
Input frequency
50/60 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Output frequency regulation
47 - 53 Hz
Automatic Voltage Regulation (AVR)
Y
Surge energy rating
480 J
Hold time (min)
2 ms
Hold time (max)
4 ms
Number of output phases
1
Efficiency
96%
Noise level
53 dB
Surge protection
Y
Audible alarm(s)
Y
Auto-restart
Y
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
1632 VAh

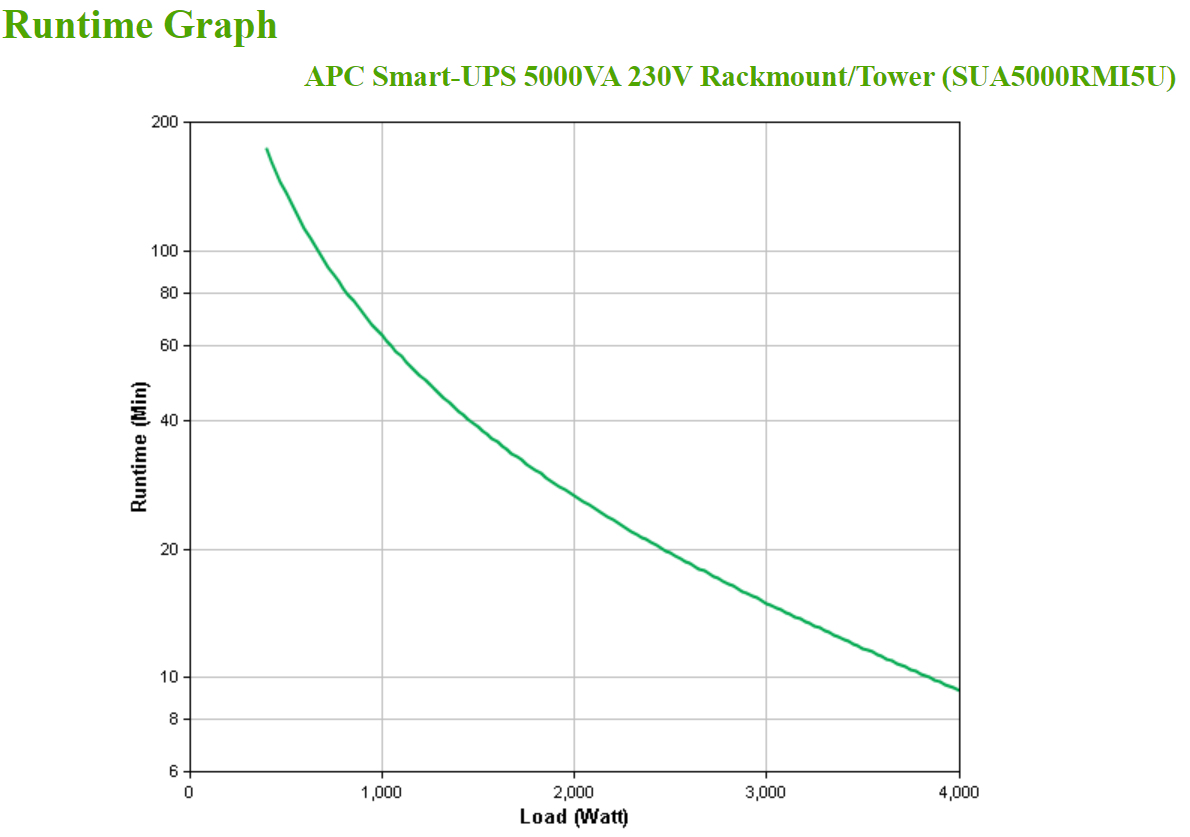

Typical backup time at full load
9.4 min
Typical backup time at half load
26.7 min
Battery life (max)
5 year(s)
Battery recharge time
3 h
Hot-swap battery
Y
Automatic battery test
Y
Cold start
Y
Design
Form factor
Rackmount/Tower
Rack capacity
5U
Product colour
Black
LED indicators
Battery replacement
Certification
C-tick, CE, EN 50091-1, EN 50091-2, GOST, GS Mark, VDE, REACH, PEP, EOLI
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 9000 m
Non-operating altitude
0 - 15000 m
Weight & dimensions
Width
483 mm
Depth
660 mm
Height
222 mm
Weight
97.7 kg
Package width
610 mm
Package depth
762 mm
Package height
635 mm
Package weight
106.8 kg
Packaging data
Rack mount kit
Y
Cables included
RS-232
Manual
Y
Quick installation guide
Y
Software CD
Y
Logistics data
Products per pallet
4 pc(s)
Products per master (outer) case
1 pc(s)
Other features
Nominal output voltage
230 V
Nominal input voltage
230 V
Packaging content
Web/SNMP Management Card
