Product Details
Introduction

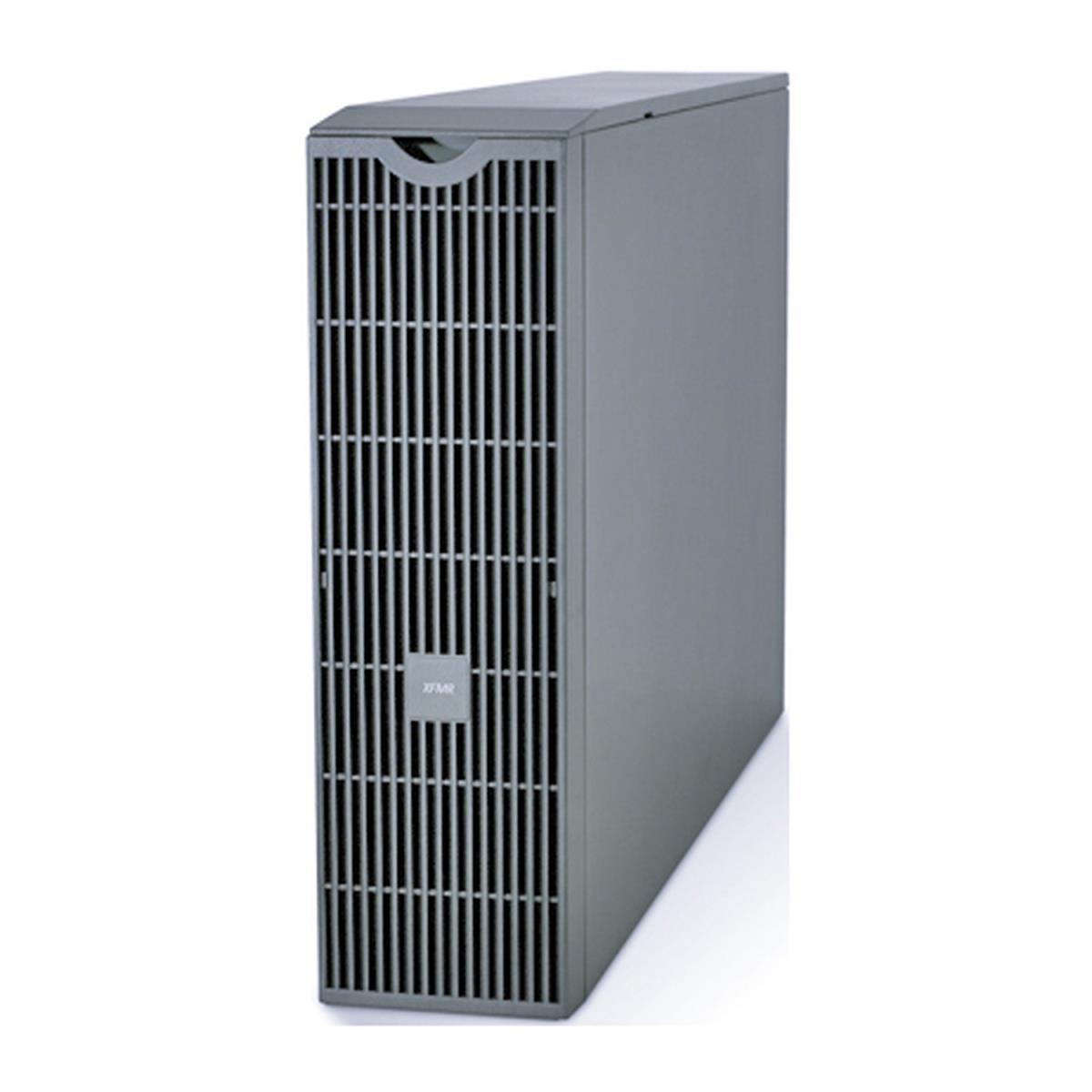

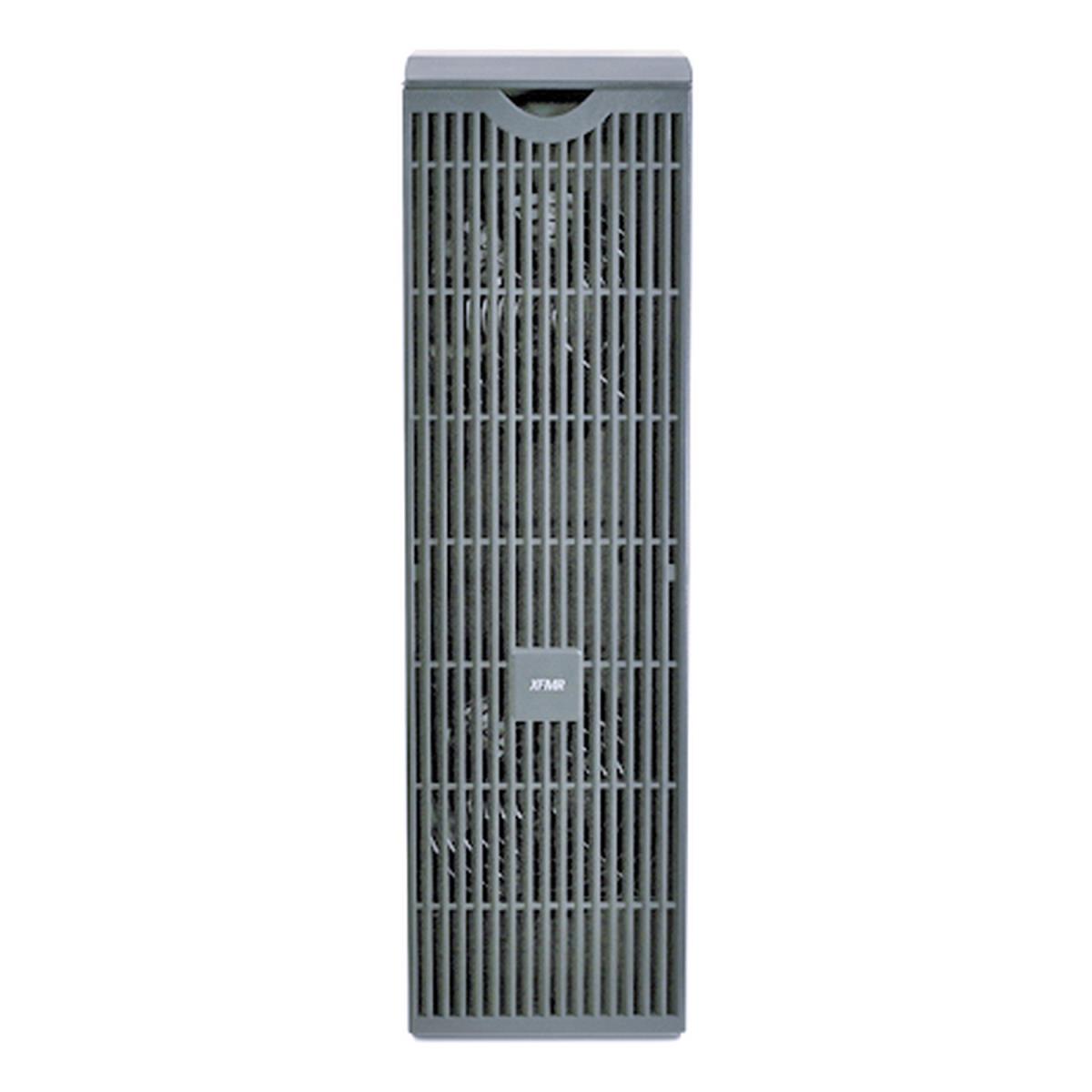

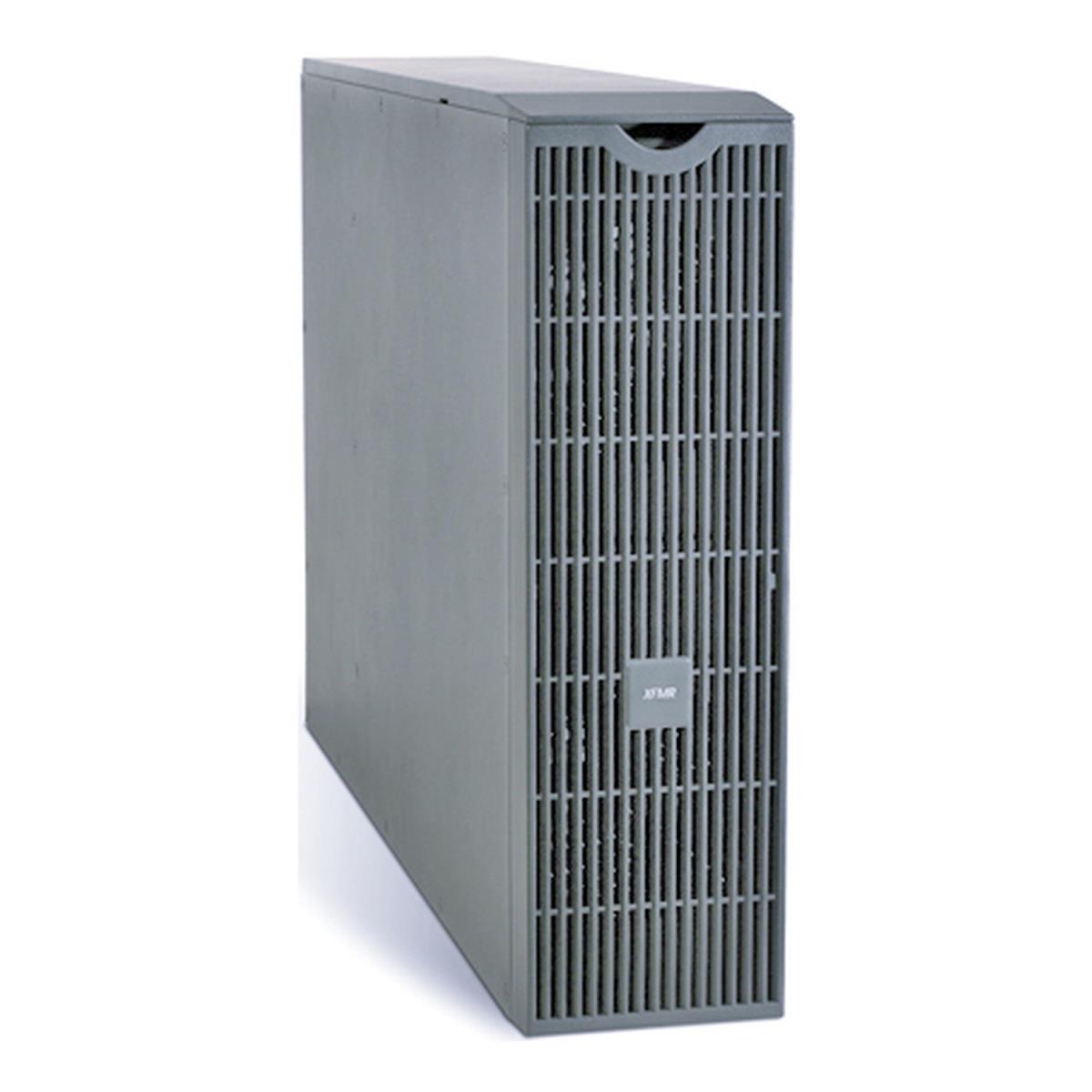

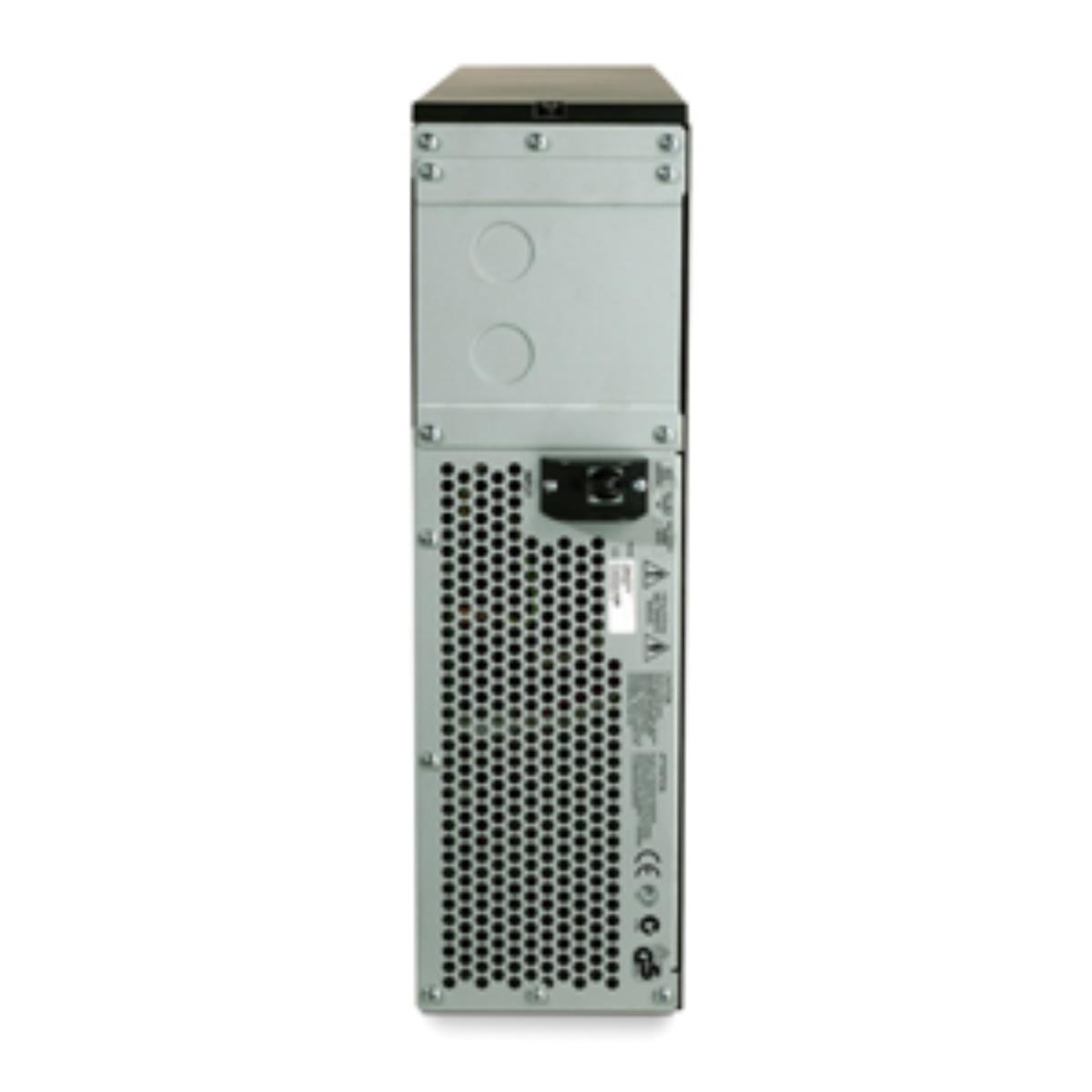

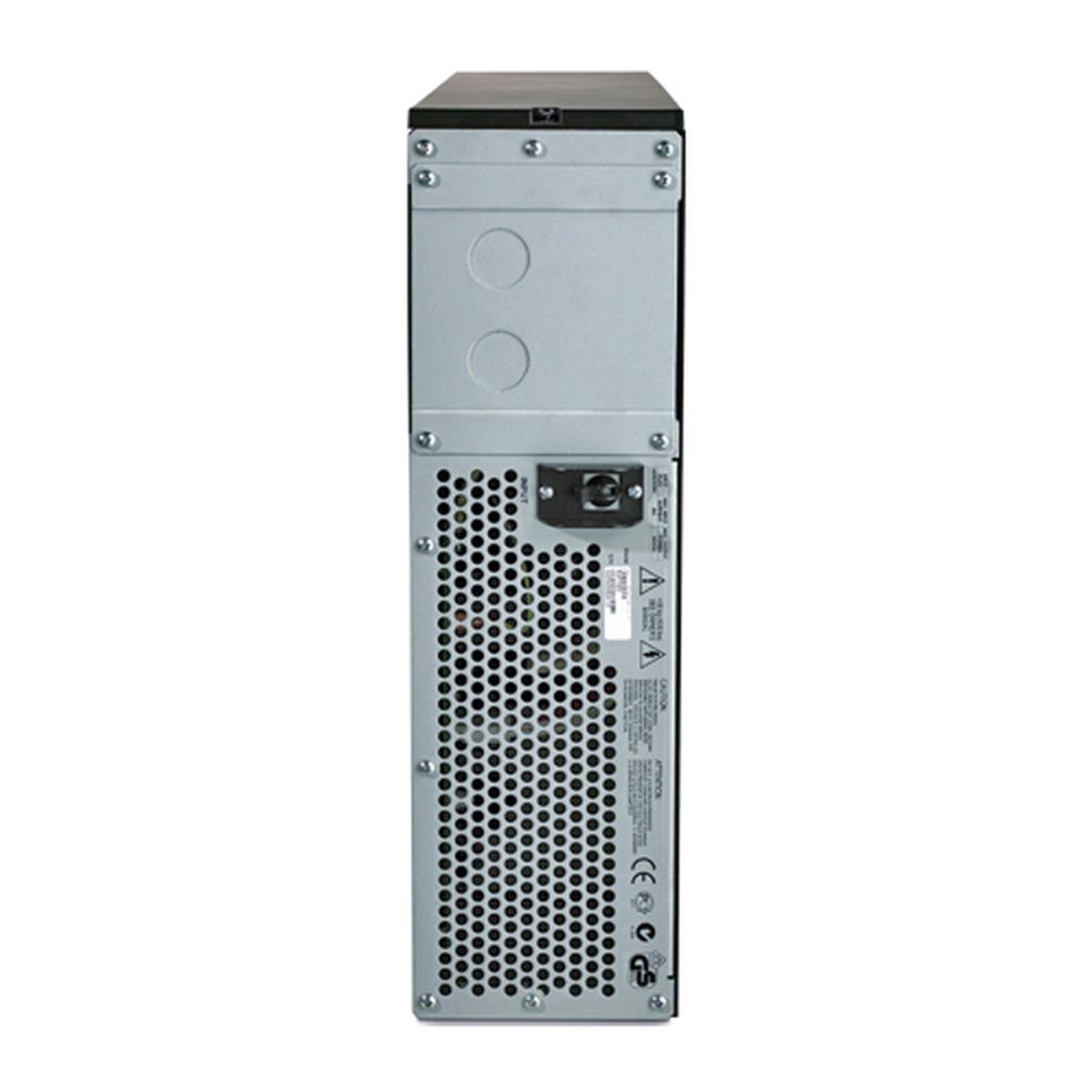

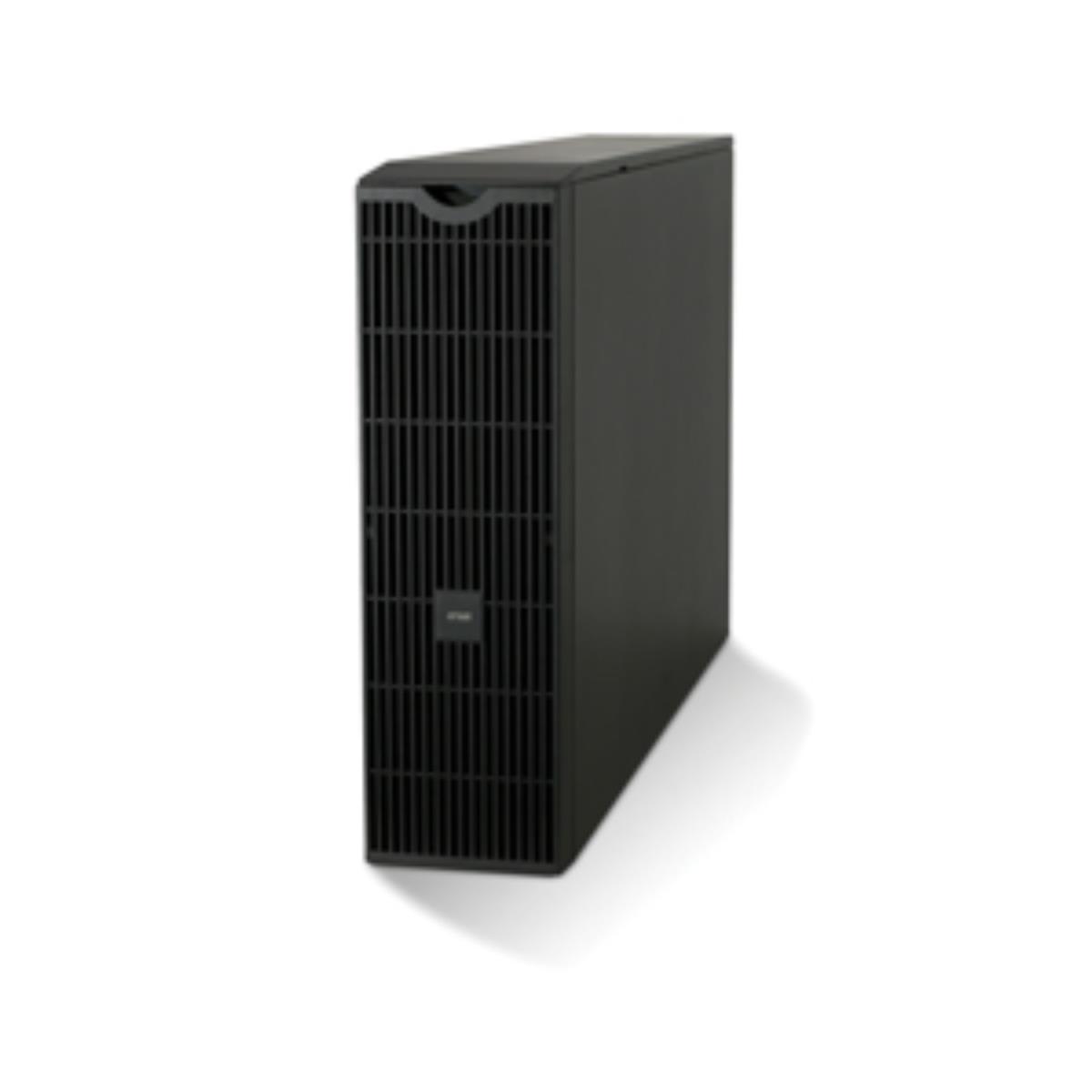

APC Smart-UPS Accessories , Input: 230V , Input Connections: Hard Wire 3 wire (1PH+N+G) , Output: 230V , Output Connections: Hard Wire 3-wire (H N + G)
Includes: Installation guide, Mounting Hardware, User Manual
Standard Lead Time: Usually in Stock
Design
Rack capacity
3U
Product colour
Black
Certification
C-tick,CE,EN 50091-1,EN 55022 Class B,EN 55024,EN 60950,EN 61000-3-2
Technical details
Preferred mounting position
lower
Take-back system
No
Packaging without single use plastic
No
Sustainable packaging
No
Packaging recycled materials
Recycled cardboard
SCIP number
409c68a1-39a6-4e5f-b080-12befe783ad8
Harmonized System (HS) code
85078000
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Compliance certificates
RoHS, REACH, WEEE
Weight & dimensions
Width
432 mm
Depth
660 mm
Height
130 mm
Weight
56.8 kg
Logistics data
Customs product code (TARIC)
8504320090
Total carbon footprint (kg of CO2e)
12577.74995528528
Country of origin
Philippines
Other features
Output connection type
hard wire 3-wire (H N + E) for 1 zone(s)
Output voltage
230 V
Mounting
front
Voltage
230 V
Output connections
1- Hard Wire 3-wire (H N + G)
Input connection type
Hard Wire 3 wire (1PH+N+G)
Dimensions (WxDxH)
432 x 660 x 130 mm
Nominal output voltage
230 V
Nominal input voltage
230 V
Features
Output power capacity
5 kVA
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Information
| Part Number: | SURT002 |
