Product Details
Introduction

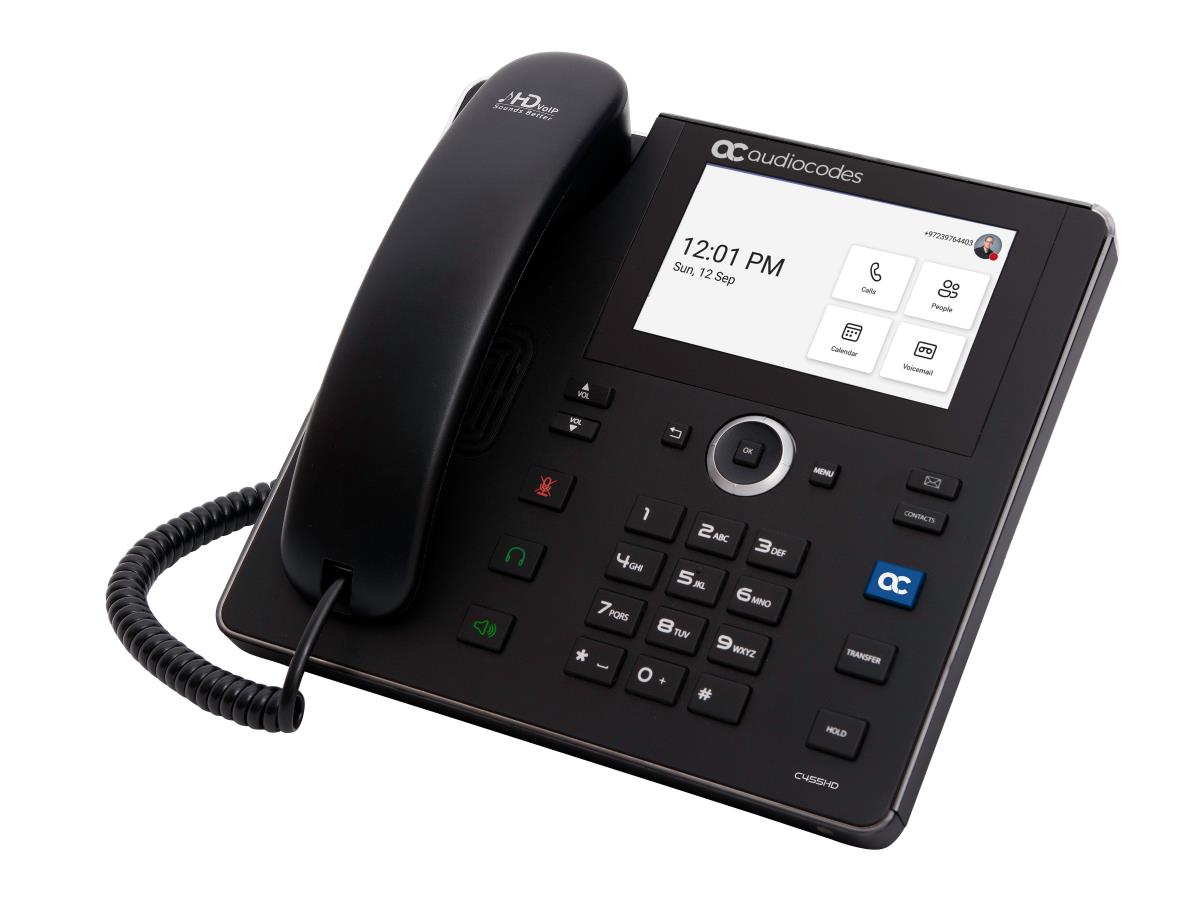

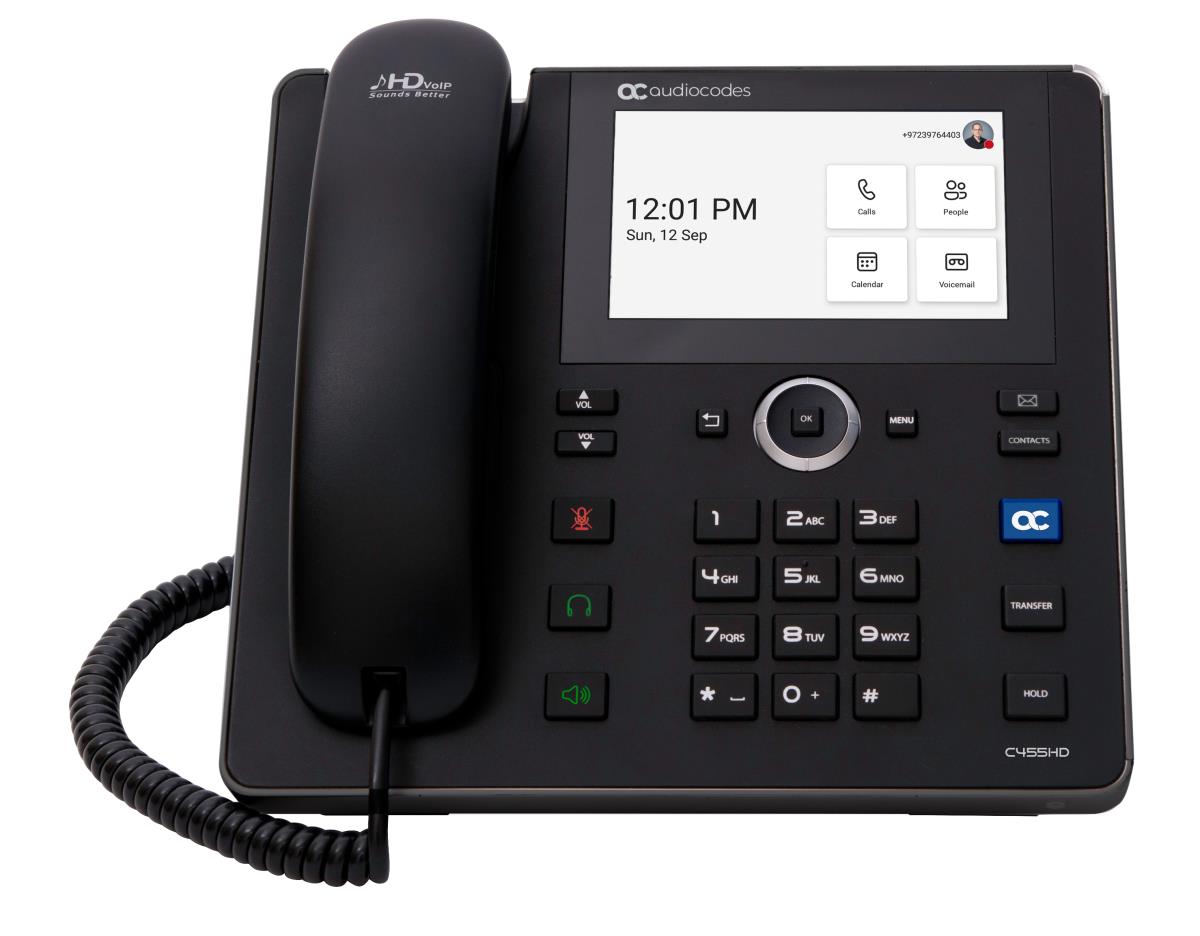

The AudioCodes Microsoft Teams-native C455HD IP phone is a feature-rich, executive high-end business phone, packed with the latest technology for delivering a seamless Microsoft Teams experience every time?.The C455HD is equipped with a large and intuitive 5” color touch screen for exceptional ease-of-use, while stunning HD sound quality ensures that every conversation is productive – and then some. This device is also available as the C455HD-DBW, complete with a 5” color touch expansion module that really brings your Microsoft Teams meetings to life, as well as dual band Wi-Fi and Bluetooth for wireless headsets.
Design
Product type
IP Phone
Handset type
Wired handset
Product colour
Black
Wall mountable
Yes
Performance
Operating system installed
Android
Operating system version
9
Dual-Tone Multi-Frequency (DTMF) modes
SIP info
Phone features
Lines quantity
8 lines
Answering machine
Yes
Call waiting
Yes
Speed dialling
Yes
Call hold
Yes
Call forwarding
Yes
Conference call
Yes
Redialing
Yes
Do not disturb function
Yes
Caller ID
Yes
Call park
Yes
Call pick up
Yes
Full duplex
Yes
Call transfer
Yes
Message-waiting indicator (MWI)
Yes
Management features
Integrated voicemail
Yes
Volume control
Buttons
Number of programmable keys
8
Firmware upgradeable
Yes
Display
Display
TFT
Display diagonal
12.7 cm (5")
Display resolution
1280 x 720 pixels
Touchscreen
Yes
Audio
Speakerphone
Yes
Microphone mute
Yes
Voice codecs
G.711Mu, G.711a, G.722, G.729A, G.729B, OPUS
Echo cancellation
Yes
Voice activity detection
Yes
Adaptive jitter buffers
Yes
Packet loss concealment (PLC)
Yes
Network
Ethernet LAN
Yes
Ethernet LAN interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Wi-Fi
Yes
Wi-Fi standards
802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth
Yes
Bluetooth version
4.2
Supported network protocols
IPv4, TCP, UDP, ICMP, ARP, RTP, SRTP, RTCP-XR, 802.1x, IP/DHCP IP, IEEE 802.1p/Q, QoS/ToS, HTTP/HTTPS/DHCP, NTP, FTP/TFTP, CDP/LLDP VLAN, LDAP
Quality of Service (QoS) support
Yes
Security algorithms
HTTPS, SRTP, SSL/TLS
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af
Ports & interfaces
USB 2.0 ports quantity
2
Ethernet LAN (RJ-45) ports
2
RJ-9 ports quantity
1
DC-in jack
Yes
WAN connection type
RJ-45
Cable lock slot
Yes
Certificates
Sustainability compliance
Yes
Compliance certificates
Federal Communications Commission (FCC)
Power
Power over Ethernet (PoE)
Yes
AC adapter input voltage
100 - 240 V
AC adapter output voltage
12 V
AC adapter output current
2 A
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Weight & dimensions
Width
236 mm
Depth
200 mm
Height
165.9 mm
Weight
988 g
Height (min)
17 cm
Height (max)
19.5 cm
Package width
280 mm
Package depth
245 mm
Package height
110 mm
Package weight
1.55 kg
Packaging content
Number of handles included
1 pc(s)
Manual
Yes
Cables included
LAN (RJ-45)
Logistics data
Master (outer) case gross weight
14.5 kg
Master (outer) case length
467 mm
Master (outer) case width
579 mm
Master (outer) case height
291 mm
Information
| Part Number: | TEAMS-C455HD-DBW |
