Product Details
Introduction
A native Microsoft Teams Total Touch high-end business phone with a large color touch screen and full UC integration.

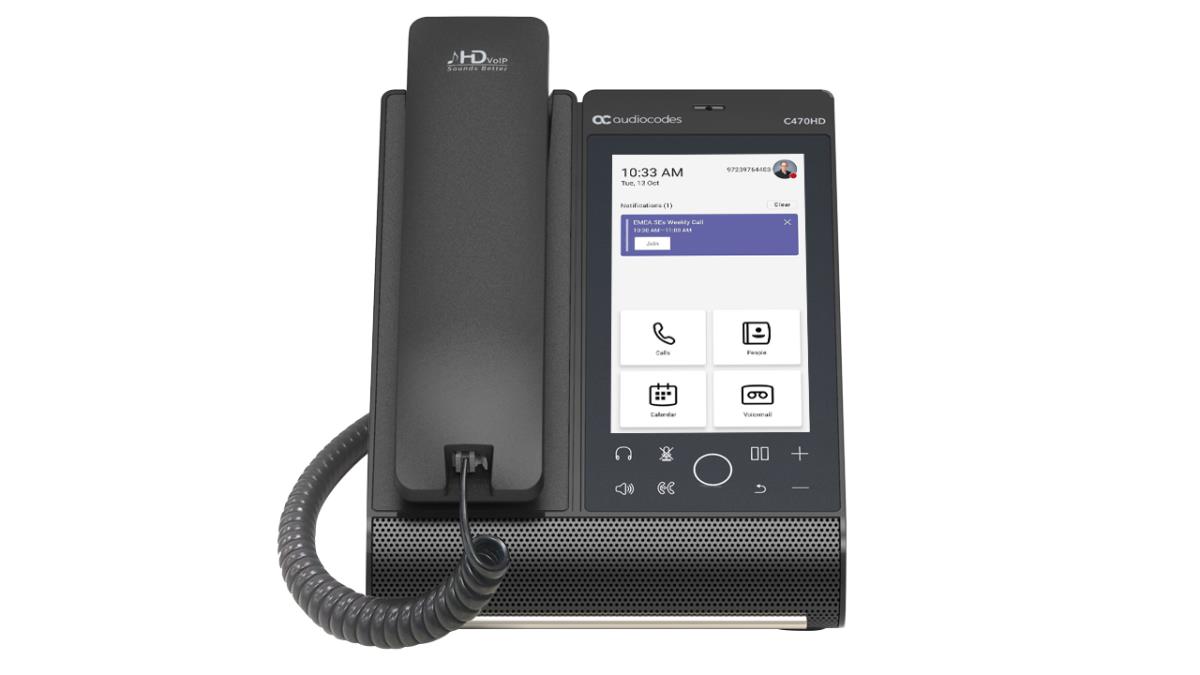

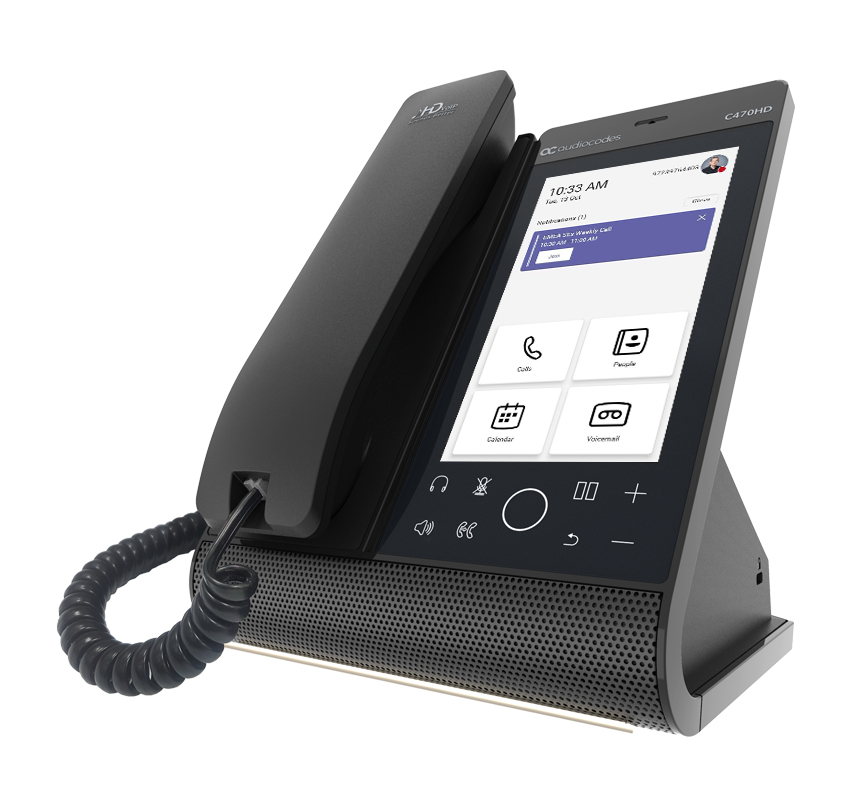

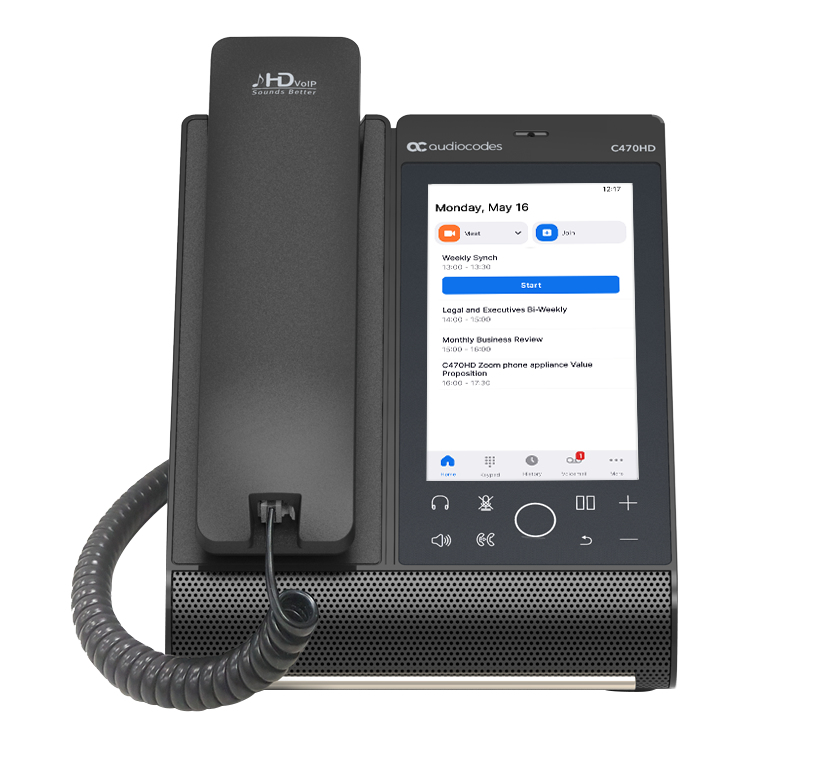

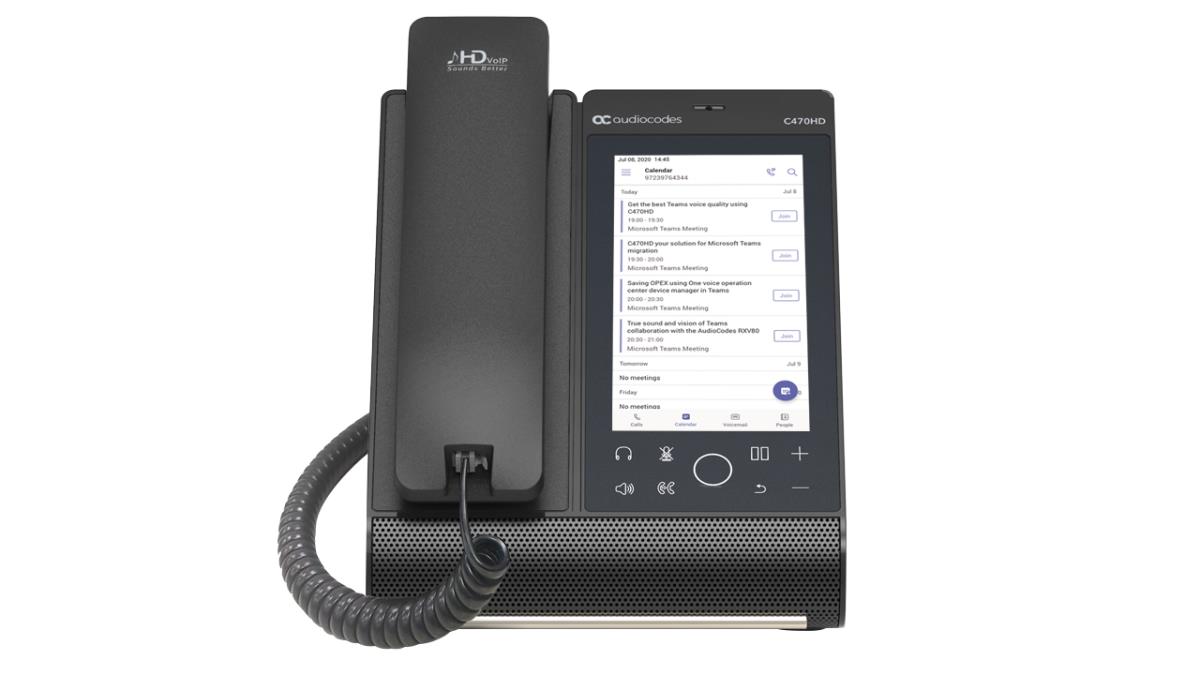

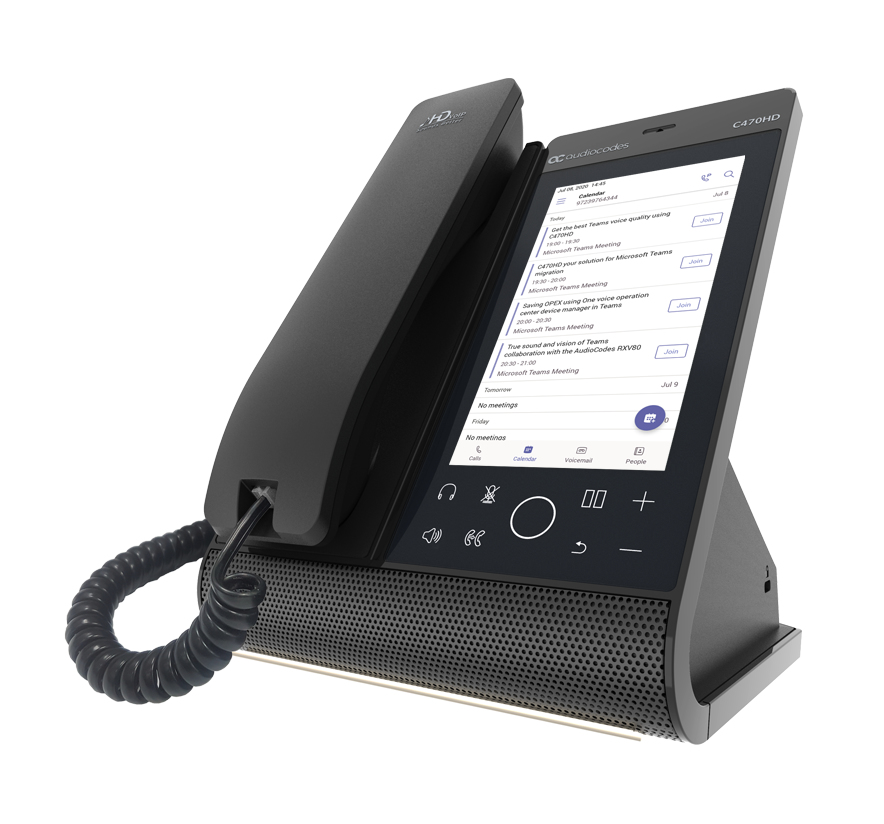

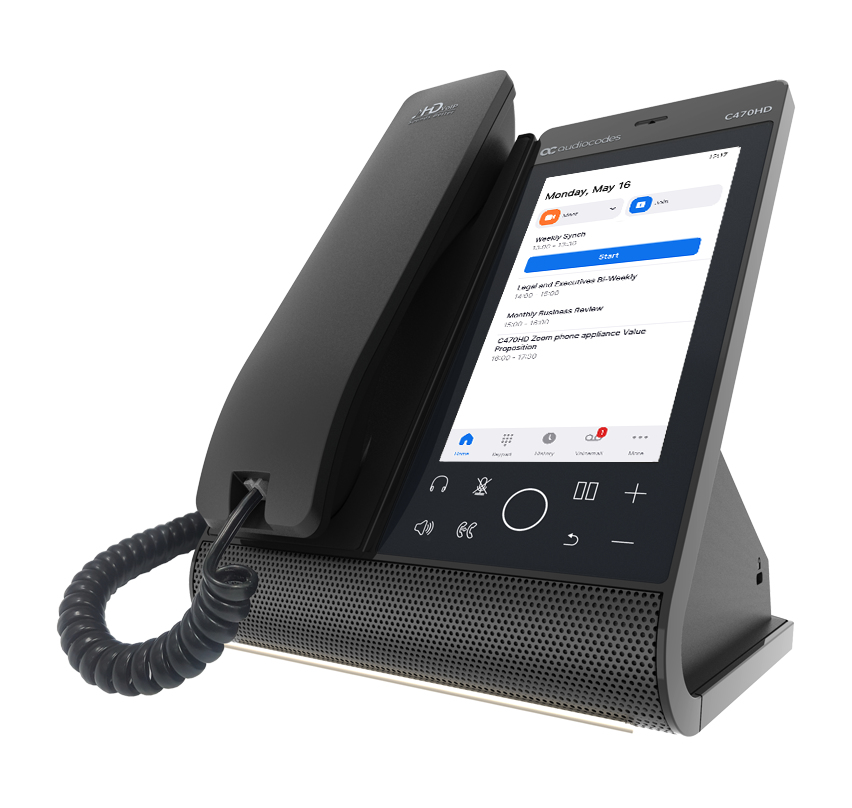

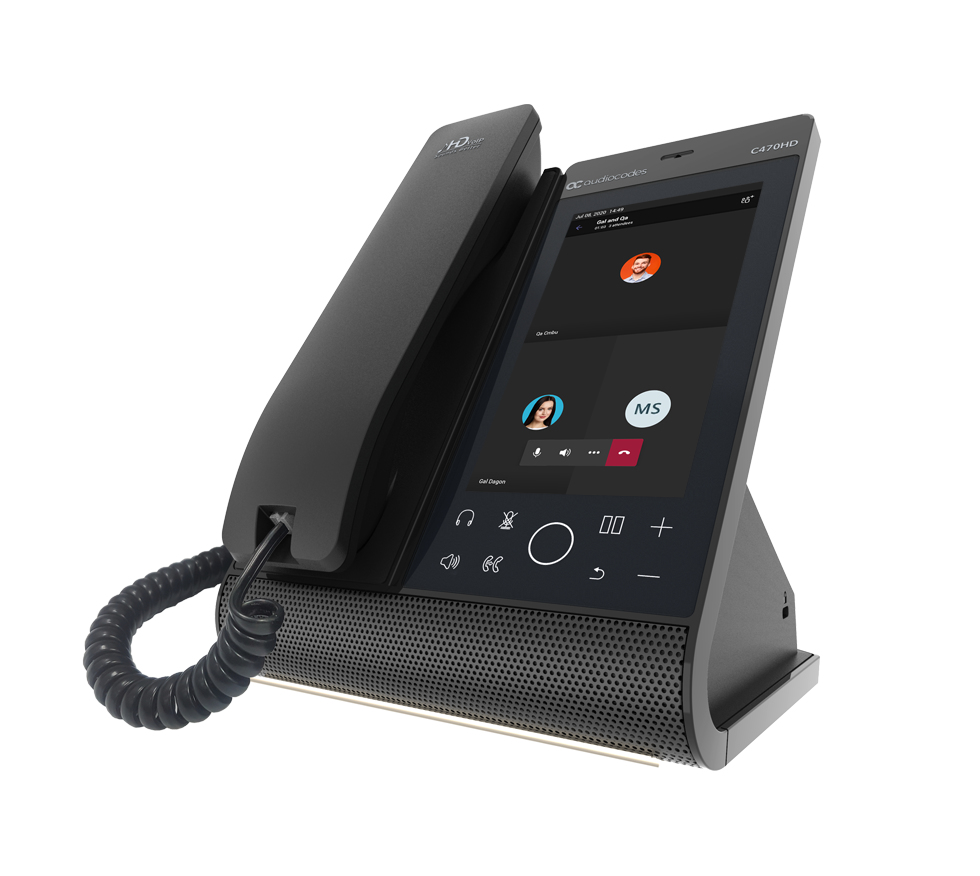

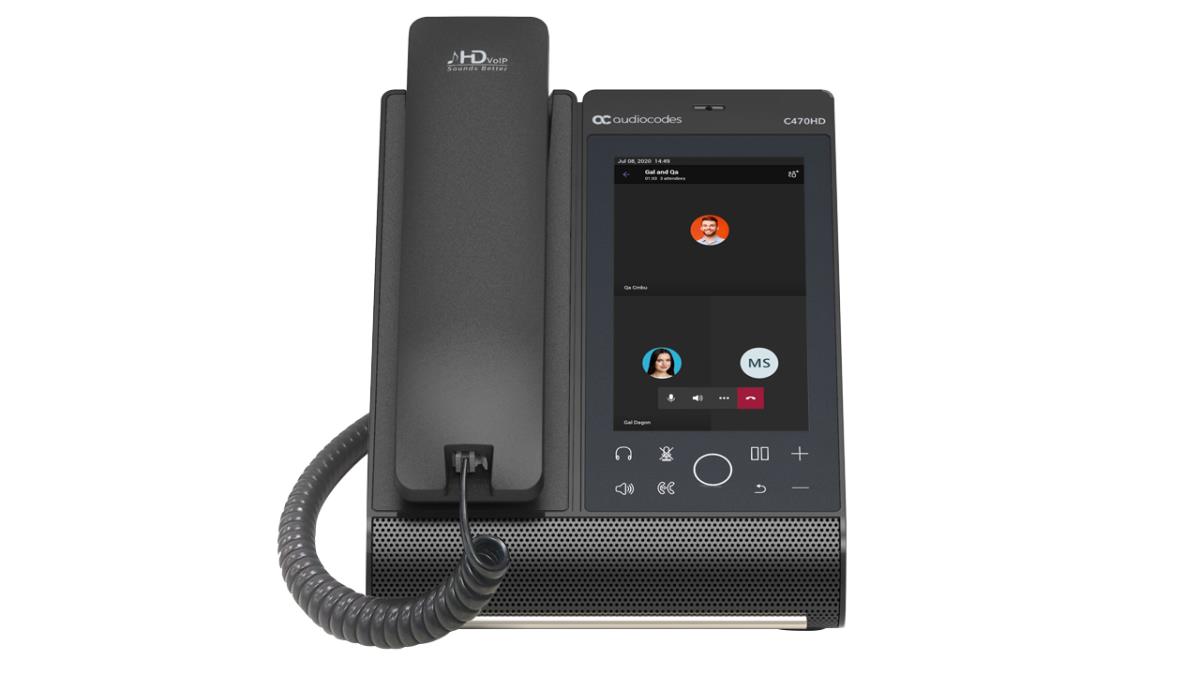

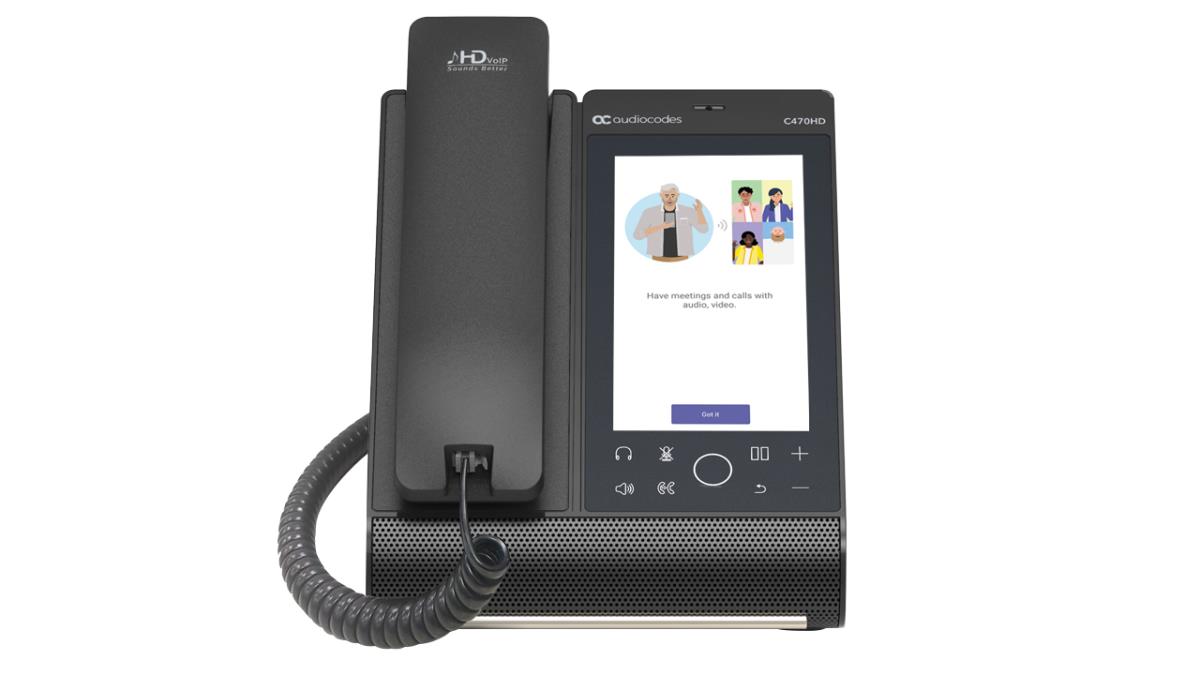

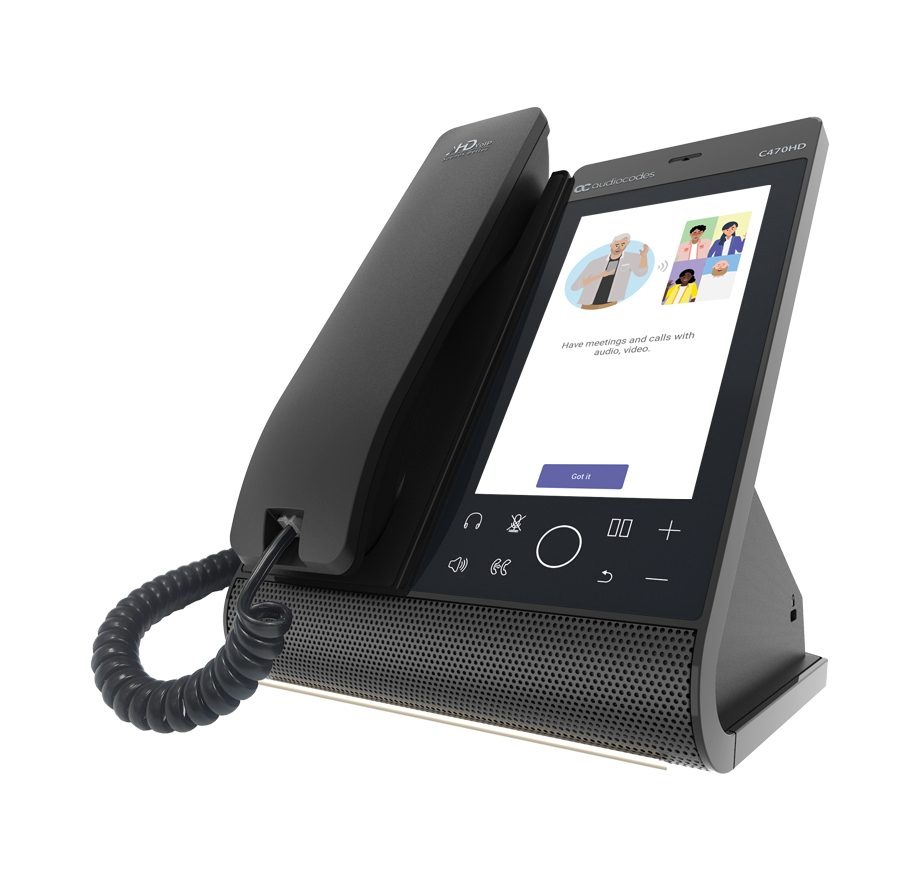

The AudioCodes Microsoft Teams-native C470HD IP phone is a feature-rich, executive high-end business phone for Microsoft Teams.
The C470HD is equipped with a large, single surface, full touch interface, incorporating an exceptionally sharp 5.5" color touch screen, with optional support for Wi-Fi and Bluetooth.
AudioCodes IP phones can be offered as part of our Managed IP Phones solution, which defines the IP phone as an IT-managed entity and delivers unique and complete lifecycle management of end-user desktop devices.
Design
Wall mountable
No
Mounting
Desk
Product type
IP Phone
Handset type
Wired handset
Product colour
Black
Performance
Operating system installed
Android
Operating system version
9.0
Phone features
Full duplex
Yes
Caller ID
Y
Management features
Firmware upgradeable
Yes
Display
Display
TFT
Display diagonal
14 cm (5.5")
Display resolution
720 x 1280 pixels
Touchscreen
Y
Audio
Speakerphone
Yes
Voice codecs
G.711, G.722, G.729, Silk
Echo cancellation
Yes
Voice activity detection
Yes
Adaptive jitter buffers
Yes
Comfort noise generation (CNG)
Yes
Packet loss concealment (PLC)
Yes
Network
Ethernet LAN interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Wi-Fi
Yes
Wi-Fi standards
802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms
802.1x RADIUS, HTTPS, TLS
Networking standards
IEEE 802.3af
Ethernet LAN
Y
Bluetooth
Y
Bluetooth version
5.0
Ports & interfaces
USB 2.0 ports quantity
1
RJ-9 ports quantity
1
WAN connection type
RJ-45
Cable lock slot
Yes
Headset connectivity
USB
Ethernet LAN (RJ-45) ports
1
Certificates
Sustainability compliance
Yes
Compliance certificates
Federal Communications Commission (FCC)
Power
AC adapter input voltage
100 - 240 V
AC adapter output voltage
12 V
AC adapter output current
2 A
Power over Ethernet (PoE)
Y
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Weight & dimensions
Width
180 mm
Depth
165 mm
Height
230 mm
Weight
1.2 kg
Package width
238 mm
Package depth
275 mm
Package height
174 mm
Package weight
1.74 kg
Packaging content
Base station
Yes
Handset
Yes
Number of handles included
1 pc(s)
Cables included
LAN (RJ-45)
Logistics data
Master (outer) case gross weight
12.3 kg
Master (outer) case length
540 mm
Master (outer) case width
490 mm
Master (outer) case height
308 mm
Information
| Part Number: | TEAMS-C470HD-DBW |
