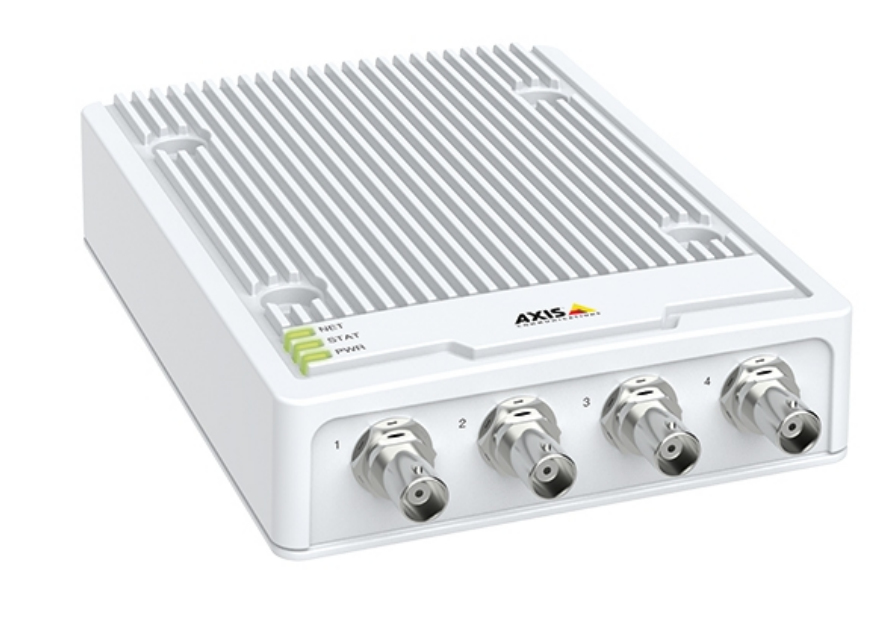

AXIS M7104 Video Encoder

£349.81 (incl. VAT)

Qty:

Add to basket

Part Number:	01679-001
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

AXIS M7104 Video Encoder

With AXIS M7104 you can migrate to IP surveillance at your own pace. Including the latest generation of Axis chip, it provides a high level of defence to protect your system. Plus, Zipstream and support for H.264/H.265 reduces bandwidth and storage requirements, while preserving high image quality.

Great value for money

AXIS M7104 is a cost-effective, 4 channel video encoder that supports all types of standard resolution analog cameras including PTZ (pan/tilt/zoom) cameras. It offers support for intelligent analytics such as motion detection and active tampering alarm. It features RS-485/422 for controlling analog PTZ (pan/tilt/zoom) cameras. Additionally, it provides edge storage through a microSD card slot.

Seamless migration to IP surveillance

Axis video encoders allows you to migrate to the world of IP surveillance while protecting your investment in analog equipment, so you get to keep all your existing cameras and cabling. And, thanks to support for Power over Ethernet (PoE) you can connect directly to your IP network with just one network cable for connectivity and power. Furthermore, this flexible solution lets you choose between saving the recordings on a server, on the edge or in the cloud.

First-class Axis Quality

Like all Axis products, AXIS M7104 is built on an open platform, so you're free to use open-standard IT hardware or video management software from the supplier of your choice. Signed firmware and secure boot guarantees that the firmware hasn't been altered and only authorized firmware is installed. And thanks to on-going firmware upgrades, you can depend on Axis first-class quality and support all the way. Plus, Zipstream with support for H.264/H.265 video compression drastically reduces bandwidth and storage requirements without compromising image quality.

Video

Maximum video resolution 720 x 576 pixels

Maximum frame rate 30 fps

Video compression formats AVC,H.264,H.265,HEVC,MPEG4

NTSC resolutions 720x480 pixels

PAL resolutions 720x576 pixels

Channels quantity 4 channels

Technical details

Wall mountable Y

Internal memory 1024 MB

Flash memory 512 MB

PTZ control Y

Image settings Brightness, Color, Compression, Contrast, Mirroring, Privacy mask, Rotation, Sharpness

Product colour White

Security

Security algorithms HTTPS

Video motion detection Y

IP address filtering Y

Active tampering alarm Y

Network

Supported network protocols IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH

Quality of Service (QoS) support Y

Power over Ethernet (PoE) Y

Copper ethernet cabling technology 10BASE-T,100BASE-T,1000BASE-T

Networking standards IEEE 802.3af,IEEE 802.3at

Ports & interfaces

BNC input ports 4

Ethernet LAN (RJ-45) ports 1

RS-485 ports 2

Indication

LED indicators Status

Certificates

Certification 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, IEC/EN 62368-1, 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, NIST SP500-267

Power

Power consumption (typical) 4.7 W

Operational conditions

Operating temperature (T-T) 0 - 50 °C

Operating relative humidity (H-H) 10 - 85%

Storage temperature (T-T) -40 - 65 °C

Weight & dimensions

Width 187 mm

Height 37 mm

Weight 650 g

Features

Card reader integrated Y

Compatible memory cards MicroSD (TransFlash), MicroSDHC, MicroSDXC

Packaging content

Manual Y

Information

Part Number:

01679-001
