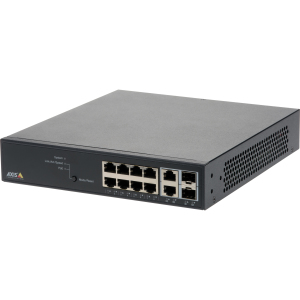

AXIS T8508 Poe+ Network Switch

£492.36 (incl. VAT)

Qty:

Add to basket

Part Number:	01191-003
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

8 port switch for efficient network management

AXIS T8508 PoE+ Network Switch is an easy-to-install network switch optimized for surveillance solutions, that comes with a unique web graphic user interface with topology for easy overview and management of all devices in the system.

Easy to install and configure

AXIS T8508 PoE+ Network Switch, just as Axis product portfolio, is easy to install by using standard Axis tools as AXIS IP Utility and AXIS Device Manager. AXIS T8508 also comes with an individual password, an easy to use setup wizard, and a comprehensive set of configuration tools such as an integrated DHCP server for automatic assignment of IP addresses. It also allows for even more advanced network configuration such as VLAN, QoS, Security, and Spanning tree to further optimize the total solution.

Discrete, compact, and fan-less

AXIS T8508 PoE+ Network Switch is a compact, fan-less 8 port switch designed for installations in noise sensitive environments . The compact design enables discreet installations, but can also be rack mounted with AXIS T85 Rack Mount Kit A.

Perfect match for Axis surveillance solutions

AXIS T8508 PoE+ Network Switch is made for the surveillance industry and is a perfect complement to Axis recorders such as AXIS Camera Station S11 Series. This to simplify further setup and installation of the surveillance systems.

Total overview with unique user interface

The unique web graphic user interface offers a graphic topology for easy overview of all devices in the system. The graphic user interface provides information, status and notifications about connected devices. It allows for management of all connected devices, reboot of cameras in the system, monitoring of network traffic, cable diagnostics and much more.

Management features

Switch type Managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 8

Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper) ports quantity 8

Combo SFP ports quantity 2

Network

Networking standards IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3u,IEEE 802.3z

10G support N

Copper ethernet cabling technology 10BASE-T,100BASE-TX,1000BASE-T

VLAN support Y

Virtual LAN features Private VLAN

Data transmission

Switching capacity 20 Gbit/s

Throughput 14.9 Mpps

MAC address table 8000 entries

Jumbo frames support Y

Jumbo frames 9216

Security

DHCP features DHCP server,DHCP snooping

Access Control List (ACL) Y

Security algorithms 802.1x RADIUS,HTTPS,SSH

Authentication Port-based authentication

Password protection Y

Authentication type IEEE 802.1x,RADIUS

Protocols

Management protocols SNMP v1/v2c/v3

Supported network protocols IPv4, IPv6, HTTP, HTTPS, QoS, Bonjour, UPnP, SNMP v1/v2c/v3, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH, STP, RSTP, MSTP, LLDP, LLDP-MED, TFTP, SMTP, BPDU

Design

Form factor 1U

Product colour Black

Housing material Metal

LED indicators Y

Certification EN 55032 A EN 55024 FCC 15 B /A VCCI A RCM AS/NZS CISPR 32 A ICES-003 A IEC/EN/UL 60950-1 EN 62368-1 EAC ITE, JATE

Technical details

Sustainability compliance Y

Sustainability certificates CE

Power

AC input voltage 100 - 240 V

AC input frequency 50/60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE) Y

Power over Ethernet plus (PoE+) ports quantity 8

Power over Ethernet (PoE) power per port 30 W

Total Power over Ethernet (PoE) budget 130 W

Operational conditions

Operating temperature (T-T) 0 - 50 °C

Storage temperature (T-T) -10 - 70 °C

Operating relative humidity (H-H) 10 - 90%

Storage relative humidity (H-H) 5 - 95%

Weight & dimensions

Width 220 mm

Depth 242 mm

Height 44 mm

Weight 2.1 kg

Packaging data

Cables included AC

Quick start guide Y

Information

Part Number:

01191-003
