Introduction
24 port switch for efficient network management

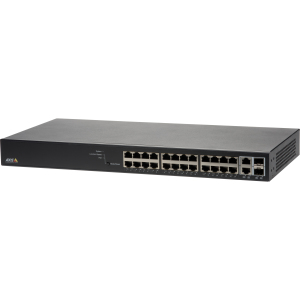

AXIS T8524 PoE+ Network Switch is an easy-to-install network switch optimized for surveillance solutions, that comes with a unique web graphic user interface with topology for easy overview and management of all devices in the system.
Easy to install and configure
AXIS T8524 PoE+ Network Switch, just as Axis product portfolio, is easy to install by using standard Axis tools as AXIS IP Utility and AXIS Device Manager. AXIS T8524 also comes with an individual password and easy to use setup wizard.
AXIS T8524 comes with a comprehensive set of configuration tools such as an integrated DHCP server for automatic assignment of IP addresses. It also allows for even more advanced network configuration such as VLAN, QoS, Security, and Spanning tree to further optimize the total solution.
Management features
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
24
Combo SFP ports quantity
2
Network
Networking standards
IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3u,IEEE 802.3z
10G support
N
Copper ethernet cabling technology
10BASE-T,100BASE-TX,1000BASE-T
Ethernet LAN data rates
10,100,1000 Mbit/s
VLAN support
Y
Virtual LAN features
Private VLAN
Data transmission
Switching capacity
52 Gbit/s
Throughput
38.7 Mpps
MAC address table
8000 entries
Jumbo frames support
Y
Jumbo frames
9216
Security
DHCP features
DHCP server,DHCP snooping
Access Control List (ACL)
Y
Security algorithms
802.1x RADIUS,HTTPS,SSH
Authentication
Port-based authentication
Password protection
Y
Authentication type
IEEE 802.1x,RADIUS
Protocols
Management protocols
SNMP v1/v2c/v3
Supported network protocols
IPv4, IPv6, HTTP, HTTPS, QoS, Bonjour, UPnP, SNMP v1/v2c/v3, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH, STP, RSTP, MSTP, LLDP, LLDP-MED, TFTP, SMTP, BPDU
Design
Rack mounting
Y
Form factor
1U
Product colour
Black
Housing material
Metal
LED indicators
Y
Certification
EN 55032 A
EN 55024
FCC part 15 B / A
VCCI A
RCM AS/NZS CISPR 32 A
ICES-003 A
IEC/EN/UL 60950-1
EN 62368-1
EAC
ITE, JATE, BSMI
Technical details
Sustainability compliance
Y
Sustainability certificates
CE
Power
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Y
Power over Ethernet plus (PoE+) ports quantity
24
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
370 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
442 mm
Depth
211 mm
Height
44 mm
Weight
3.2 kg
Packaging data
Cables included
AC
Quick start guide
Y
Rack mount kit
Y
