Product Details
Introduction

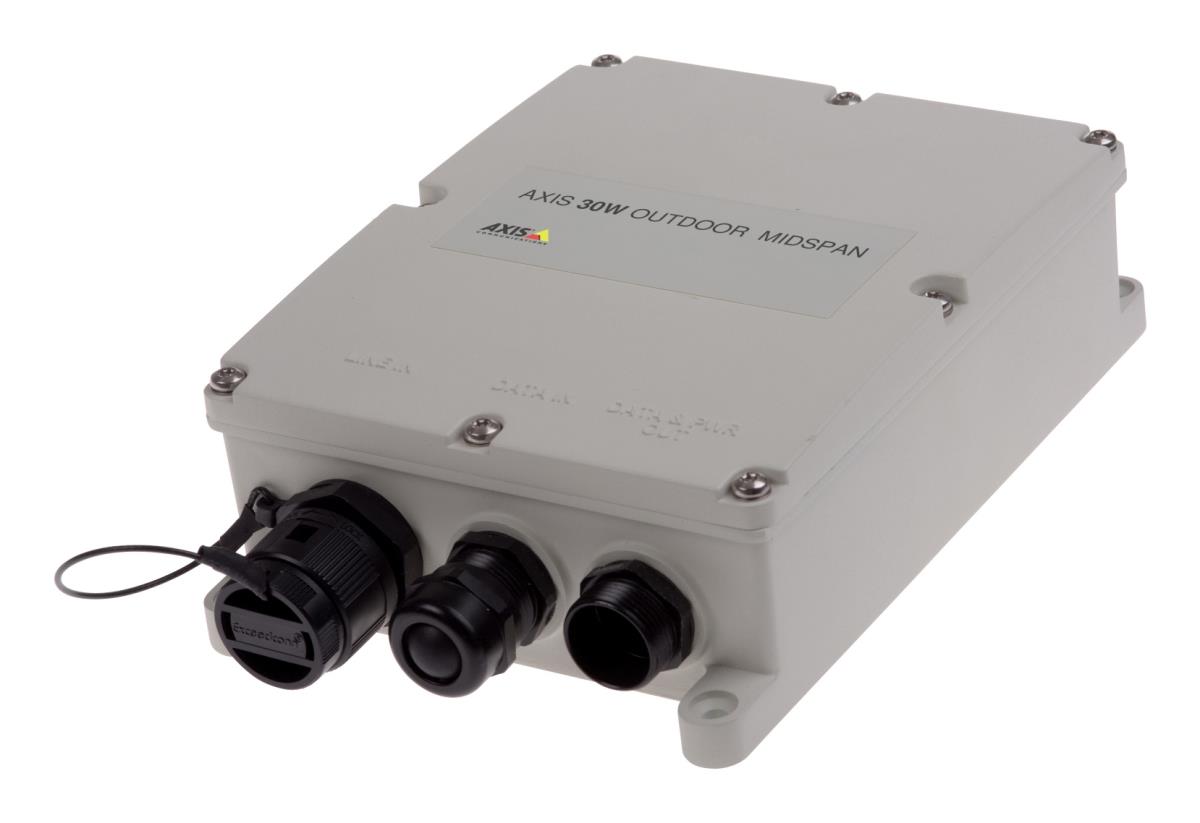

AXIS 30 W Outdoor Midspan
The outdoor-ready midspan is IP66/IP67- and NEMA 4X-rated, with extended temperature range up to -40 °C to 65 °C (-40 °F to 149 °F). The midspan offers surge protection up to 6kV for both the AC and the PoE ports ensuring the indoor equipment is protected from outdoor surges. Thanks to the IP66/IP67-rated RJ45 connectors, there is no need to open the outdoor midspan, just connect the mains cable and the network video product. The 30W midspan is compatible with IEEE 802.3af and IEEE 802.3at supported devices
Features
Type
Midspan
Placement supported
Outdoor
Brand compatibility
Axis
Product colour
Black, Grey
Housing material
Aluminium
International Protection (IP) code
IP66
Ergonomics
Number of connectors
3
Power
Rated power
30 W
Input voltage
100-240 V
Input frequency
50/60 Hz
Output voltage
54 V
Weight & dimensions
Width
170 mm
Depth
140 mm
Height
60 mm
Weight
1.4 kg
Packaging content
Quick installation guide
Y
Operational conditions
Operating temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 100%
Storage temperature (T-T)
-40 - 85 °C
Storage relative humidity (H-H)
0 - 95%
Information
| Part Number: | 01944-001 |
