Product Details
Introduction

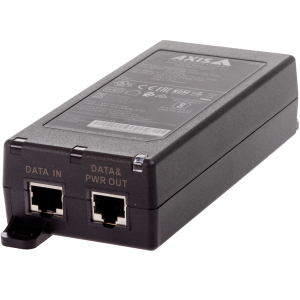

AXIS 30 W Midspan AC/DC
AXIS 30 W Midspan AC/DC is ideal for installations where mains power is not an option. With a power input of either 10-28 V DC or 24 V AC, it can deliver up to IEEE 802.3at (30 W) to your network device. AXIS 30 W Midspan AC/DC is plug-and-play and compatible with all Axis PoE devices which require up to 30 W power. 24 V AC can be needed in harsh environments where new cabling or installations are not possible and you need to retrofit box, dome or PTZ cameras. 10-28 V DC can be used where battery back-up is needed or for solar-powered installations. Or when the network device is built in another equipment and is powered directly from it, for example, in an ATM.
Network
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.3af,IEEE 802.3at
Features
Product colour
Black
Wall mountable
Y
LED indicators
Y
Certification
IS 13252, IEC/EN/UL 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, IEC 60068-2-6, IEC 60068-2-27, 55024, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A, EAC
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
RJ-45 input ports
1
RJ-45 output ports
1
Power
Power over Ethernet (PoE) voltage
56 V
Output power
30 W
Input voltage
10-18 V
Operational conditions
Operating temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
-40 - 75 °C
Weight & dimensions
Width
65 mm
Depth
164 mm
Height
37 mm
Weight
233 g
Technical details
Doesn't contain
PVC
Information
| Part Number: | 02208-001 |
