Introduction

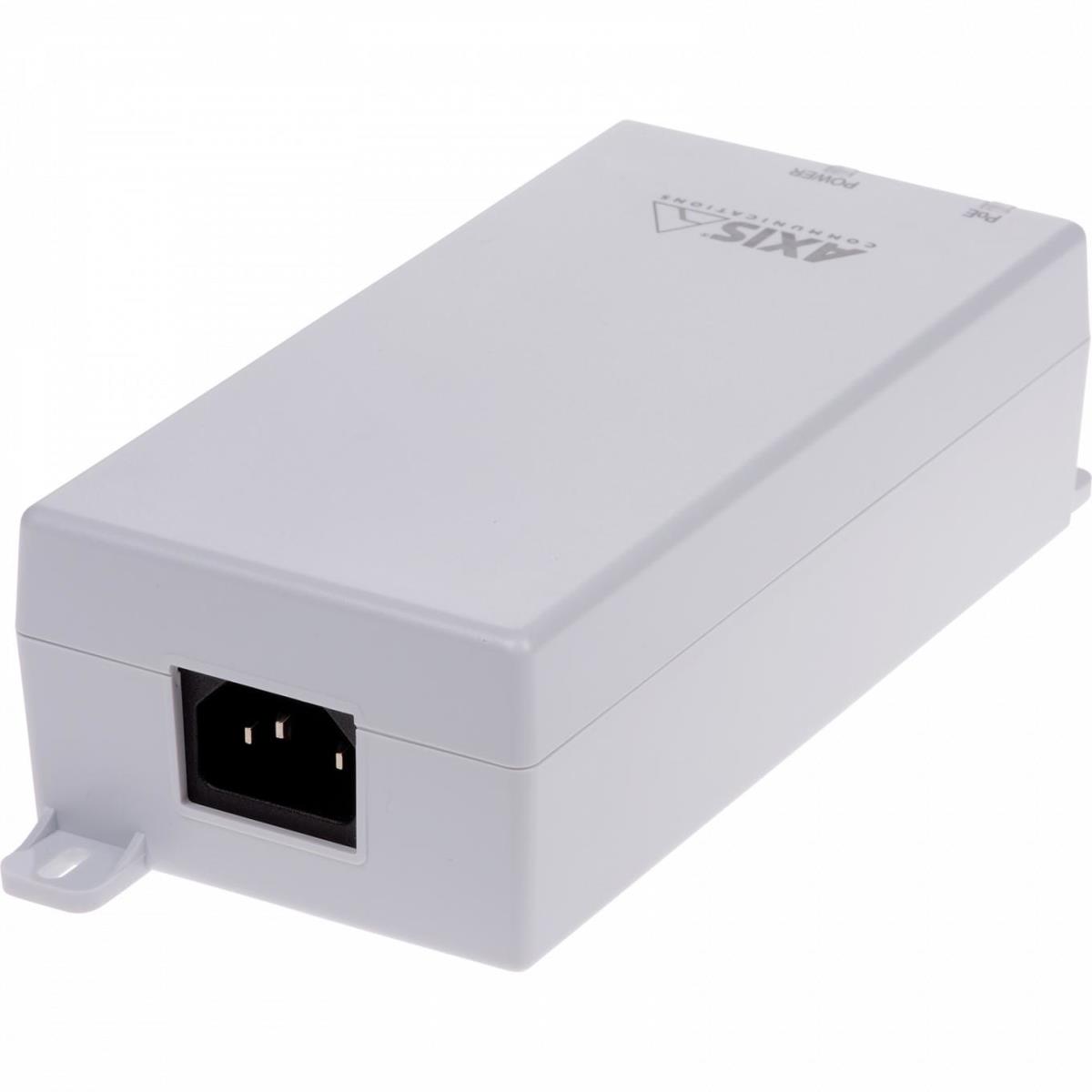

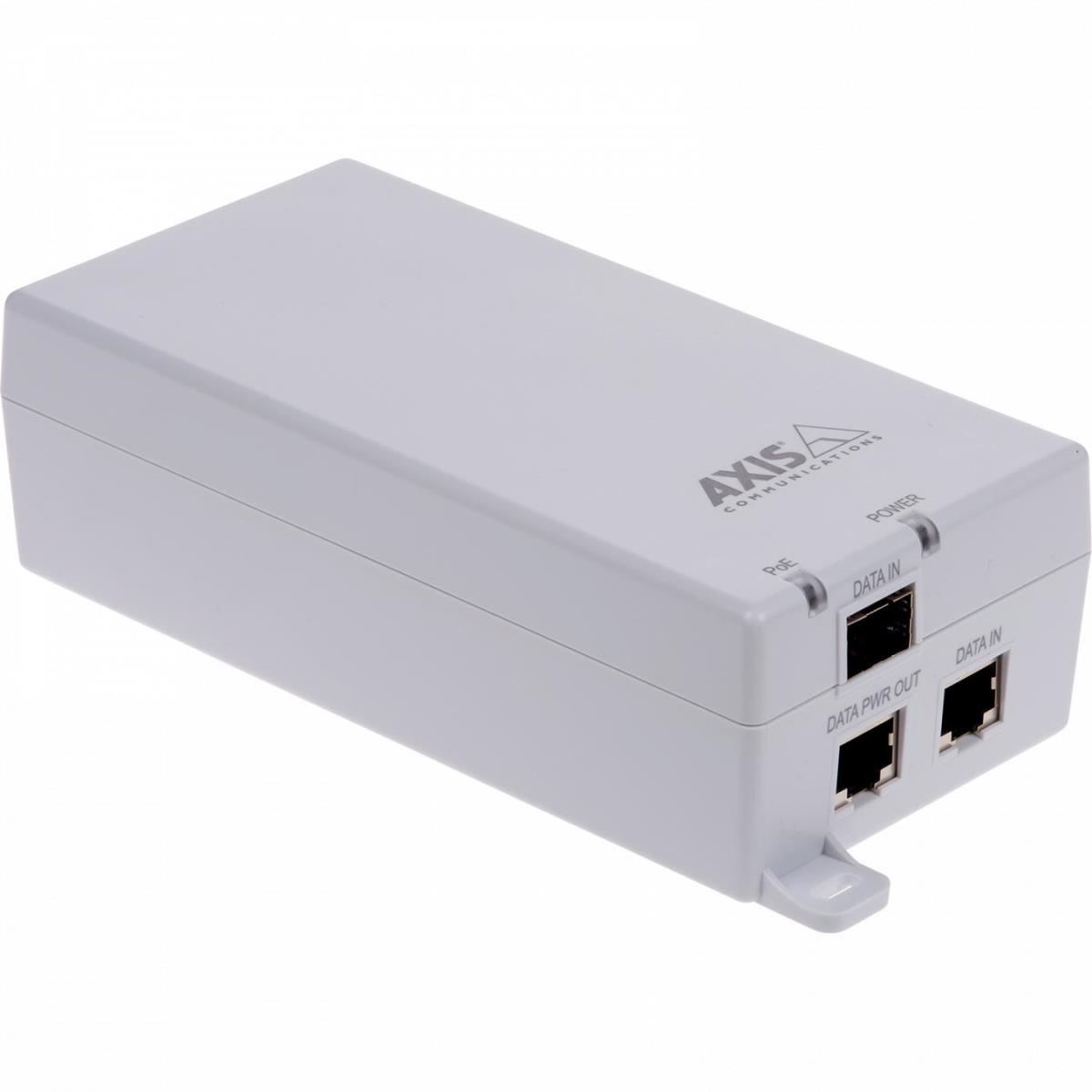

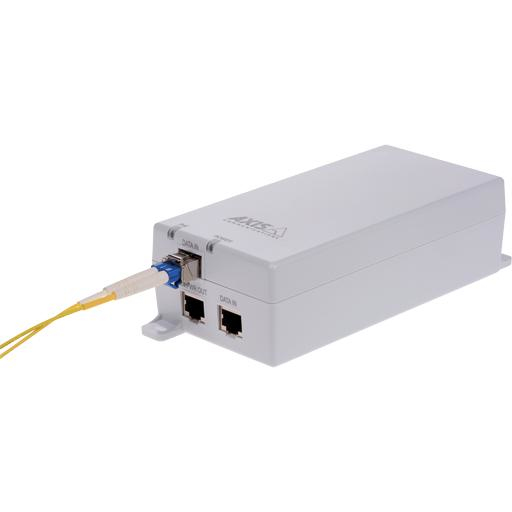

AXIS T8154 60 W SFP Midspan
AXIS T8154 60 W SFP Midspan is a compact, plug-and-play media converter with PoE. With its integrated power supply, it minimizes the amount of cabling and facilitates installation. AXIS T8154 offers data input through SFP or RJ45, and delivers High PoE 60 W. It works with all Axis network products supporting Power over Ethernet.
Features
Type
Midspan
Brand compatibility
Axis
Compatibility
M1055-L, M1075-L, M1135-E Mk II, M1135 Mk II, M1137 Mk II, M1137-E Mk II, P1375-E, P1375, P1377, P1377-LE, P1378, Q1615 Mk III, Q1615-LE Mk III, Q1656-B, Q1656, Q1656-BE, Q1656-BLE, Q1656-LE, Q1659, M2035-LE, M2036-LE, P1465-LE, P1455-LE, P1465-LE-3, P1467-LE, Q1700-LE, P1468-LE, Q1715, Q1786-LE, M3057-PLVE Mk II, M3077-PLVE, M3086-V, M3085-V, M3088-V, M3115-LVE, M3215-LVE, M3116-LVE, M3216-LVE, M3905-R, M4215-V, M4215-LV, M4216-LV, M4216-V, M4218-V, M4218-LV, M4308-PLE, P3255-LVE, P3265-LV, P3265-LVE-3, P1378-LE, P3265-LVE, P3265-V, P3267-LVE, P3267-LV, P3268-LV, P3268-LVE, P3727-PLE, P3719-PLE, P3807-PVE, P3904-R Mk II, P3818-PVE, P3827-PVE, P3905-R Mk II, P3925-LRE, P3935-LR, P3925-R, P4705-PLVE, P4707-PLVE, Q3536-LVE, Q3538-LVE, Q3538-SLVE, Q3628-VE, Q3626-VE, Q3819-PVE, Q9216-SLV, P9106-V
Product colour
White
Networking standards
IEEE 802.3bt
LED indicators
Yes
Certification
IEC/EN/UL 60950-1, EN 62368-1, KC, CCC, CB, S-Mark, GS Mark per EN 60950-1, EN 55032 Class A, EN 61000 3-2, EN 61000 3-3, EN 55035, FCC Part 15 Subpart B Class A, VCCI Class A, RCM AS/NZS CISPR32 Class A, KCC KN32 Class A, KN35, EN 61000–6-1, EN 61000–6–2, EN 50121–4, IEC 62236-4
Ports & interfaces
Ethernet LAN data rates
10,100,1000 Mbit/s
Power
Rated power
60 W
Input voltage
100-240 V
Input frequency
50/60 Hz
Output voltage
55 V
Power source type
AC
Weight & dimensions
Width
80 mm
Depth
184 mm
Height
50 mm
Weight
517 g
Packaging data
Quantity per pack
1 pc(s)
Packaging content
Quick installation guide
Yes
Operational conditions
Operating temperature (T-T)
-50 - 50 °C
Operating relative humidity (H-H)
0 - 90%
Storage temperature (T-T)
-20 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Technical details
Doesn't contain
PVC
Information
| Part Number: | 02740-002 |
