Product Details
Introduction

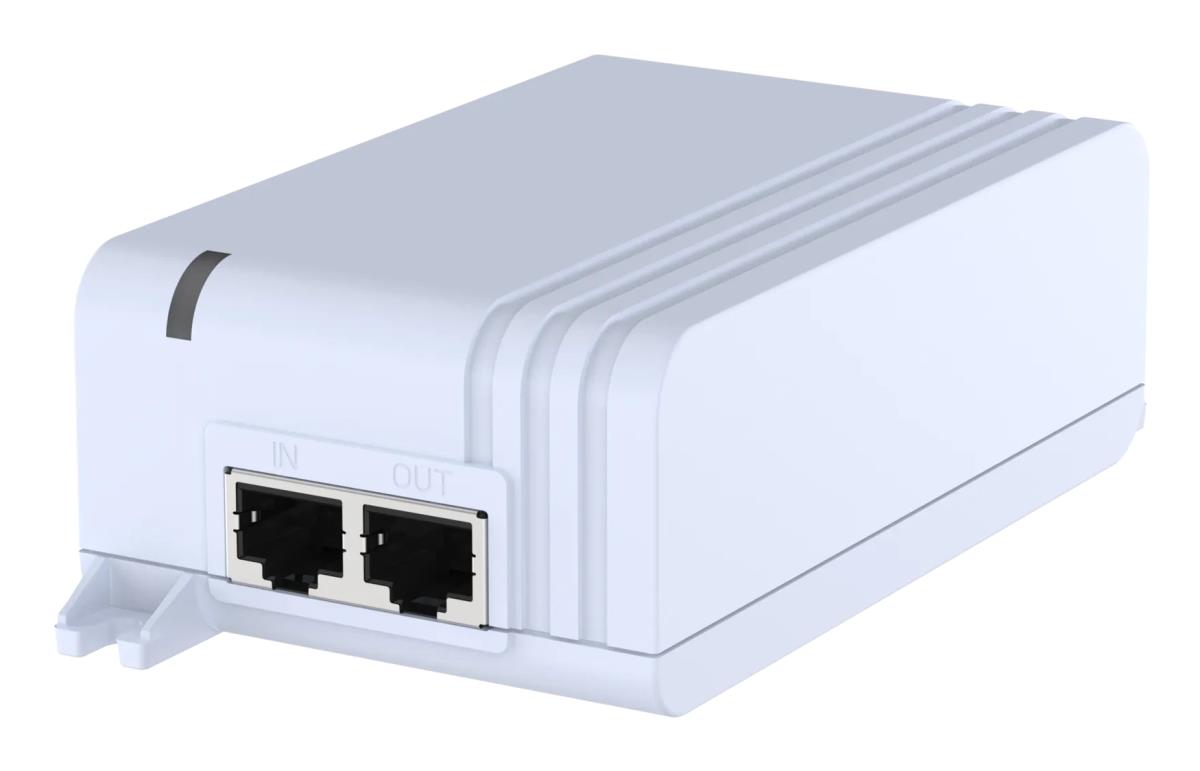

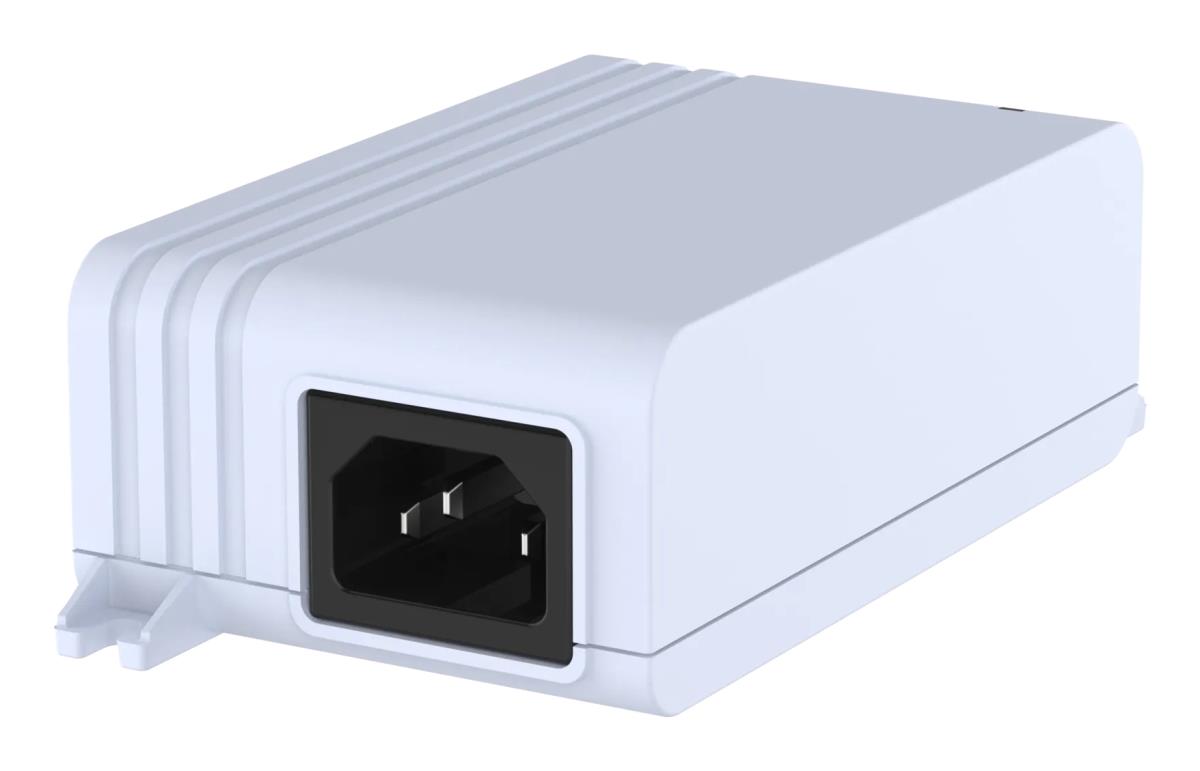

AXIS TU8006 is a single port 60 W midspan, compliant with IEEE 802.3bt and High PoE devices. Power over Ethernet (PoE) offers an easy, fast, and cost-effective solution for powering network products. In a single network cable, a PoE midspan injects power and data into the network device with built-in PoE support. No need to replace existing Ethernet switches and cabling infrastructure.?AXIS TU6011 Mains Cable?is sold separately. The midspan can be installed on a wall, shelf or DIN rail with AXIS T91A03 DIN Rail Clip A.
Network
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
PoE+, PoE++ (4PPoE)
Networking standards
IEEE 802.3bt
Features
Product colour
White
Wall mountable
Yes
LED indicators
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
RJ-45 input ports
1
RJ-45 output ports
1
DC-in jack
Yes
Power
Power over Ethernet (PoE) voltage
56 V
Output power
60 W
Input voltage
100 - 240 V
Input frequency
50 - 60 Hz
Operational conditions
Operating temperature (T-T)
-10 - 45 °C
Operating temperature (T-T)
14 - 113 °F
Operating relative humidity (H-H)
0 - 90%
Storage temperature (T-T)
-20 - 70 °C
Storage relative humidity (H-H)
0 - 95%
Weight & dimensions
Weight
235 g
Packaging content
Number of products included
1 pc(s)
Manual
Yes
Information
| Part Number: | 03223-001 |
