Introduction

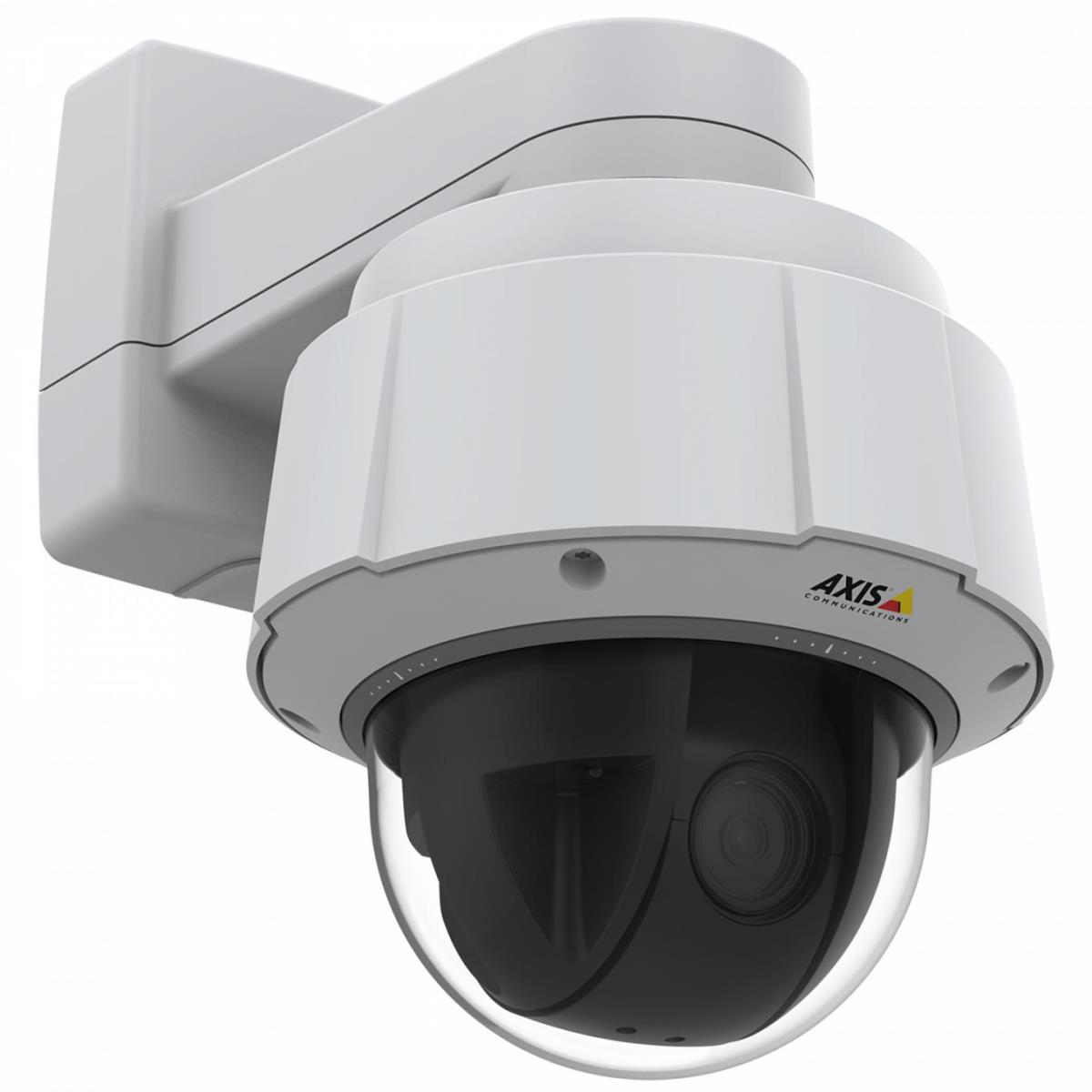

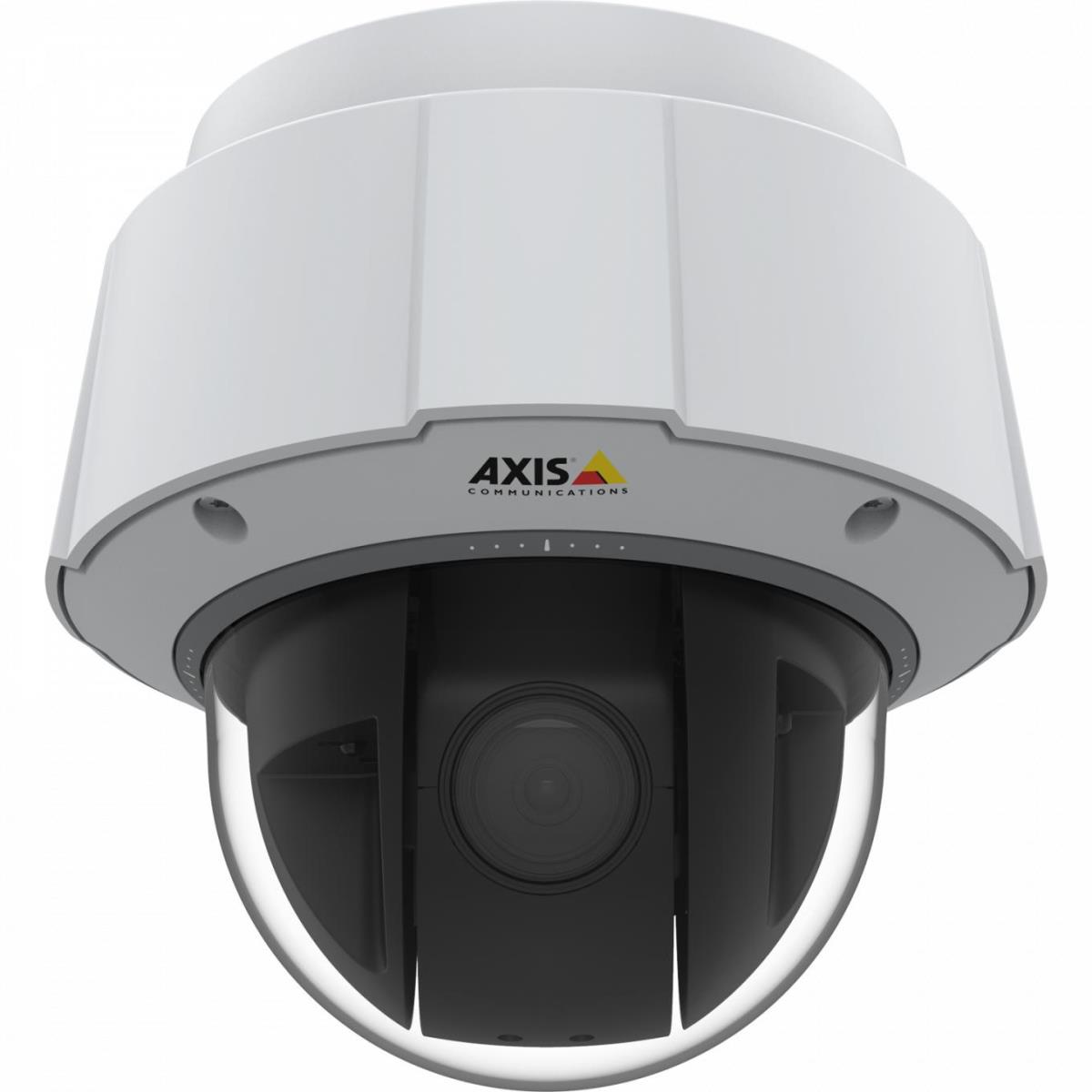

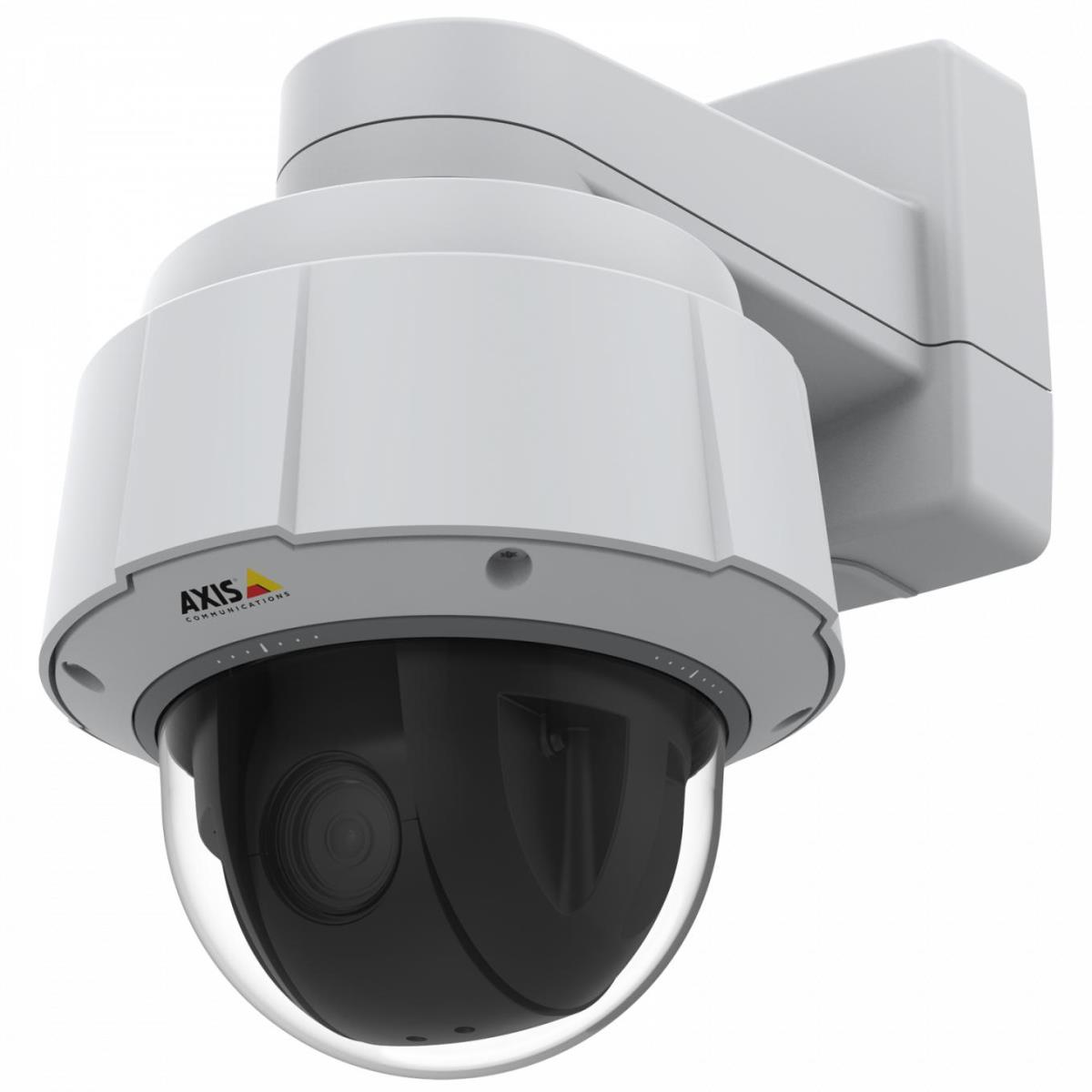

AXIS Q6075-E PTZ Network Camera
This robust, high-performance PTZ camera offers superior light-sensitivity for clear, sharp overviews and excellent details in demanding light conditions. It's ideal for mission-critical surveillance in wide, outdoor areas such as cities, industrial and critical infrastructure applications. Featuring the new generation Axis chip, it includes enhanced security features such as signed firmware and secure boot.
Superior details in demanding light conditions
AXIS Q6075-E delivers superior video quality in HDTV 1080p and 40x optical zoom for excellent details. It features Axis Lightfinder 2.0 which captures low-light images with more saturated colors and sharper images of moving objects. And, Zipstream with support for H.264 and H.265 preserves all the important forensic detail you need, while significantly lowering bandwidth and storage requirements.
Whenever, wherever it's needed
This high-performance outdoor PTZ camera with IP66/67, NEMA 4X, and IK10-ratings is protected from dust, rain, snow and impacts. Arctic temperature control ensures startup from a deeply frozen state and operation in temperatures ranging from -40 °C to 50 °C (-40 °F to 122 °F). Autotracking 2 with click and track functionality and an orientation aid allows for active object tracking and quick orientation. AXIS Q6075-E comes with AXIS Guard Suite analytics for detecting motion, intrusion and loitering. Furthermore, where privacy must be kept, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property.
Keeping you secure
This high-performance camera is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware ensures that only authorized firmware is installed and guarantees that it hasn't been compromised. And if needed, secure boot guarantees that the camera is completely free of malware after a factory default. For added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. This module ensures secure storage of all cryptographic keys and certificates even in the event of a security breach.
Performance
Type
IP security camera
Placement supported
Indoor & outdoor
Connectivity technology
Wireless
PTZ control
Yes
Auto-tracking
Yes
Tour recording
Yes
Preset points
Yes
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Infrared (IR) cut-off filter
Yes
Processor model
ARTPEC-7
Number of languages
11
Languages support
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian
Design
Form factor
Dome
Mounting type
Wall
Product colour
Black, White
Housing material
Aluminium, Polycarbonate (PC)
International Protection (IP) code
IP66, IP67
IK code
IK10
Camera
Camera pan control
Yes
Camera tilt control
Yes
Minimum illumination
0.1 lx
Lens viewing angle, horizontal
65.1 – 2.00
Lens viewing angle, vertical
39.1 – 1.18
Tilt angle range
0 - 220°
Tilt speed
450 °/sec
Pan range
0 - 360°
Pan speed
450 °/sec
Camera shutter speed
1/11000 - 1/3 s
Image sensor
Number of sensors
1
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Progressive scan
Yes
Sensor type
CMOS
Lens system
Zoom capability
Yes
Optical zoom
40x
Digital zoom
12x
Number of lenses
1
Focal length range
4.25 - 170 mm
Auto focus
Yes
Maximum aperture number
4.95
Minimum aperture number
1.6
Night vision
Video
Maximum resolution
1920 x 1080 pixels
Video compression formats
H.264, H.265
Supported graphics resolutions
320 x 180, 1920 x 1080 (HD 1080)
Supported video modes
1080p
Video recording
Yes
Frame rate
60 fps
Video streaming
Yes
Image quality adjustment
Brightness, Colour depth, Sharpness
Privacy masking
Yes
Text caption overlay
Yes
Back Light Compensation (BLC)
Yes
Network
Ethernet LAN
Yes
Networking standards
IEEE 802.1x
Supported network protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPSa , TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, NTCIP, LLDP, CDP, MQTT, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
Wi-Fi
No
Bluetooth
No
Quality of Service (QoS) support
Yes
Storage
Built-in HDD
No
Card reader integrated
Yes
Compatible memory cards
SD, SDHC, SDXC
Flash memory
512 MB
Internal memory
1024 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Security
Password protection
Yes
Video motion detection
Yes
IP address filtering
Yes
HTTPS encryption
Yes
Alert notification type
E-mail
Pixel counter
Yes
Digest authentication
Yes
Power
Power source type
AC, PoE
AC input voltage
100 - 240 V
Power consumption (typical)
14 W
Power consumption (max)
66.1 W
Power consumption (Power over Ethernet (PoE))
60 W
Operational conditions
Operating temperature (T-T)
-20 - 50 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 100%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Height
271 mm
Diameter
23.2 cm
Weight
3.75 kg
Packaging content
Number of cameras
1
Manual
Yes
Other features
Doesn't contain
PVC
Warranty period
5 year(s)
