Introduction

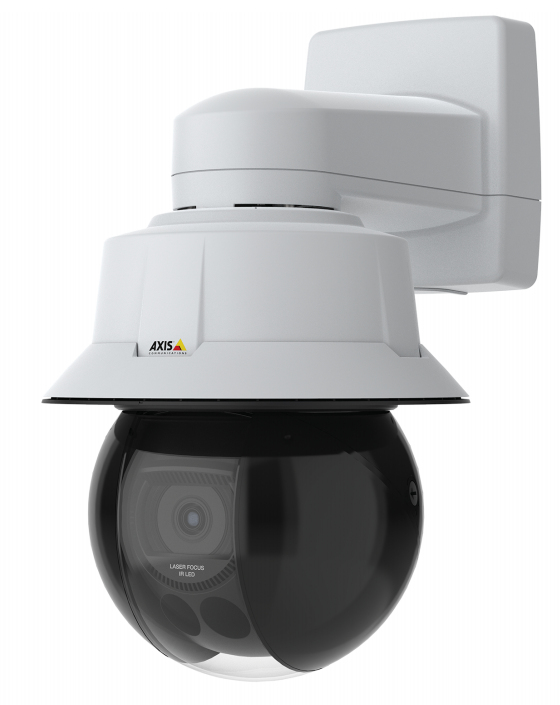

AXIS Q6315-LE PTZ Network Camera
Ideal for city surveillance, AXIS Q6315-LE offers a ½" sensor and 31x optical zoom. It features laser focus for precise focus every time - even in the dark. And, Speed Dry functionality for crisp, clear images in rainy weather.
Super surveillance- day and night
AXIS Q6315-LE features very light-sensitive ½" inch sensor to deliver clear, bright images and better handling of shadows even in challenging light conditions. Including IR Illumination and D/N functionality, it's perfect for surveillance in pitch darkness without the need for additional lighting. With 31x optical zoom, a built-in laser, and quick-zoom functionality, AXIS Q6315-LE allows you to easily follow fast-moving objects. Plus, it offers laser focus for precise focus- every time. It's possible to mount this camera in AXIS Q6100-E allowing for continuous 360° rotation for total situational awareness. And, because it uses the same bracket, power supply, and network cable as AXIS Q6100 you get cost-efficient installation. Furthermore, Zipstream with support for H.264 and H.265 significantly lowers bandwidth and storage requirements without compromising image quality.
Built-in advanced analytics
This top-of-the-line camera contains all the functionality you need to track and identify suspect behavior. It offers autotracking 2 with click and track functionality for active object tracking. And an orientation aid enables dynamic text overlays with street names and a compass symbol for quick orientation. Where privacy must be kept, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property. Plus, with chameleon masking, it automatically changes the color in the masking depending on the background color of the image.
Keeping you secure
AXIS Q6315-LE includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified to ensure secure storage of all cryptographic keys and certificates. This IK10-rated vandal-resistant camera is protected against the ingress of dust and high pressure water jets from any direction (IP66 rating). It offers shock detection, which allows the camera to send an alarm when it has been hit. And, with support for fiber connection and PoE, it allows for cost-effective installation and long-distance connections.
Performance
Type
IP security camera
Placement supported
Indoor & outdoor
Connectivity technology
Wired
PTZ control
Y
Tour recording
Y
Preset points
Y
Wide Dynamic Range (WDR)
Y
Day/night mode
Y
Infrared (IR) cut-off filter
Y
Certification
55032 Class A, EN 55035, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, CISPR 35, EAC, EN 50121-4, KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 60950-22, CAN/CSA-C22.2 No. 60950-22, IEC/EN 62471 risk group 2, IEC 60825-1 Class 1, IEC/EN 62262 IK10, IEC/EN 60529 IP66, NEMA 250, Type 4X, NEMA TS 2 (2.2.7-2.2.9), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, ISO 21207 (Method B)
Design
Form factor
Dome
Mounting type
Wall
Product colour
Black, White
Housing material
Aluminium, Polycarbonate (PC)
International Protection (IP) code
IP66, IP67
IK code
IK10
Fog proof
Y
Camera
Minimum illumination
0.001 lx
Viewing angle, horizontal
60.6°
Viewing angle, vertical
36.5°
Tilt angle range
-90 - 20°
Tilt speed
550 °/sec
Pan range
0 - 360°
Pan speed
550 °/sec
Camera shutter speed
111000 - 1/2 s
Image sensor
Number of sensors
1
Optical sensor size
25.4 / 2 mm (1 / 2")
Progressive scan
Y
Sensor type
CMOS
Lens system
Zoom capability
Y
Optical zoom
31x
Digital zoom
12x
Number of lenses
1
Auto focus
Y
Maximum aperture number
4.6
Minimum aperture number
1.36
Focal length range
6.91 - 214.64 mm
Night vision
Night vision
Y
Night vision distance
300 m
LED type
IR
Infra-red wavelength
850 nm
Video
Maximum resolution
1920 x 1080 pixels
Video formats supported
AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Supported graphics resolutions
320 x 180,1920 x 1080 (HD 1080)
Frame rate
60 fps
Video streaming
Y
Image quality adjustment
Brightness, Colour depth, Sharpness
Privacy masking
Y
Text caption overlay
Y
Image stabilizer
Y
Bit rate control
Variable Bit Rate (VBR)
Network
Ethernet LAN
Y
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Networking standards
IEEE 802.1x,IEEE 802.3bt
Supported network protocols
IPv4, IPv6 USGv6, HTTP, HTTPS , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, RTCP, DHCP, SOCKS, SSH, NTCIP, MQTT v3.1.1, Syslog
Quality of Service (QoS) support
Y
Streaming method
Multicast
Storage
Card reader integrated
Y
Compatible memory cards
SD,SDHC,SDXC
Flash memory
512 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Security
Password protection
Y
IP address filtering
Y
Security algorithms
EAP-TLS
HTTPS encryption
Y
Digest authentication
Y
Management features
Behavior analysis
Line crossing detection
Power
Power source type
AC
AC input voltage
100-240 V
Power consumption (typical)
17 W
Power consumption (max)
51 W
Operational conditions
Operating temperature (T-T)
-50 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 100%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Height
261 mm
Diameter
23.9 cm
Weight
4.8 kg
