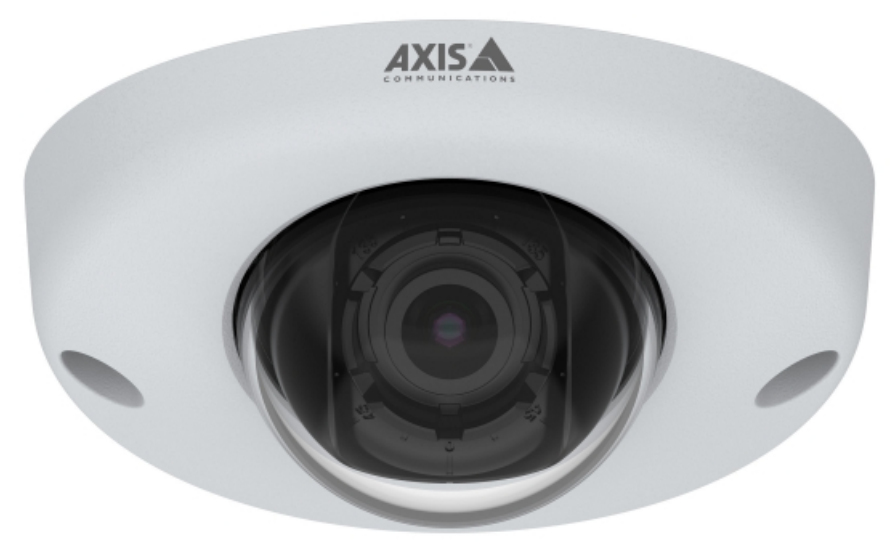

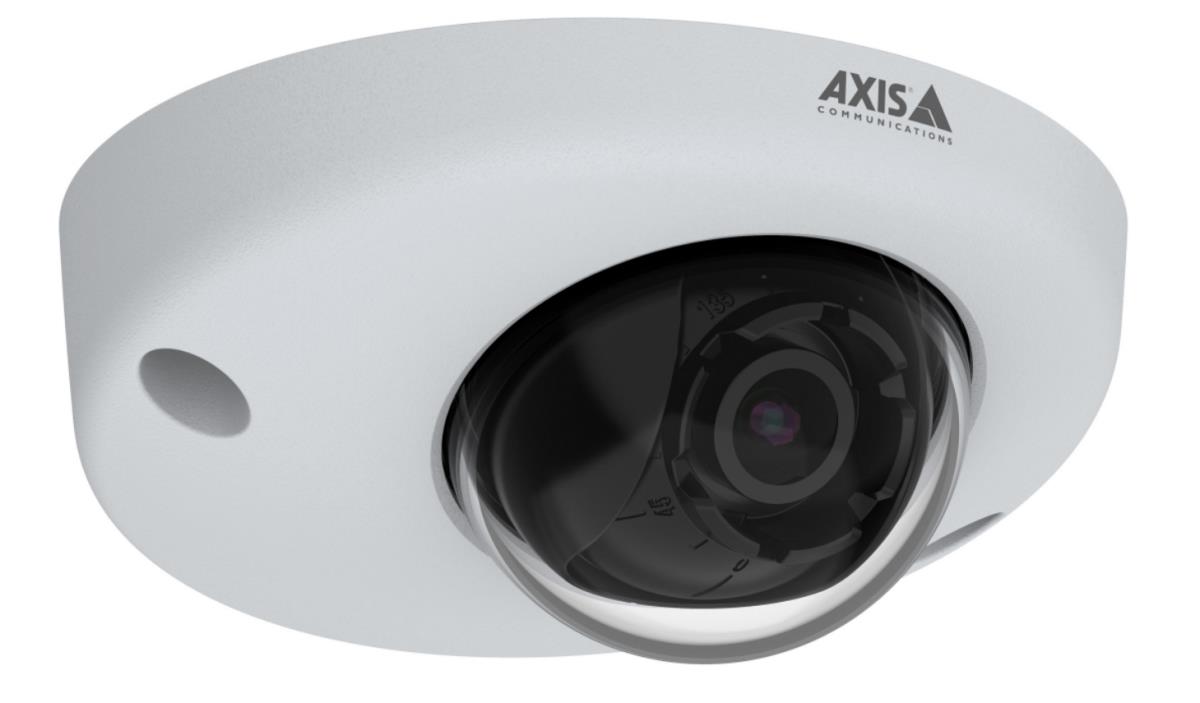

AXIS P3925-R Network Camera
AXIS P3925-R is specially designed for surveillance onboard vehicles and rolling stock such as trains, buses, and emergency vehicles. This robust, vandal-resistant camera offers improved imaging, enhanced security features, and extended capabilities for analytics.
Superior image quality for onboard surveillance, 24/7
AXIS P3925-R is packed with useful features ideal for onboard surveillance and changing light conditions. It offers Axis Forensic WDR for high-quality images even when there's both dark and light areas in the scene and Axis Lightfinder for sharp, color images in poor lighting conditions. This is particularly useful when a vehicle goes into a tunnel or under a bridge. Additionally, it can be mounted forward-facing on the vehicle's dashboard and record everything from the driver's perspective, ideal for police vehicles and ambulances. Plus, in this scenario, electronic image stabilization (EIS) ensures stable video when the camera is subject to vibrations, perfect for capturing scenes outside the vehicle.
Optimized for transportation industry
Specifically designed for onboard surveillance, AXIS P3925-R complies with transportation industry regulations including EN50155, EN45545, and NFPA 130. This robust dome camera comes in an IP66-, IP67-rated metal casing that protects it against water, corrosion, and dust. The casing is also vandal resistant with IK10 rating. For added peace of mind, it offers block view detection, so you're informed if the camera view is blocked by objects or spray paint, or if the camera is out of focus. With product versions including M12 and RJ45 connectors, it can be easily installed in any kind of vehicle. Additionally, AXIS P3925-R has a powerful capacity for analytics so it's easy to add whatever analytics you need.
Keeping you secure
AXIS P3925-R is crammed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn't been altered and ensure only authorized firmware is installed. And if needed, secure boot guarantees that the camera is completely free of malware after a factory default.
Performance
Type
IP security camera
Connectivity technology
Wired
PTZ control
Y
PTZ modes
Digital PTZ
Preset points
Y
Wide Dynamic Range (WDR)
Y
Day/night mode
Y
Certification
55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35, EN 50121-4, EN 50121-3-2, IEC 62236-4, ECE R10 rev.05 (E approval), EN 50498, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 45545, UN ECE R118, NFPA 130, IEC/EN 61373 Category 1 Class B, IEC/EN 60529 IP66, IEC/EN 60529 IP67, NEMA 250 Type 4X, IEC/EN 62262 IK10, IEC 60721-3-5 Class 5M3 (vibration and shock), EN 50155 Class OT2/ST2 (2017 Class TX), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, NIST SP500-267
Design
Form factor
Dome
Mounting type
Ceiling
Product colour
Black, White
Housing material
Aluminium
International Protection (IP) code
IP66, IP67
IK code
IK10
Fog proof
Y
Camera
Camera pan control
Y
Camera tilt control
Y
Minimum illumination
0.01 lx
Angle of rotation
350°
Viewing angle, horizontal
110°
Viewing angle, vertical
62°
Tilt angle range
15 - 90°
Pan range
-30 - 30°
Camera shutter speed
1/33500 - 2 s
Image sensor
Number of sensors
1
Optical sensor size
25.4 / 2.9 mm (1 / 2.9")
Progressive scan
Y
Sensor type
CMOS
Lens system
Number of lenses
1
Maximum aperture number
1.6
Fixed focal length
2.8 mm
Video
Maximum resolution
1920 x 1080 pixels
Video compression formats
AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Supported graphics resolutions
160 x 120,160 x 90,1280 x 960,1920 x 1080 (HD 1080)
Frame rate
45 fps
Video streaming
Y
Image quality adjustment
Brightness, Contrast, Sharpness
Privacy masking
Y
Text caption overlay
Y
Image stabilizer
Y
Bit rate control
Variable Bit Rate (VBR)
Network
Ethernet LAN
Y
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Supported network protocols
IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, MQTT
Number of users
8 user(s)
Quality of Service (QoS) support
Y
Streaming method
Multicast
Storage
Card reader integrated
Y
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory
512 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Security
Password protection
Y
Video motion detection
Y
Active tampering alarm
Y
IP address filtering
Y
HTTPS encryption
Y
Power
Power source type
PoE
Power consumption (typical)
4.2 W
Power consumption (max)
6.4 W
Operational conditions
Operating temperature (T-T)
-40 - 55 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 95%
Weight & dimensions
Width
110 mm
Depth
110 mm
Height
49.5 mm
Weight
410 g
