AXIS Q6010-e 50 Hz Network Camera

£1,769.39

Part Number: 01980-001
Delivery: 1 - 2 days

Product Details

Introduction

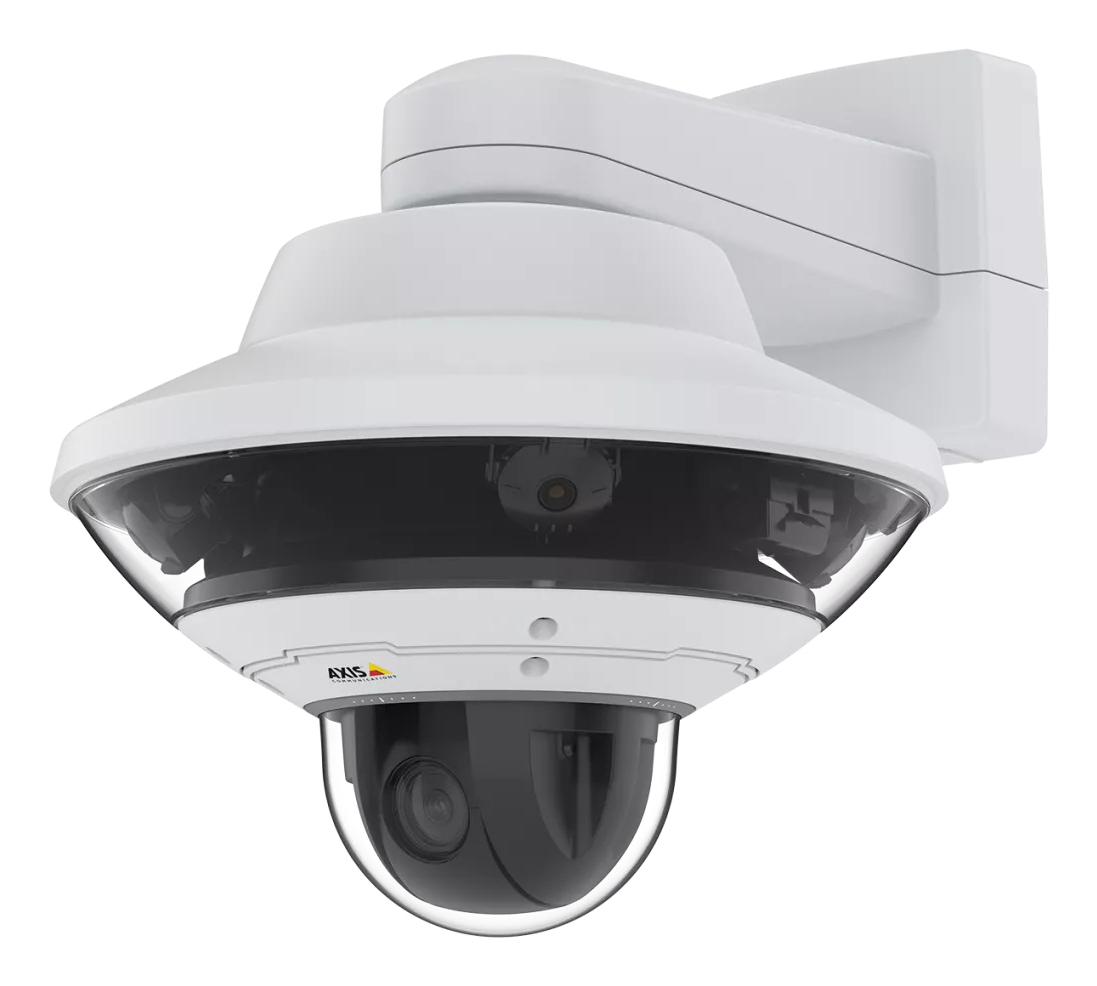

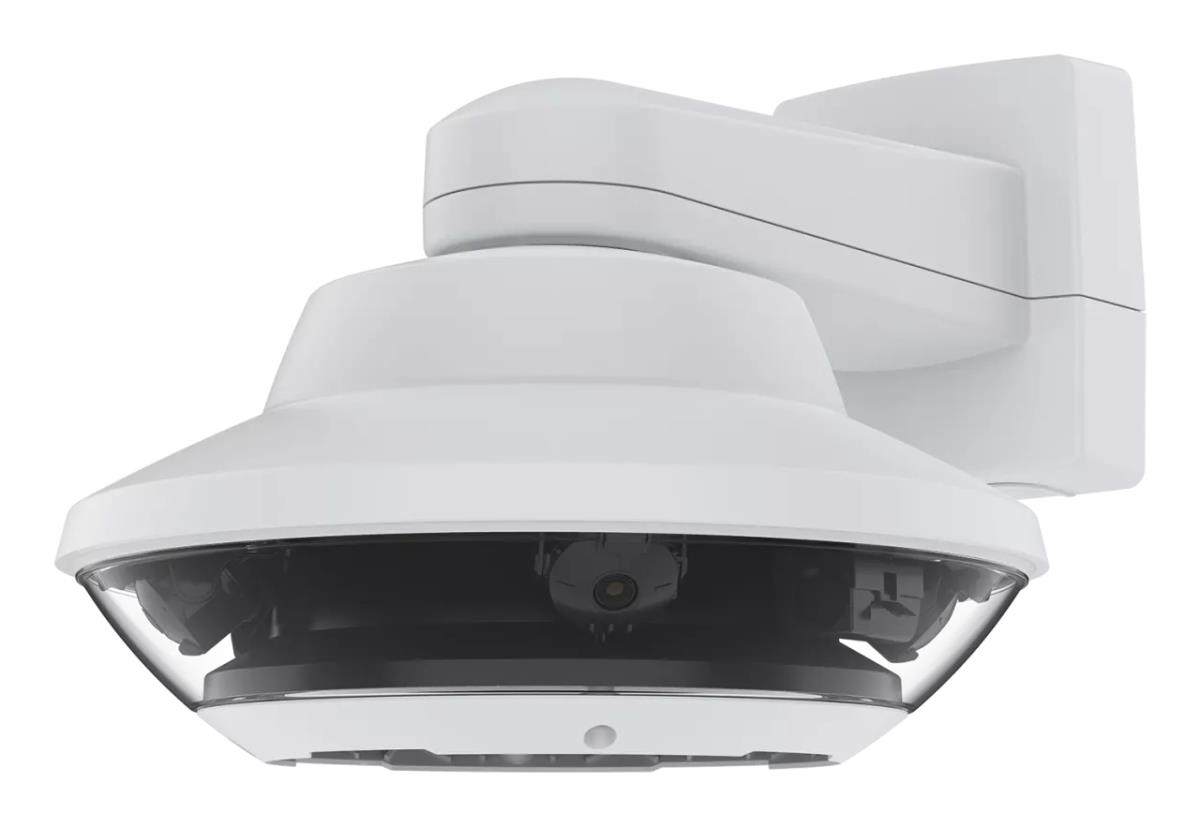

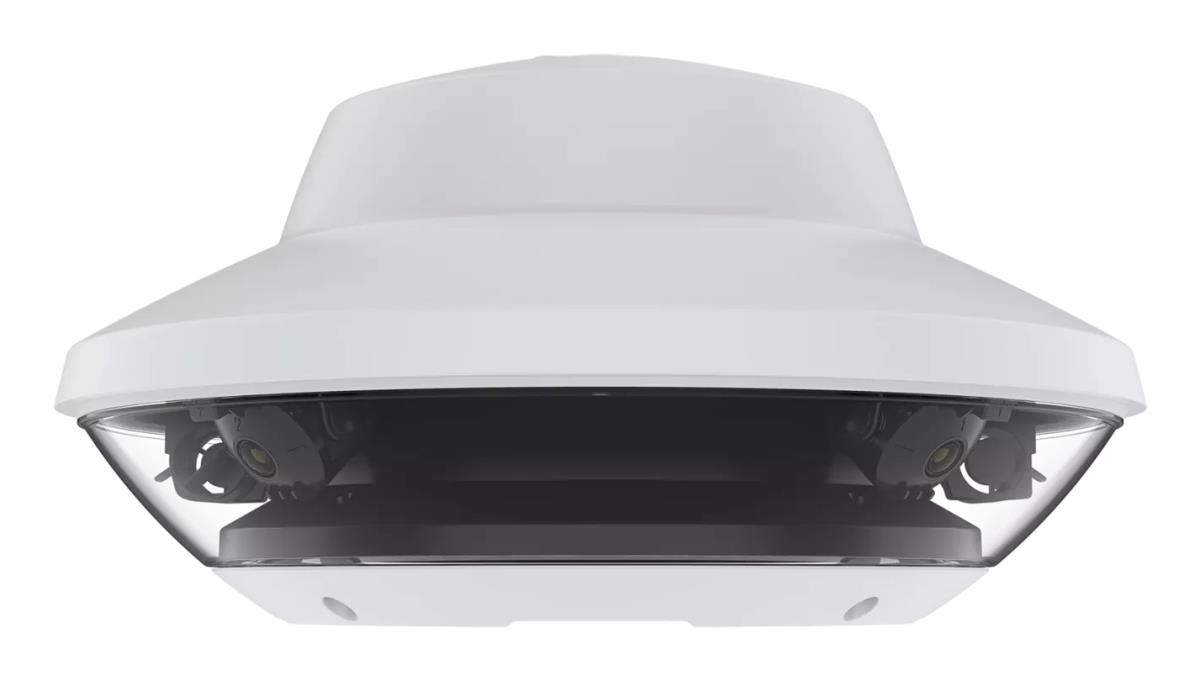

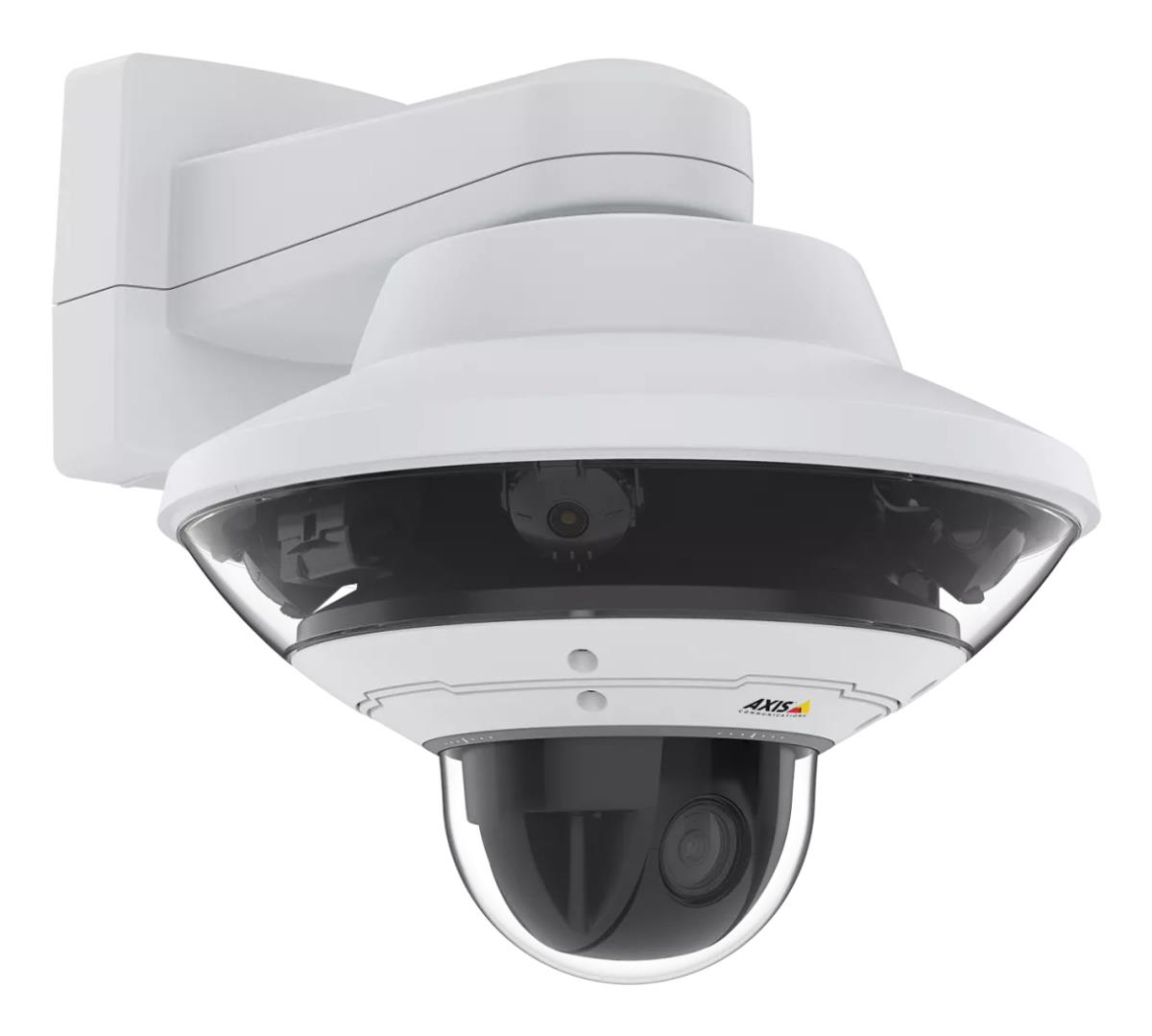

AXIS Q6010-E Network Camera is a multidirectional camera designed for operation with a current AXIS Q60-E PTZ Network Camera. Together they deliver 360° overview for total situational awareness and great details. It's ideal for active city surveillance, for instance at street crossings or squares.

Total situational awareness- 24/7
Do you want to monitor one cohesive video stream with the possibility to zoom in for detailed views in just one click? AXIS Q6010-E is specially designed for operation with current AXIS Q60-E PTZ Network Cameras. It offers one-click PTZ control allowing you to move from great overviews to zoomed-in detailed views in just one mouse click. Additionally, this camera offers autopilot for automatic PTZ tracking. When motion is detected in one of the four 5 MP sensors, the connected AXIS Q60-E PTZ Network Camera will automatically track the object within the viewing area.

Great image quality - day and night

AXIS Q6010-E features four 5 MP sensors and delivers a total of 20 MP resolution both day and night. This multidirectional camera also offers exchangeable lenses on each of the four sensors so you can easily change lens to ensure you capture the images you need. And, thanks to corridor format it delivers vertically oriented video streams that maximize coverage of areas such as along alleys and long streets. Furthermore, Axis Zipstream with support for H.264/H.265, significantly lowers bandwidth and storage requirements without compromising image quality.

Cost-efficient installation

Using the same bracket, power supply and network cable as the connected AXIS Q60-E PTZ Net-work Camera, there's no extra equipment required for AXIS Q6010-E. Additionally, with autofocus and positioning calibration you get maximum flexibility and accurate configuration which saves time during setup. Just add the PTZ camera and you're ready to capture great overviews and details from one camera unit.

Performance

Type IP security camera
Placement supported Indoor & outdoor
Connectivity technology Wired
PTZ control Y
Wide Dynamic Range (WDR) Y
Day/night mode Y
Languages support Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian

Design

Form factor Dome
Mounting type Ceiling
Product colour White
Housing material Aluminium
International Protection (IP) code IP66
IK code IK10

Camera

Camera pan control Y
Camera tilt control Y
Minimum illumination 0.03 lx
Viewing angle, horizontal 360°
Viewing angle, vertical 84°
Camera shutter speed 1/32500 - 1/20 s

Image sensor

Number of sensors 1
Optical sensor size 25.4 / 2.5 mm (1 / 2.5")
Sensor type CMOS

Lens system

Number of lenses 1
Maximum aperture number 2
Fixed focal length 2.8 mm

Video

Maximum resolution 2592 x 1944 pixels
Total megapixels 5 MP
Video formats supported AVC,H.264,H.265,HEVC,MPEG4
Video compression formats AVC,H.264,H.265,HEVC,MPEG4
Supported graphics resolutions 320 x 240,2592 x 1944
Frame rate 20 fps
Image quality adjustment Brightness, Contrast, Saturation, Sharpness
Privacy masking Y

Network

Ethernet LAN Y
Ethernet interface type Fast Ethernet, Gigabit Ethernet
Supported network protocols IPv4, IPv6 USGv6, HTTP, HTTP/2, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, MQTT, Syslog

Storage

Card reader integrated Y
Compatible memory cards SD,SDHC,SDXC
Flash memory 512 MB
Internal memory 2048 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports 2

Security

Video motion detection Y
IP address filtering Y
Security algorithms 802.1x RADIUS,HTTPS
Alert notification type E-mail

Power

Power source type PoE
Power consumption (max) 22 W
Power consumption (Power over Ethernet (PoE)) 9 W

Operational conditions

Operating temperature (T-T) -50 - 50 °C
Storage temperature (T-T) -40 - 65 °C
Operating relative humidity (H-H) 10 - 100%
Storage relative humidity (H-H) 5 - 95%

Weight & dimensions

Height 201 mm
Diameter 39.5 cm
Weight 4.5 kg

Packaging content

Number of cameras 1

Information

Part Number: 01980-001
