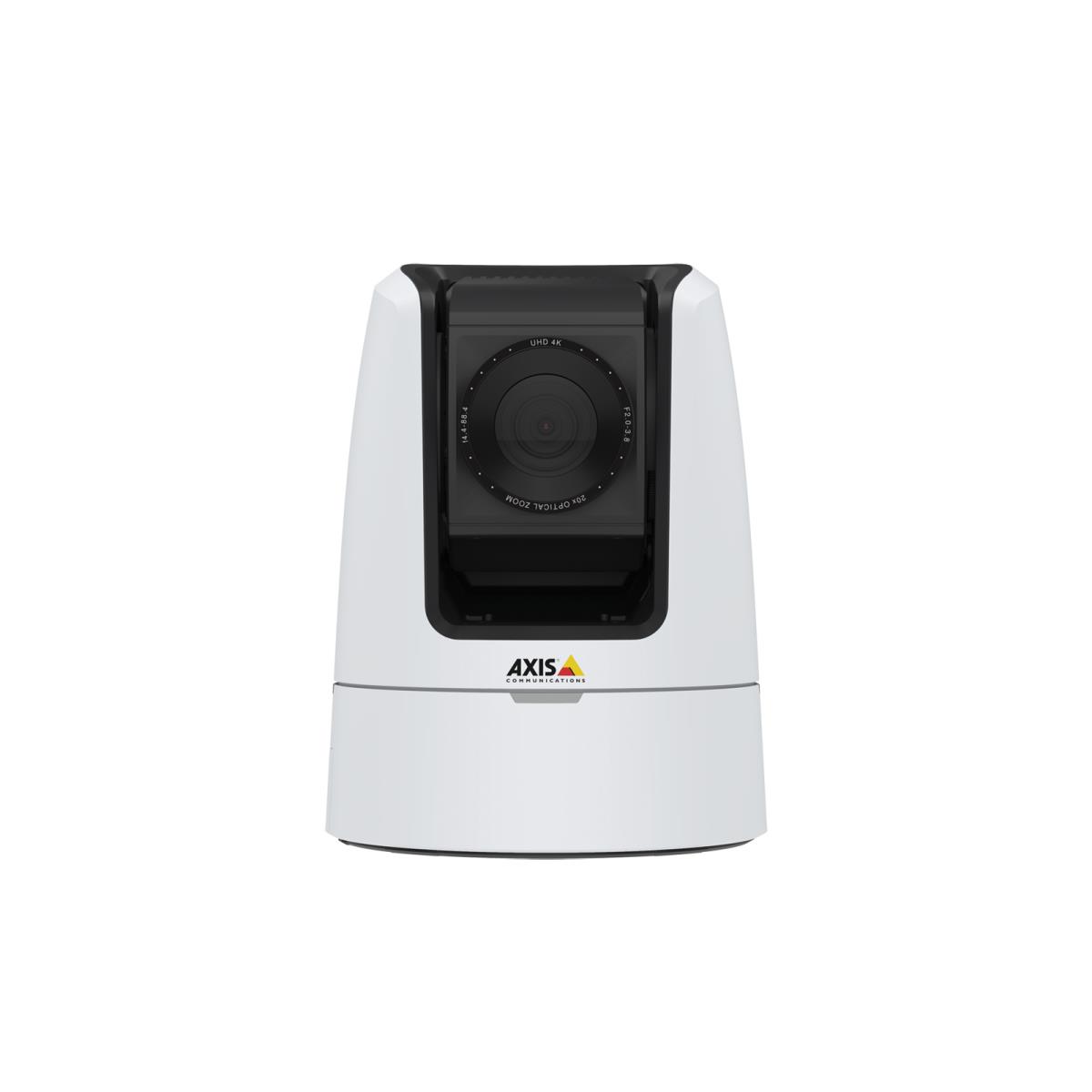

AXIS V5938 PTZ Network Camera
Ideal for auditoriums, classrooms, indoor sports events, and places of worship, AXIS V5938 offers excellent video quality and broadcast-quality audio for professional webcasting.
Professional results made simple
AXIS V5938 provides excellent image quality in outstanding 4K resolution at 30 fps and 20x optical zoom for all the details. It offers stage mode and sports mode, providing better PTZ control for the operator in different scenarios. Featuring professional balanced XLR inputs with 48V phantom power, it can be used with studio-grade microphones and 3,5 mm input/output for flexibility. Additionally, the powerful chipset allows for analytics to run directly on the camera.
Great compatibility

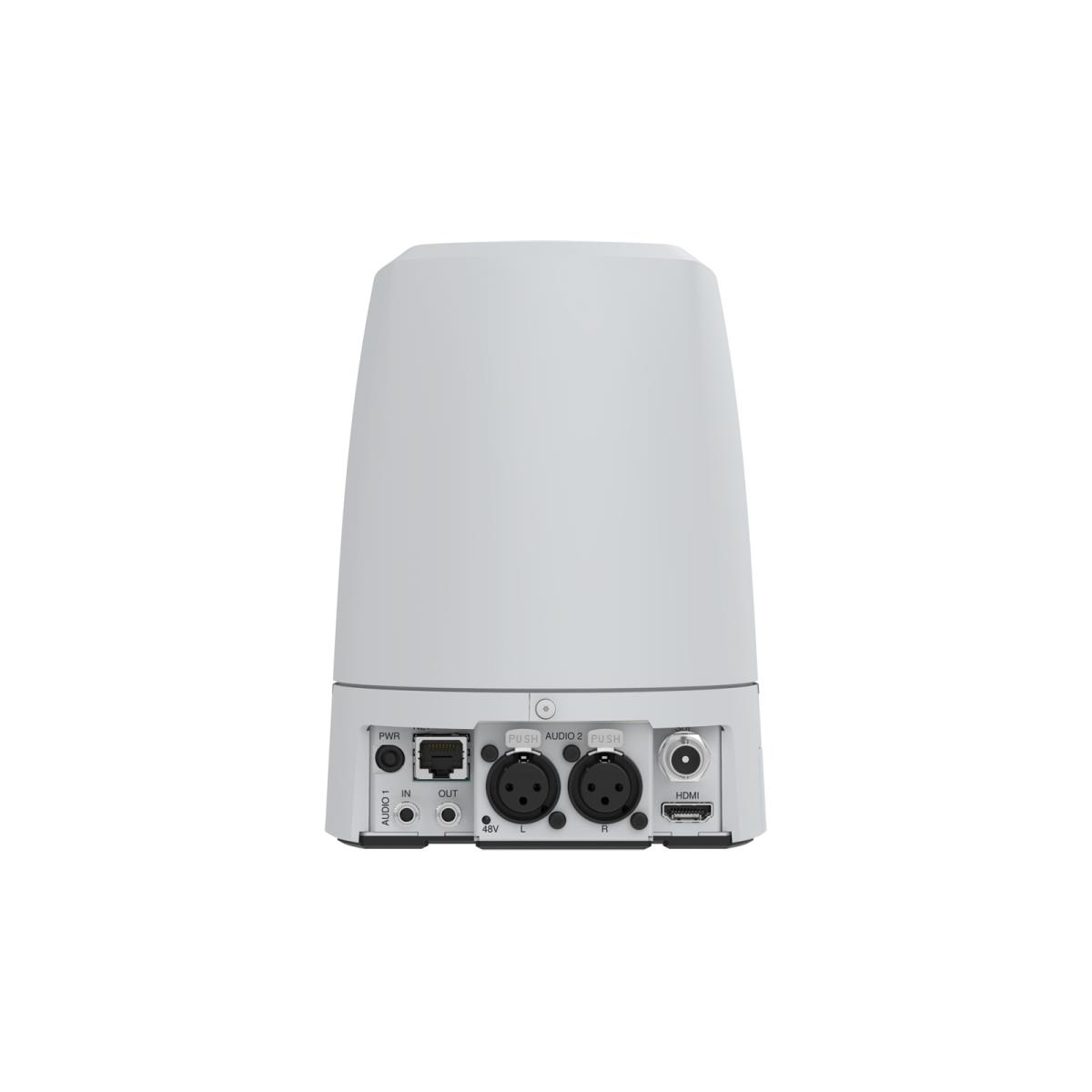

This highly versatile PTZ camera includes both HDMI and 3G-SDI outputs, allowing you to connect to most professional video switchers. With a VISCA RS-232 based control system, the camera can easily be integrated with your existing AV installations. And, with VISCA over IP it allows for remote control of multiple cameras via a LAN connection. Furthermore, for simple or mobile installations, the included 3-month Camstreamer trial license lets you live stream to streaming platforms such as YouTube and Facebook Live directly from the camera over an IP network. You can also use any major video management software or just connect it via a web browser.
Lower bandwidth and enhanced security
AXIS V5938 features Axis Zipstream technology with H.264 and H.265 to preserve all the important details while significantly reducing bandwidth and storage requirements. It's packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn't been compromised and ensure only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default.
Performance
Type
IP security camera
Placement supported
Indoor
Connectivity technology
Wired
PTZ control
Y
Preset points
Y
Day/night mode
Y
Certification
EN 55032 Class A, EN 55024, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, CISPR 24, CISPR 35, KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, KC-Mark, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NIST SP500-267
Design
Mounting type
Ceiling/wall
Product colour
Black, White
Housing material
Plastic
Fog proof
Y
Camera
Minimum illumination
0.1 lx
Viewing angle, horizontal
70.2°
Viewing angle, vertical
39.5°
Tilt angle range
-20 - 90°
Tilt speed
90 °/sec
Pan range
-170 - 170°
Pan speed
100 °/sec
Camera shutter speed
1/10000 - 1 s
Image sensor
Number of sensors
1
Optical sensor size
25.4 / 2.5 mm (1 / 2.5")
Progressive scan
Y
Sensor type
CMOS
Lens system
Zoom capability
Y
Optical zoom
20x
Digital zoom
12x
Number of lenses
1
Auto focus
Y
Maximum aperture number
3.8
Minimum aperture number
2
Focal length range
4.4 - 88 mm
Video
Maximum resolution
3840 x 2160 pixels
Video formats supported
AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Supported video modes
2160p
Frame rate
60 fps
Video streaming
Y
Noise reduction
Y
Image quality adjustment
Brightness, Sharpness
Image stabilizer
Y
Back Light Compensation (BLC)
Y
Audio
Audio system
2-way
Audio formats supported
ADPCM,G.711,G.726,LPCM,PCM
Sample rate
48 kHz
Audio detection
Y
Network
Ethernet LAN
Y
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Networking standards
IEEE 802.1x
Supported network protocols
IPv4/v6, HTTP, HTTP/2, HTTPS , SSL/TLS , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, MQTT, Syslog
Quality of Service (QoS) support
Y
Streaming method
Multicast
Storage
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory
512 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
RS-232 ports
1
Microphone in
Y
HDMI ports quantity
1
Terminal block port
Y
DC-in jack
Y
Security
Password protection
Y
IP address filtering
Y
HTTPS encryption
Y
Pixel counter
Y
Digest authentication
Y
Power
Power source type
DC
Power consumption (typical)
17.5 W
Power consumption (max)
20 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 85%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
136 mm
Depth
136 mm
Height
180 mm
Weight
1.5 kg
Packaging content
Number of cameras
1
Mounting kit
Y
Manual
Y
