Introduction

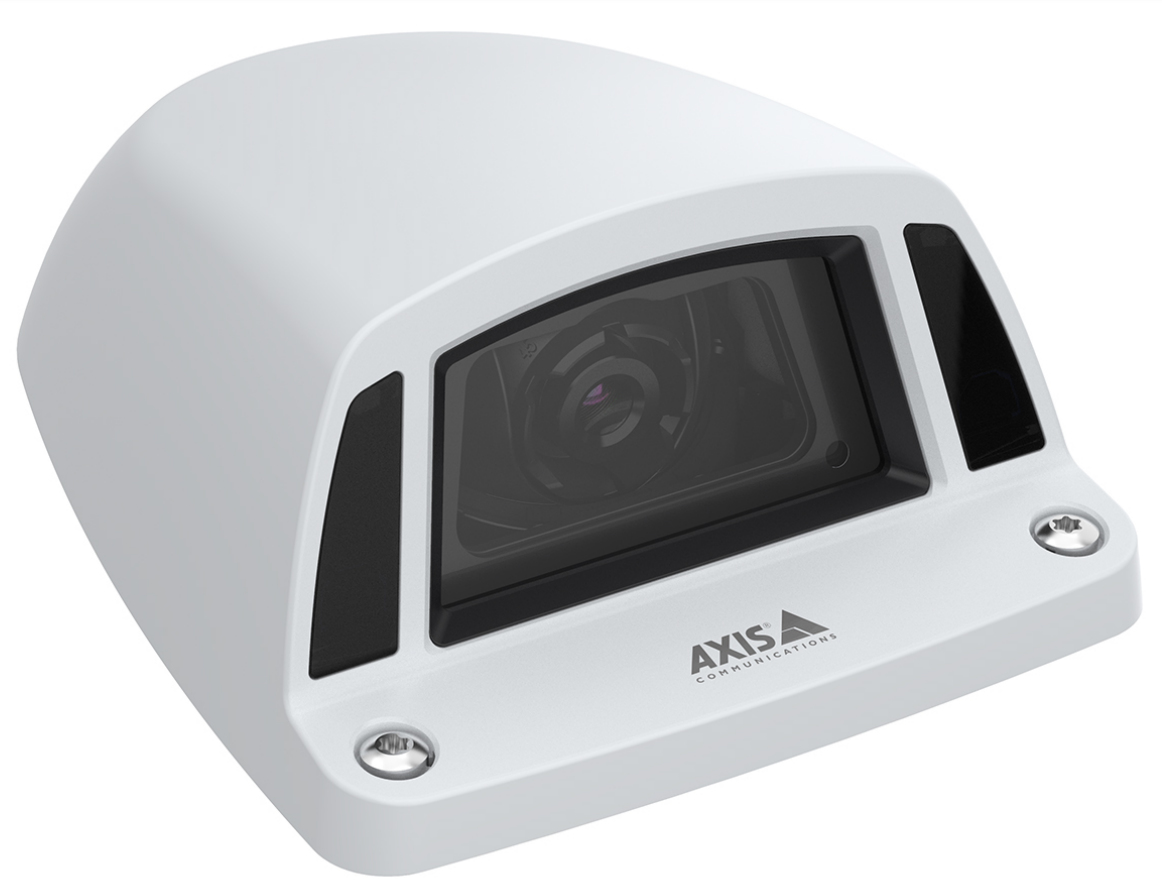

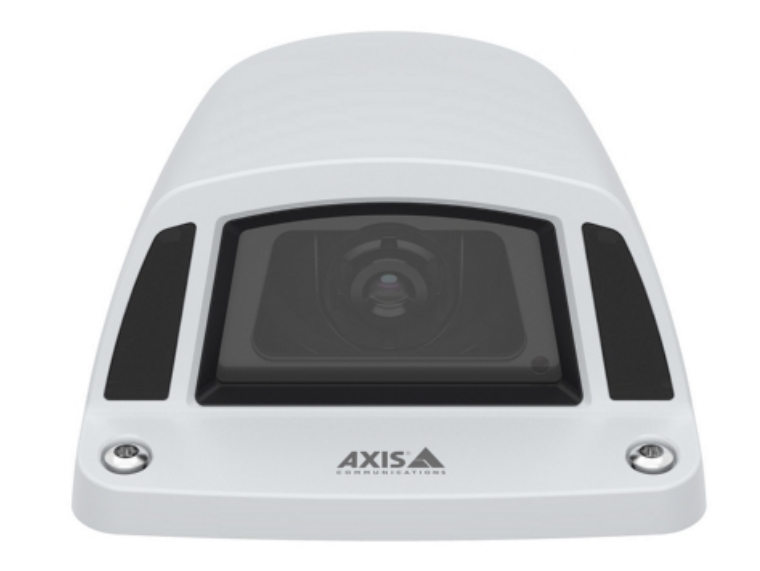

AXIS P3925-LRE Network Camera
This compact and robust camera is specially designed for side view monitoring on buses, trains, and transportation vehicles. It can also be used for identifying maintenance needs on rolling stock, for example, wear and tear of pantograph collector strips.
Optimized for transportation industry
Specifically designed for exterior onboard surveillance, AXIS P3925-LRE complies with transportation industry standards including EN50155 and EN45545-2. This robust IK10+, IP66/IP67/IP6K9K- rated camera lets you keep an eye on what's happening at the doors and close to the vehicle, helping to prevent accidents. When installed on the roof, it can be used to monitor pantograph collector strips. Furthermore, with product versions including M12 and RJ45 connectors, it can be easily installed in any kind of vehicle from trains and buses to emergency vehicles.
Superior image quality for exterior onboard surveillance, 24/7
AXIS P3925-LRE performs in any light conditions. It offers HDTV 1080p with Forensic WDR for high-quality images even when there's both dark and light areas in the scene. With Lightfinder it delivers sharp, color images in poor lighting conditions. Plus, thanks to built-in IR Illumination, it can be used for surveillance in complete darkness. Furthermore, low latency mode can reduce latency if needed. And, electronic image stabilization (EIS) ensures stable video when the camera is subject to vibrations.
Keeping you secure
AXIS P3925-LRE offers built-in cybersecurity features to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn't been altered and ensure only authorized firmware is installed. And if needed, secure boot guarantees that the camera is completely free of malware after a factory default. For added peace of mind, it features shock detection, so you're informed if the camera has been hit.
Performance
Type
IP security camera
Placement supported
Indoor
Connectivity technology
Wired
PTZ control
Y
PTZ modes
Digital PTZ
Preset points
Y
Wide Dynamic Range (WDR)
Y
Day/night mode
Y
Number of languages
11
Languages support
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian
Certification
55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35, EN 50121-4, EN 50121-3-2, IEC 62236-4, ECE R10 rev.06 (E approval), EN 50498, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 60950-22, CAN/CSA-C22.2 No. 60950-22, EN 45545–2, UN ECE R118, IS 13252, IEC 62471, IEC/EN 61373 Category 1 Class B, IEC/EN 60529 IP66, IEC/EN 60529 IP67, NEMA 250 Type 4X, ISO 20653 IP6K9K, IEC/EN 62262 IK10+, IEC 60721-3-5 Class 5M3 (vibration and shock), EN 50155:2017 OT2/ST2, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-64, NIST SP500-267
Design
Mounting type
Ceiling/wall
Product colour
Black, White
Housing material
Aluminium, Tempered glass
International Protection (IP) code
IP66, IP67
IK code
IK10+
Fog proof
Y
Camera
Camera pan control
Y
Camera tilt control
Y
Minimum illumination
0.02 lx
Angle of rotation
350°
Viewing angle, horizontal
56°
Viewing angle, vertical
30°
Tilt angle range
0 - 50°
Pan range
-20 - 20°
Camera shutter speed
1/33500 - 2 s
Image sensor
Number of sensors
1
Optical sensor size
25.4 / 2.9 mm (1 / 2.9")
Progressive scan
Y
Sensor type
CMOS
Lens system
Night vision
Night vision
Y
Night vision distance
20 m
Infra-red wavelength
850 nm
Video
Maximum resolution
1920 x 1080 pixels
Total megapixels
2 MP
Video compression formats
AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Supported graphics resolutions
160 x 120,160 x 90,1280 x 960,1920 x 1080 (HD 1080)
Supported video modes
720p
Frame rate
45 fps
Video streaming
Y
Image quality adjustment
Brightness, Contrast, Sharpness
Privacy masking
Y
Text caption overlay
Y
Image stabilizer
Y
Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Network
Ethernet LAN
Y
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.3af,IEEE 802.3at
Supported network protocols
IPv4, IPv6 USGv6, HTTP, HTTPS , HTTP/2, SSL/TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, MQTT v3.1.1, Syslog
Quality of Service (QoS) support
Y
Streaming method
Multicast
Storage
Card reader integrated
Y
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory
512 MB
Internal memory
1000 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Security
Password protection
Y
IP address filtering
Y
Security algorithms
802.1x RADIUS
HTTPS encryption
Y
Alert notification type
E-mail
Power
Power source type
PoE
Power consumption (typical)
6.3 W
Power consumption (max)
11.8 W
Operational conditions
Operating temperature (T-T)
-40 - 55 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 95%
Weight & dimensions
Width
160 mm
Depth
116 mm
Height
63 mm
Weight
770 g
Packaging content
Number of cameras
1
Manual
Y
