Introduction

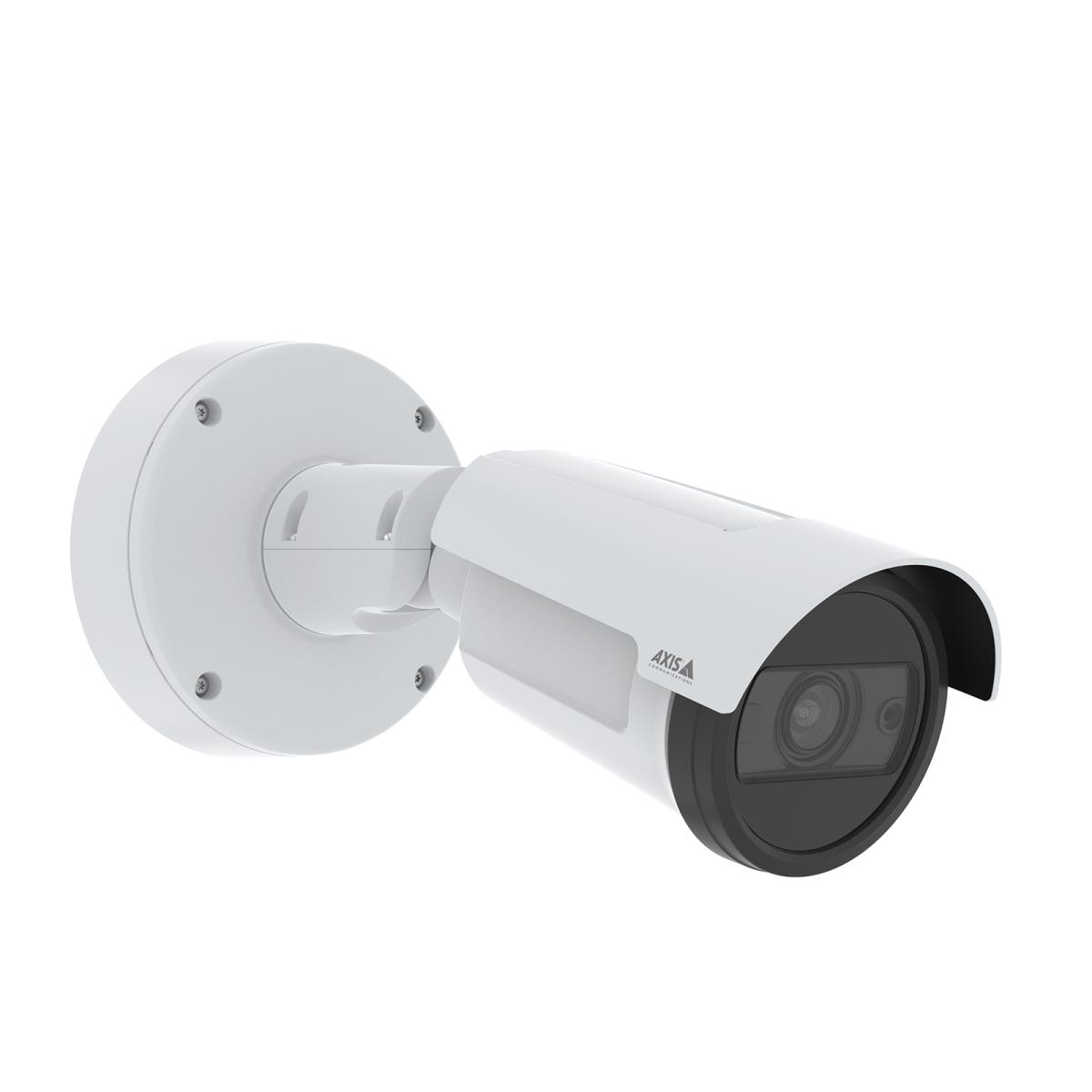

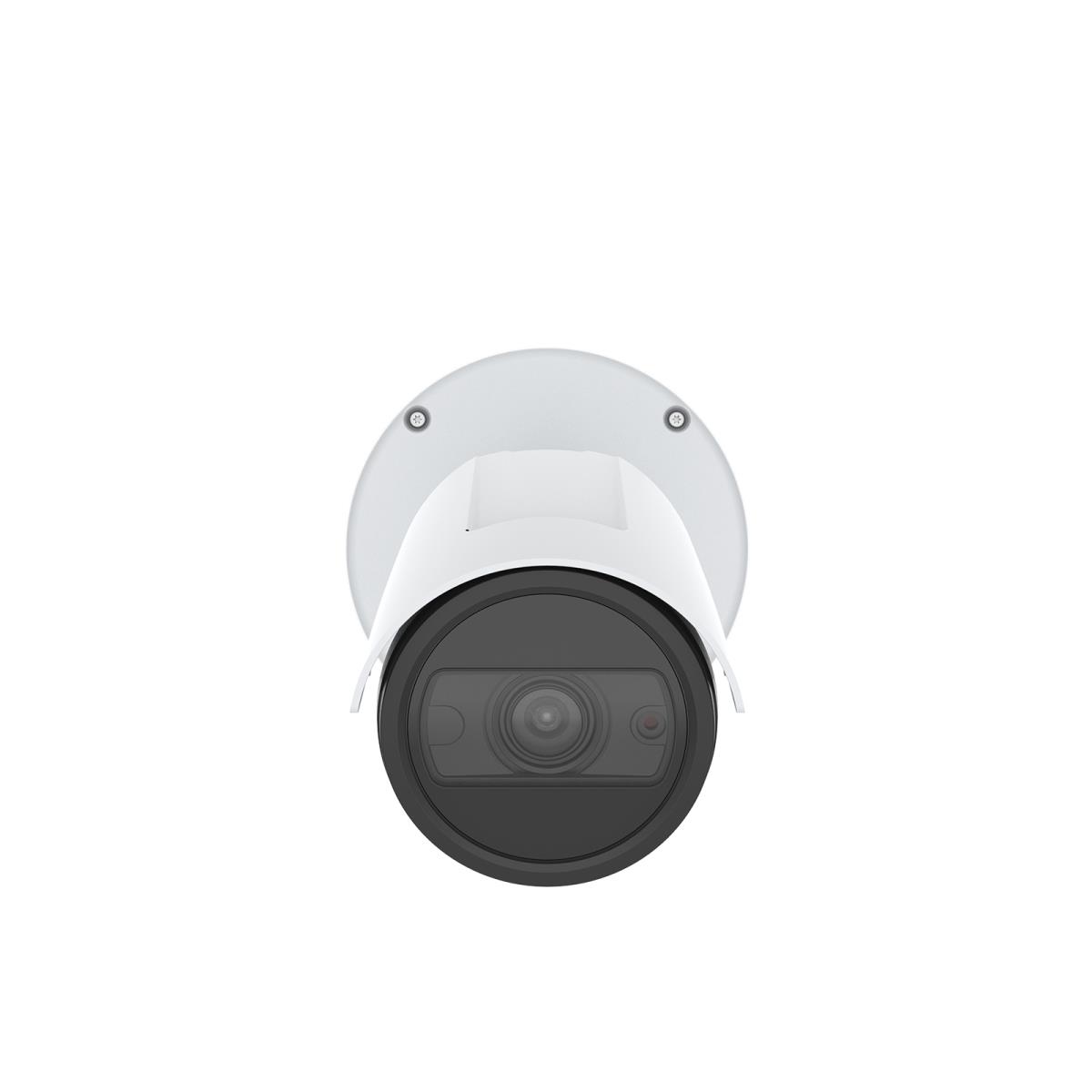

AXIS P1467-LE offers excellent image quality and advanced analytics based on deep learning on the edge. Including built-in cybersecurity features, this robust, outdoor-ready camera is ideal for a variety of surveillance scenarios.
Feature-packed
Based on ARTPEC-8, the latest Axis system-on-chip (SoC), this high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before—on the edge. Thanks to AXIS Object Analytics, it offers detection and classification of humans, vehicles, and types of vehicles—all tailored to your specific needs. With edge-to-edge technology, it can be connected to an Axis network speaker enabling two-way audio. Furthermore, it can be powered with DC power and PoE. And, even if there’s a power outage, redundant DC power ensures a reliable power supply to safeguard your data.
Excellent image quality day or night
This fully featured camera delivers excellent image quality regardless of the light conditions. It offers 5 MP resolution at a frame rate of up to 30 fps. Thanks to Lightfinder 2.0 and Forensic WDR, it delivers true colors and great forensic detail in challenging light or near darkness. OptimizedIR enables surveillance in total darkness up to 40 m (131 ft) without the need for extra lighting. And, motion-adaptive exposure reduces the motion blur from approaching or nearby objects. Furthermore, Zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.
We’ve got you secured
AXIS P1467-LE offers built-in cybersecurity features to help prevent unauthorized access and safeguard your system. Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Additionally, signed firmware and secure boot guarantee that the firmware hasn’t been compromised and ensure only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware even after a factory default. Furthermore, this robust, outdoor-ready camera with IP66/67, NEMA 4X, and IK10-ratings is protected from dust, rain, snow and impacts, and can withstand winds up to 50 m/s.
Performance
Type
IP security camera
Placement supported
Indoor & outdoor
Connectivity technology
Wired
PTZ modes
Digital PTZ
Wide Dynamic Range (WDR)
Y
Day/night mode
Y
Infrared (IR) cut-off filter
Y
Number of languages
12
Languages support
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian
Certification
EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 55035,
EN 61000-3-3, EN 61000-6-1, EN 61000-6-2,
FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A),
VCCI Class A, RCM AS/NZS CISPR 32 Class A
Design
Form factor
Bullet
Mounting type
Ceiling/wall
Product colour
White
Housing material
Aluminium, Polycarbonate (PC)
International Protection (IP) code
IP66, IP67
IK code
IK10
Weatherproof
Y
Camera
Minimum illumination
0.13 lx
Camera shutter speed
1/50000 - 1/5 s
Image sensor
Number of sensors
1
Optical sensor size
25.4 / 2.7 mm (1 / 2.7")
Progressive scan
Y
Sensor type
CMOS
Lens system
Zoom capability
Y
Number of lenses
1
Focal length range
2.8 - 8 mm
Night vision
Night vision
Y
Night vision distance
40 m
LED type
IR
Infra-red wavelength
850 nm
Video
Maximum resolution
2592 x 1944 pixels
Total megapixels
5 MP
Video compression formats
H.264, H.265
Supported graphics resolutions
1280 x 720 (HD 720)
Supported video modes
720p
Video recording
Y
Frame rate
30 fps
Video streaming
Y
Flip & mirror
Y
Privacy masking
Y
Text caption overlay
Y
Bit rate
Configurable bit rate
Audio
Audio formats supported
AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio detection
Y
Network
Ethernet LAN
Y
Networking standards
IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Supported network protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf)
Wi-Fi
N
Bluetooth
N
Quality of Service (QoS) support
Y
Storage
Built-in HDD
N
Built-in SSD
N
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD
Flash memory
8000 MB
Internal memory
2000 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Microphone in
Y
Terminal block port
Y
Security
Password protection
Y
Video motion detection
Y
Active tampering alarm
Y
IP address filtering
Y
Security algorithms
256-bit AES-XTS, EAP-TLS
HTTPS encryption
Y
Alert notification type
E-mail, Text alert message
Pixel counter
Y
Digest authentication
Y
Power
Power source type
PoE
Power consumption (typical)
5.8 W
Power consumption (max)
12.9 W
Operational conditions
Operating temperature (T-T)
-40 - 60 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 100%
Storage relative humidity (H-H)
5 - 95%
System requirements
Windows operating systems supported
Y
Weight & dimensions
Width
280 mm
Diameter
13.2 cm
Weight
1.2 kg
Packaging content
Number of cameras
1
Mounting brackets included
Y
Drilling template included
Y
Manual
Y
