Introduction

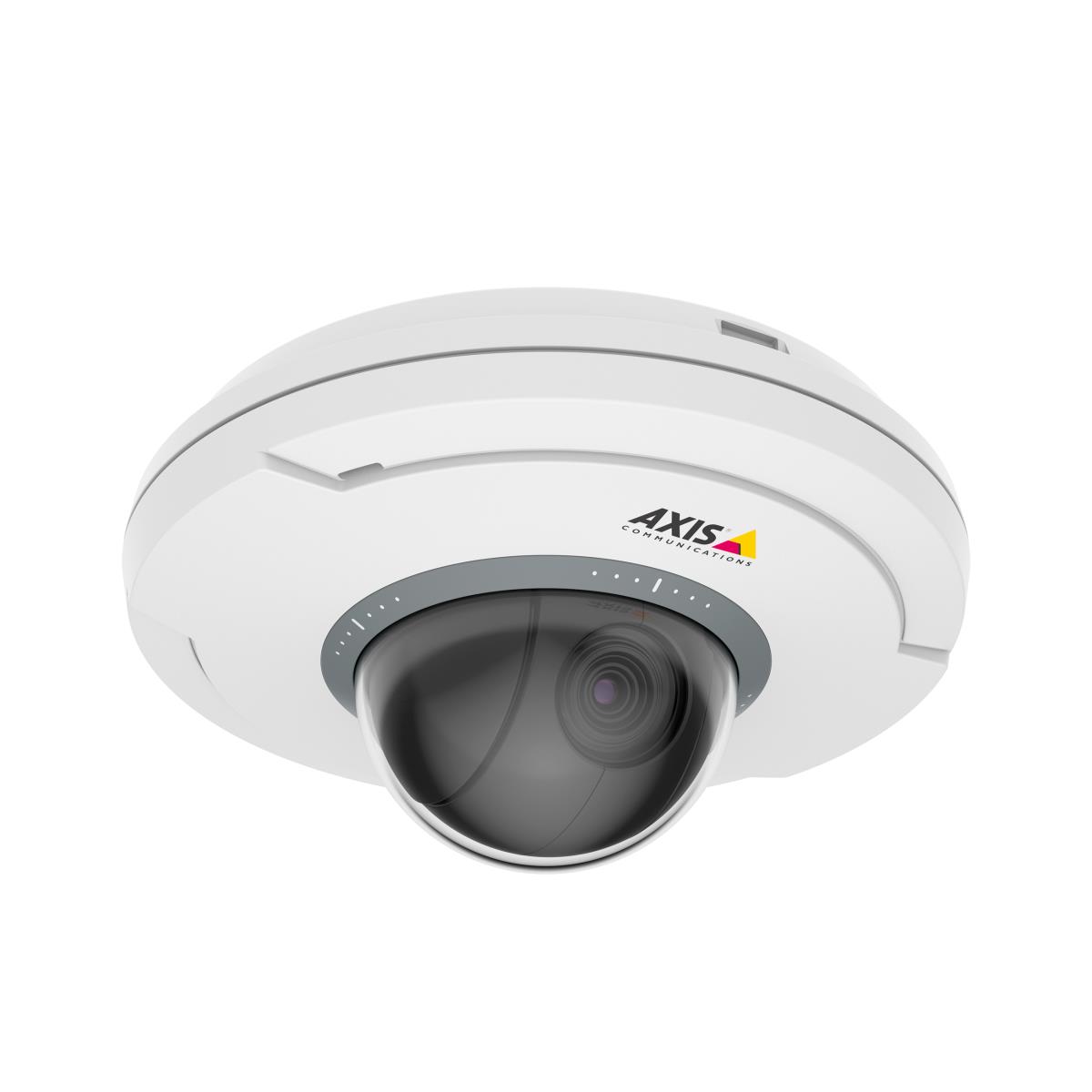

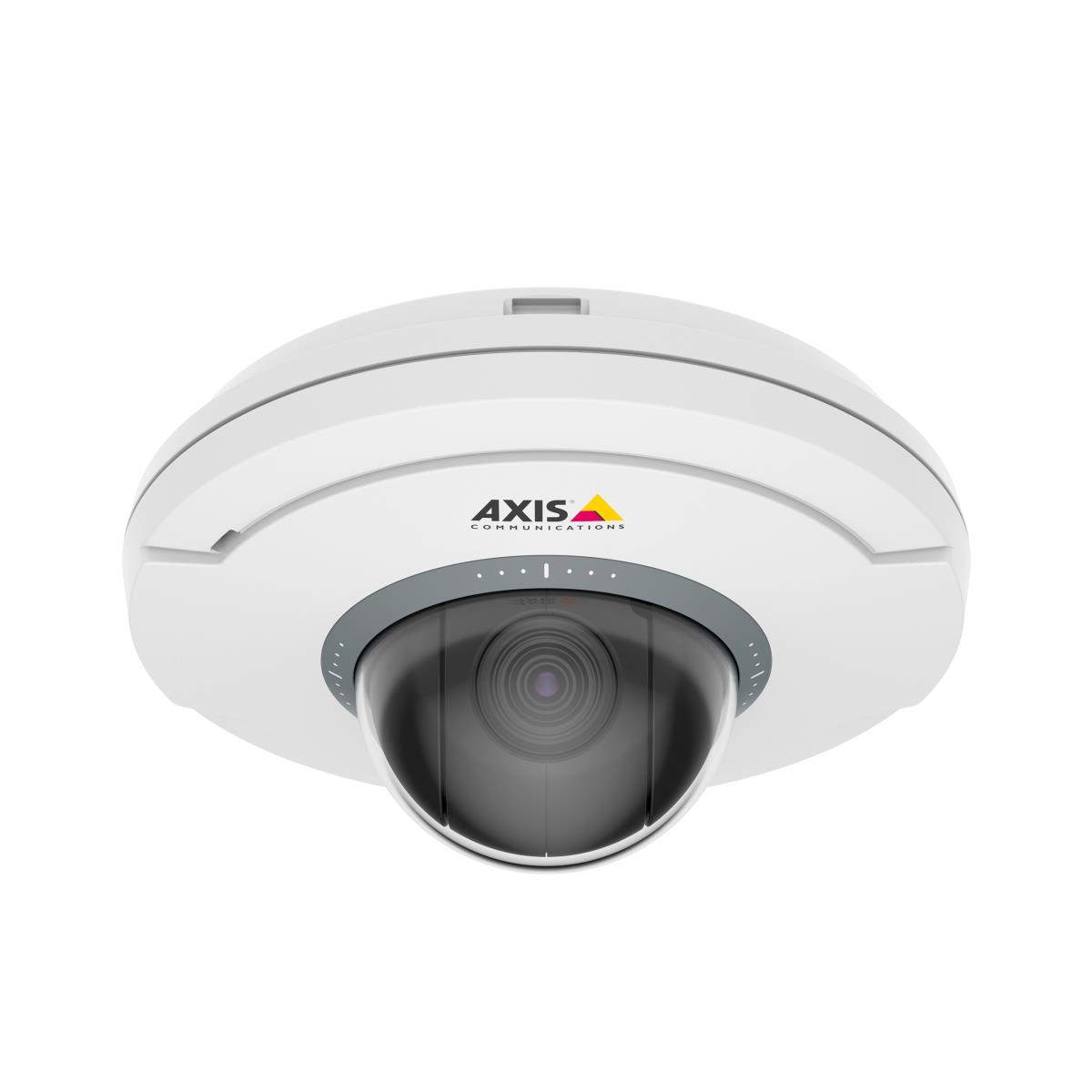

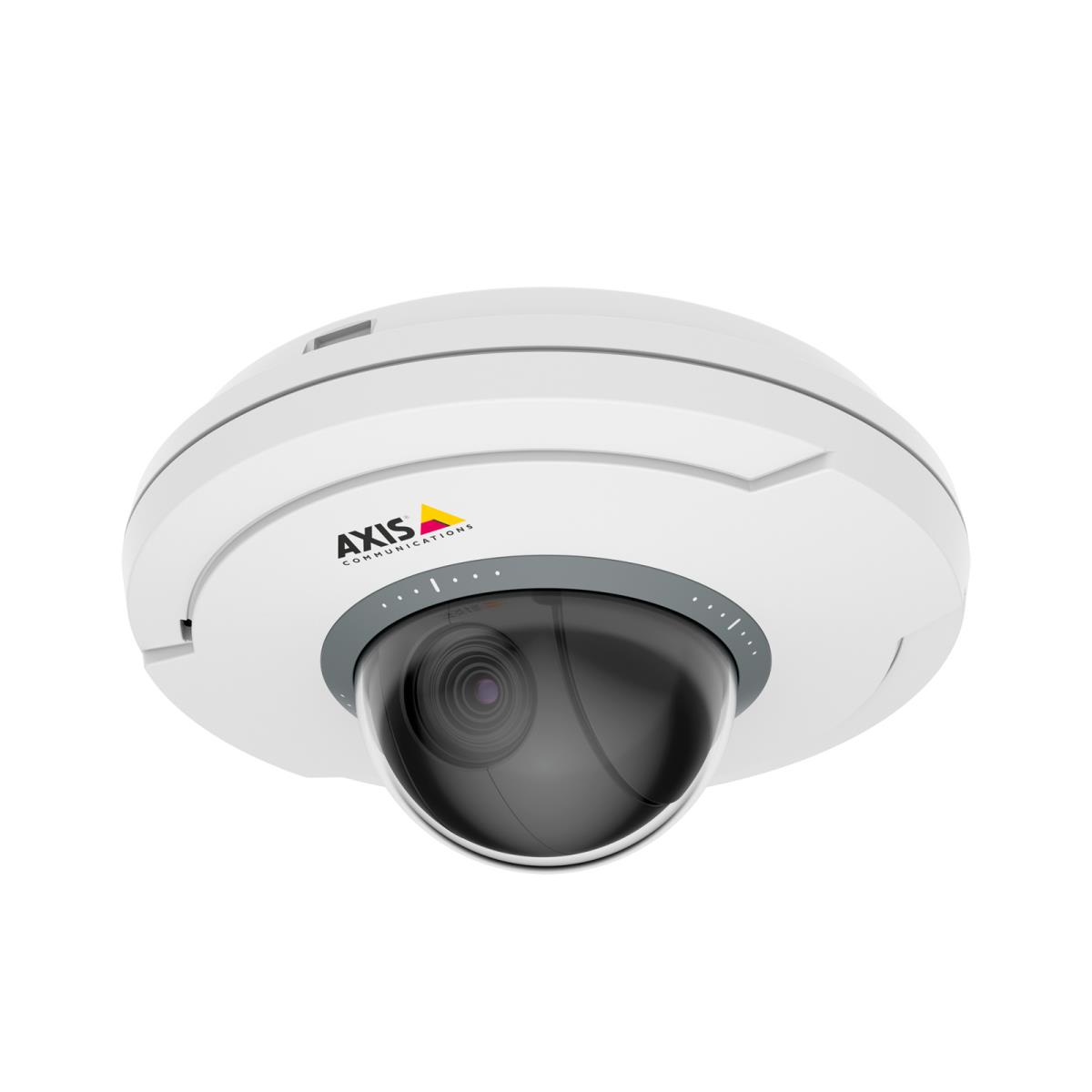

AXIS M5074 is a discreet, palm-sized PTZ camera designed to fit in anywhere. Perfect for smaller installations, it offers an affordable way to see the big picture – and all the important details.
Small size. Small price
With a diameter of just 130 x 63 mm (5.1 x 2.5 in), this compact and discreet palm-sized PTZ camera blends discreetly into any environment. It comes at a price point that’s nothing if not reasonable. Featuring a built-in microphone, it enables audio analytics such as scream and glass break detection. Thanks to Zipstream with H.264/H.265 it significantly reduces storage and bandwidth without compromising image quality. This affordable camera can be used with installation material from the previous model (AXIS M5054). Furthermore, built-in cybersecurity features help prevent unauthorized access and safeguard your system.
See it all – and see it clearly
AXIS M5074 delivers sharp, detailed video in HDTV 720p/1MP resolution with great image usability. Thanks to PTZ functionality with 5x optical zoom and 12x digital zoom you can benefit from sweeping overviews and zoom in to get the details. Plus, autofocus ensures detailed, sharp images—every time. With Wide Dynamic Range (WDR) technology, it preserves important forensic detail when there’s both dark and light areas in the same scene. Furthermore, constant angle focusing ensures the field of view doesn’t change even when the focus changes.
Built-in analytics
This plug & play functionality is a cost-effective way to gain insight for more efficient and effective security. It includes built-in analytics that transforms the camera into a business tool to help you make smart decisions about operations and resource allocation. For instance, it includes audio volume detection which uses the built-in microphone to trigger an event. Scream detection triggers an event when the microphone detects a scream in the camera's proximity. Furthermore, AXIS Video motion detection triggers an event when movement is detected in a predefined area.
Camera
Tilt speed
100 °/sec
Pan speed
100 °/sec
Camera pan control
Y
Camera tilt control
Y
Minimum illumination
0.1 lx
Tilt angle range
90 - 90°
Pan range
-179 - 179°
Camera shutter speed
1/17000 - 2 s
Logistics data
Harmonized System (HS) code
85258900
Performance
Type
IP security camera
Placement supported
Indoor
Connectivity technology
Wired
PTZ control
Y
PTZ modes
Digital PTZ
Day/night mode
Y
Processor model
ARTPEC-7
Number of languages
12
Languages support
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian
Certification
EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2,
FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A),
KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A,
VCCI Class A CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IS 13252 IEC/EN 60529 IP51 NIST SP500-267
Design
Form factor
Dome
Mounting type
Ceiling/wall
Product colour
White
Housing material
Polyvinyl chloride (PVC)
International Protection (IP) code
IP51
Image sensor
Number of sensors
1
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Progressive scan
Y
Sensor type
CMOS
Lens system
Zoom capability
Y
Optical zoom
5x
Digital zoom
12x
Number of lenses
1
Auto focus
Y
Focal length range
2.2 - 11.0 mm
Video
Maximum resolution
1280 x 720 pixels
Total megapixels
1 MP
Video formats supported
M-JPEG
Video compression formats
H.264,H.265
Supported video modes
720p
Video recording
Y
Frame rate
60 fps
Video streaming
Y
Privacy masking
Y
Bit rate
Configurable bit rate
Digital Wide Dynamic Range (DWDR)
Y
Audio
Audio system
1-way
Audio formats supported
AAC-LC,ADPCM,LPCM,OPUS,PCM
Built-in microphone
Y
Audio detection
Y
Network
Ethernet LAN
Y
Networking standards
IEEE 802.3af
Supported network protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf)
Wi-Fi
N
Bluetooth
N
Quality of Service (QoS) support
Y
Storage
Built-in HDD
N
Card reader integrated
Y
Flash memory
512 MB
Internal memory
1024 MB
Security
Password protection
Y
Video motion detection
Y
Active tampering alarm
Y
IP address filtering
Y
Security algorithms
EAP-TLS,HTTPS,SNMP
HTTPS encryption
Y
Alert notification type
E-mail
Power
Power source type
PoE
Power consumption (typical)
4.2 W
Power consumption (max)
9.3 W
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-30 - 60 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Diameter
13 cm
Length
63 mm
Weight
380 g
Packaging content
Number of cameras
1
Mounting kit
Y
Manual
Y
