Introduction
This cost-efficient, compact mini dome delivers great image quality in challenging light conditions. And, with a deep learning processing unit, you can benefit from advanced analytics based on deep learning on the edge.
Great image quality

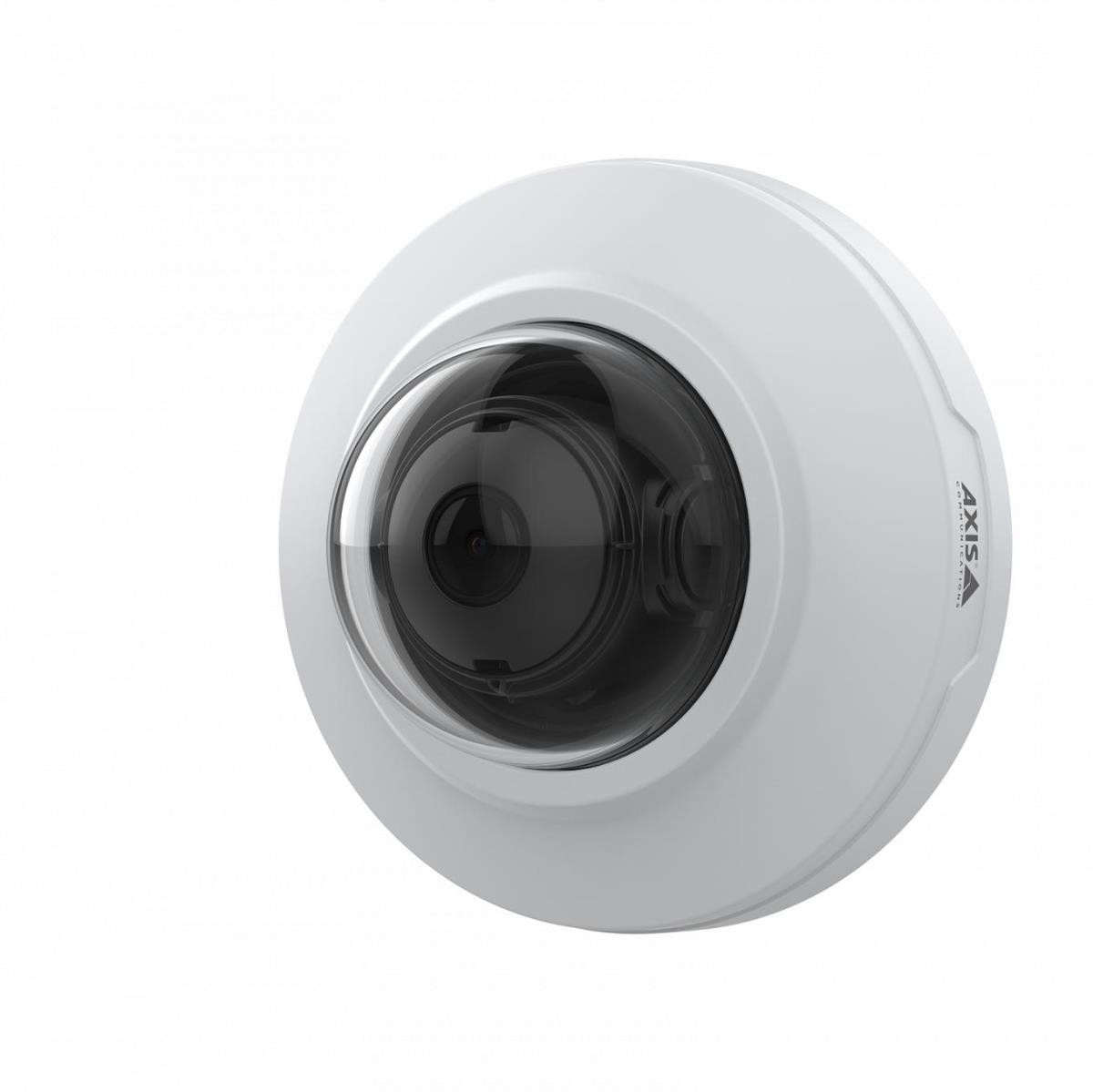

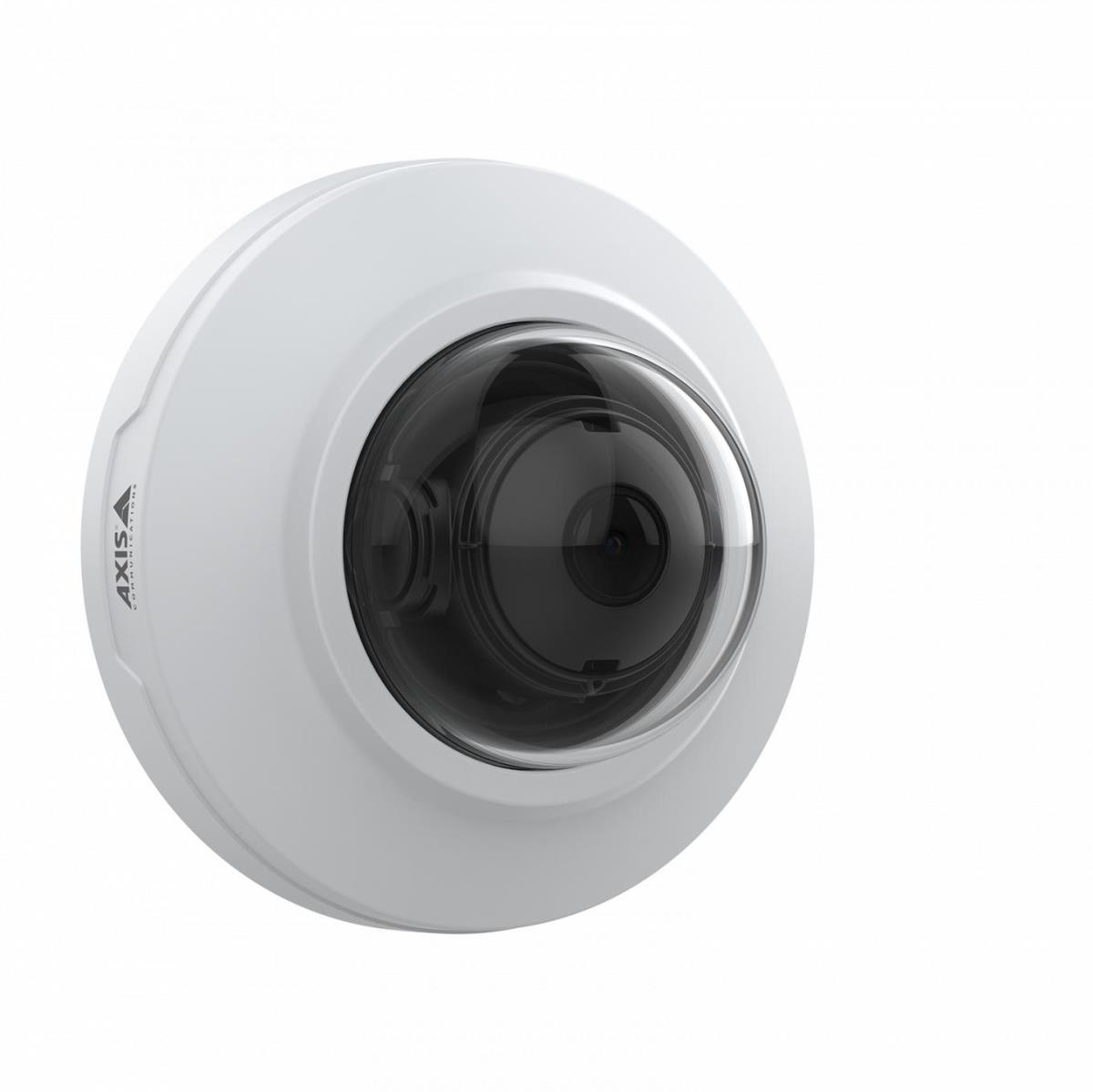

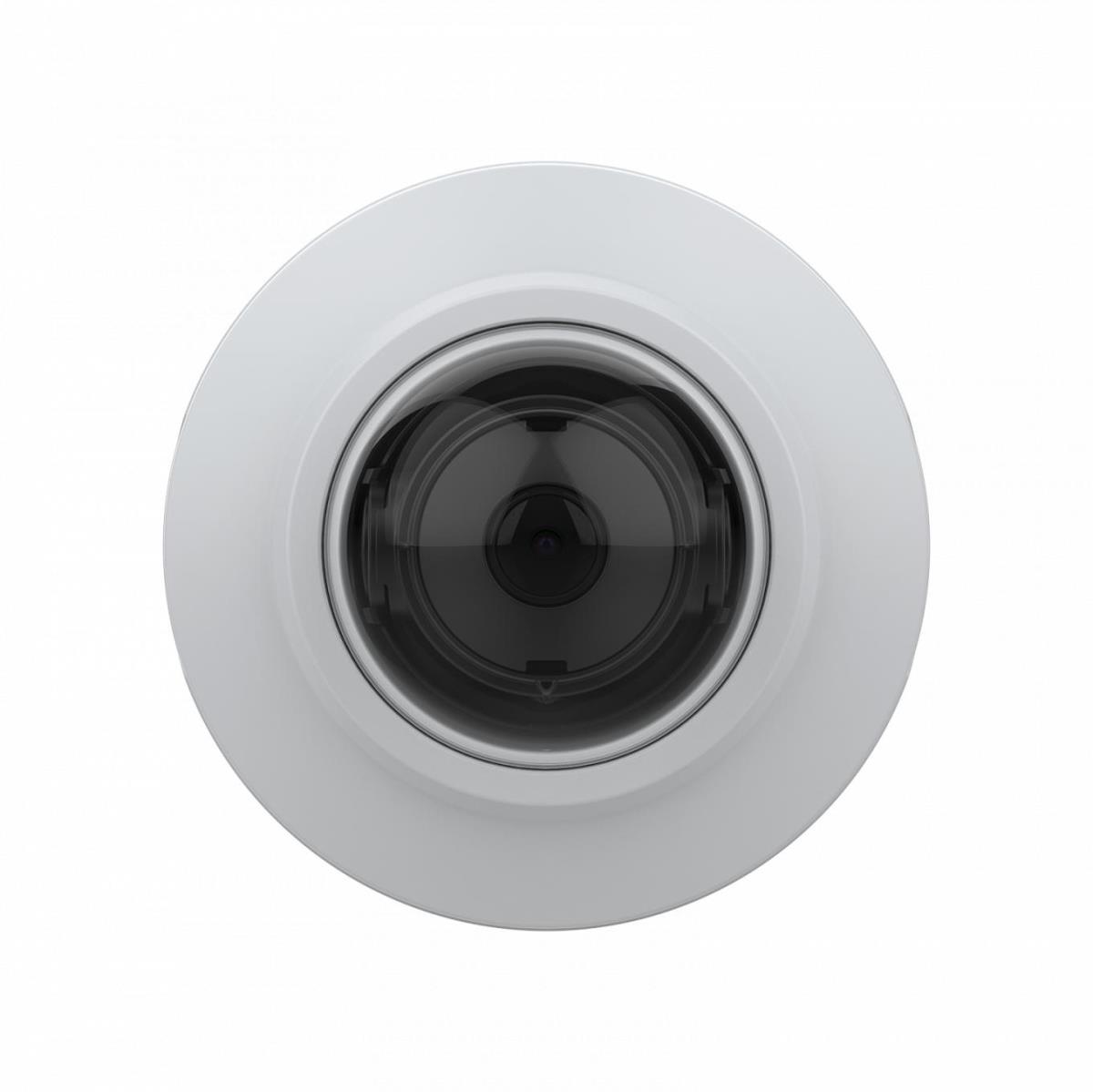

AXIS M3088-V offers great 8 MP image quality even in challenging light conditions. Thanks to Wide Dynamic Range (WDR), it ensures clarity even when there’s both dark and light areas in the scene. Plus, out-of-the-box it offers a factory-focused fixed field of view so there’s no manual focusing required.
Extended possibilities
AXIS M3088-V offers support for intelligent analytics based on deep learning on the edge. This means it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. AXIS Object Analytics comes preinstalled and knows what to detect so you can focus on objects of interest - all tailored to your specific needs. Additionally, with support for ACAP, you can add value to your system with tailor-made applications. Furthermore, this compact dome offers the flexibility to add audio or I/O connectivity using accessories.
Compact and cost-efficient
This cost-efficient mini dome offers a wide range of mounting accessories for flexible and discreet installation. With bayonet-fitted casing, it simply twists on and off for fast, convenient installation. Compact in design, this easy-to-install, vandal-resistant camera is protected against redirection and defocusing as well as dust and dripping water. It offers Axis Zipstream with H.264/H.265 for reduced bandwidth and storage requirements. And thanks to edge storage you can record directly to an onboard memory card. Furthermore, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network.
Performance
Type
IP security camera
Placement supported
Indoor
Connectivity technology
Wired
PTZ control
Y
PTZ modes
Digital PTZ
Wide Dynamic Range (WDR)
Y
Day/night mode
Y
Alarm input/output
Y
Infrared (IR) cut-off filter
Y
Number of languages
18
Languages support
Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese
Design
Form factor
Dome
Mounting type
Ceiling/wall
Product colour
White
Housing material
Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Protection features
Dust resistant, Impact resistant, Water resistant
International Protection (IP) code
IP42
IK code
IK08
Camera
Minimum illumination
0.25 lx
Angle of rotation
175°
Lens viewing angle, horizontal
109°
Lens viewing angle, vertical
56°
Tilt angle range
0 - 80°
Pan range
0 - 175°
Camera shutter speed
1/71500 - 1/5 s
Image sensor
Number of sensors
1
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Progressive scan
Y
Sensor type
CMOS
Lens system
Focal length range
2.9 mm
Night vision
Video
Maximum resolution
3840 x 2160 pixels
Total megapixels
8 MP
Video compression formats
H.264, H.265, M-JPEG, MPEG4
Frame rate
15 fps
Image quality adjustment
Brightness, Contrast, Sharpness
Privacy masking
Y
Audio
Network
Ethernet LAN
Y
Networking standards
IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Supported network protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
Wi-Fi
N
Bluetooth
N
Number of users
1 user(s)
Quality of Service (QoS) support
Y
Storage
Built-in HDD
N
Card reader integrated
Y
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory
512 MB
Internal memory
2048 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Security
Password protection
Y
Video motion detection
Y
IP address filtering
Y
HTTPS encryption
Y
Pixel counter
Y
Digest authentication
Y
Network access storage (NAS)
Y
Power
Power source type
PoE
Power consumption (typical)
3.6 W
Power consumption (max)
4.2 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 85%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Height
56 mm
Diameter
10.1 cm
Weight
150 g
Packaging content
Number of cameras
1
Manual
Y
Technical details
Doesn't contain
BFR, PVC
Warranty period
5 year(s)
