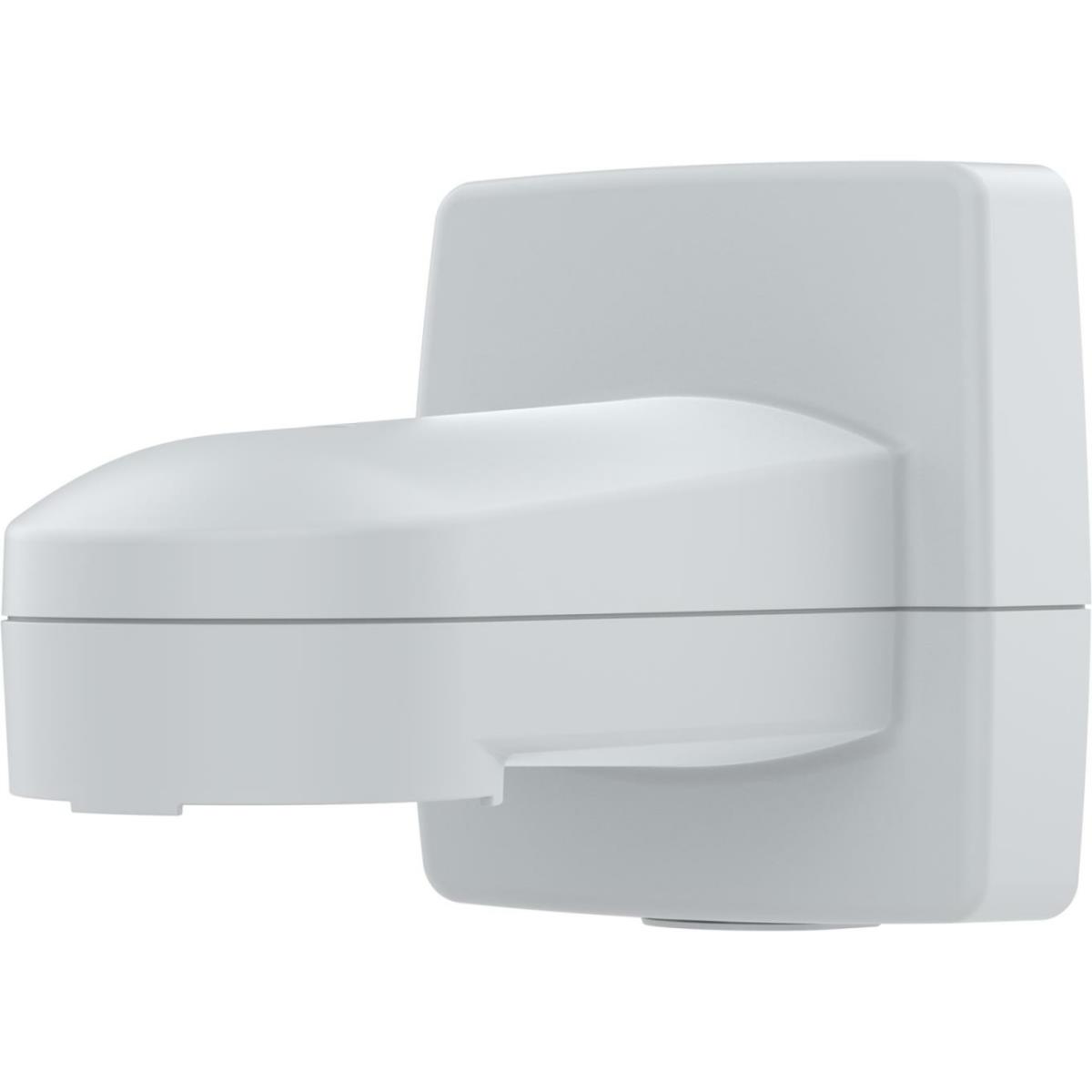

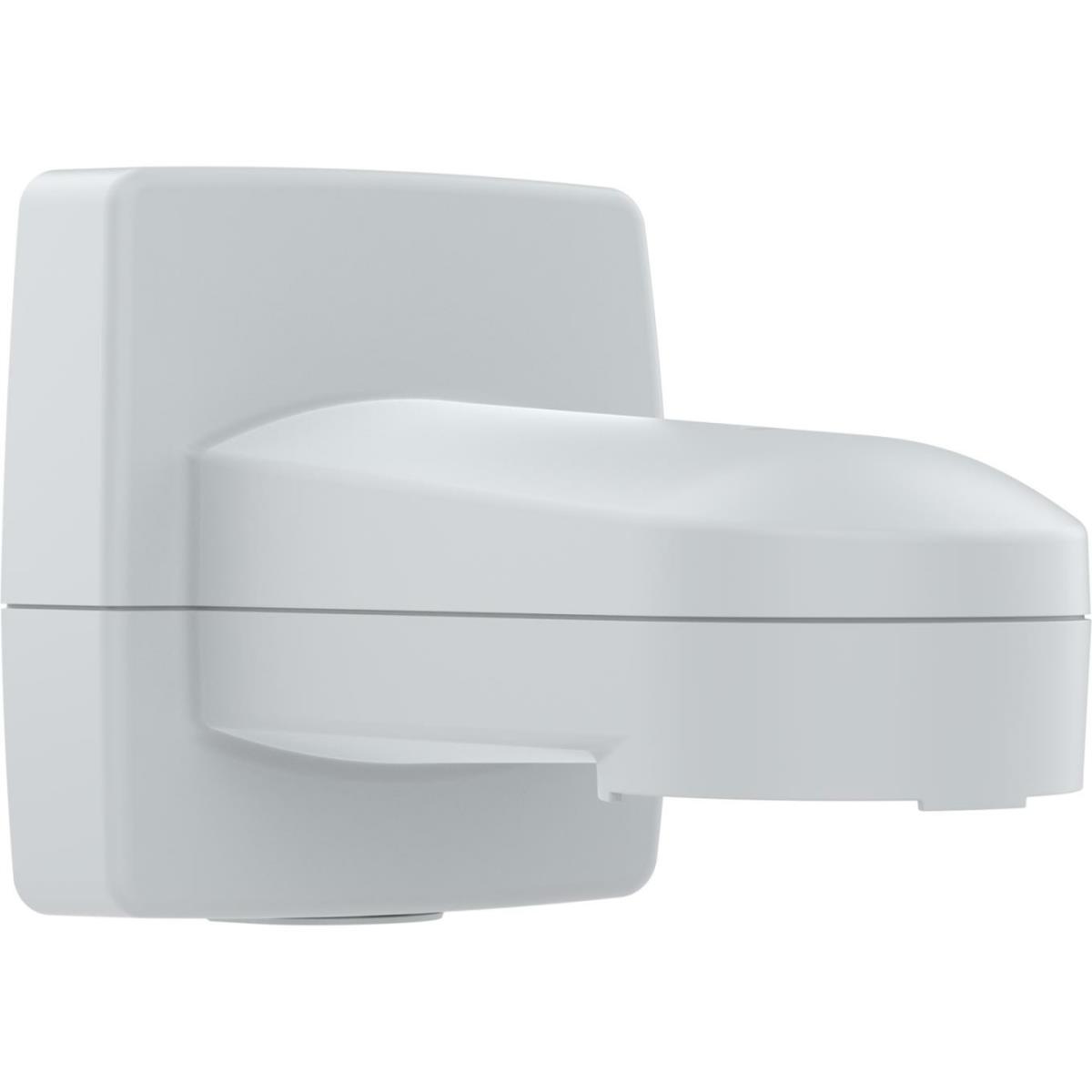

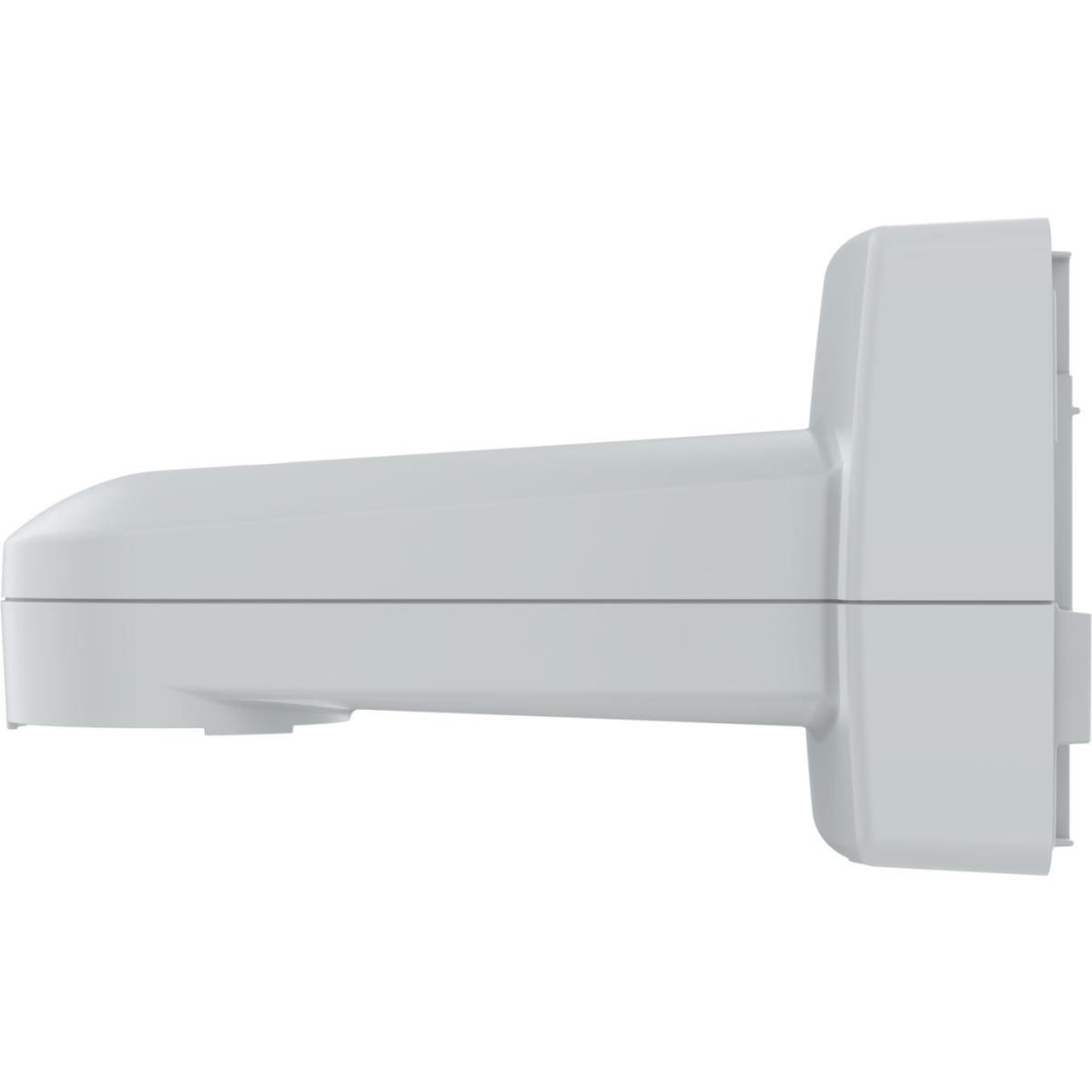

AXIS Tq5001-e Wall / Pole Mount

£170.17 (incl. VAT)

Qty:

Add to basket

Part Number:	02411-001
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

Designed for Axis PTZ cameras, AXIS TQ5001-E Wall-and-Pole Mount offers flexible installation and versatile connection with RJ45 or IDC connectors.

With this wall-and-pole mount, installers can choose between using an RJ45 or IDC (insulation-displacement contact) connector for the installation. It features a built-in cable with an ethernet IP66-rated RJ45 connector to facilitate installation and prevent water and dust from entering the camera. Made from impact-resistant, outdoor-ready material, AXIS TQ5001-E is suited for both indoor and outdoor environments. Flipping the mounting bracket makes it possible to turn AXIS TQ5001-E from a wall mount to a pole mount (AXIS Steel Straps TX30 are required). The mount is also suitable for corner mounting with an optional accessory.

Features

Type Mount

Placement supported Universal

Brand compatibility Axis

Compatibility M5000 PTZ, M5000-G PTZ, M5525-E PTZ, M5526-E PTZ, P5654-E Mk II PTZ, P5655-E PTZ, P5676-LE PTZ, Q6010-E, Q6074 PTZ, Q6074-E PTZ, Q6075 PTZ, Q6075-E PTZ, Q6078-E PTZ, Q6100-E, Q6135-LE PTZ, Q6315-LE PTZ, Q6318-LE PTZ

Product colour White

Housing material Aluminium

International Protection (IP) code IP66

IK code IK10

Protection features Dust resistant, Impact resistant, Water resistant

Certification CSA, UL/cUL, UKCA, CE, KC, VCCI, RCM, TAA

Weight & dimensions

Width 152.6 mm

Depth 291.8 mm

Height 175.4 mm

Weight 1.96 kg

Packaging data

Quantity per pack 1 pc(s)

Operational conditions

Operating temperature (T-T) -50 - 65 °C

Operating relative humidity (H-H) 10 - 100%

Storage temperature (T-T) -40 - 65 °C

Storage relative humidity (H-H) 10 - 100%

Technical details

Doesn't contain PVC

Information

Part Number:

02411-001
