Introduction

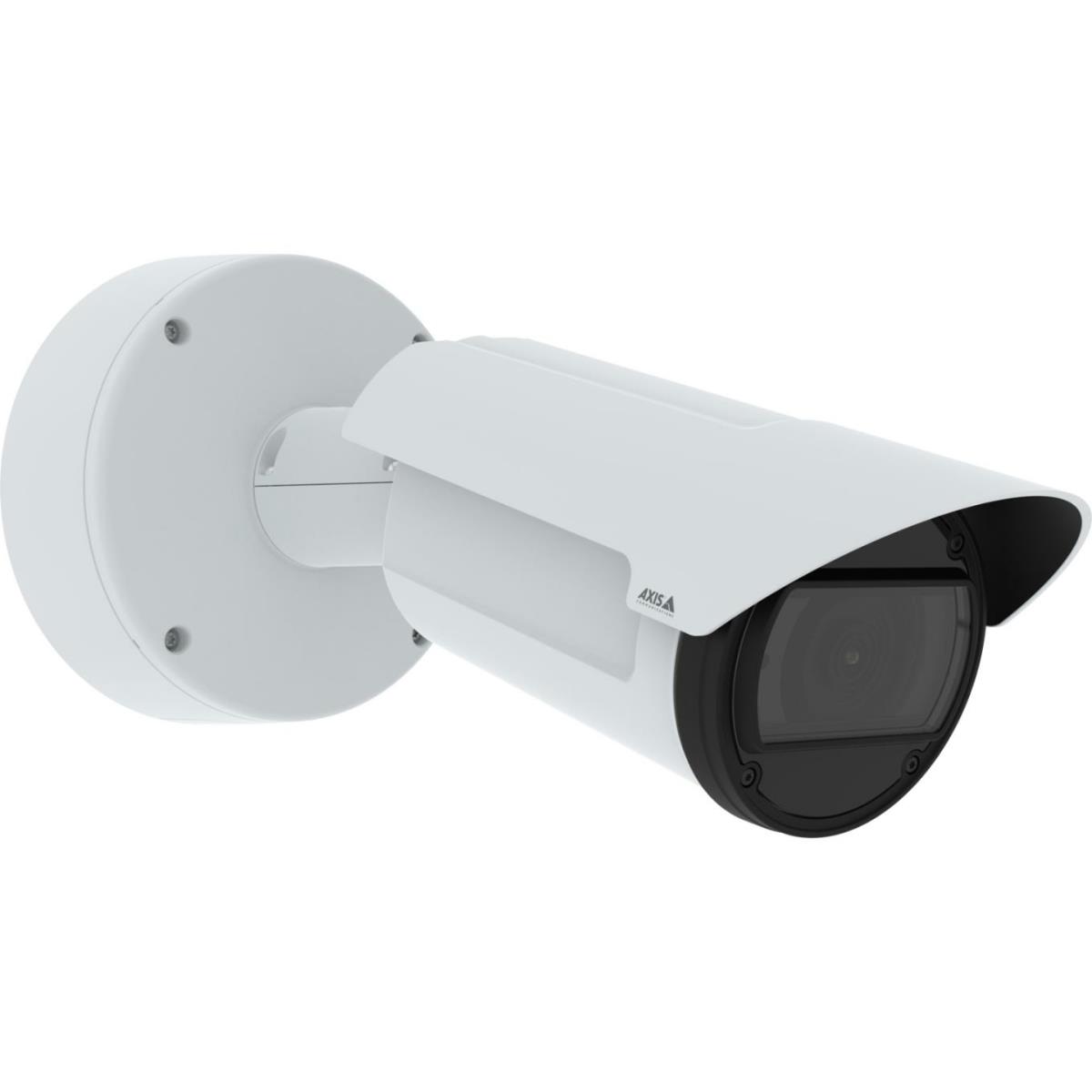

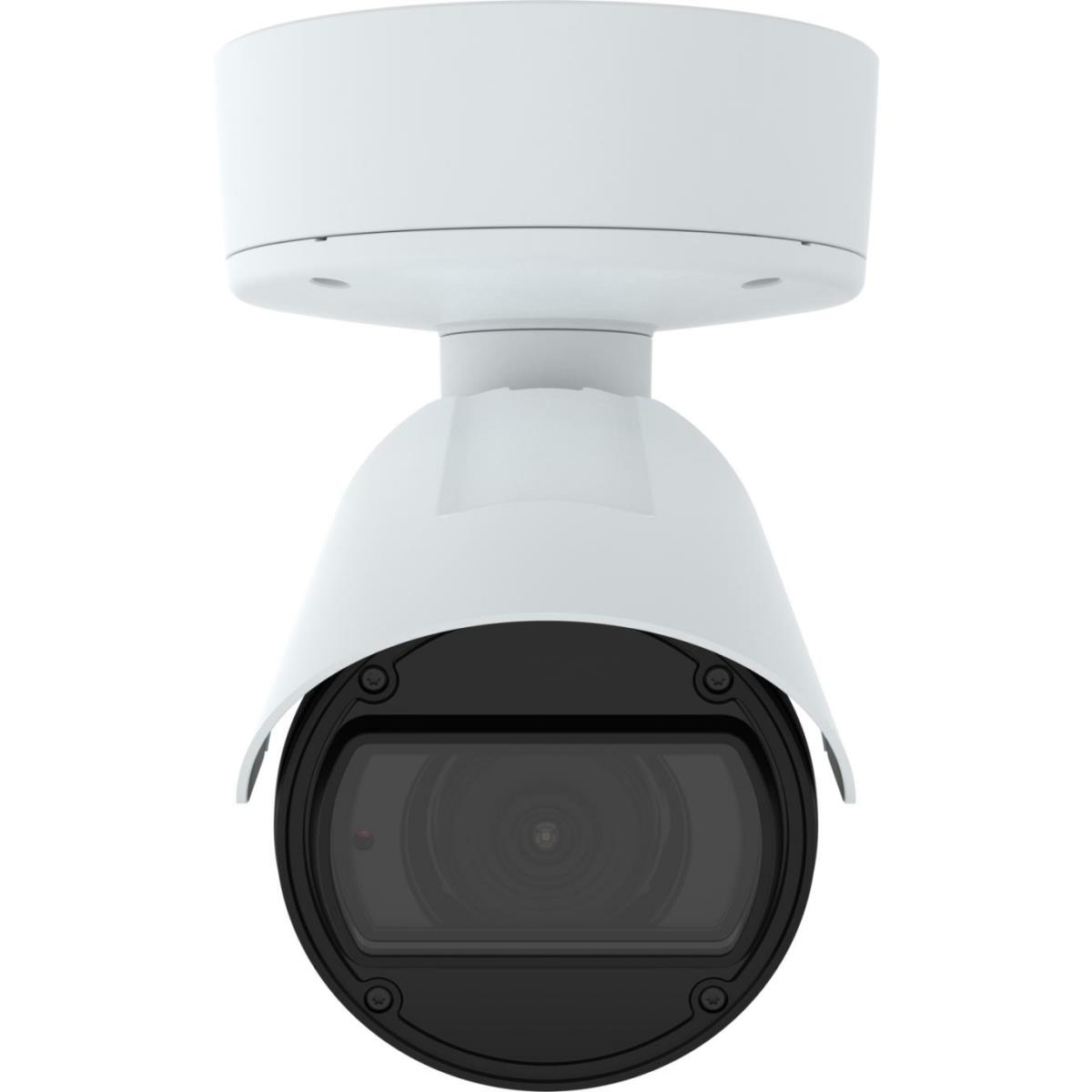

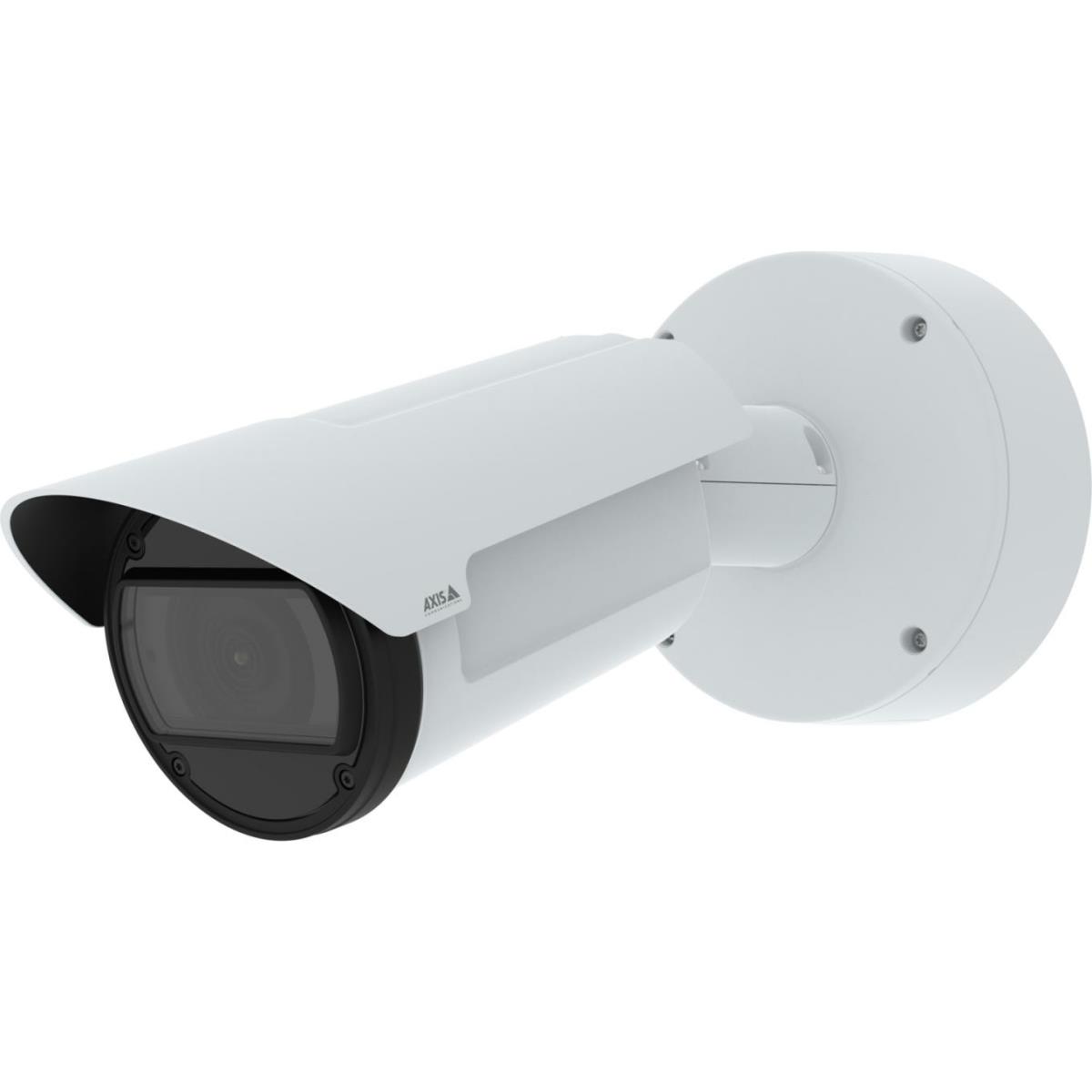

AXIS Q1806-LE Bullet Camera
This high-performance bullet camera offers 4 MP image quality with 32x optical zoom for great details at any distance. Plus, a deep learning processing unit enables unique opportunities for analytics based on deep learning.
First-class at any distance
With 32x optical zoom, AXIS Q1806-LE can be mounted much further from the scene and still deliver outstanding image quality. With OptimizedIR, you’ll enjoy sharp and clear footage in complete darkness up to 100 m (328 ft) without the need for extra lighting. It includes Axis Lightfinder 2.0 to capture images with more realistic and saturated colors and sharper images of moving objects. And, with Axis Forensic WDR you’re sure to capture high-quality images even when there’s both dark and light areas in the scene. Furthermore, optical image stabilization (OIS) ensures stable images even in low-light situations.
Cost-effective and secure
This easy-to-install camera features IDC network connectors as well as a spacious back box for secure cable management. With PoE out, it can power other devices such as speakers and strobe sirens. Plus, edge-to-edge technology allows speaker pairing. Thanks to Axis Zipstream with H.264/H.265, it significantly reduces bandwidth and storage requirements. Enclosed in a robust aluminum casing, this impact-resistant camera can handle temperatures ranging from -40 °C to 60 °C (-40 °F to 140 °F). Additionally, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. Plus, it offers secure key storage with FIPS 140-2 level 2 certification.
Deep learning analytics
Built on ARTPEC-8, AXIS Q1806-LE features a deep learning processing unit for improved processing capabilities. This allows you to collect and analyze even more data than before - on the edge. It also delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities. Thanks to AXIS Object Analytics it’s possible to detect and classify moving objects. Furthermore, with support for ACAP version 4, you can add tailor-made applications based on deep learning on the edge available from Axis and our partners.
Performance
Type
IP security camera
Placement supported
Indoor & outdoor
Connectivity technology
Wired
PTZ control
Yes
PTZ modes
Digital PTZ
Preset points
Yes
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Infrared (IR) cut-off filter
Yes
Certification
UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM
Design
Form factor
Bullet
Mounting type
Wall
Product colour
Black, White
Housing material
Aluminium, Glass
Protection features
Impact resistant
International Protection (IP) code
IP66, IP67
IK code
IK10
Camera
Minimum illumination
0.02 lx
Angle of rotation
360°
Lens viewing angle, horizontal
60 - 2.3°
Lens viewing angle, vertical
39 - 1.3°
Tilt angle range
0 - 90°
Pan range
-180 - 180°
Camera pixel size
2 µm
Camera shutter speed
1/143000 - 2 s
Image sensor
Number of sensors
1
Optical sensor size
25.4 / 1.8 mm (1 / 1.8")
Sensor type
CMOS
Lens system
Zoom capability
Yes
Optical zoom
32x
Number of lenses
1
Maximum aperture number
4
Minimum aperture number
1.4
Focal length range
4.3 - 137 mm
Detect distance (wide)
87.7 m
Detect distance (tele)
2732.1 m
Observe distance (wide)
34.8 m
Observe distance (tele)
1084.2 m
Recognize distance (wide)
17.5 m
Recognize distance (tele)
546.4 m
Identify distance (wide)
8.8 m
Identify distance (tele)
273.2 m
Closest focusing distance
1.2 m
Night vision
Night vision
Yes
Night vision distance
100 m
LED type
IR
Infra-red wavelength
850 nm
Video
Maximum resolution
2880 x 1620 pixels
Total megapixels
4 MP
Video formats supported
AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions
1280 x 800 (WXGA), 2880 x 2160
Frame rate
90 fps
Video streaming
Yes
Noise reduction
Yes
Noise reduction technology
2D noise reduction, 3D noise reduction
Gain control type
Auto
Image quality adjustment
Brightness, Contrast, Saturation, Sharpness
Privacy masking
Yes
Text caption overlay
Yes
Image stabilizer
Yes
Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Audio
Audio formats supported
AAC-LC, ADPCM, G.711, G.726, LPCM, PCM
Sample rate
48 kHz
Signal-to-Noise Ratio (SNR)
55 dB
Audio detection
Yes
Network
Ethernet LAN
Yes
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Networking standards
IEEE 802.1x, IEEE 802.3at, IEEE 802.3bt
Supported network protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR
Streaming method
Multicast
Storage
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory
8192 MB
ROM capacity
2048 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Microphone in
Yes
Terminal block port
Yes
DC-in jack
Yes
Security
Password protection
Yes
Video motion detection
Yes
Active tampering alarm
Yes
Alert notification type
E-mail
Intelligent Video Surveillance (IVS) system features
Human detection, Line crossing detection, Moving object, Vehicle detection
Pixel counter
Yes
Digest authentication
Yes
Management features
Power
Power source type
PoE
Power consumption (typical)
14.6 W
Power consumption (max)
51 W
Operational conditions
Operating temperature (T-T)
-40 - 60 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 100%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
183 mm
Depth
411 mm
Height
183 mm
Weight
3.2 kg
Packaging content
Number of cameras
1
Cables included
LAN (RJ-45)
Manual
Yes
Technical details
Sustainability certificates
REACH, RoHS
Doesn't contain
PVC/BFR
