Introduction

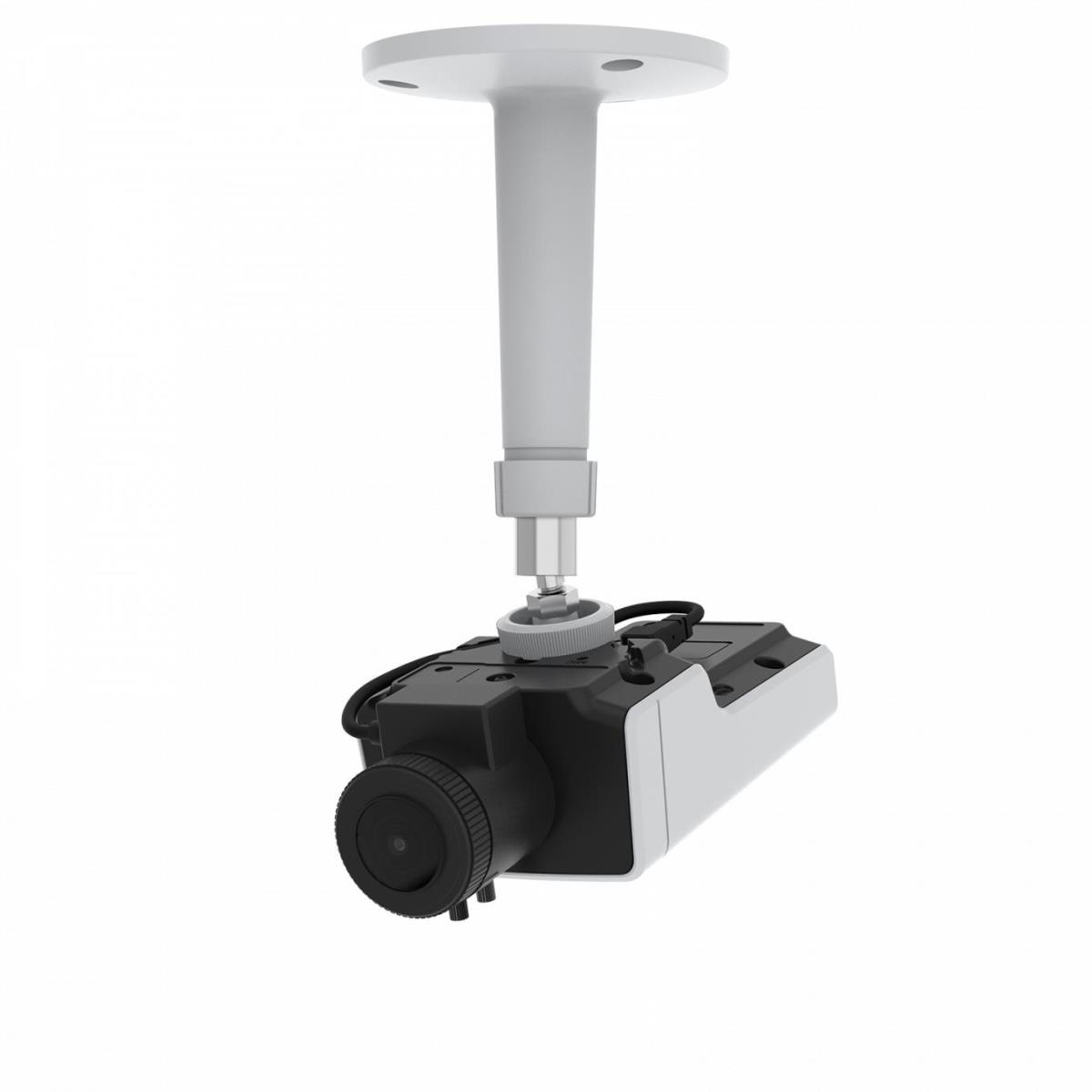

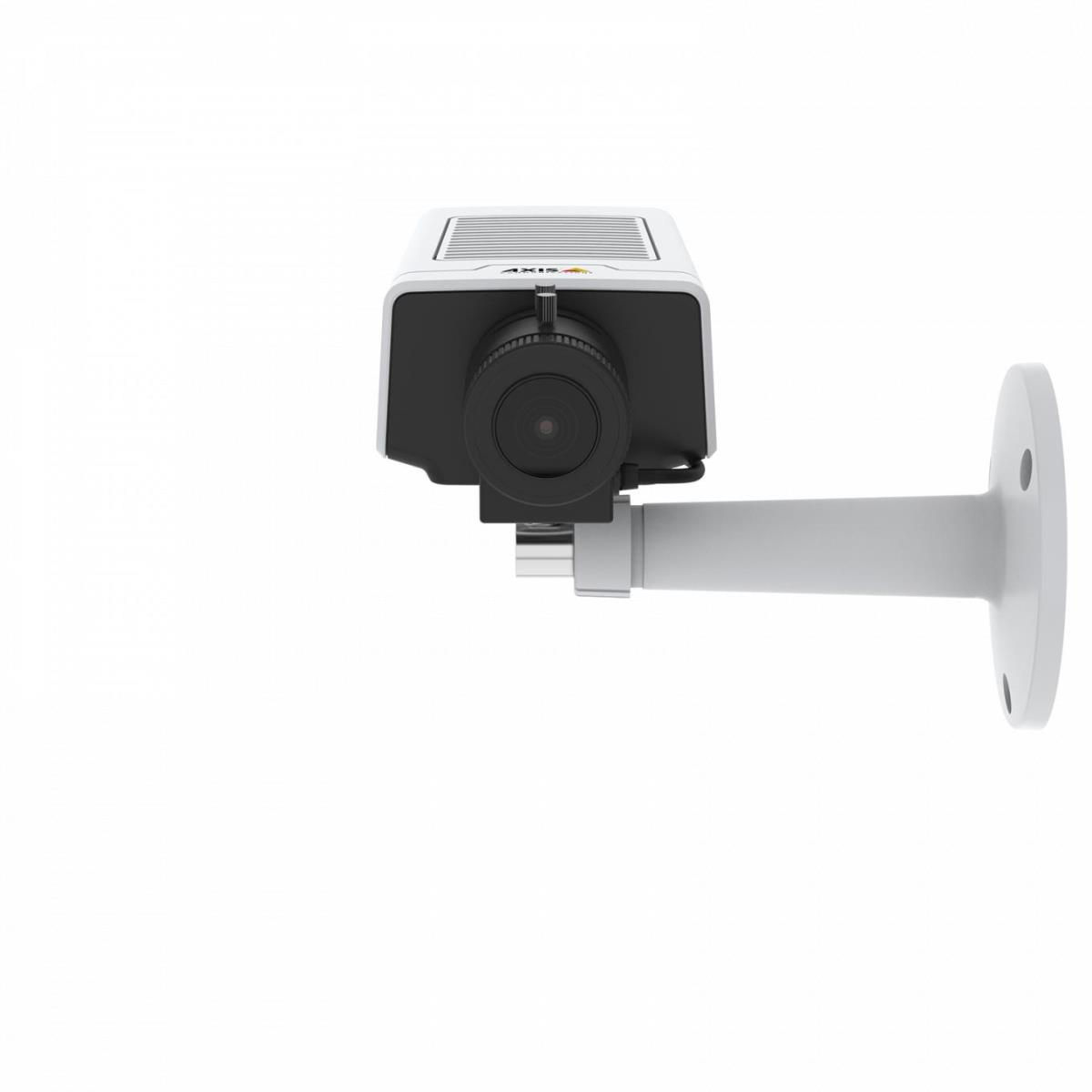

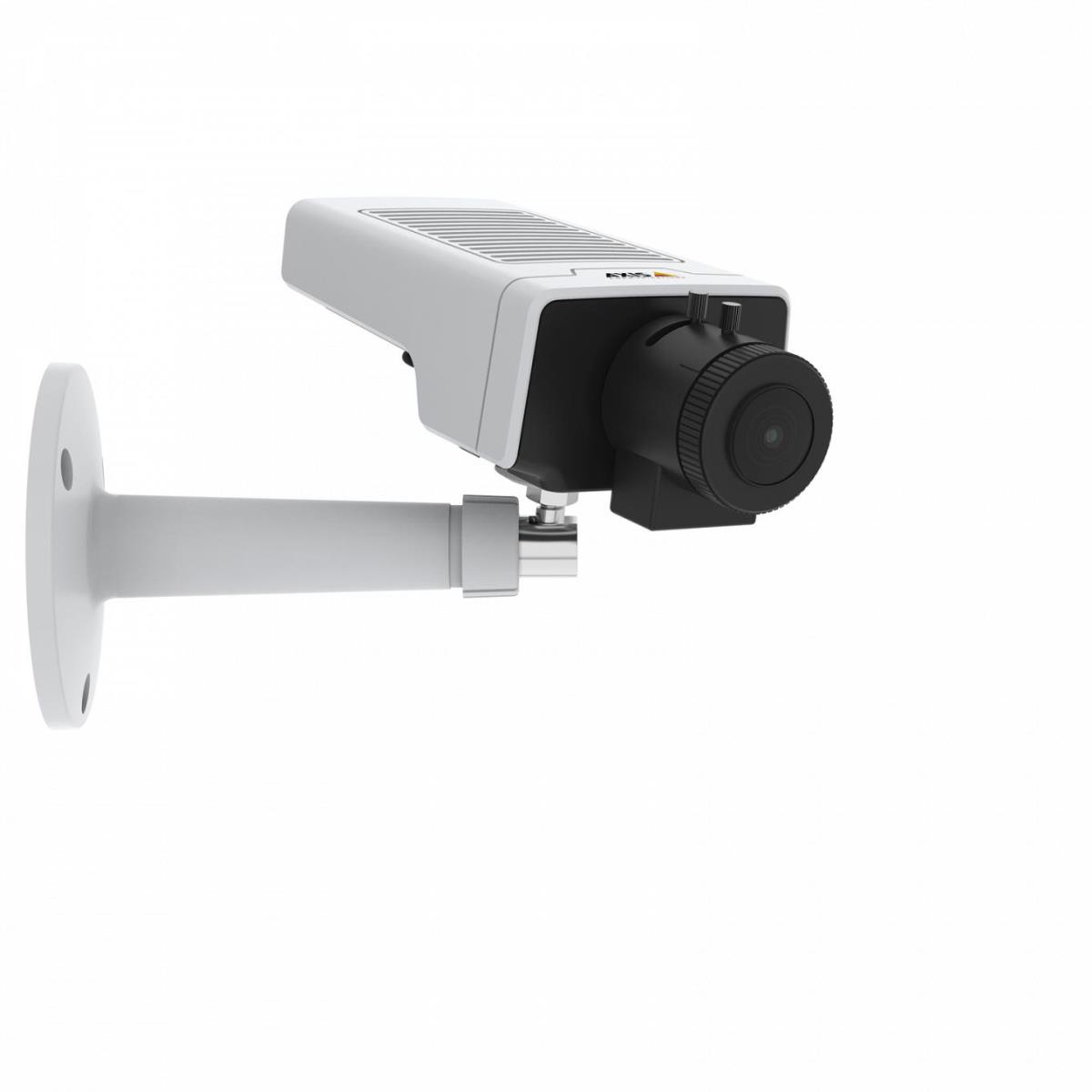

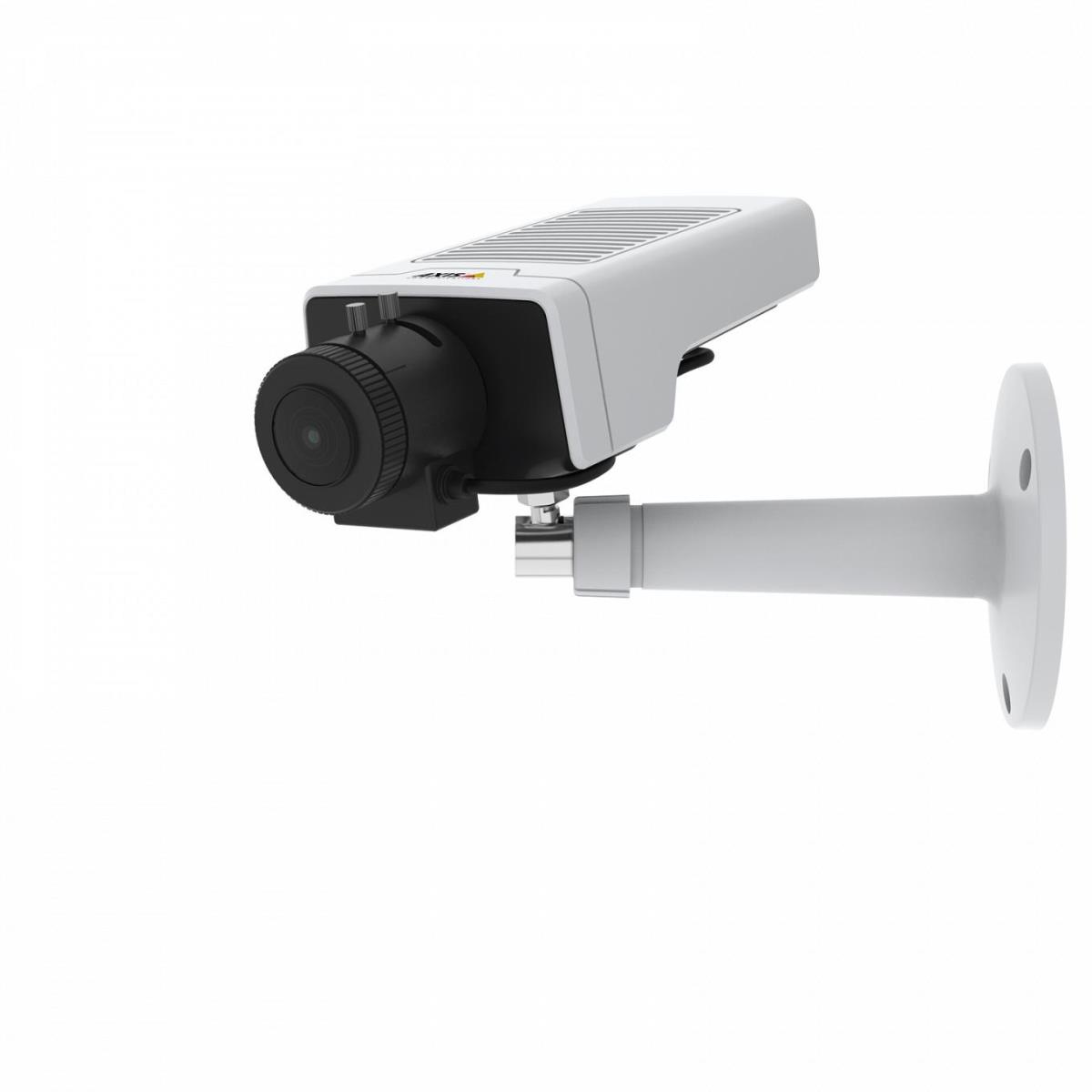

AXIS M1135 is an affordable and compact network camera that delivers superb image quality in 2 MP resolution. Designed as a visible deterrent, it helps discourage trespassing, antisocial or criminal behavior. It offers flexible, low-cost installation making it ideal for various industrial or commercial surveillance situations, such as retail stores, indoor markets and delivery areas.
More bang for your buck
This affordable Axis M-line camera includes a built-in microphone and audio recording, letting you hear and register sound in a fixed area. And, with a video streaming indicator, it’s easy to check that the video is up and running.
Featuring Axis Zipstream technology with support for both H.264 and H.265 video compression it significantly reduces bandwidth and storage requirements without compromising image quality. Thanks to support for PoE and redundant DC power, you get flexible installation and your data is safeguarded in the event of a power outage. Furthermore, it offers enhanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot ensures only authorized firmware is installed and that the firmware hasn’t been compromised.
Sharp images even in low light
AXIS M1135 offers 2 MP resolution at up to 30 fps and delivers superb video quality even in low light conditions. It features Axis Lightfinder for images in true colors even in low light and with Axis Forensic WDR you get clarity even when there’s both dark and light areas in the scene. Furthermore, it offers a CS-mount with interchangeable lenses, so you can easily change lens and ensure you capture the exact images you need. Use our lens calculator to select a lens that meets your specific requirements.
Designed for deterrence
AXIS M1135 is designed to act as a deterrent to let potential offenders know you’re watching. This compact network camera provides a clearly visible, fixed angle of view, making it easy to see exactly where the camera’s pointing and allowing you to record both audio and video in a precisely defined area.
Performance
Type
IP security camera
Placement supported
Indoor
Connectivity technology
Wired
PTZ control
Y
PTZ modes
Digital PTZ
Wide Dynamic Range (WDR)
Y
Day/night mode
Y
Infrared (IR) cut-off filter
Y
Number of languages
12
Languages support
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian
Certification
EN 55032 A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI A, RCM AS/NZS CISPR 32 A, KC KN32 A, KC KN35
IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1
EN 50581, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78
NIST SP500-267
Design
Form factor
Box
Mounting type
Ceiling/wall
Product colour
Black
LED indicators
Y
Housing material
Polycarbonate (PC)
Camera
Minimum illumination
0.02 lx
Lens viewing angle, horizontal
90°
Lens viewing angle, vertical
49°
Camera shutter speed
1/33500 - 2 s
Image sensor
Number of sensors
1
Optical sensor size
25.4 / 3 mm (1 / 3")
Progressive scan
Y
Sensor type
CMOS
Lens system
Number of lenses
1
Focal length range
3 - 10.5 mm
Night vision
Video
Maximum resolution
1920 x 1080 pixels
Total megapixels
2 MP
Video compression formats
AVC, H.264, H.265, HEVC, M-JPEG
Supported graphics resolutions
160 x 90, 1920 x 1080 (HD 1080)
Supported video modes
1080p
Frame rate
30 fps
Video intelligence analytic
Y
Video streaming
Y
Gain control type
Auto
Image quality adjustment
Brightness, Colour depth, Contrast, Sharpness
Bit rate control
Variable Bit Rate (VBR)
Audio
Audio system
1-way
Audio input channels
1
Audio formats supported
AAC-LC, ADPCM, LPCM, PCM
Sample rate
48 kHz
Built-in microphone
Y
Voice codecs
G.711, G.726, OPUS
Audio detection
Y
Network
Ethernet LAN
Y
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Supported network protocols
IPv4, IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS L3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP
Wi-Fi
N
Bluetooth
N
Quality of Service (QoS) support
Y
Streaming method
Multicast, Unicast
Storage
Built-in HDD
N
Card reader integrated
Y
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory
512 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Microphone in
Y
DC-in jack
Y
Security
Password protection
Y
Password protection type
User
Video motion detection
Y
Active tampering alarm
Y
IP address filtering
Y
Security algorithms
EAP-TLS
HTTPS encryption
Y
Power
Power source type
DC, PoE
Power consumption (typical)
3.8 W
Power consumption (max)
6.49 W
Power consumption (Power over Ethernet (PoE))
6.49 W
DC output voltage
8, 28
Operational conditions
Operating temperature (T-T)
-20 - 50 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 85%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
70 mm
Depth
148 mm
Height
46 mm
Packaging content
Number of cameras
1
Mounting kit
Y
Manual
Y
