Introduction
Great video performance

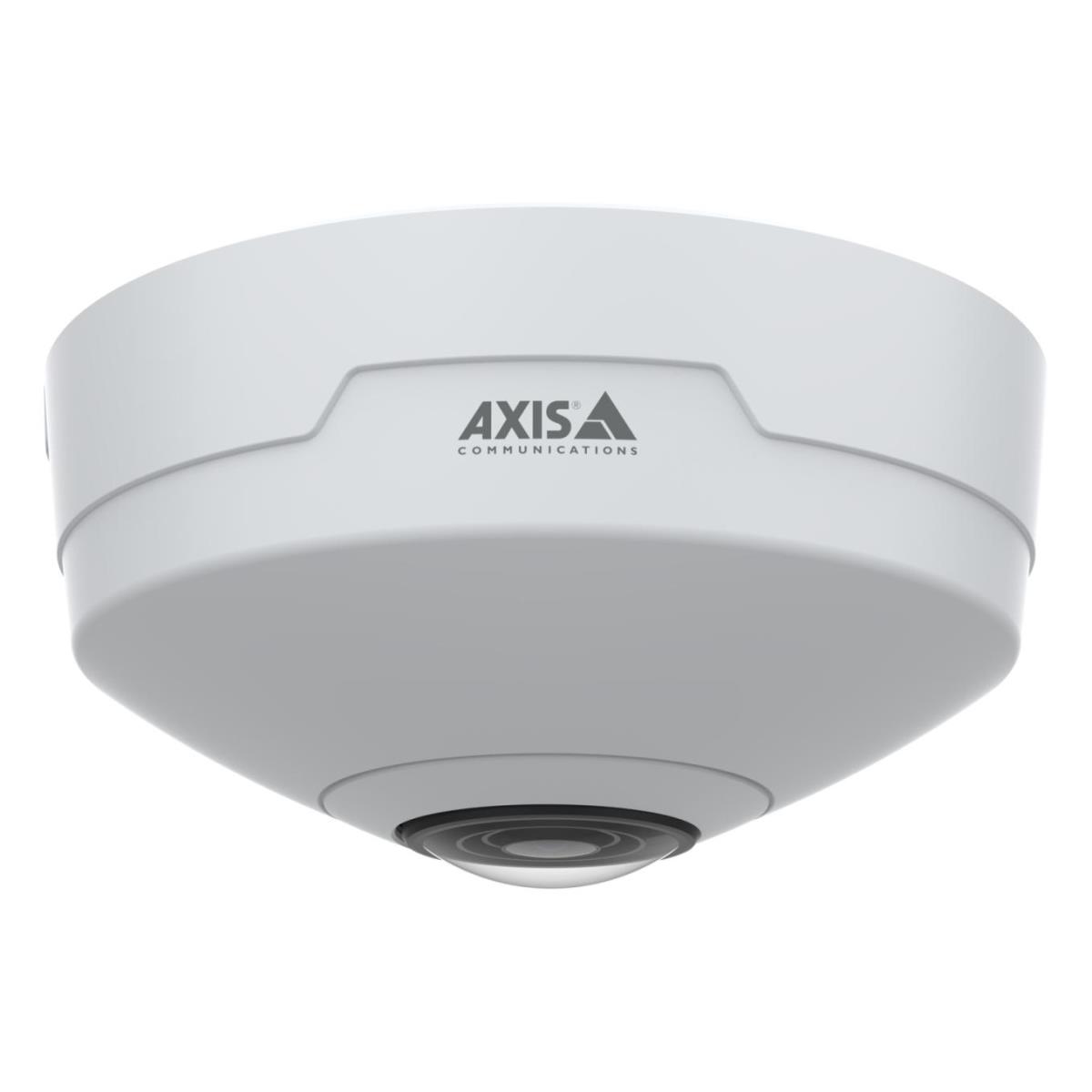

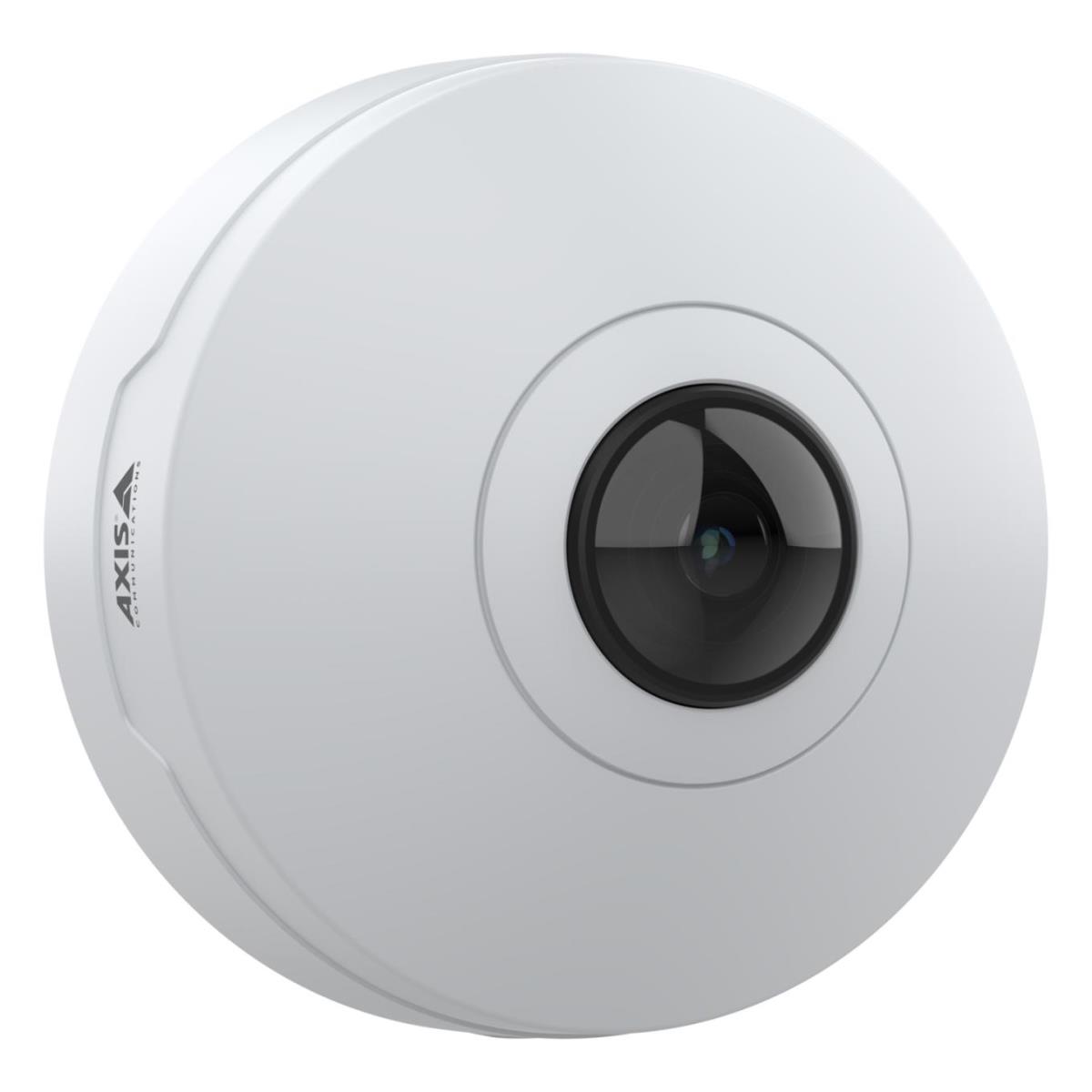

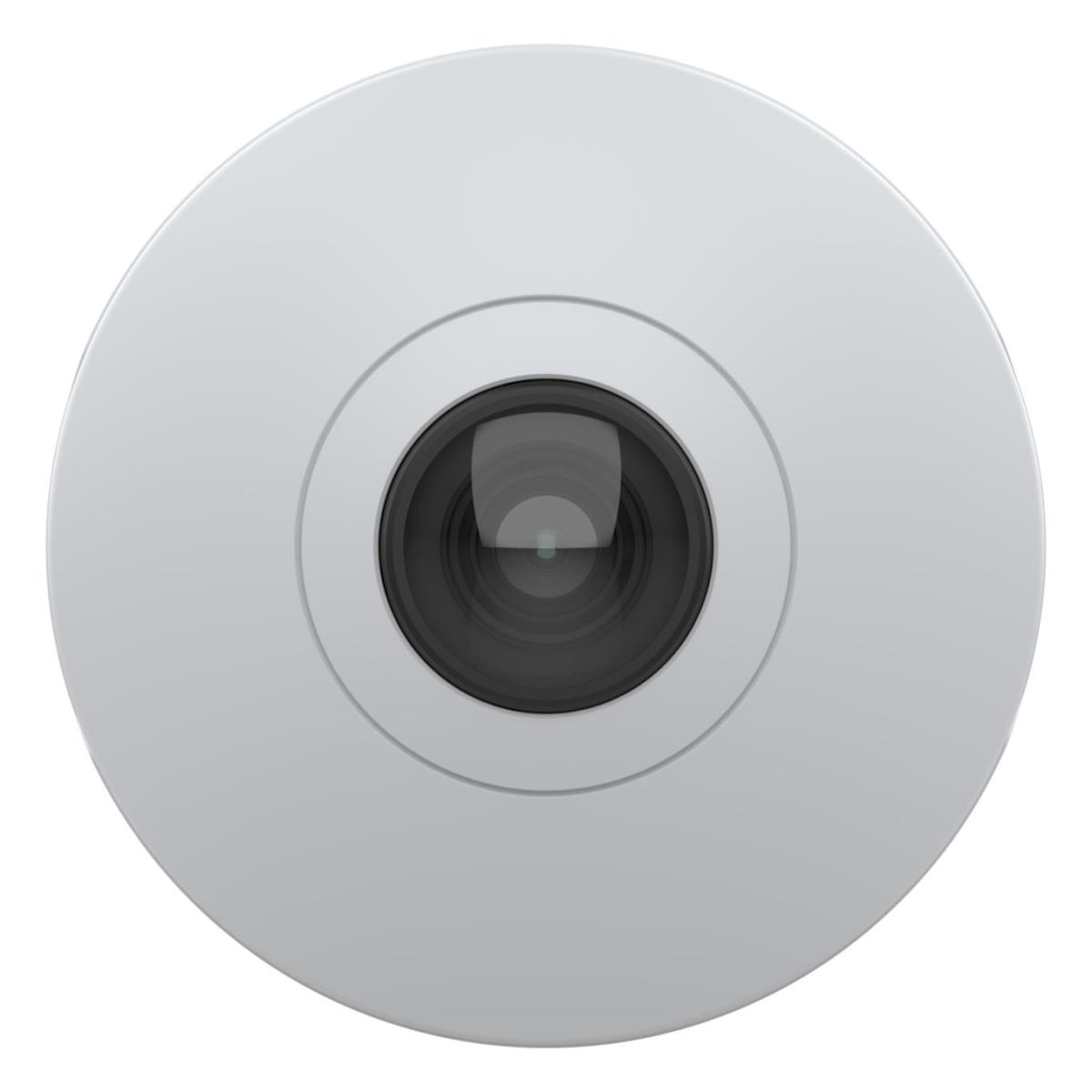

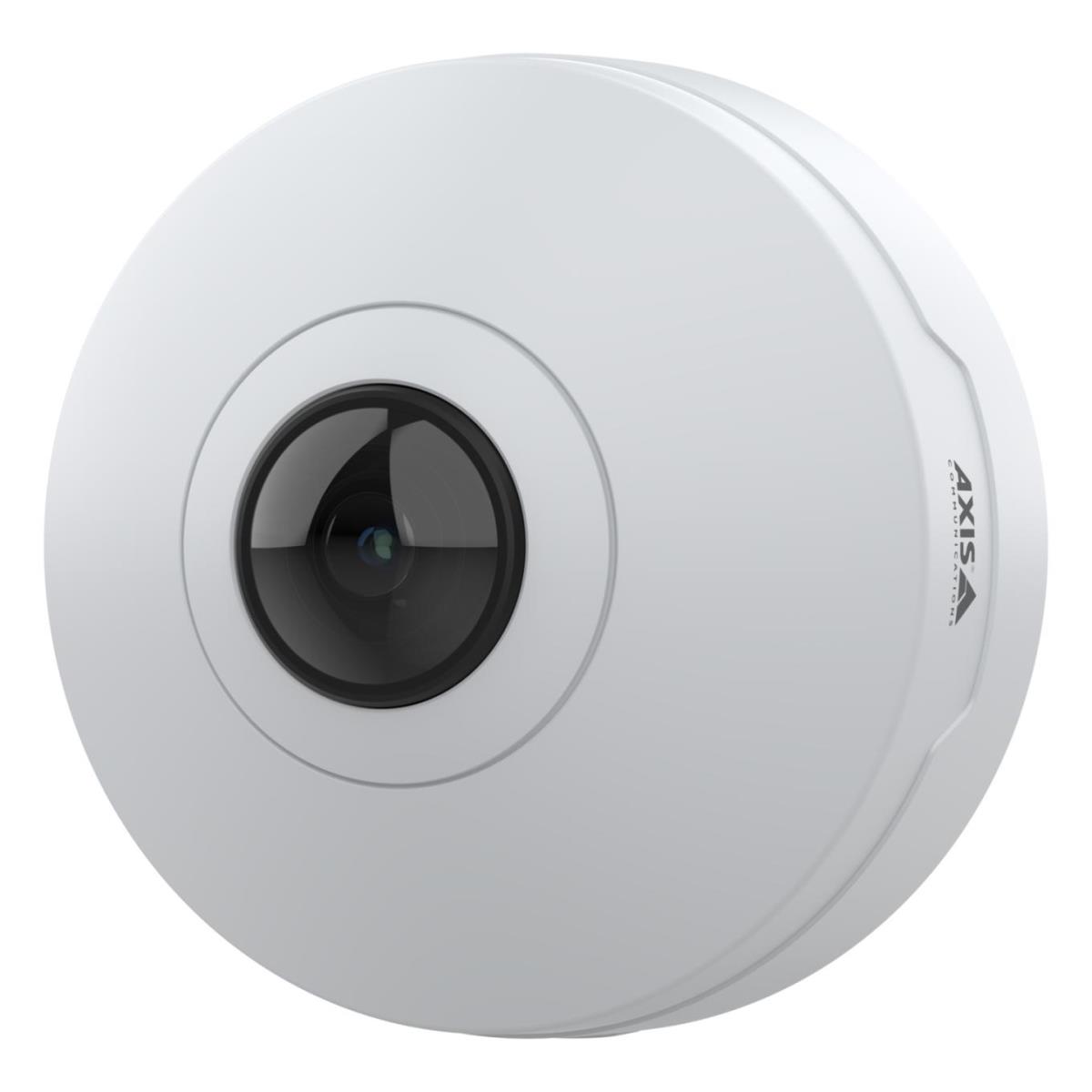

AXIS M4328-P offers a complete overview with outstanding sharpness, great detail, and no blind spots. This 12 MP camera delivers 360° or 180° panoramic overviews. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. With its stereoscopic lens and digital PTZ, you can choose what to see in the view areas and at what zoom level in up to four areas simultaneously. Furthermore, built on ARTPEC-8, the latest Axis system-on-chip (SoC), this panoramic camera enables improved image processing and great image quality.
Deep learning on the edge
This indoor fisheye camera includes a deep learning processing unit (DLPU) enabling improved processing and storage capabilities. Plus, you can collect and analyze even more data than before — on the edge. Additionally, it delivers valuable metadata, facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it’s possible to detect and classify moving objects in a scene — all tailored to specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.
Great look and ease of installation
This discreet, ultra-compact, affordable camera is quick and easy to install. With accessory casings available, it can also be repainted to blend in with any surroundings. It’s delivered factory-focused. And, thanks to digital roll functionality, you can remotely adjust the rotation of the camera overview – no need to do it manually on the camera. Furthermore, Axis Zipstream, with support for H.264 and H.265, significantly reduces bandwidth and storage requirements without compromising image quality.
Performance
Type
IP security camera
Placement supported
Indoor
Connectivity technology
Wired
PTZ control
Y
PTZ modes
Digital PTZ, Preset point
Wide Dynamic Range (WDR)
Y
Day/night mode
Y
Infrared (IR) cut-off filter
Y
Number of languages
20
Languages support
Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese
Certification
CSA, UL/cUL, BIS, UKCA, CE, KC
EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2
Australia/New Zealand: RCM AS/NZS CISPR 32 Class A
Canada: ICES-3(A)/NMB-3(A)
Japan: VCCI Class A
Korea: KS C 9835, KS C 9832 Class A
USA: FCC Part 15 Subpart B Class A
IEC/EN/UL 62368-1 ed. 3, CAN/CSA C22.2 No. 62368-1 ed. 3, IS 13252
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78
NIST SP500-267
Design
Form factor
Dome
Mounting type
Ceiling/wall
Product colour
Black, White
LED indicators
Y
Housing material
Plastic
Camera
Minimum illumination
0.04 lx
Lens viewing angle, horizontal
182°
Lens viewing angle, vertical
182°
Camera shutter speed
1/8100 - 1/2 s
Image sensor
Number of sensors
1
Optical sensor size
25.4 / 2.3 mm (1 / 2.3")
Progressive scan
Y
Sensor type
CMOS
Lens system
Number of lenses
1
Fixed focus
Y
Fixed focal length
2.2 mm
Video
Maximum resolution
2992 x 2992 pixels
Total megapixels
12 MP
Video formats supported
AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions
256 x 144, 384 x 288, 2048 x 1536 (QXGA), 2560 x 1920, 2880 x 2880, 3840 x 2160
Frame rate
30 fps
Video streaming
Y
Noise reduction
Y
Noise reduction technology
2D noise reduction, 3D noise reduction
Image quality adjustment
Brightness, Contrast, Saturation, Sharpness
Text caption overlay
Y
Bit rate control
Variable Bit Rate (VBR)
Audio
Network
Ethernet LAN
Y
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.3af, IEEE 802.3at
Supported network protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR
Quality of Service (QoS) support
Y
Streaming method
Multicast
Storage
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory
8192 MB
Internal memory
2048 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Security
Password protection
Y
Video motion detection
Y
Active tampering alarm
Y
IP address filtering
Y
Security algorithms
256-bit AES-XTS, EAP-TLS, TLS
HTTPS encryption
Y
Alert notification type
E-mail
Privacy protection
Y
Pixel counter
Y
Human and vehicle targets classification
Y
Digest authentication
Y
Management features
Behavior analysis
Line crossing detection
Power
Power source type
PoE
Power consumption (typical)
3.5 W
Power consumption (max)
5.1 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 85%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
101 mm
Depth
101 mm
Height
51 mm
Weight
300 g
Packaging content
Number of cameras
1
Manual
Y
Technical details
Sustainability certificates
RoHS
Doesn't contain
PVC/BFR
