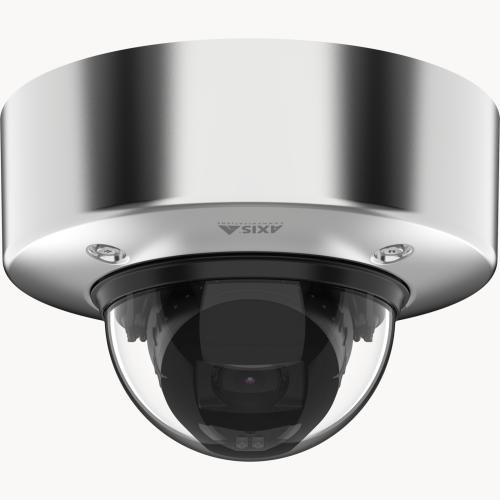

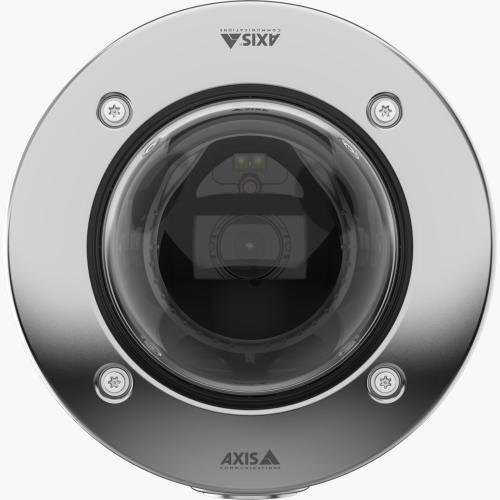

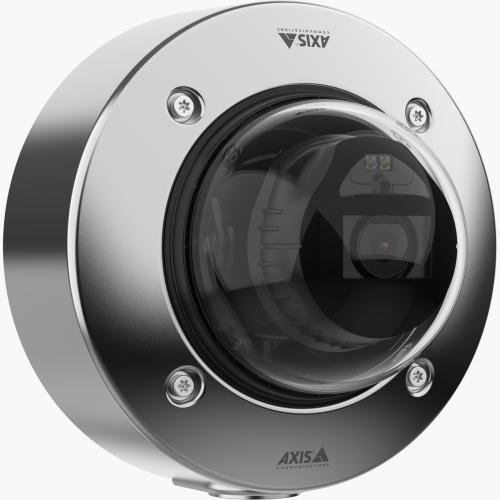

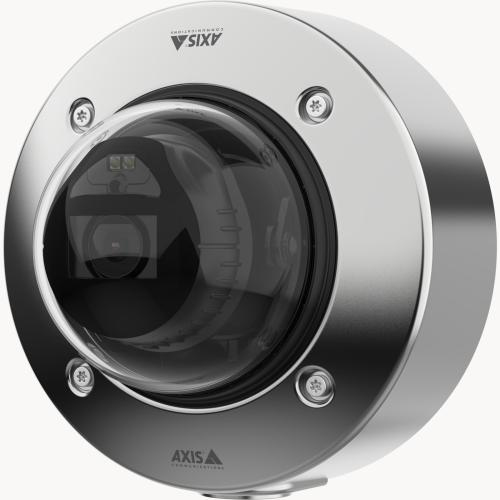

Introduction
Certified for use in food processing facilities, this robust camera is enclosed in an marine-grade stainless steel (SS 316L) casing. It offers excellent image quality in 4K and supports advanced analytics based on deep learning on the edge.
Maintenance-friendly and robust
Enclosed in an electropolished, marine-grade stainless steel (SS 316L) casing, DNV-certified, this robust camera can withstand the corrosive effects of seawater as well as cleaning chemicals. Easy to clean and maintain, it’s certified by NSF/ANSI to Standard 169 (Special Purpose Food Equipment and Devices) for use in food processing facilities. Furthermore, this IK11-, NEMA 4X-, and IP66/67/68-rated camera is both weather-proof and impact-resistant. And it can withstand extreme temperatures between -40 °C to 50 °C (-40 °F to 122 °F).
Excellent image quality
AXIS P3268-SLVE delivers excellent image quality and forensic details in 8 MP at up to 30 fps. Plus, it offers a wide field of view of up to 100°. Thanks to Lightfinder 2.0 and Forensic WDR, you’ll enjoy true colors and great detail in challenging light or near darkness. And OptimizedIR ensures sharp, clear footage in complete darkness up to 40 m (130 ft) without the need for extra lighting.
Deep learning analytics on the edge
Built on ARTPEC-8, the latest Axis system-on-chip (SoC), this high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before—on the edge. Additionally, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge. Furthermore, it includes Axis Edge Vault, a hardware-based cybersecurity platform that guarantees the device’s integrity and protects it from unauthorized access.
Performance
Type
IP security camera
Placement supported
Indoor
Connectivity technology
Wired
PTZ control
Yes
Preset points
Yes
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Infrared (IR) cut-off filter
Yes
Processor model
ARTPEC-8
Built-in processor
Yes
Design
Form factor
Dome
Mounting type
Ceiling/wall
Product colour
Black, Silver
Housing material
Polycarbonate (PC), Stainless steel
International Protection (IP) code
IP66, IP67, IP68
Camera
Camera pan control
Yes
Camera tilt control
Yes
Minimum illumination
0 lx
Angle of rotation
380°
Tilt angle range
-10 - 80°
Pan range
-190 - 190°
Camera shutter type
Electronic
Camera shutter speed
1/8500 s
Image sensor
Number of sensors
1
Optical sensor size
25.4 / 1.8 mm (1 / 1.8")
Progressive scan
Yes
Sensor type
CMOS
Lens system
Zoom capability
Yes
Number of lenses
1
Focal length range
4.3 - 8.6 mm
Closest focusing distance
0.5 m
Night vision
Night vision
Yes
Night vision distance
40 m
LED type
IR
Infra-red wavelength
850 nm
Video
Maximum resolution
3840 x 2160 pixels
Total megapixels
8 MP
Video formats supported
MPEG4
Video compression formats
H.264, H.265, M-JPEG
Frame rate
30 fps
Video streaming
Yes
Gain control type
Auto
Image quality adjustment
Brightness, Contrast, Mirror, Saturation, Sharpness
Text caption overlay
Yes
Audio
Audio system
2-way
Audio formats supported
AAC-LC, G.711, G.726, LPCM
Network
Ethernet LAN
Yes
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.3af, IEEE 802.3at
Supported network protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf)
Wi-Fi
No
Bluetooth
No
Storage
Built-in HDD
No
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory
8192 MB
RAM capacity
2048 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Microphone in
Yes
Security
IP address filtering
Yes
Security algorithms
EAP-TLS, HTTPS
Management features
Web-based management
Yes
Remotely operated
Yes
Power
Power source type
PoE
Power consumption (typical)
5.5 W
Power consumption (max)
11.2 W
Operational conditions
Operating temperature (T-T)
-40 - 50 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 100%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Height
112 mm
Diameter
16.6 cm
Weight
1.76 kg
Sustainability
Compliance certificates
BIS, CE, KC, NSF, RCM, Trade Agreements Act (TAA), UKCA, UL, VCCI, WEEE, cUL
Packaging content
Number of cameras
1
Screws included
Yes
Manual
Yes
