Introduction
Wide-angle and close-up views in one with IR
Ideal for building and perimeter protection, this dual-sensor, AI-powered box camera offers both wide-angle and close-up views of the same scene. It delivers excellent image quality under any light conditions.
Excellent wide-angle and close-up images 24/7

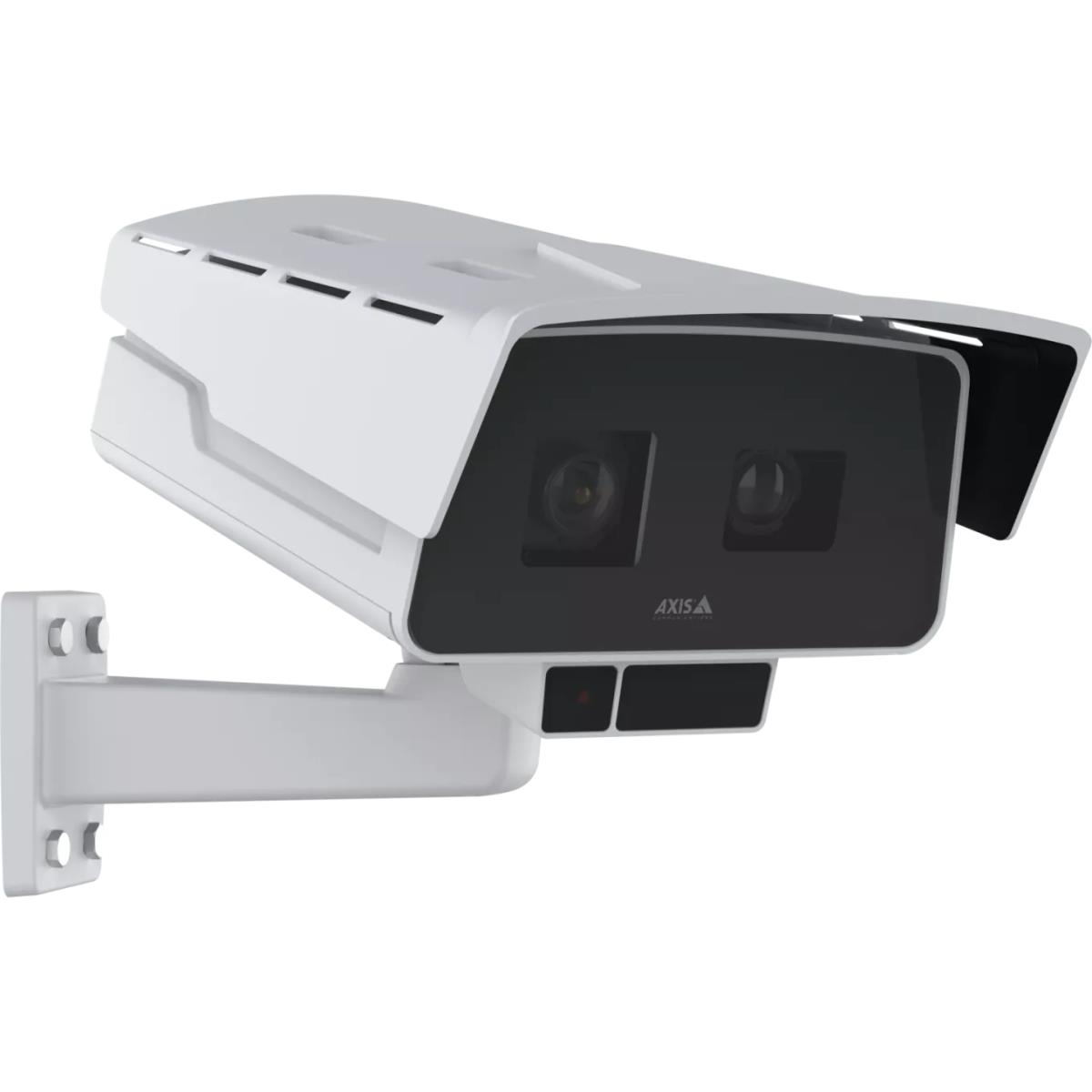

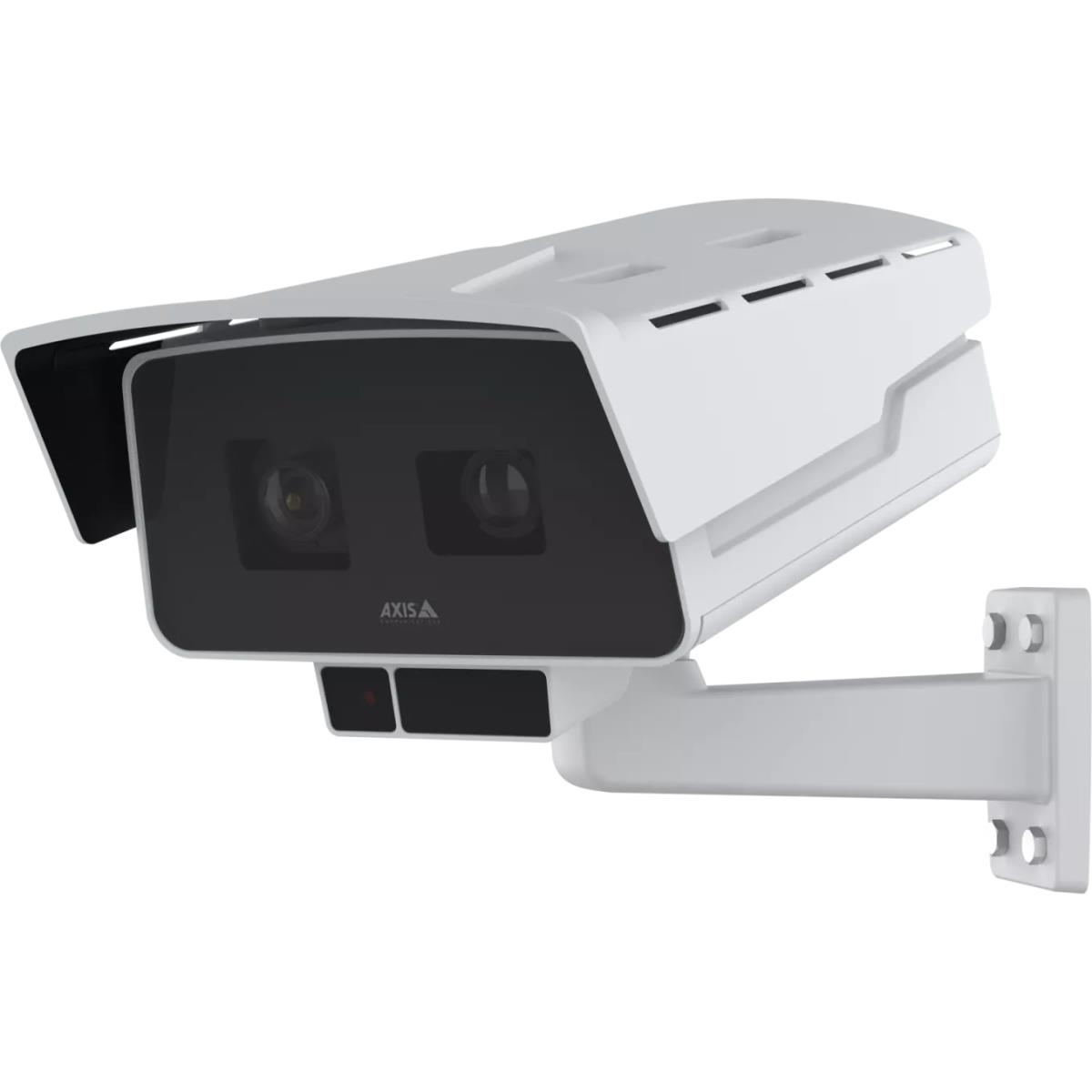

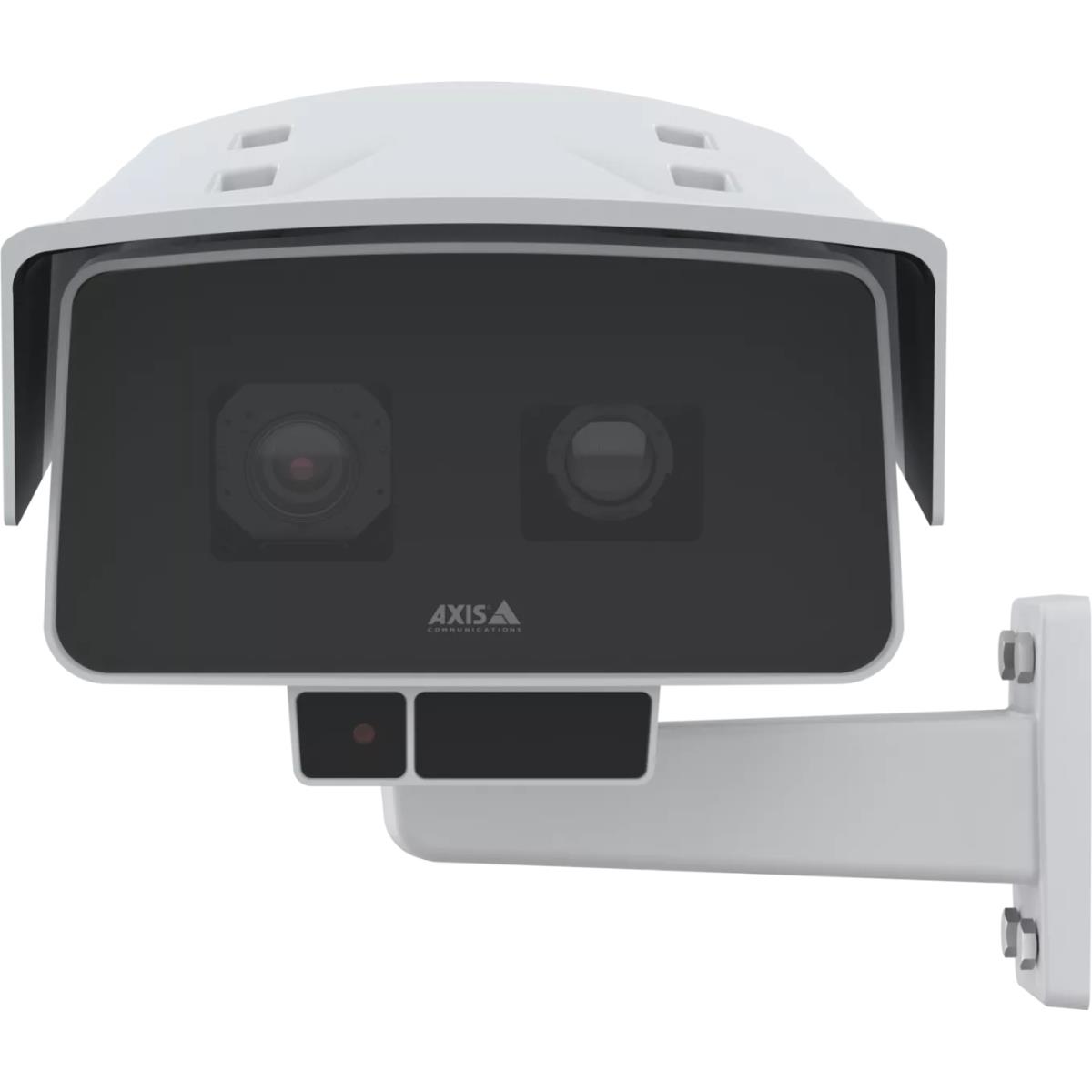

AXIS P1518-LE lets you see it all. With two sensors, you get two different views in one camera. One 1/1.2” image sensor offers exceptional low-light sensitivity and 8 MP at 30 fps for excellent wide-angle images in all light conditions. The other 1/2.8” sensor delivers 2 MP at 60 fps for close-up images without motion blur. Ideal at entrances and property fences, you can monitor the wide-angle overview and get a close-up view of anyone approaching. Lightfinder 2.0 and Forensic WDR ensure true colors and great forensic detail in challenging light or near darkness. And OptimizedIR enables surveillance in total darkness.
Smart investment: cost-efficient and robust
AXIS P1518-LE offers easy installation with low total cost of ownership. That’s because there’s only one camera to install, one cable to draw, one IP address, one VMS license, and one license for any analytics you choose to install. Plus, you only need to maintain one camera. And the tele lens offers fast and accurate installation thanks to its remote zoom and focus capabilities, combined with remote pan and tilt settings for minor adjustments. Robust and outdoor-ready, it can be installed, for instance, at intersections to monitor traffic flow and capture vehicle details. Furthermore, this IP66-, IP67-, IK10- and NEMA 4X-rated camera can withstand hurricane winds up to 60 m/s (134 mph).
AI-powered analytics with strong security
This high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before - on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. With AXIS Object Analytics preinstalled, it can detect and classify humans, vehicles, and types of vehicles - all tailored to your specific needs. Furthermore, Axis Edge Vault, a hardware-based cyber-security platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations.
Design
Form factor
Box
Product colour
Black, White
Mounting type
Wall
Housing material
Aluminium, Plastic
International Protection (IP) code
IP66, IP67
IK code
IK10
Image sensor
Optical sensor size
25.4 / 1.2 mm (1 / 1.2")
Sensor type
CMOS
Number of sensors
2
Progressive scan
Yes
Performance
Type
IP security camera
Placement supported
Outdoor
Connectivity technology
Wired
Preset points
Yes
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Infrared (IR) cut-off filter
Yes
Languages support
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese
Certification
CSA, UL/cUL, CE, KC, EAC, VCCI, RCM, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 50121-3-2, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, IEC/EN 62261 risk group exempt, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 Type 4X, NIST SP500-267, ETSI EN 303 645, BSI IT Security Label, FIPS 140
Camera
Camera pan control
Yes
Camera tilt control
Yes
Minimum illumination
0.01 lx
Angle of rotation
270°
Lens viewing angle, horizontal
114 - 46°
Lens viewing angle, vertical
62 - 26°
Tilt angle range
15 - 15°
Pan range
-15 - 15°
Camera pixel size
2.9 µm
Camera shutter speed
1/66,500 to 2
Lens system
Zoom capability
Yes
Number of lenses
2
Auto focus
Yes
Maximum aperture number
1.5
Minimum aperture number
2.9
Closest focusing distance
1 m
Night vision
Night vision
Yes
Night vision distance
50 m
LED type
IR
Infra-red wavelength
850 nm
Video
Maximum resolution
3840 x 2160 pixels
Total megapixels
8 MP
Video formats supported
AVC, H.264, H.265, HEVC, MJPG
Video compression formats
H.264, H.265, M-JPEG
Supported graphics resolutions
3840 x 2160, 2592 x 1944, 1280 x 800, 1280 x 960, 480 x 270, 640 x 400, 320 x 240
Frame rate
60 fps
Video streaming
Yes
Noise reduction
Yes
Noise reduction technology
2D noise reduction, 3D noise reduction
Image stabilizer
Yes
Image quality adjustment
Brightness, Contrast, Mirror, Saturation, Sharpness, White balance
Text caption overlay
Yes
Bit rate control
Adaptive Bit Rate (ABR), Variable Bit Rate (VBR)
Audio
Audio system
2-way
Audio formats supported
AAC-LC, G.711, G.726, LPCM, OPUS
Audio detection
Yes
Network
Ethernet LAN
Yes
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Quality of Service (QoS) support
Yes
Storage
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory
8192 MB
RAM capacity
2048 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Microphone in
Yes
Terminal block port
Yes
Security
Password protection
Yes
Video motion detection
Yes
Active tampering alarm
Yes
IP address filtering
Yes
HTTPS encryption
Yes
Alert notification type
E-mail
Privacy protection
Yes
Pixel counter
Yes
Digest authentication
Yes
Management features
Power
Power source type
DC, PoE
Power consumption (typical)
13.2 W
Power consumption (max)
25.5 W
Power consumption (Power over Ethernet (PoE))
25.5 W
Operational conditions
Operating temperature (T-T)
-40 - 60 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 100%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Sustainability
Compliance certificates
CSA, CE, EAC, KC, RCM, REACH, RoHS, TAA, VCCI, UL
Packaging content
Number of cameras
2
Manual
No
Other features
